Traxxas - Velineon® VXL-3M Waterproof 1/16 Scale Brushless Power System (4000Kv)

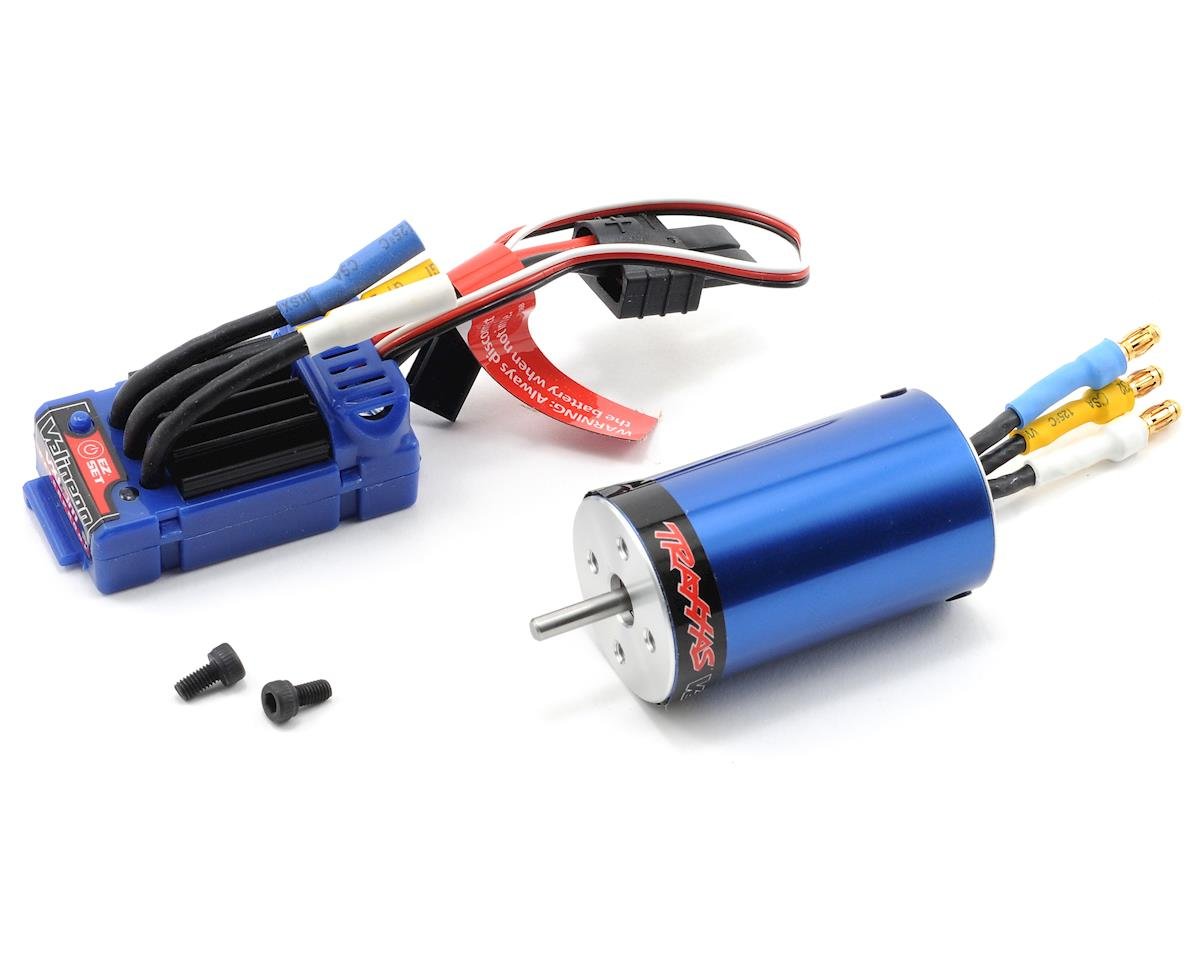

The Traxxas Velineon VXL-3m ESC paired with the Velineon 380 brushless motor is a high-performance combo designed specifically for 1/16 scale vehicles. The VXL-3m ESC simplifies brushless operation with built-in drive profiles and intuitive programming, allowing sensorless brushless motors to run as smoothly and precisely as the best brushed systems. Traxxas’ patent-pending Training Mode™ ensures beginner-friendly control by limiting full throttle to 50%, while advanced users can utilize two-stage low-voltage detection for safe LiPo operation.

Features

• Multi-color LED provides operational feedback
• Two-stage thermal shutdown protection prevents overheating
• Locked Rotor Protection™ cuts power to prevent motor damage
• Battery Over-Voltage Protection™ for failsafe operation
• Water-resistant case with rubber seals and O-rings
• Micro-fin aluminum heatsink for efficient heat dissipation
• MOSFET design provides ultra-high current output (326A peak) with extremely low resistance (0.0005Ω)
• Gold-plated 3.5mm bullet connectors on 16-gauge Maxx® Cable for maximum power transfer


Specifications

ESC:

• Input Voltage: 6–12 cells NiMH, 2–3S LiPo
• Case Size (L×W×H): 46.5 × 26.5 × 22 mm
• Weight: 38 g
• Motor Type: Sensorless Brushless
• Motor Limit: None
• On Resistance: 0.0005 Ω
• PWM Frequency: 12,000 Hz
• Peak Current: 326A
• Continuous Current: 52A
• BEC Voltage: 6.0V DC
• Motor / Battery Wiring: 16-Gauge Maxx® Cable
• Transistor Type: MOSFET
• Low Voltage Detection: 2-Stage indicators, switchable


Motor:

• Type: Sensorless Brushless
• kV (RPM/Volt): 4000 kV (8 Turn)
• Magnet Type: High Temp Sintered Neodymium
• Connection Type: TRX 3.5mm Bullet
• Wire Size: 16-Gauge Maxx® Cable
• Continuous Current: 25A
• Max Burst Current: 50A
• Max RPM: 50,000
• Weight: 140 g (4.94 oz)
