TRAXXAS | SKU: TRA55077-3

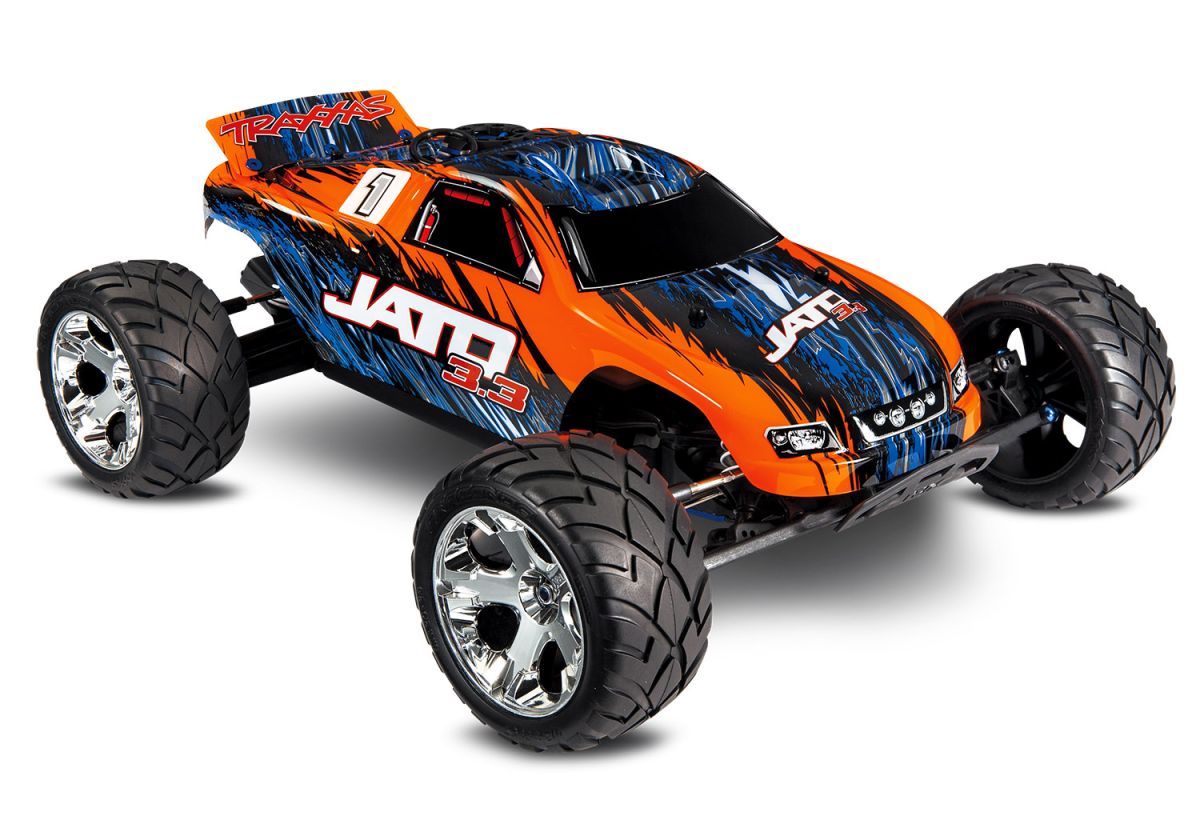

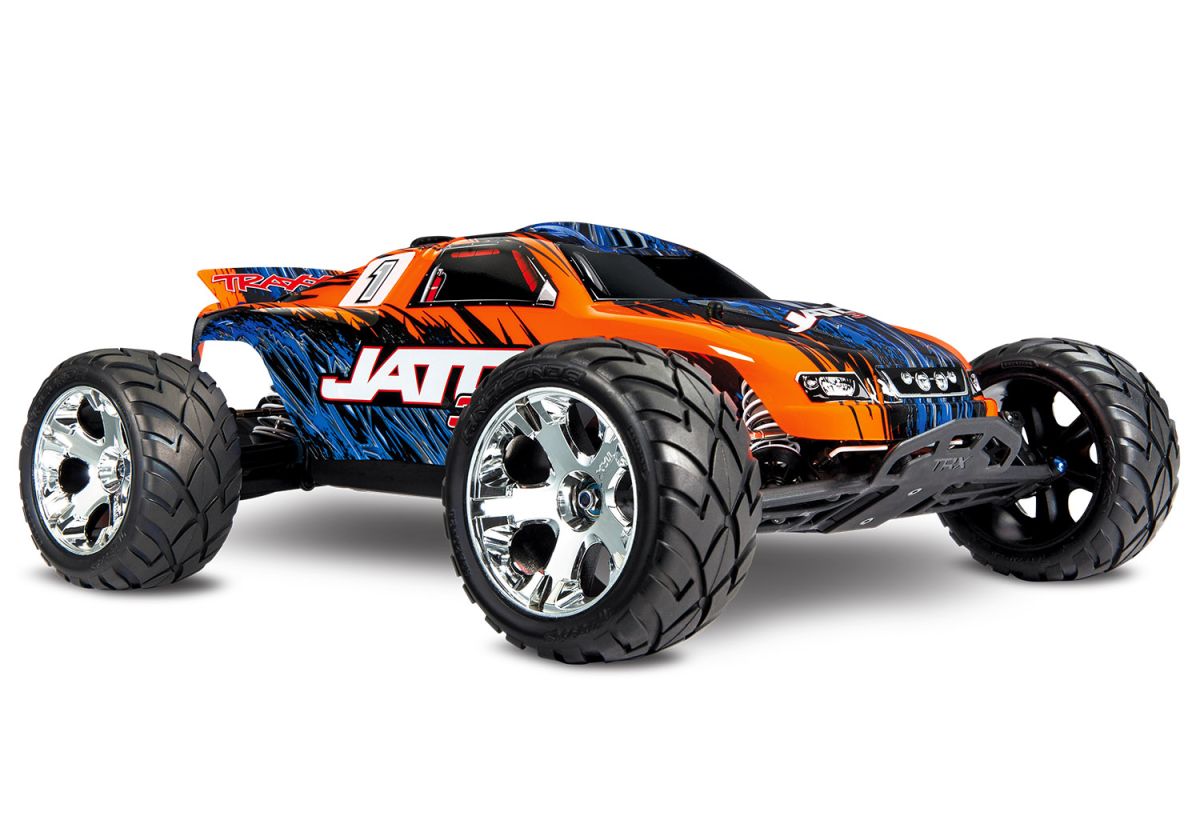

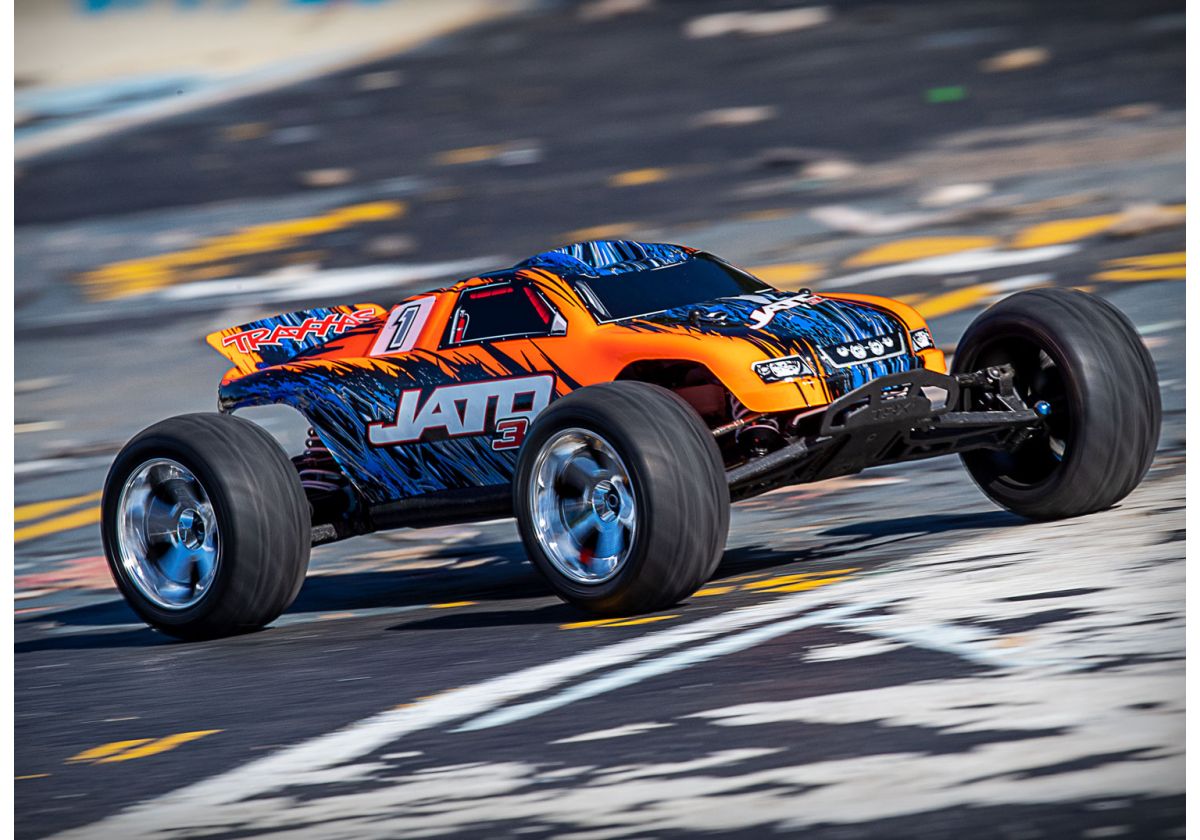

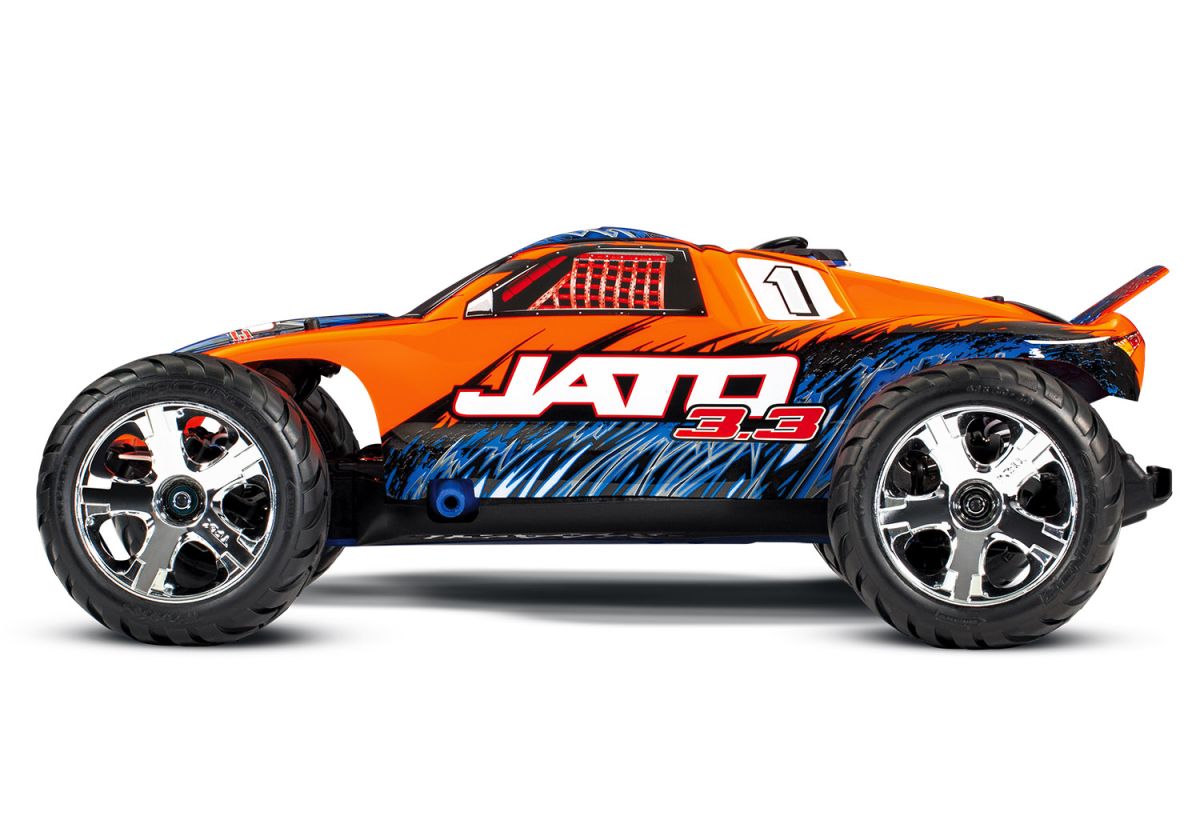

TRA55077-3 Jato 3.3

$499.95

Driveline:	2WD
Transmission:	Auto two-speed
Differential Type:	Hardened-steel bevel gear, sealed
Gear Ratio (Internal):	9.77:1 (1st gear total gear reduction) 7.29:1 (2nd gear total gear reduction)
Gear Pitch:	32 pitch
Steering Servo:	2055 high-torque
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM^® receiver and 6511 Wireless Module
Size:	3.3 cc
Starter:	Electric EZ-Start^®
Carburetor:	Two-needle slide carburetor
Air Filter:	Dual-stage foam
Tank Size:	75 cc

MOTOR SPECS

ProGraphix^® Painted Body
- Pre-painted body with applied decals
- Aggressive, aerodynamic body with rear wing
- Integrated dirt guards form a barrier against dirt and rocks.
- Includes wheelie bar
TRX^® 3.3 Racing Engine
- Large bore piston and sleeve deliver extreme power
- High-volume dual-stage air filter
- Tuned blue aluminum Resonator™ exhaust pipe
- Slide carburetor
- Knife-edged connecting rod
- Large aluminum blue-anodized cooling head
- Super-light piston and rod
- High-performance ball bearings
EZ-Start^® Electric Starting System
- Lights the glow plug and cranks the engine with the push of a button
- Status LEDs
- Includes starter battery and charger
Traxxas Stability Management^® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the vehicle

Adjusts from off to 100% assistance from the transmitter
TQi™ 2.4 GHz High Output Radio System
- 2-channel high output transmitter
- Includes Traxxas Link™ Wireless Module
- Factory installed speed, RPM, and temperature telemetry sensors
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- 5-channel TSM receiver (6533) with fail-safe security and integrated telemetry ports
- Enclosed radio box protects sensitive electronics from dirt and fuel spills

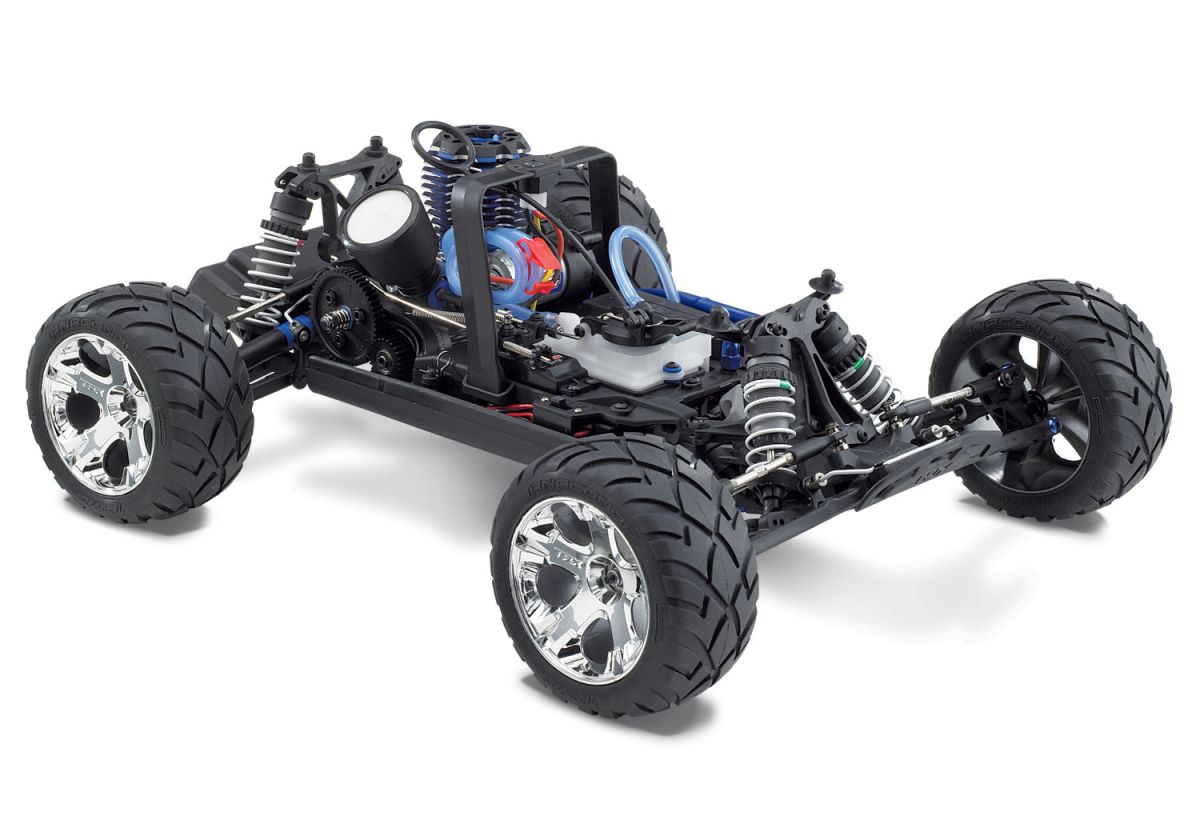

Blue-Anodized Aluminum Chassis
- Strong 3 mm 6061-T6 aluminum construction
- Removable roll hoop helps protect critical chassis components
- The low-profile 75 cc fuel tank
Transmission and Driveline
- Adjustable two-speed transmission for unmatched acceleration and top speed
- Sealed gearbox protects transmission components from dirt and rocks
- Large diameter semi-metallic brake disc
- Sealed, limited-slip gear differential is fully tunable
  - Semi-metallic pads
  - Finned aluminum alloy pressure plates
  - Rubber seals for smooth, trouble-free performance

Extreme deflection for the most suspension travel
Steering
- High-torque Traxxas 2055 steering servo
- High-performance bellcrank system eliminates bump steer
Suspension
- Full suspension adjustability including caster, camber, toe, anti-squat, ride height, weight bias, and roll-center
- Front & rear sway bars
- Captured rod ends won't pop off
Springs and Shocks
- Precise GTR™ shocks provide smooth, consistent damping performance
- Threaded shock bodies for precise ride height adjustment
- White powder-coated springs
Wheels and Tires
- Super-sticky 2.8-inch Anaconda^® performance tires with foam inserts
- Tough 2.8″ bright chrome wheels
Backed by Unparalleled Traxxas Support and Parts Availability
Precision rubber-sealed ball bearings
Precision metric hex hardware throughout
