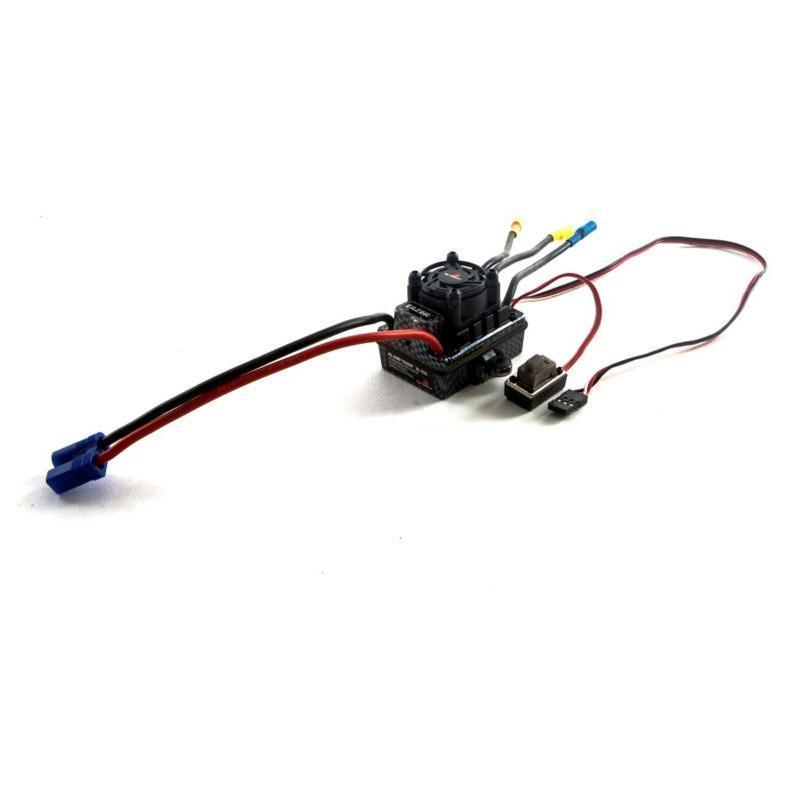

The ESC is available by itself and as a combo with a 6-pole brushless motor.
Auto Cutoff: | Yes |
BEC: | Yes |
BEC Continous Current: | 3A |
BEC Type: | Switch-Mode |
BEC Voltage: | 6V |
Battery Connector: | EC3 |
Battery Input Lead: | 14AWG, 6 in |
Brakes: | Yes |
Forward: | Yes |
Full On Resistance: | .0012 ohm |
Height: | 1.46 in (37mm) |
Input Voltage: | 2-3S LiPo/LiFe, 4-9 cells NiMh/HiCd |
Length: | 1.89 in (48mm) |
Low-Voltage Cutoff Programmable: | Yes |
Maximum Burst Current: | 290A |
Maximum Continuous Current: | 45A |
Motor Connector: | 3.5mm Bullet |
Motor Limit: | 2S LiPo - up to 6000KV . 3S LiPo - up to 4000KV |
Motor Output Lead: | 16 AWG, 4 in |
Overload Protection: | Yes |
Reverse: | No |
Type: | 45A Sensorless Brushless, Waterproof |
Weight: | 2.82 oz (80 g) |
Width: | 2.2 in (56.1mm) with mounting tabs, 1.46 in (37mm) without mounting tabs |
