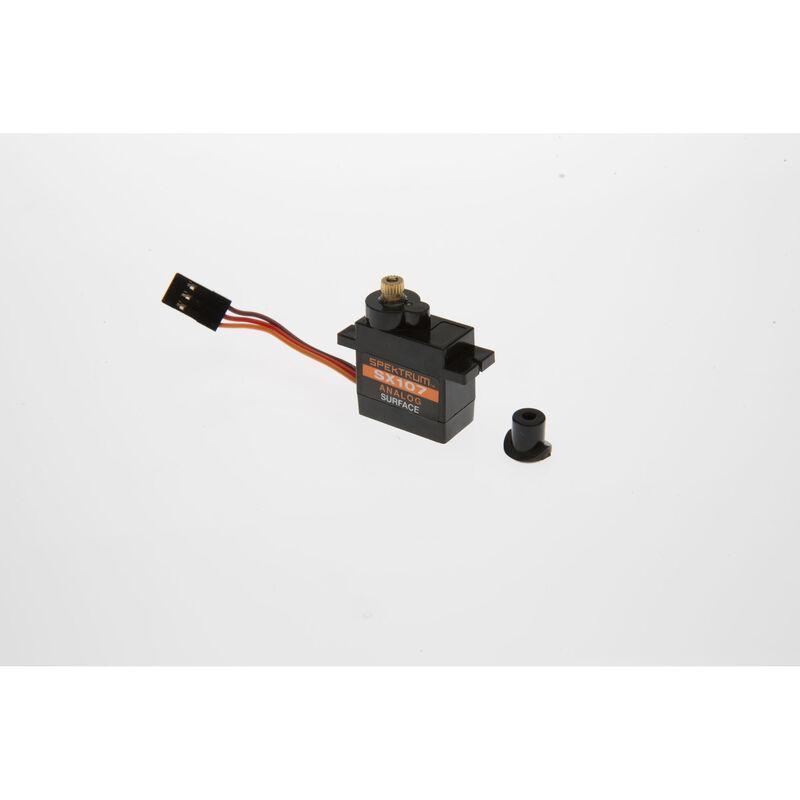

SX107 Micro Analog Metal Gear Surface Servo

  • Sale
  • Regular price $ 14.99


Product Details

The SX107 is purpose built for steering micro and mini models and is a great servo for utility functions like 2 – Speed transmissions and Dig. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 41.8 oz-in torque rating, the SX107 is the perfect mighty micro servo for your small scale vehicles.
In The Box
  • - SX107 Micro Analog Metal Gear Servo
  • - Spline to servo saver adapter
  • - Additional 4 inch extension

Product Specifications

Specs

Servo Type Analog
Servo Size Category Mini and Micro
Speed 4.8V 0.09 sec/60 deg, 6.0V 0.08 sec/60 deg
Torque 4.8V 34.9oz/in (2.5kg/cm), 6.0V 41.8oz/in (3.0kg/cm)
Servo Operating Voltage 4.8 - 6.0V
Maximum Servo Torque 40-99 oz-in
Product Height 0.87" (22.2mm)
Product Length 0.89" (22.8mm)
Product Weight 0.35oz (10g)
Product Width 0.49" (12.5mm)
Programmable No
Maximum Servo Speed 0.050-0.099 sec
Application Small scale vehicles
Gear Material Metal
