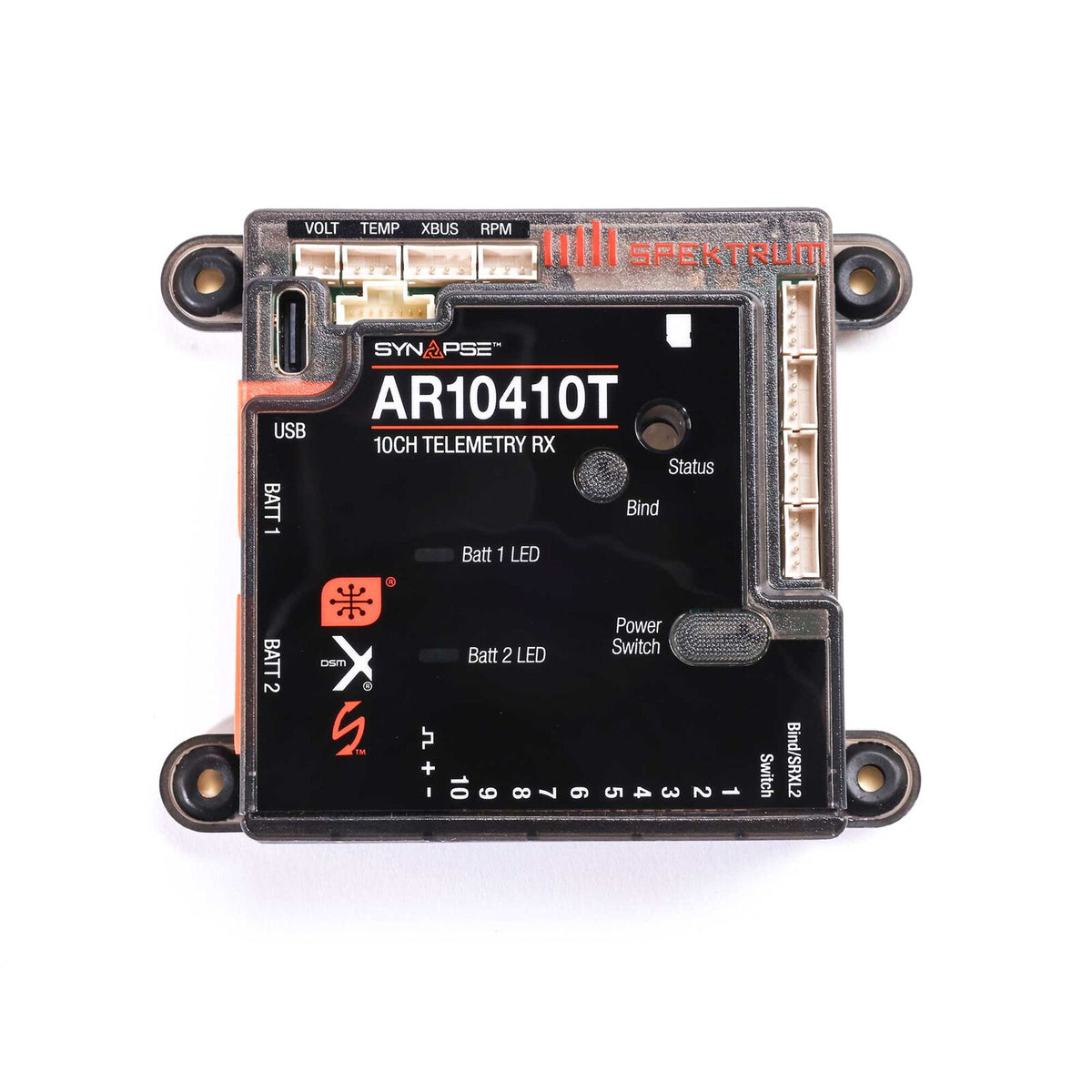

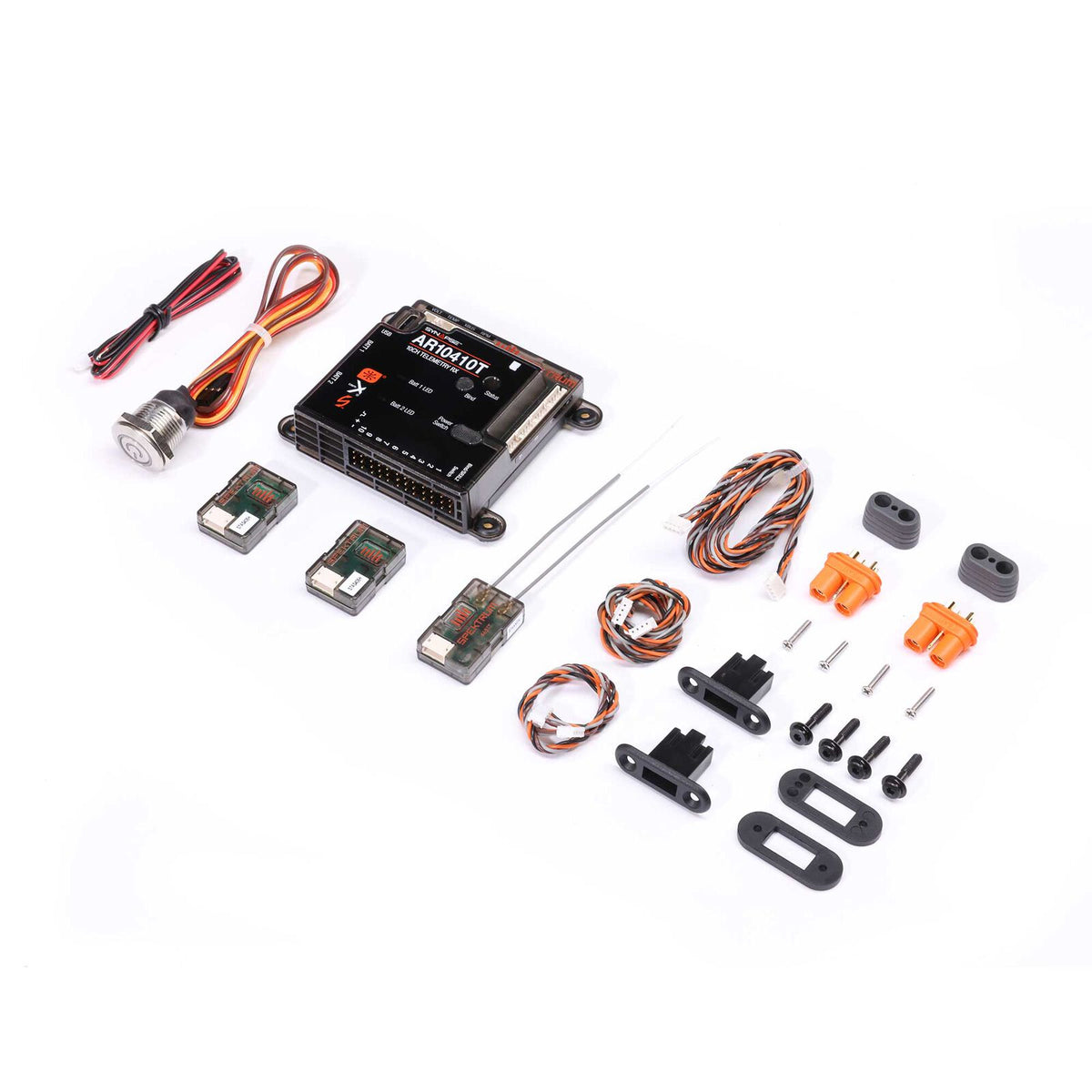

SPMAR10410T AR10410T 10-Channel PowerSafe Telemetry Receiver

SPMAR10410T AR10410T 10-Channel PowerSafe Telemetry Receiver Overview

The AR10410T is a 10-channel receiver with full-range telemetry that uses the Spektrum™ PowerSafe™ redundant battery system. It features connections for full telemetry support including RPM, Flight Pack Voltage and Temperature, and X-Bus. The receiver also has a built-in vario/altitude sensor and mAh sensors that allow tracking of consumed mAh. It can be powered through the servo bus or dual IC3™ connections. It is compatible with the Spektrum Synapse™ AS3X+ / SAFE (SPMAS6000) stabilization module, delivering instantaneous attitude corrections and enhancing flight stability.

Using an optional micro-SD card, the AR10410T can store flight data for later review as a CSV file. It also has a new, push-button PowerSafe LED soft switch or can be powered on and off through the on-board button. Additionally, the system can be put in sleep mode from a compatible Spektrum transmitter and woken up between flights and can be powered off from your compatible Spektrum transmitter as well. Bind can be initiated through the button or a bind plug. The AR10410T can be updated easily through the USB-C connection.

Spektrum AR10410T 10-Channel PowerSafe Telemetry Receiver Features

• Compatible with the Synapse™ AS3X+/SAFE Flight Stabilization Module (SPMAS6000, not included)
• Patented PowerSafe™ redundancy system with dual IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
• Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more
• Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
• Regenerative servo support for any number of servos
• USB-C port for easy product registration and firmware updates
• 12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
• Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
• Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)
• Integrated status LED provides helpful information during start up, warnings and mode indicators
• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
• Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors
• Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules
• Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted
• Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups
• Capable of high-speed 11ms frame rates
• Binding is easier than ever with four options to initiate the bind process
• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
• Stop Lock and Release Rate parameters
• Heading Hold improvements
• Improved gryo filtering
• Canard and Thrust Vectoring Support

Spektrum AR10410T 10-Channel PowerSafe Telemetry Receiver Product Specs
