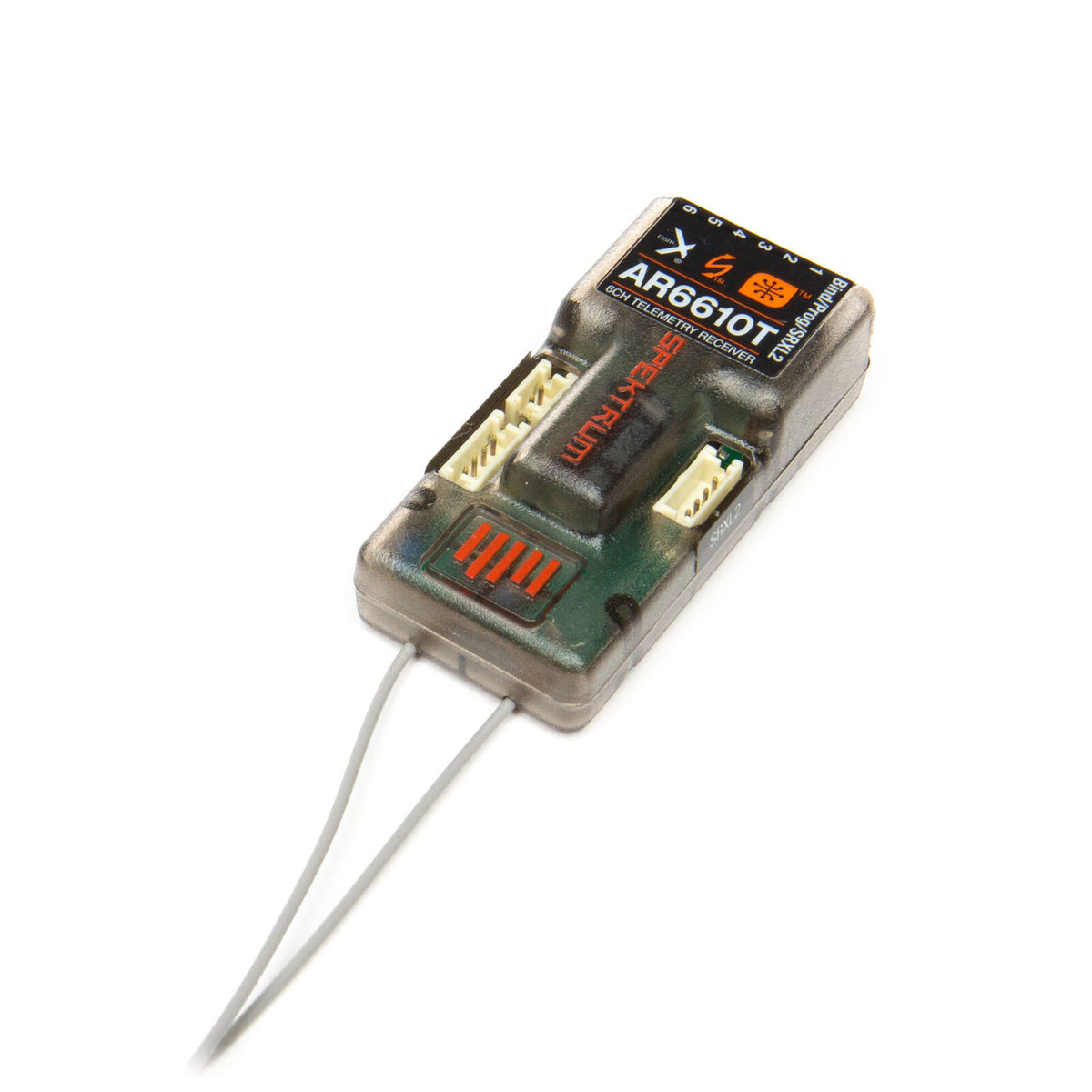

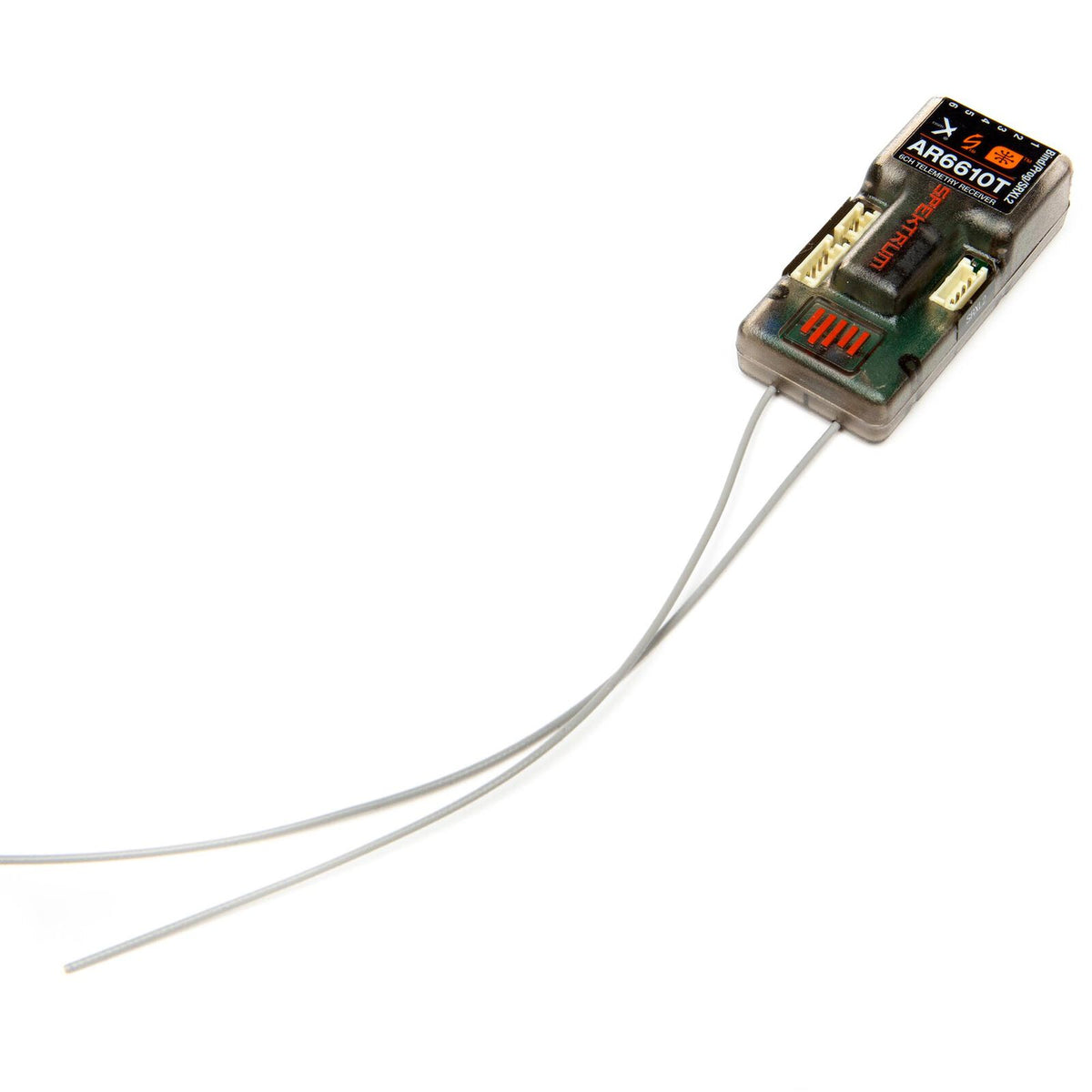

Spektrum AR6610T DSMX 6-Channel Telemetry Receiver

The Spektrum AR6610T is a compact 6-channel DSM2/DSMX receiver designed for high-performance aircraft, including 3D airplanes and helicopters. It delivers fast input-to-output response, full-range telemetry, and an integrated barometer for altitude and vario data. An SRXL2 port allows the use of a remote receiver for additional RF redundancy. The throttle port supports Smart Throttle, enabling one-wire telemetry from Smart ESCs. A bind button simplifies setup without plugs, and Forward Programming provides advanced failsafe and system options on compatible transmitters.

Features

• Compatible with all Spektrum DSM2/DSMX transmitters
• Compact size suitable for parkflyers, giant scale, and carbon-fiber DLG aircraft
• Full-range telemetry with integrated barometer (altitude/vario)
• Bind button for easy plug-free binding
• Dual external antennas for strong RF coverage
• Supports SRXL2 remote receiver for added redundancy
• Smart ESC ready for simple one-wire telemetry
• End-pin design for clean installation

Specifications

• Antenna Length: 6.10" (155 mm) & 7.32" (186 mm)
• Application: Air
• Band: 2.4GHz
• Bind Method: Bind Button
• Channels: 6
• Data Port: No
• Failsafe: Yes
• Flight Log Compatible: No
• Forward Programming: Yes
• Input Voltage: 3.5–9V
• Integrated Variometer: Yes
• Modulation: DSMX
• Product Application: Air, Sailplanes, Helicopters
• Product Height: 0.595" (15.02 mm)
• Product Length: 1.96" (49.8 mm)
• Product Weight: 0.42 oz (12 g)
• Product Width: 0.94" (23.3 mm)
• Programmable: Yes
• Range: Full
• Remote Receiver Ports: 1
• Resolution: 2048
• Rev Limiter: No
• Serial Out: SRXL2
• Technology: Standard
• Telemetry: Yes
• Telemetry Range: Full
• Water-Resistant: No
