REEFS | SKU:
SEHREEFS117

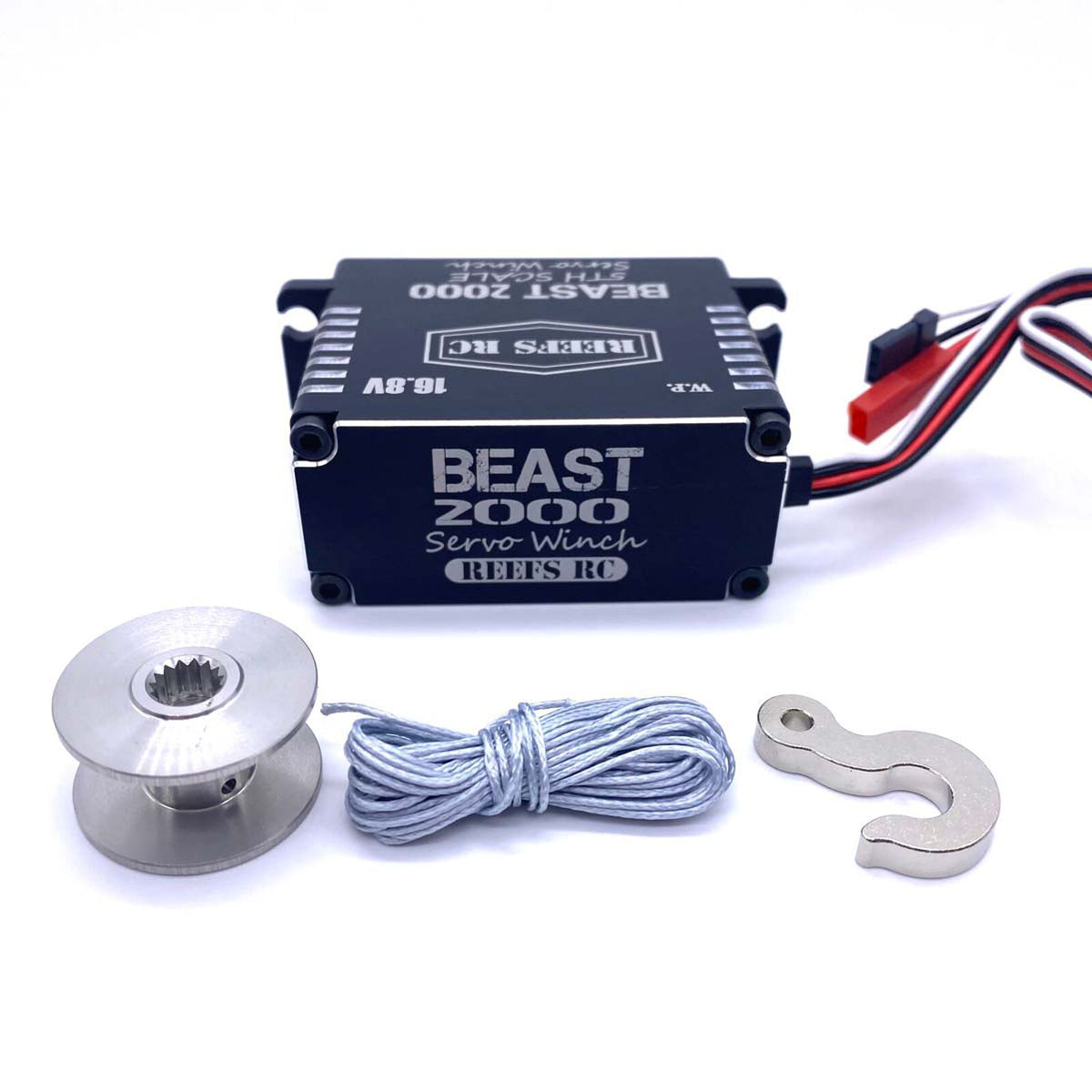

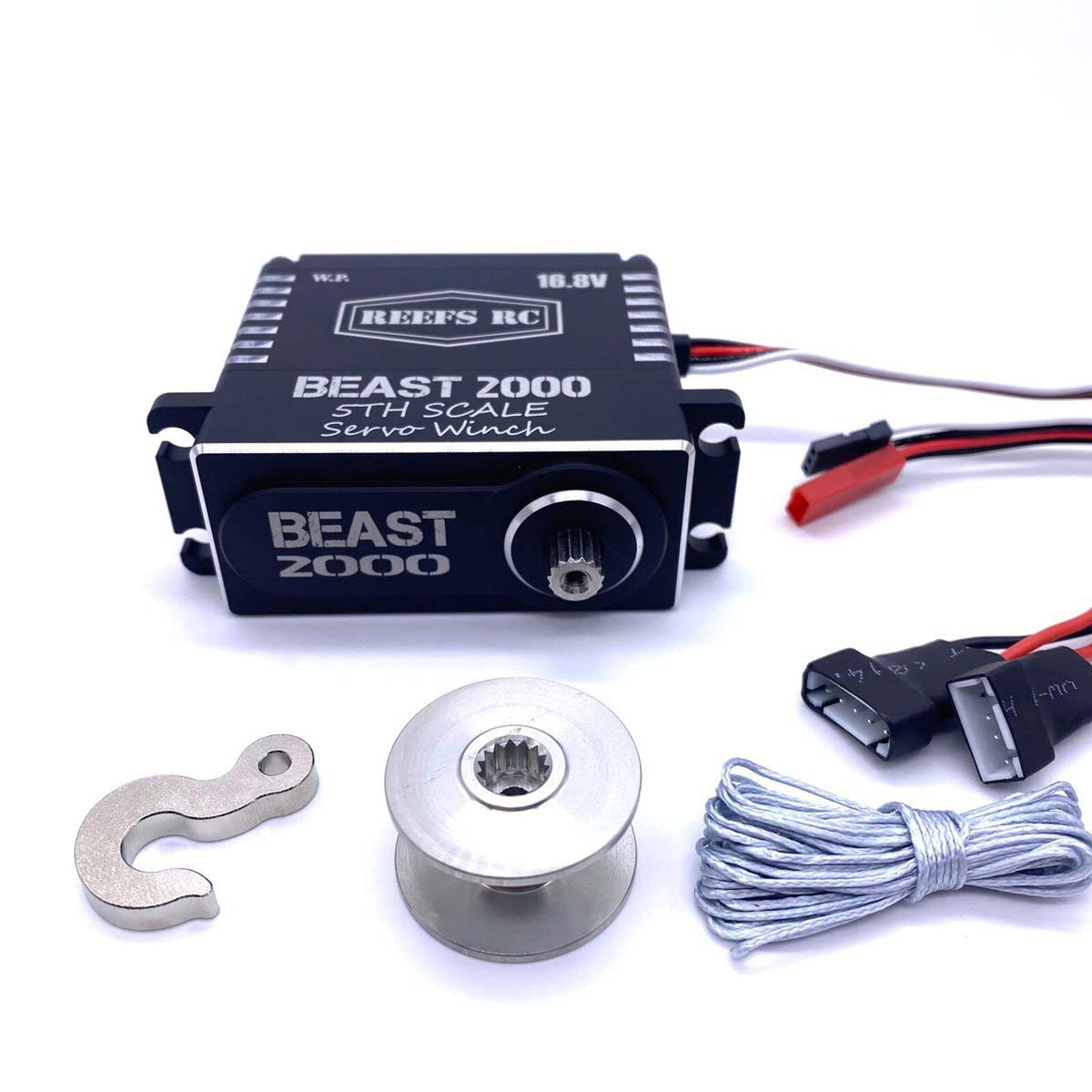

SEHREEFS117 RC Beast 2000 1/5 Scale Digital Metal Gear Waterproof Winch Servo, Black
Regular price
$449.99
Unit price
/
Unavailable
SEHREEFS117 RC Beast 2000 1/5 Scale Digital Metal Gear Waterproof Winch Servo, Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
SEHREEFS117 RC Beast 2000 1/5 Scale Digital Metal Gear Waterproof Winch Servo, Black Product Specs
- Application1/5 Cars, Trucks- Winch
- Bearing5 Ball Bearings
- Bushing Or BearingBearing
- Connector TypeJST-RCY, Universal
- Deadband2µs
- Gear TypeMetal
- Input Voltage7.4V ~ 16.8V
- Maximum Servo Speed0.11 sec/60 deg @ 10.0V, 0.105 sec/60 deg @ 11.1V, 0.10 sec/60 deg @ 12.0V, 0.09 sec/60 deg @ 14.4V, 0.08 sec/60 deg @ 16.0V
- Maximum Servo Torque1000oz/in @ 10V, 1250oz/in @11.1V, 1450oz/in @12V, 2000oz/in @ 16.8V
- Part TypeElectronics
- Product Height2.32" (59 mm)
- Product Length2.59" (66 mm)
- Product Weight10oz (285g)
- Product Width1.18" (30 mm)
- Servo Operating Voltage10.0V - 14.0V (HV)
- Servo Size CategoryGiant Scale
- Servo TypeDigital
- Spline Count15 - Tooth
- Water-ResistantYes
- Wire Gauge22 AWG
