REEFS | SKU:
SEHREEFS103

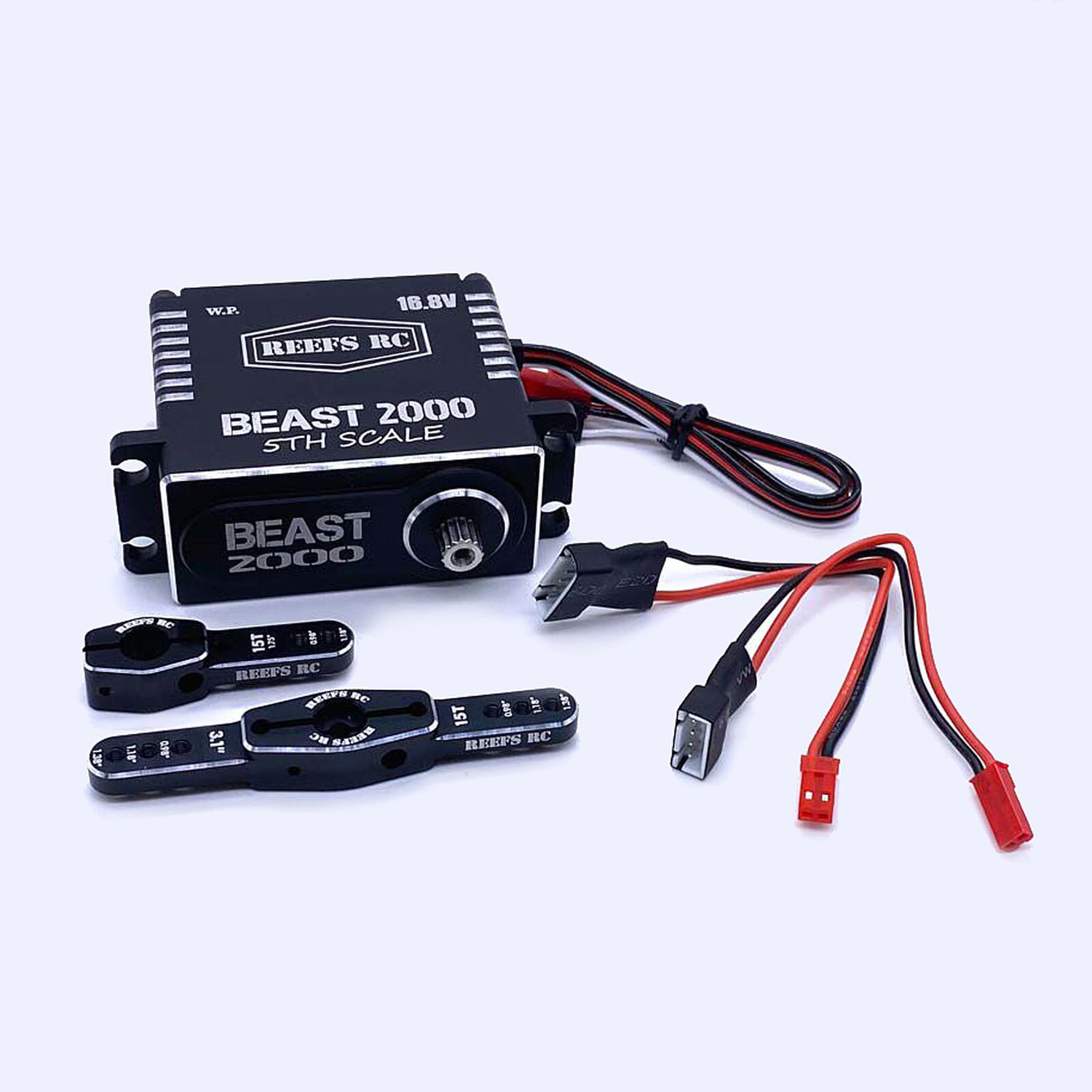

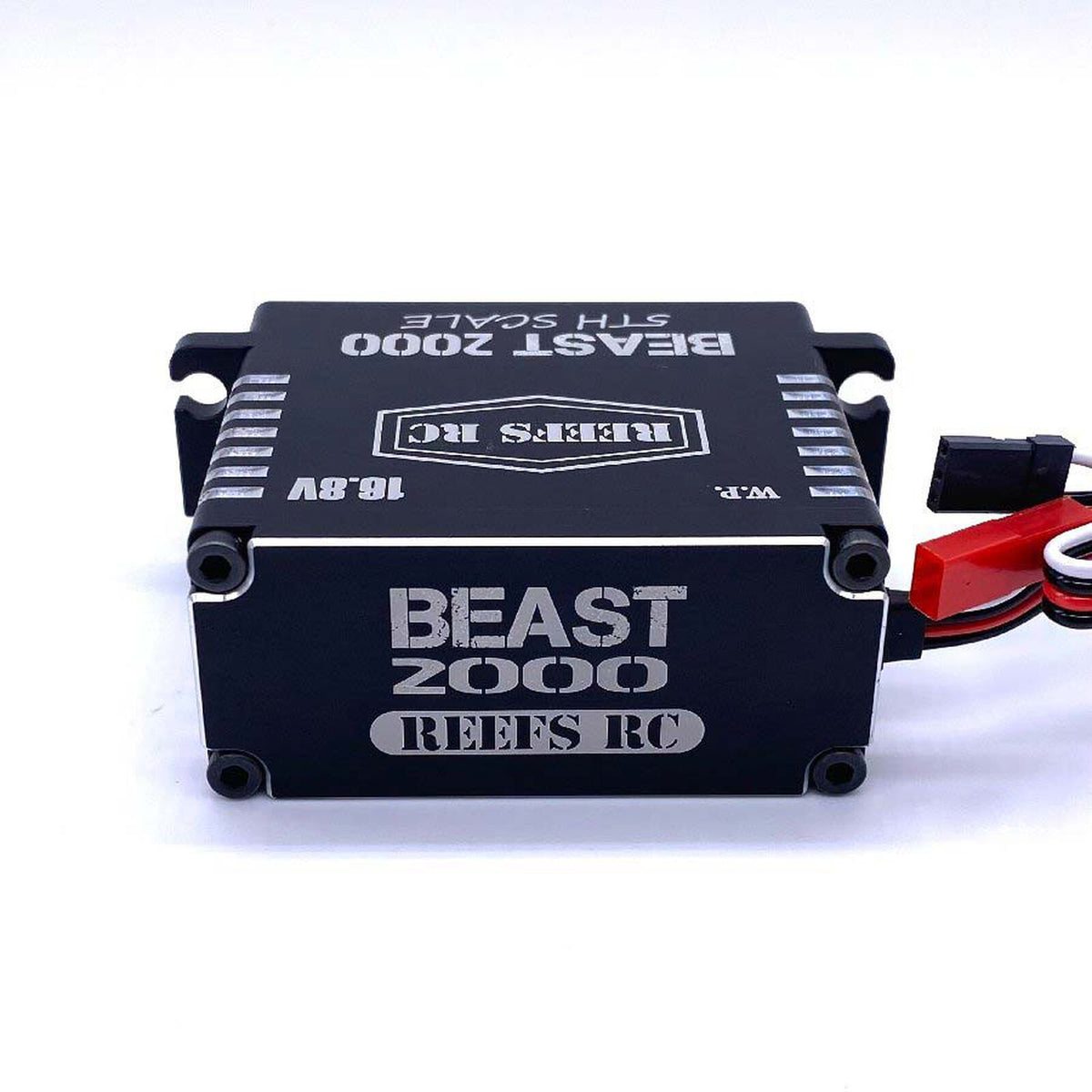

SEHREEFS103 RC Beast 2000 1/5 Scale Digital Metal Gear Waterproof Servo, Black
Regular price
$449.99
Unit price
/
Unavailable
SEHREEFS103 RC Beast 2000 1/5 Scale Digital Metal Gear Waterproof Servo, Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
High Torque High Speed Brushless Servo
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
SEHREEFS103 RC Beast 2000 1/5 Scale Digital Metal Gear Waterproof Servo, Black Product Specs
- Application1/5 Cars, Trucks
- Bearing5 Ball Bearings
- Bushing Or BearingBearing
- Connector TypeJST-RCY, Universal
- Current Draw Idle950mA @ 10.0V, 1A @ 11.1V, 1.06A @ 12.0V, 1.2A @ 14.4V, 1.3A @ 16.0V
- Current Draw Stall7.7A @ 1.0V, 8.3A @ 11.1V, 9.2A @ 12.0V, 10.6A @ 14.4V, 11A @ 16.0V
- Deadband2µs
- Gear TypeMetal
- Input Voltage7.4V ~ 16.8V
- Maximum Servo Speed0.11 sec/60 deg @ 11.1V, 0.10 sec/60 deg @ 12.0V, 0.09 sec/60 deg @ 14.4V, 0.09 sec/60 deg @ 16.0V
- Maximum Servo Torque1000oz/in @ 10V, 1250oz/in @11.1V, 1450oz/in @12V, 2000oz/in @ 16.8V
- Product Height2.32" (59 mm)
- Product Length2.59" (66 mm)
- Product Weight10oz (285g)
- Product Width1.18" (30 mm)
- Servo Operating Voltage12.0V - 16.8V (HV)
- Servo Size CategoryGiant Scale
- Servo TypeDigital
- Spline Count15 - Tooth
- Water-ResistantYes
- Wire Gauge22 AWG
