1/10th sedan and on-road type applications limited to Low Profile servos by design finally have a servo option that still has plenty of torque, but more importantly ultra fast speeds. The .07 sec/60 speed of the SC1252MG will keep you better connected. This servo can also work in aircraft applications with narrow wing designs looking for rapid 3d or combat maneuvering capabilites.
FEATURES:
FEATURES:
- Super high 4096 resolution and metal gears.
- Super light-weight.
- Coreless Motor provides high speed, incredible efficiency, and low power consumption than comparable servos.
- The aluminum case design not only looks good but also helps operation to remain cool and smooth.
- Our servos are totally green, from materials to production, these servos are environmentally friendly.
- Ideal as a steering servo for 1/10 surface applications and in gliders and airplanes that have thin wing profiles.

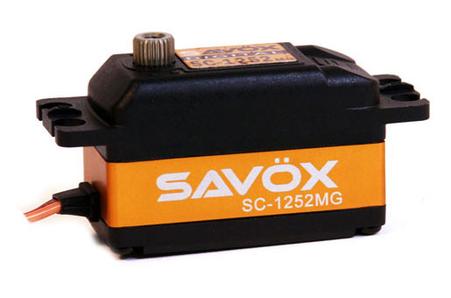

| SAVOX SC1252MG SERVO SPECS | |
|---|---|
| Dimensions(mm) | 40.8X20.2X25.4 |
| Weight(g) | 44.5 |
| Speed(@4.8V sec/60) | 0.09 |
| Torque(@4.8V oz-in) | 89 |
| Speed(@6.0V sec/60) | 0.07 |
| Torque(@6.0V oz-in) | 97.2 |
| Gear | Metal |
| Bearing | 2BB |
| Case Body | Aluminum |
| Case Caps | Plastic |
| Spline | 25 Tooth |
