Reef's RC - RAW800LP Brass Edition, Fully Programmable, Brushless Low Profile Servo - SEHREEFS160

Reef's RC - RAW800LP Brass Edition, Fully Programmable, Brushless Low Profile Servo - SEHREEFS160

• Motor: 4 POLE - Brushless
• Submarine Waterproof: 7 Point Seals
• Positioning: Magnetic Angle Sensor
• Voltage: 4.8V - 8.4V
• Programmable: REEFS LINK required for Programming (Optional)
• Gears: Steel Gears
• Spline: 25T / Dead Band Width: 2 µ
• Case: CNC Aluminum Casing
• Bearing Type: 2 Ball Bearings
• Weight: 2.3oz / 66gm

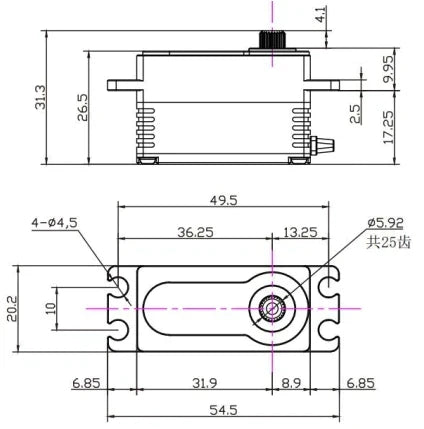

• Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
• Torque: 635oz @ 6v/ 715oz @7.4v/ 800oz @8.4v
• Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
• Unload Current: 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V
• Load Current: 6000mA @ 6.0V, 6800mA @ 7.4V, 7500mA @ 8.4V
