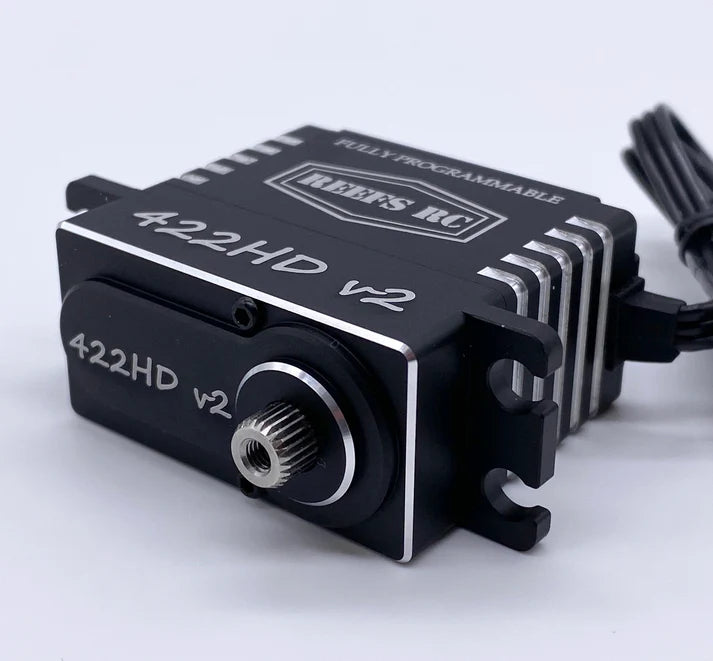

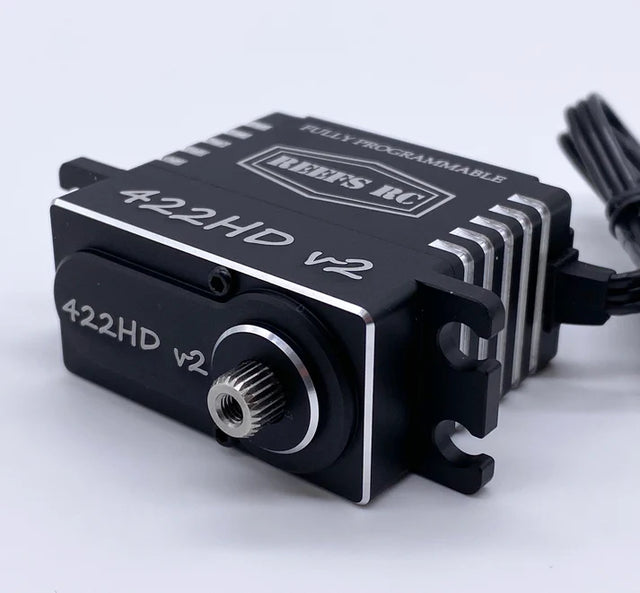

REEFS - 422HD V2 Servo

The 422HD V2 is a high-torque digital coreless servo built for strength, precision, and reliable operation in harsh RC environments. With an IP67 waterproof rating, magnetic angle sensor, and a CNC-machined aluminum casing, this servo delivers dependable performance on crawlers, bashers, and heavy-duty RC builds. Fully programmable using the REEFS LINK (sold separately), it offers tuning flexibility for advanced users.

Features:
• High-torque digital coreless motor
• IP67 waterproof with 7-point sealing
• Magnetic angle sensor for increased precision
• Fully programmable with REEFS LINK
• Durable steel gears and CNC aluminum case
• Voltage: 4.8V – 8.4V

Specifications:
• Torque: 360oz (25.9kg) @6V / 400oz (28.8kg) @7.4V / 434oz (31.3kg) @8.4V
• Speed: 0.13s @6V / 0.11s @7.4V / 0.10s @8.4V per 60°
• Dimensions (L×W×H): 1.57 × 0.78 × 1.5 in
• Spline: 25T
• Weight: 2.85oz
• Bearings: 3 Ball Bearings
• Dead Band Width: 2µs
