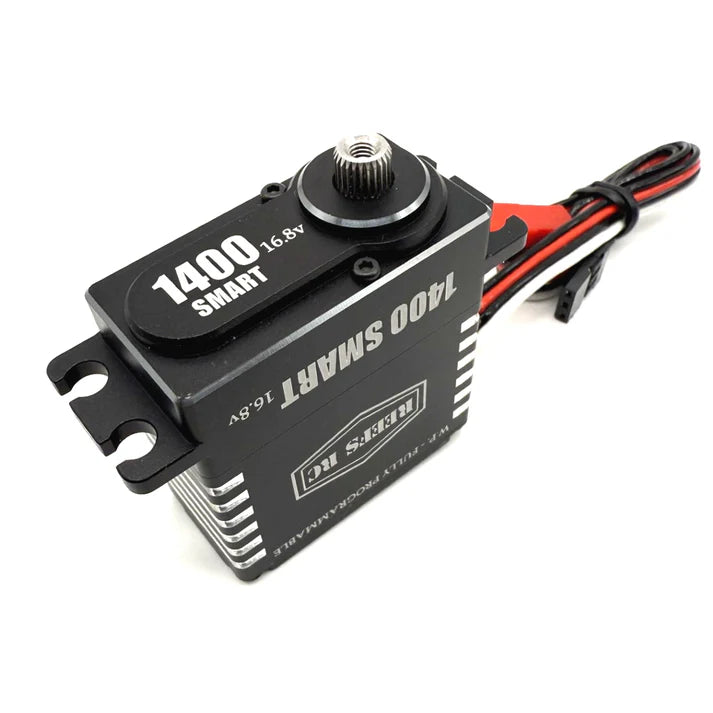

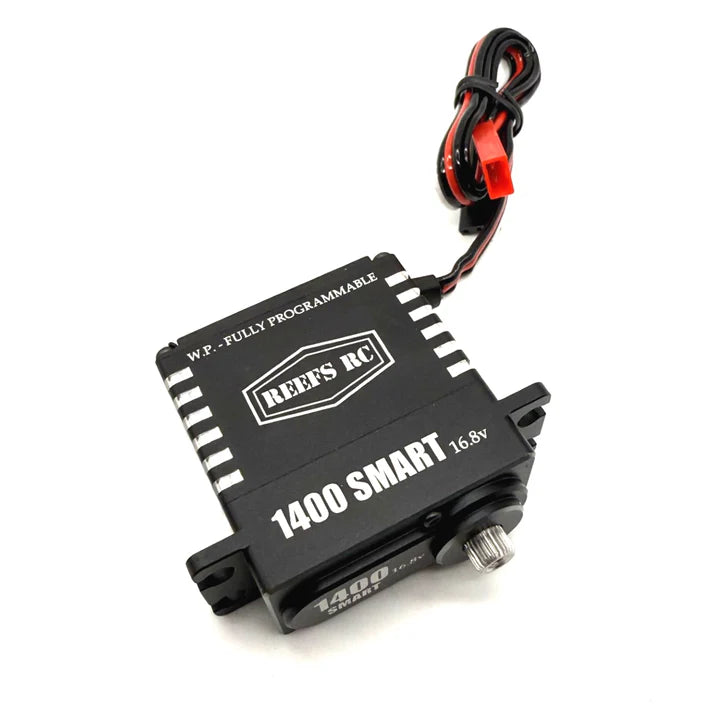

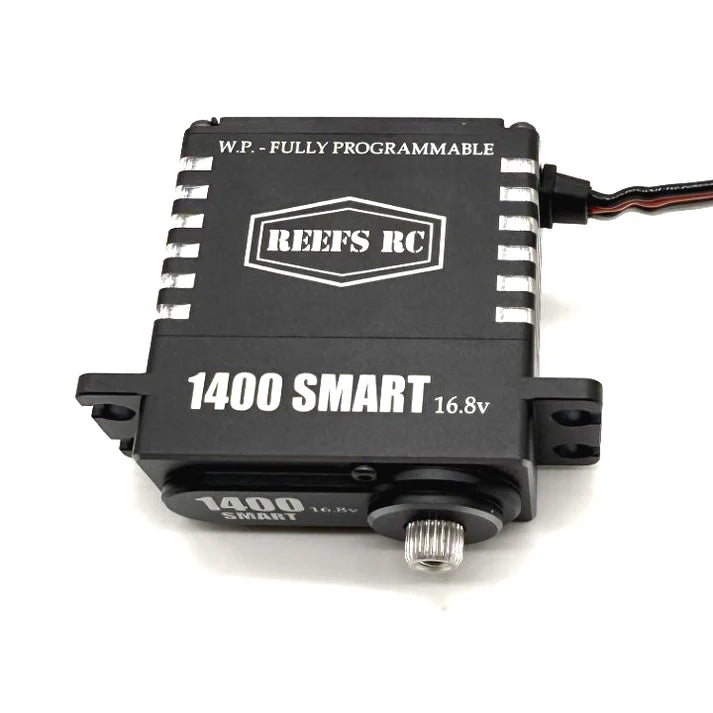

REEFS -1400 Smart 16.8V Brushless Servo

The 1400 Smart Brushless Servo delivers extreme torque and high-speed performance for RC vehicles. Designed to function as a standard servo or a winch (with REEFS LINK V2 & software), it combines military-grade construction with precision engineering. Its 4-pole brushless motor, steel gears, and IP67 waterproof aluminum casing ensure reliable operation in any condition, while the magnetic angle sensor provides accurate, responsive control.

Features:
• High torque and speed with preprogrammed winch capability
• Waterproof IP67 with heat sink protection
• Military-grade CNC aluminum construction
• Magnetic angle sensor and PWM control
• 4 ball bearings for smooth operation
• Voltage range: 10V – 16.8V

Specifications:
• Torque: 1140oz @12.6V / 1223oz @14.4V / 1400oz @16.8V (82–101 kg)
• Speed: 0.15s @12.6V / 0.13s @14.4V / 0.11s @16.8V

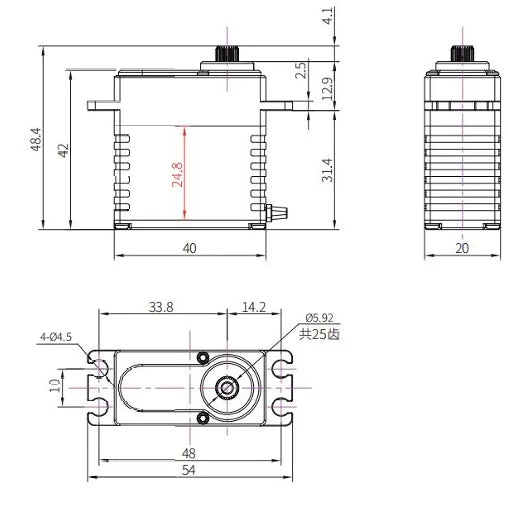

• Dimensions (L×W×H): 1.57 × 0.79 × 1.5 in (40 × 20 × 42 mm)
• Spline: 25T
• Weight: 3.19 oz / 90 g
