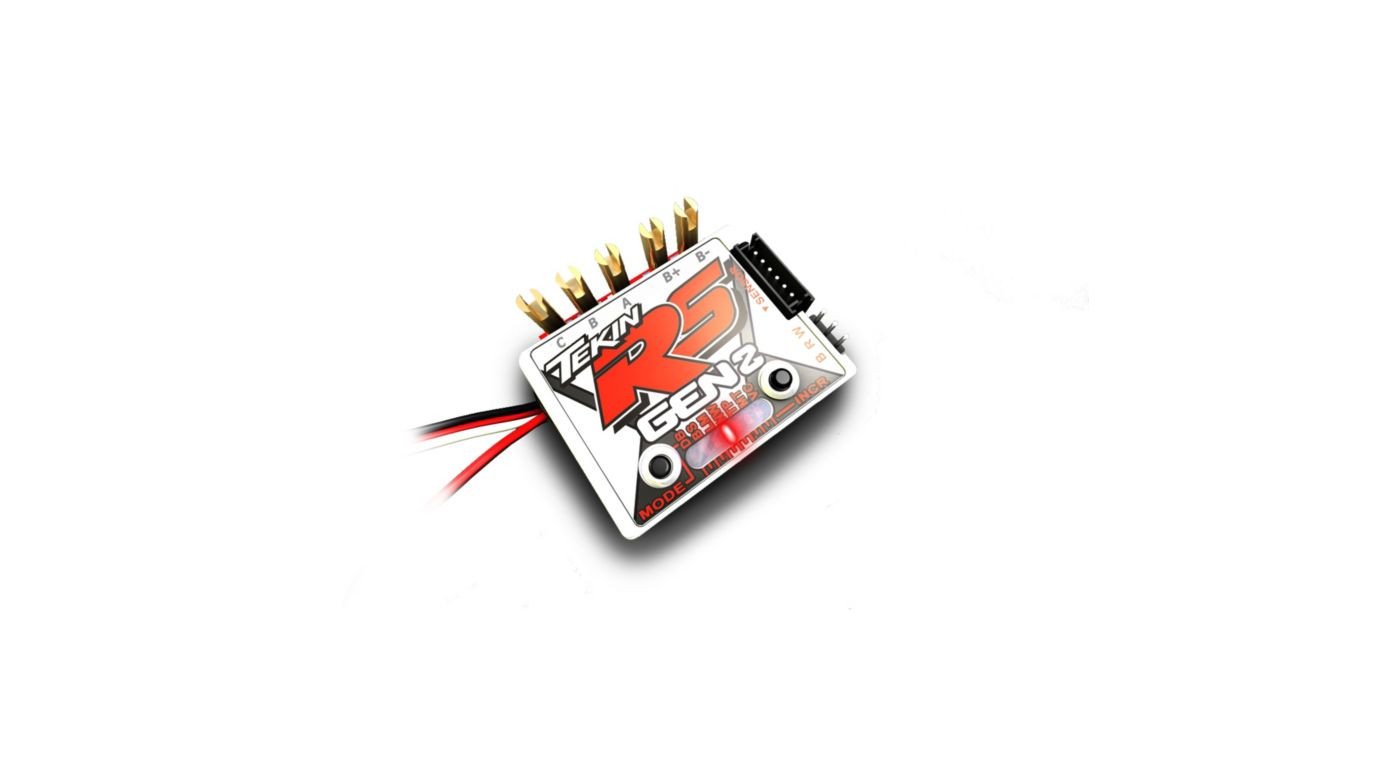

R1 BL System: spec 19 (TEKTT1154)

  • R1 BL System: spec 19 (TEKTT1154)

$ 159.99


The RS GEN2 brushless speed control is the next generation in intelligent operating motor drive technology. Continuing the proven award-winning legacy of the RS familly, the GEN2 is fitted with todays state of the art components. The RS GEN2 delivers what racers require; reliability, precise control and unmatched power handling capability.

Packed with new features, the RS GEN2 delivers a programmable high-voltage BEC, an EZ Access Port for HotWire communication and Datalogging capabilities in a small sized package. Rated for 8.5 turn motors and higher, the GEN2 is the perfect ESC for both experienced and new racers. Couple the RS GEN2 with a Redline GEN2 brushless motor for the ultimate package in race equipment.

Key Features

  • Ultra-smooth and Precise Throttle and Braking Control
  • Compatible with Sensored/Sensorless Brushless and Brushed Motors
  • Easily Access Programming, Anywhere, Anytime
  • Datalogging Capability
  • High Voltage Programmable BEC
  • EZ Access HotWire Programming Port
  • HotWire PC Interface for Advanced Programming and Updating
  • D2: Dual Drive Mode Technology
  • On-Board Temperature Indicator
  • HDAC: High Density Copper PCB's
  • Sensor Plug for Precise Commutation with all Motors
  • Gold-plated Solder Posts for Easy Wire Replacement
  • Self Test Diagnostics and Factory Reset
  • Pit Tune Mode
  • DGF2: Digital Glitch Filtering V2
  • QuickTune„¢ Programming
  • One-Touch Radio Calibration

Specs

  • Controls: Forward/Brake/Reverse
  • Input Voltage: 2-3S LiPo / 4-9S NiMH-NiCD
  • BEC: 6.0v / 7.4v @ 5.5amps
  • Motor Limit Brushless Mode 2S: 8.5 Turn 2-pole 36mm Can
  • Motor Limit Brushless Mode 3S: 10.5 Turn 2-pole 36mm Can
  • Motor Limit Brushed 2S: 12 Turn 36mm Can
  • Motor Limit Brushed 3S: 20 Turn 36mm Can
  • Max Chassis Weight: 4lbs / 1815g
  • Throttle Profiles: 7 choices (on board)
  • Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
  • Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
  • Dimensions: 1.0 x 1.3 x .51in / 26 x 34 x 12.9mm
  • Weight: .85oz / 24g

Type ELECTRONIC SPEED CONTROLS
Vendor Sheldons Hobbies
