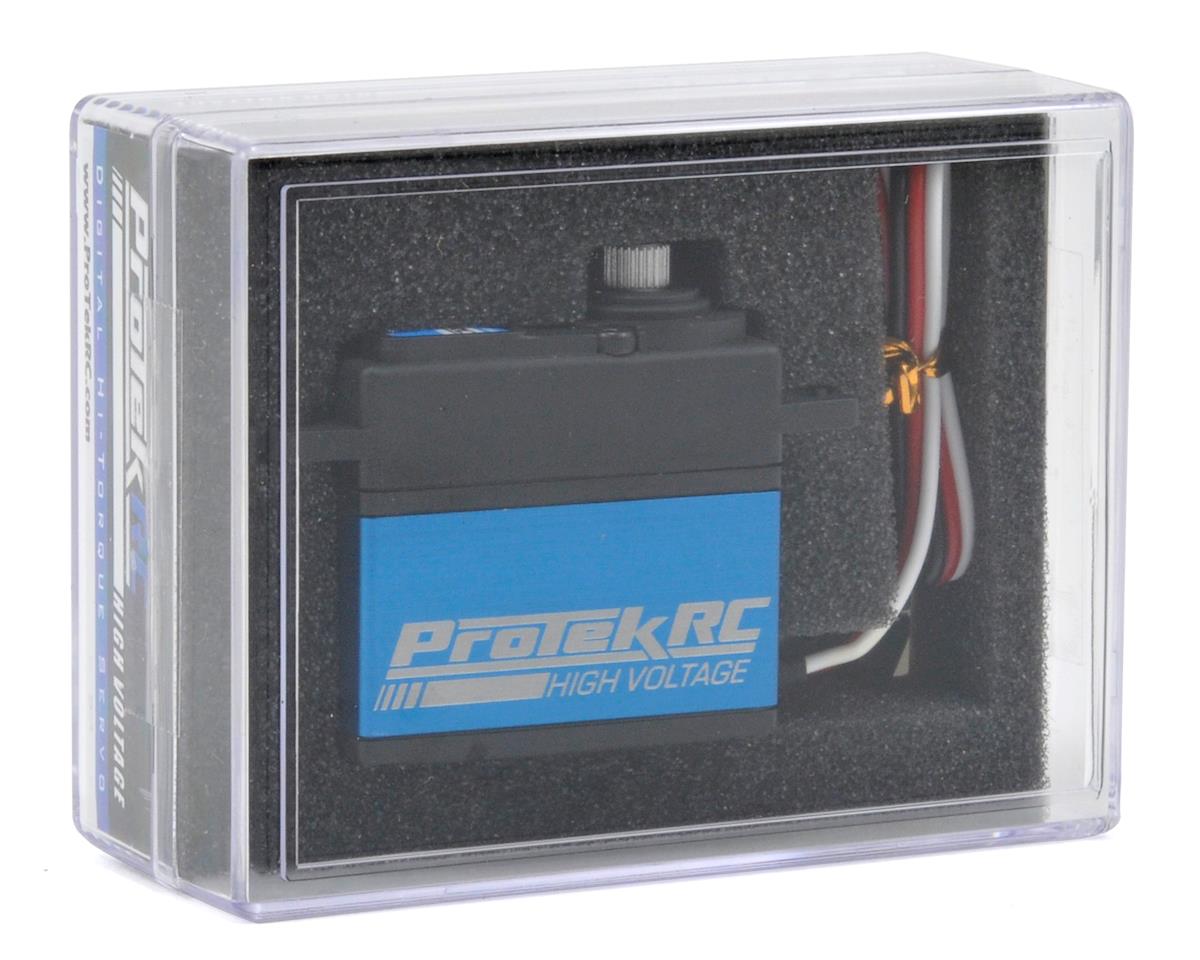

This is the ProTek R/C 130T Digital Hi-Torque Metal Gear High Voltage Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo's that will exceed expectations at every level. With features that meet or surpass what our competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.
The ProTek R/C 130T High Voltage Hi-Torque servo delivers an incredible 288 oz-in of torque with a 0.10 transit speed at 6.0V, and when you bump the voltage to 7.4 the spec's increase to 355 oz-in and 0.08! Spec's like these make this servo an excellent choice for any 1/10 to 1/8 scale vehicle application. Other features include a full metal gear train that is supported by dual ball bearings, a 200mm long 22awg connector wire with gold plated connectors, a coreless motor and an aluminum middle case that helps to dissipate heat and helps to increase efficiency.
Features:
- Ideal for any 1/10 to 1/8 scale vehicle application
- Aluminum middle case
- High voltage circuitry
- 0.10 transit speed, and 288 oz-in of torque @ 6.0V
- 0.08 transit speed, and 355 oz-in of torque @ 7.4V
- Aluminum single arm servo horn
- Full metal gears and dual ball bearings
- 200mm long 22awg connector wire w/gold plated connectors
- Coreless motor
Specifications:
-
Servo Model: 130T
-
Recommended Application: 1/10 to 1/8 scale surface
-
Operating Voltage: 4.8V – 7.4V
-
Operating Temperature: 14° to 140° F (-10° to +60° C)
-
Operating Speed @ 6.0V: 0.10/60° sec
-
Operating Speed @ 7.4V: 0.08/60° sec
-
Dynamic Torque @ 6.0V: 288 oz-in (20.7 kg-cm)
-
Dynamic Torque @ 7.4V: 355 oz-in (25.6 kg-cm)
-
Motor Type: High Efficiency Coreless Motor
-
Output Shaft: 25 Tooth
-
Gears: Metal
-
Weight: 61g
-
Pulse/Frequency: 1520µs / 333Hz
