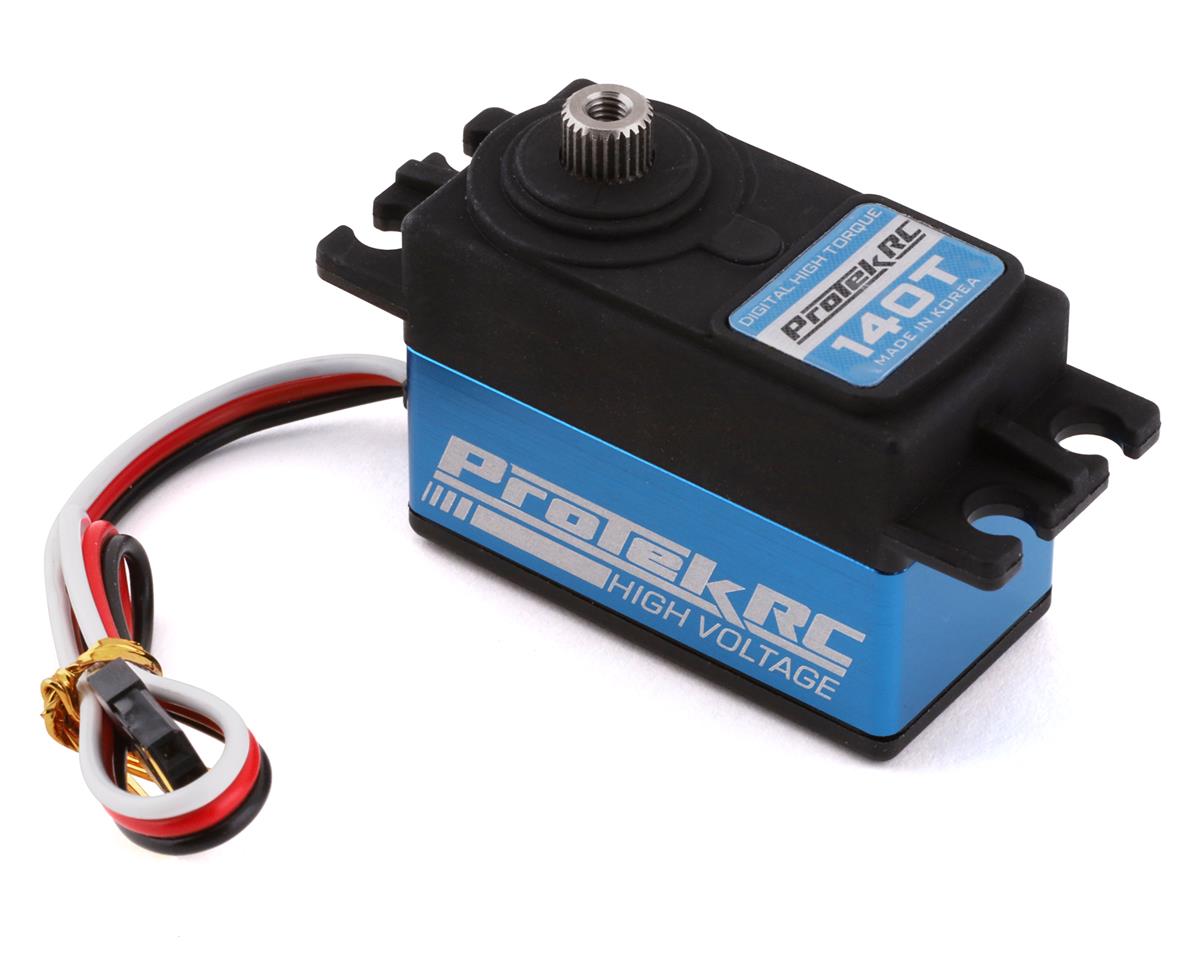

This is the ProTek R/C 140T Low Profile Digital "High Torque" Metal Gear High Voltage Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo's that will exceed expectations at every level. With features that meet or surpass what our competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.
The ProTek R/C 140T High Voltage Low Profile servo delivers an impressive 185 oz-in of torque and 0.10 transit speed at 6.0V, and when you bump the voltage to 7.4V the spec's increase to 215 oz-in and 0.08 transit speed! This servo does not stop there, when cranked up to 8.4V you can see 230 oz-in and 0.07 transit speed. These specs make for an excellent choice for 1/12 or 1/10 scale RC vehicles. Other features include a plastic case with an aluminum center band for heat dissipation, a metal gear train with dual ball bearings, 160mm long 22awg connector wire and a coreless motor.
Features:
- Low-Profile case saves space and weight
- Ideal for any 1/12 to 1/10 scale vehicle application
- Plastic case with aluminum center band
- High voltage circuitry
- 0.10 transit speed, and 185 oz-in of torque @ 6.0V
- 0.08 transit speed, and 215 oz-in of torque @ 7.4V
- 0.07 transit speed, and 230 oz-in of torque @ 8.4V
- Full metal gears and dual ball bearings
- 160mm long 22awg connector wire
- Coreless motor
Specifications
-
Servo Model: 140T
-
Recommended Application: 1/12 to 1/10 scale Surface
-
Operating Voltage: 4.8V - 8.4V
-
Operating Temperature: 14° to 140° F (-10 to +60° C)
-
Operating Speed @ 6.0V: 0.10/60° sec
-
Operating Speed @ 7.4V: 0.08/60° sec
-
Operating Speed @ 8.4V: 0.07/60° sec
-
Dynamic Torque @ 6.0V: 185 oz-in (13.3 kg-cm)
-
Dynamic Torque @ 7.4V: 215 oz-in (15.5 kg-cm)
-
Dynamic Torque @ 8.4V: 230 oz-in (16.6 kg-cm)
-
Motor Type: Coreless Motor
-
Output Shaft: 25 Tooth
-
Gears: Metal
-
Weight: 49.8g
-
Pulse/Frequency: 1520Us / 333hz
-
Dimensions: 39.5 x 30.5 x 20 mm
