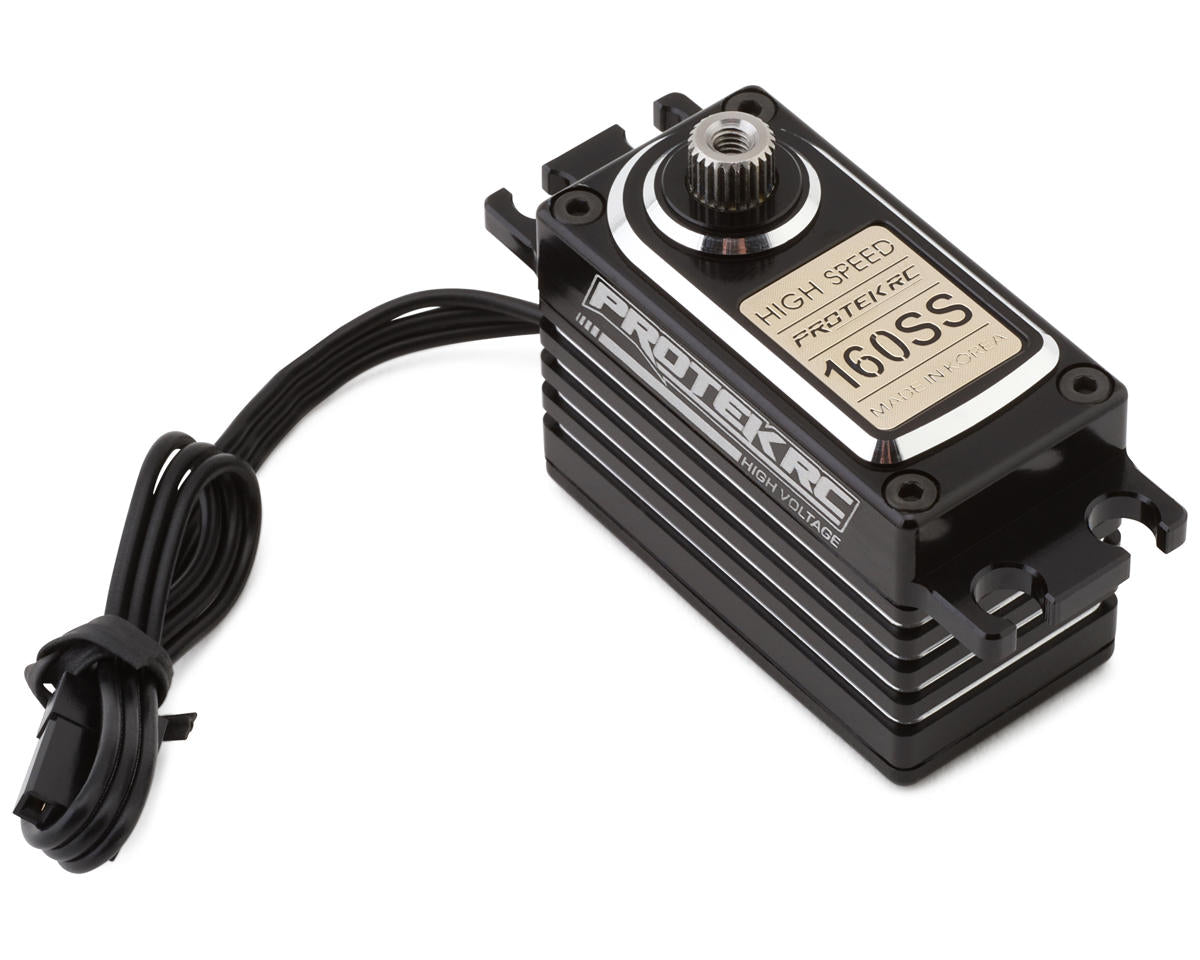

This is the ProTek R/C 160SS Low Profile Digital "Super Speed" Metal Gear High Voltage Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo's that will exceed expectations at every level. With features that meet or surpass what our competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.
The ProTek R/C 160SS High Voltage Low Profile servo delivers an incredible 127 oz-in of torque and 0.05 transit speed at 6.0V, and when you bump the voltage to 7.4 the spec's increase to 152 oz-in and 0.04! Spec's like these make this servo an excellent choice for any 1/12 to 1/10 scale vehicle application. Other features include a full aluminum case that provides bomb proof durability and improved heat dissipation, a metal gear train that is supported by dual ball bearings, a 160mm long 22awg connector wire with gold plated connectors, and a coreless motor.
Features:
- Low-Profile case saves space and weight
- Ideal for any 1/12 to 1/10 scale vehicle application
- Full aluminum case
- High voltage circuitry
- 0.05 transit speed, and 127 oz-in of torque @ 6.0V
- 0.04 transit speed, and 152 oz-in of torque @ 7.4V

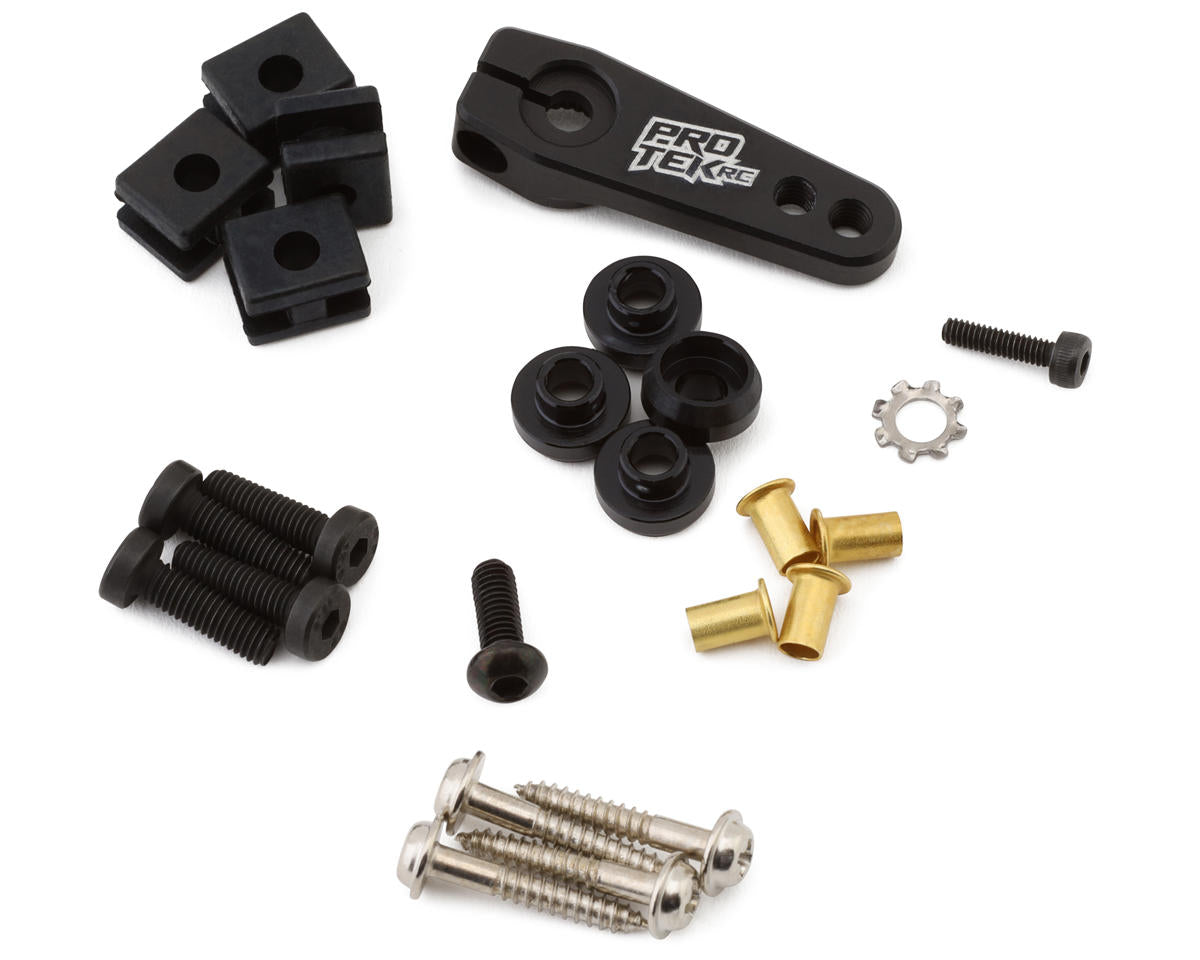

- Aluminum single arm servo horn
- Full metal gears and dual ball bearings
- 160mm long 22awg connector wire w/gold plated connectors
- Coreless motor
Specifications:
-
Servo Model: 160SS
-
Recommended Application: 1/12 to 1/10 scale Surface
-
Operating Voltage: 4.8V – 7.4V
-
Operating Temperature: 14° to 140° F (-10° to +60° C)
-
Operating Speed @ 6.0V: 0.05/60° sec
-
Operating Speed @ 7.4V: 0.04/60° sec
-
Dynamic Torque @ 6.0V: 127 oz-in (9.1 kg-cm)
-
Dynamic Torque @ 7.4V: 152 oz-in (11 kg-cm)
-
Motor Type: High Efficiency Coreless Motor
-
Output Shaft: 25 Tooth
-
Gears: Metal
-
Weight: 54.5g
-
Pulse/Frequency: 1520µs / 333Hz
-

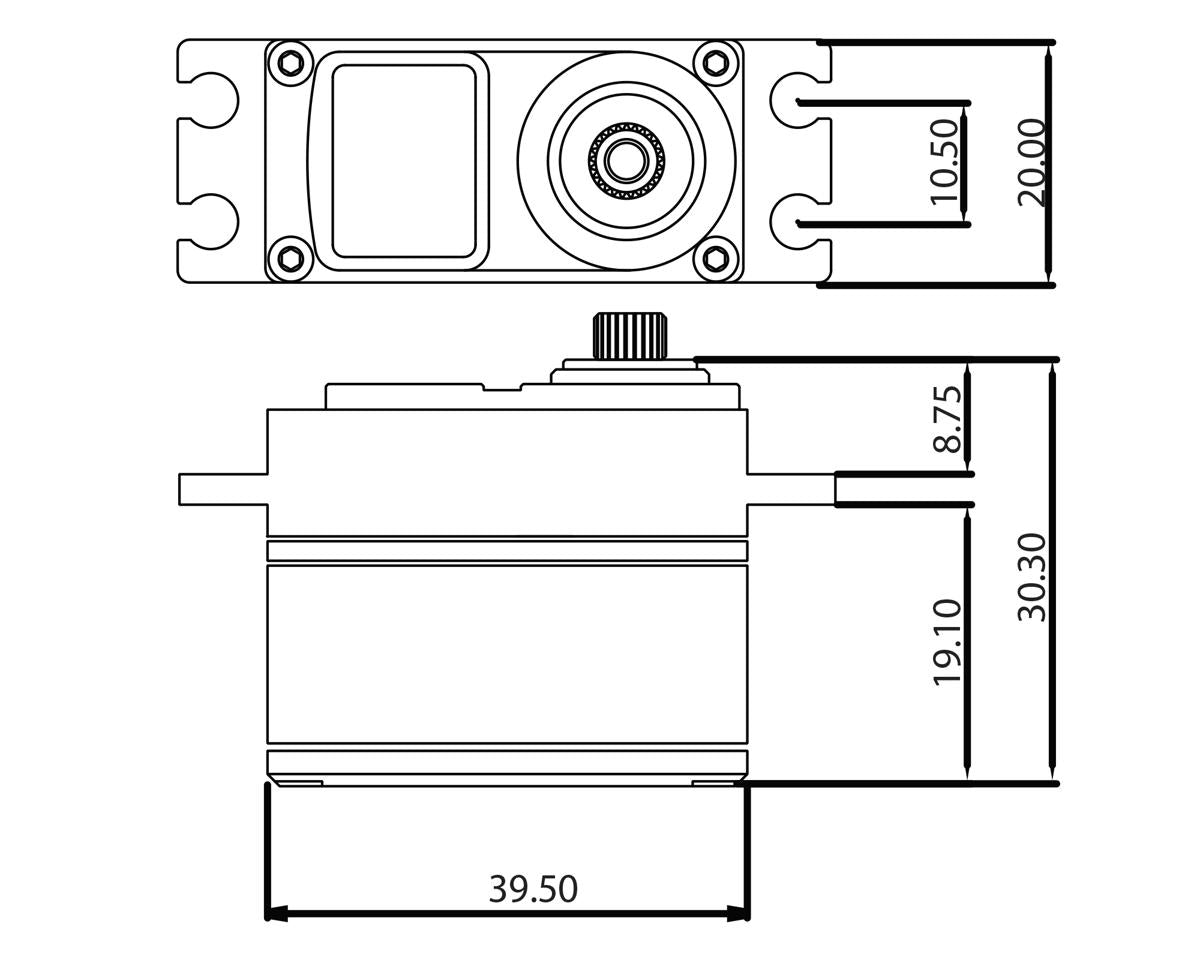

Dimensions: 39.5 × 20 × 30.3 mm
-
Length (Bottom to Mount): 19.10 mm
