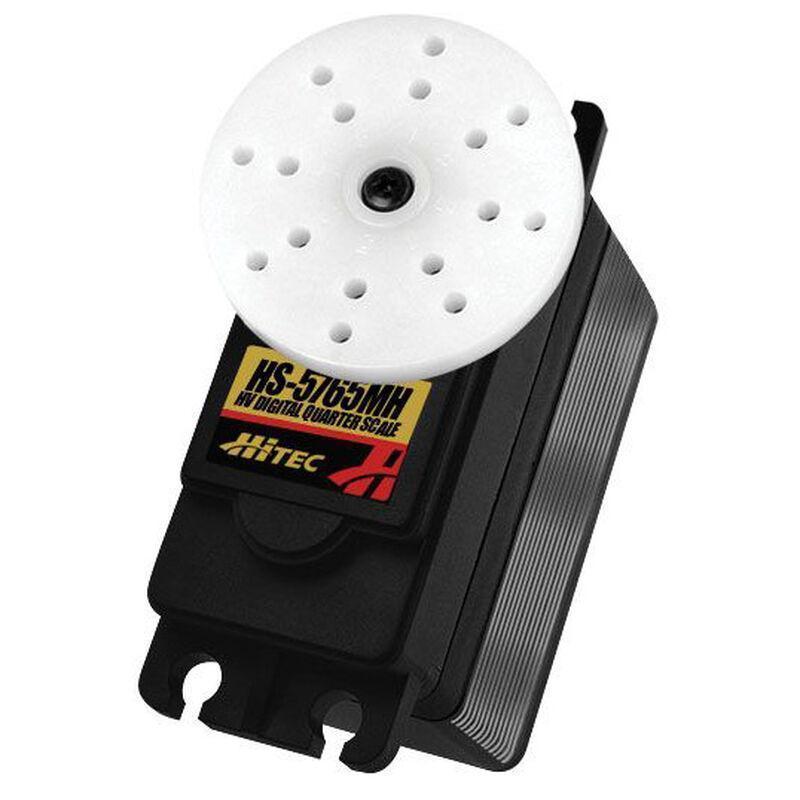

HS-5765MH Giant Scale Digital HV Metal Gear Servo

  • Sale
  • Regular price $ 82.49

Key Features

  • Large 10mm Output shaft
  • Triple Ball Bearings
  • Heavy Duty Metal Gear Train
  • Water and Dust Resistant Case


When it comes to your big RC projects, size does matter - that’s why Hitec engineered the HS-5765MH. This high voltage cousin of the HS-5755MG is 2-cell LiPo (7.4V) capable and features heavy duty metal gears with a 10mm output shaft for the strength you need for the most demanding large scale applications. With 347 oz-in torque, the giant HS-5765MH is tough enough to tackle your biggest RC projects from 1/5th on and off-road vehicles to large high-powered boats and giant scale aircraft!

Product Specifications


Bearing Triple
Bushing Or Bearing Bearing
Gear Type Metal
Maximum Servo Speed 0.100-0.149 sec
Maximum Servo Torque 200-349 oz-in
Motor Type 3-pole ferrite
Programmable Yes
Servo Operating Voltage 6.0 - 7.4V (HV)
Servo Size Category Standard Large and Giant Scale
Servo Type Digital
Speed 0.16 sec/60 deg @ 6.0V; 0.13 sec/60 deg @ 7.4V
Torque 278 oz-in (20 kg-cm) @ 6.0V; 347 oz-in (25 kg-cm) @ 7.4V
