Sheldon's Hobbies | SKU:

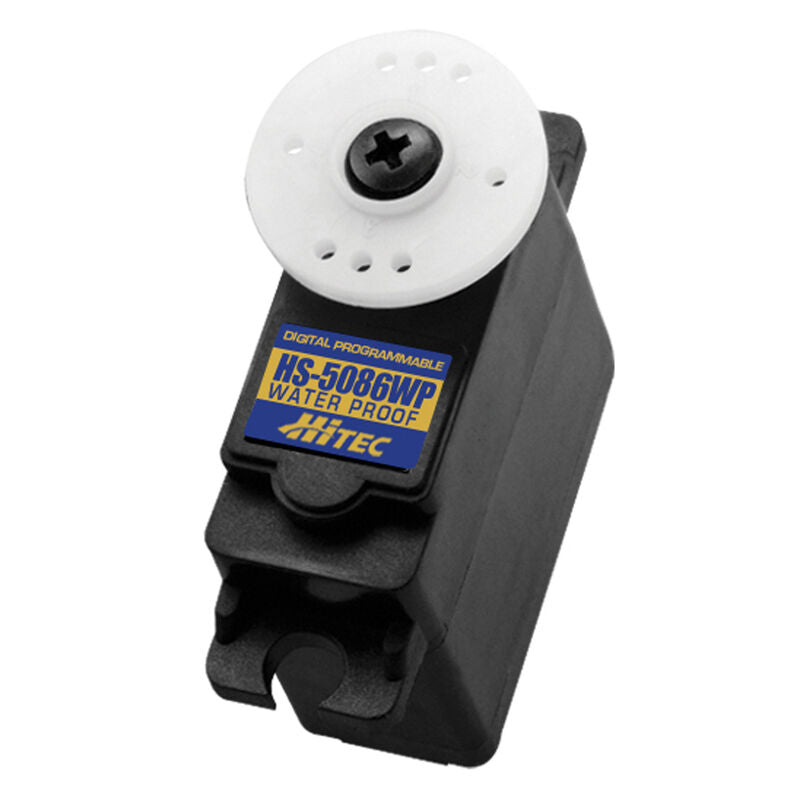

HS-5086WP Micro Digital Waterproof Metal Gear Servo
Regular price
$49.99
Unit price
/
Unavailable
HS-5086WP Micro Digital Waterproof Metal Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Key Features
- All metal gears with dual ball bearings
- Ideal for 1/8 - 1/14 scale cars and trucks and electric powered boats
- Programmable digital amplifier with MOSFET drive
In The Box
- HS-5086WP Servo with 1.15" (29.4mm) Two Arm Servo Horn, 0.90" (23mm) Four Point Horn, 0.67" (17mm) Round Horn and Mounting Hardware
Product Specifications
Specs
| Speed | 0.18 sec/60 deg @ 6.0V; 0.15 sec/60 deg @ 7.4V |
| Spline Count | 24 Teeth |
| Water-Resistant | Yes |
| Servo Type | Digital |
| Servo Size Category | Mini and Micro |
| Servo Operating Voltage | 4.8 - 6.0V |
| Motor Type | 3-pole cored ferrite |
| Product Height | 1.22" (31.0mm) |
| Product Length | 1.22 in (31.0mm) |
| Product Weight | 1.00 oz (28.5g) |
| Product Width | 0.60 in (15.2mm) |
| Programmable | Yes |
| Maximum Servo Torque | 40-99 oz-in |
| Maximum Servo Speed | 0.150-0.199 sec |
| Current Draw Idle | 3mA |
| Current Draw Stall | 1,800mA |
| Deadband | 2 ?s |
| Gear Type | Metal |
| Application | 50oz park flyer, 42-56oz sport plane, 2M/DLG sailplane, 1:6 scale on-road, buggies & SC vehicles, 1/6 scale power boats |
| Bushing Or Bearing | Bearing |
