HITEC | SKU:
HRC39384

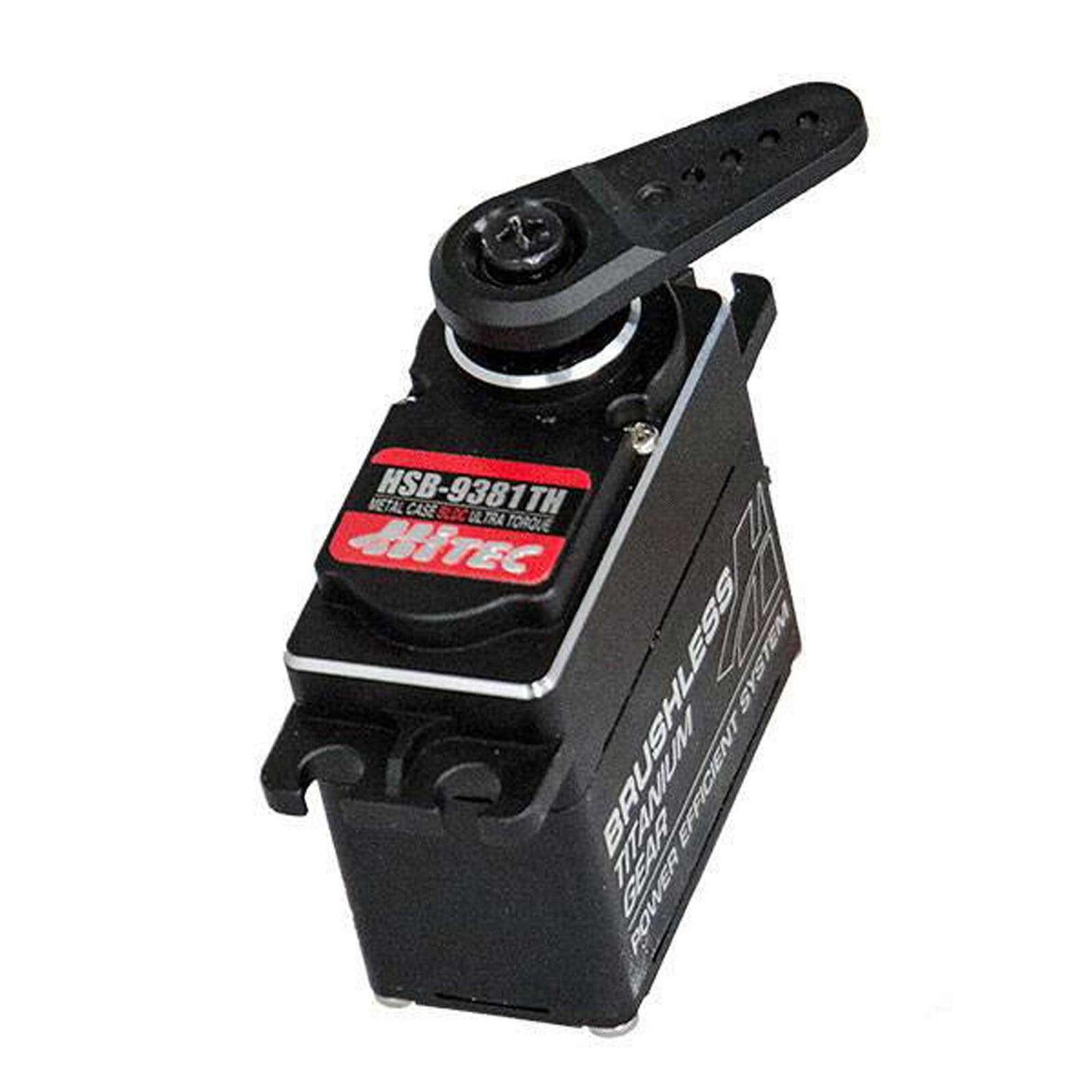

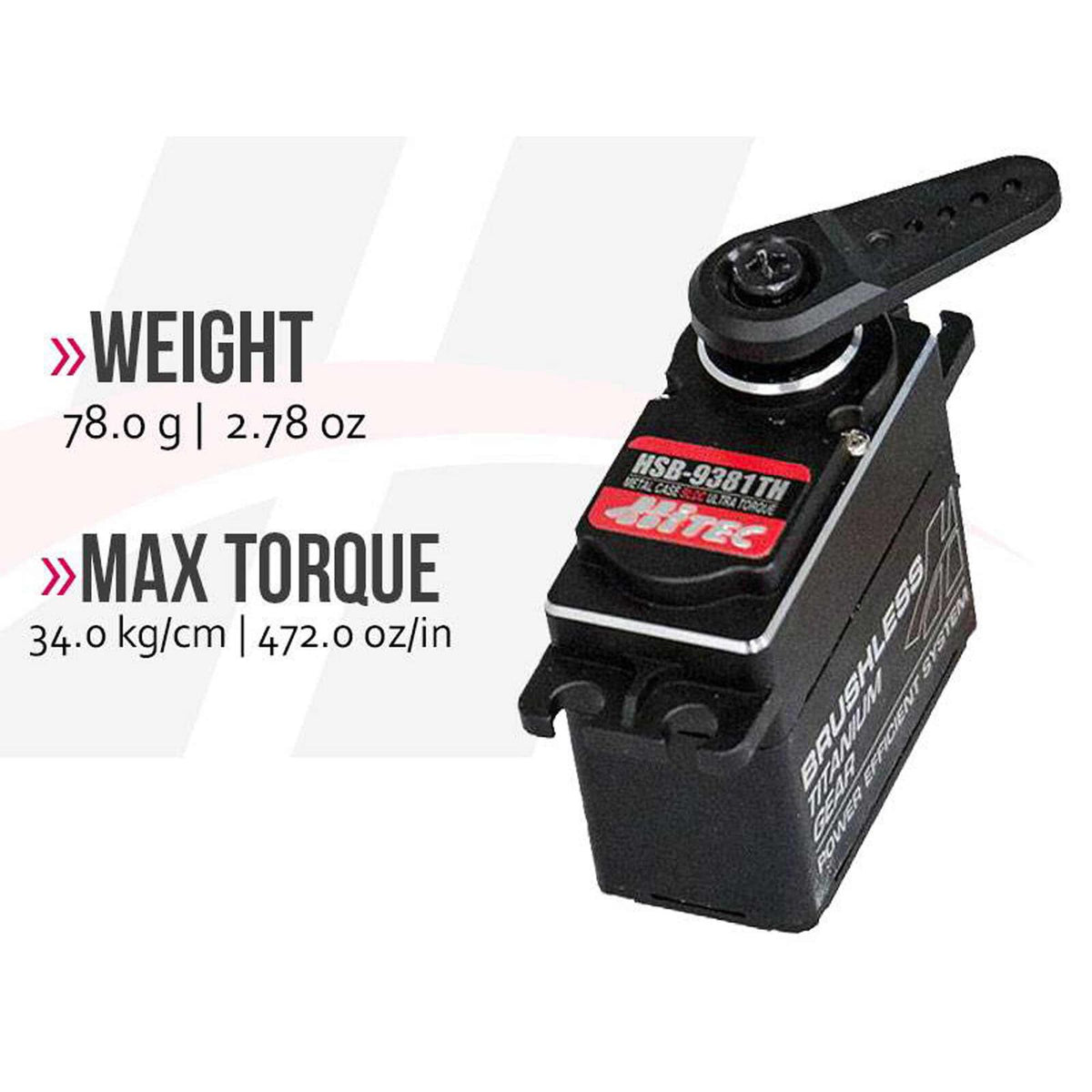

HRC39384 RCD Inc HSB-9381TH Standard Digital Ultra Torque Brushless Titanium Gear Servo
Regular price
$229.99
Unit price
/
Unavailable
HRC39384 RCD Inc HSB-9381TH Standard Digital Ultra Torque Brushless Titanium Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
With ultra-efficient brushless motors, titanium gear trains, low current consumption and constant output power, the full metal case HSB-9381TH is the perfect match for the most demanding radio control pilots and racers.
- Speed: @4.8V .17sec/60' / @7.4V .14sec/60'
- Torque: @7.4V 472oz/in
- Programmable 12-Bit PWM Digital Amplifier
- Custom Long Life Brushless Motor
- 1M Cycle Long Life Potentiometer
- Constant Output Torque
- Wide Operating Voltage (5 ~ 9 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- Dust Resistant and Splash Proof Case
- 25-Tooth Output Spline
- Hybrid Nylon Reinforced Plastic and Aluminum Case
- Low Power Consumption
Hitec RCD Inc HSB-9381TH Standard Digital Ultra Torque Brushless Titanium Gear Servo Product Specs
- ApplicationHigh Performance Aircraft, Cars, Boats
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle27 mA
- Current Draw Stall2,700 mA
- Deadband1µs
- Gear MaterialTitanium
- Gear TypeMetal
- Input Voltage6.0V ~ 7.4V
- Maximum Servo Speed0.17 sec/60 deg @ 6.0V, 0.14 sec/60 deg @ 7.4V
- Maximum Servo Torque472oz/in @ 6.0V ~ 7.4V
- Motor TypeBrushless
- Product Height1.5" (38 mm)
- Product Length1.57" (40 mm)
- Product Weight2.4oz (72g)
- Product Width0.79" (20 mm)
- ProgrammableYes
- Servo Operating Voltage6.0 - 7.4V (HV)
- Servo Size CategoryStandard
- Servo TypeDigital
- Spline Count25-Tooth
- Water-ResistantNo
- Wire Gauge20 AWG
