HITEC | SKU:
HRC39383S

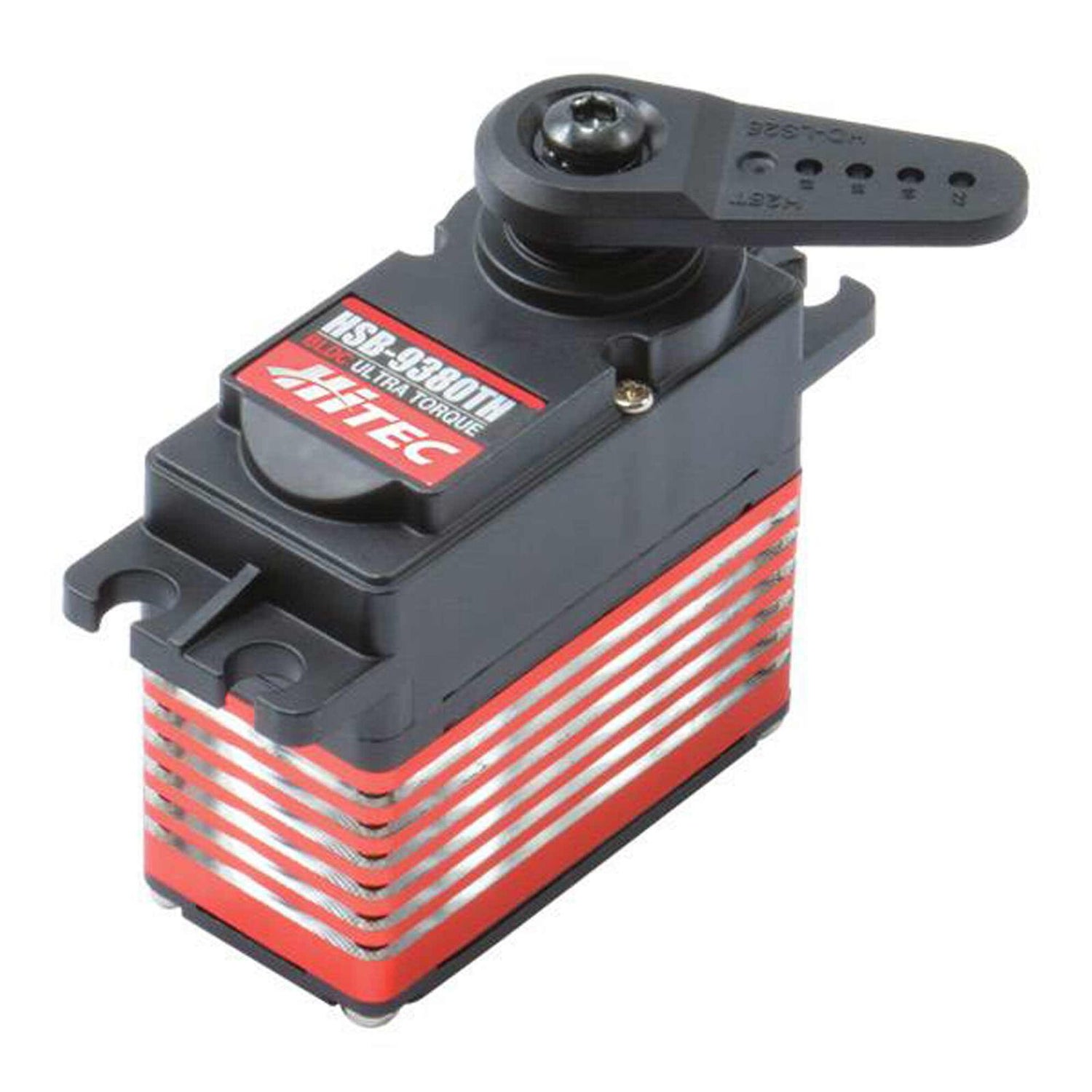

HRC39383S RCD Inc HSB-9380TH High Speed, Brushless, Titanium Gear Servo
Regular price
$219.99
Unit price
/
Unavailable
HRC39383S RCD Inc HSB-9380TH High Speed, Brushless, Titanium Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
HRC39383S RCD Inc HSB-9380TH High Speed, Brushless, Titanium Gear Servo Overview
With ultra-efficient brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers.
Hitec RCD Inc HSB-9380TH High Speed, Brushless, Titanium Gear Servo Features
- Programmable 12-Bit PWM Digital Amplifier
- Custom Long Life Brushless Motor
- 1M Cycle Long Life Potentiometer
- Constant Output Torque
- Wide Operating Voltage (5 ~ 9 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- Dust Resistant and Splash Proof Case
- 25-Tooth Output Spline
- Hybrid Nylon Reinforced Plastic and Aluminum Case
- Low Power Consumption
Hitec RCD Inc HSB-9380TH High Speed, Brushless, Titanium Gear Servo Product Specs
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Current Draw Idle27 mA
- Current Draw Stall2,100 mA
- Deadband1µs
- Gear TypeMetal
- Input Voltage6.0V ~ 7.4V
- Motor TypeBrushless
- Part TypeElectronics

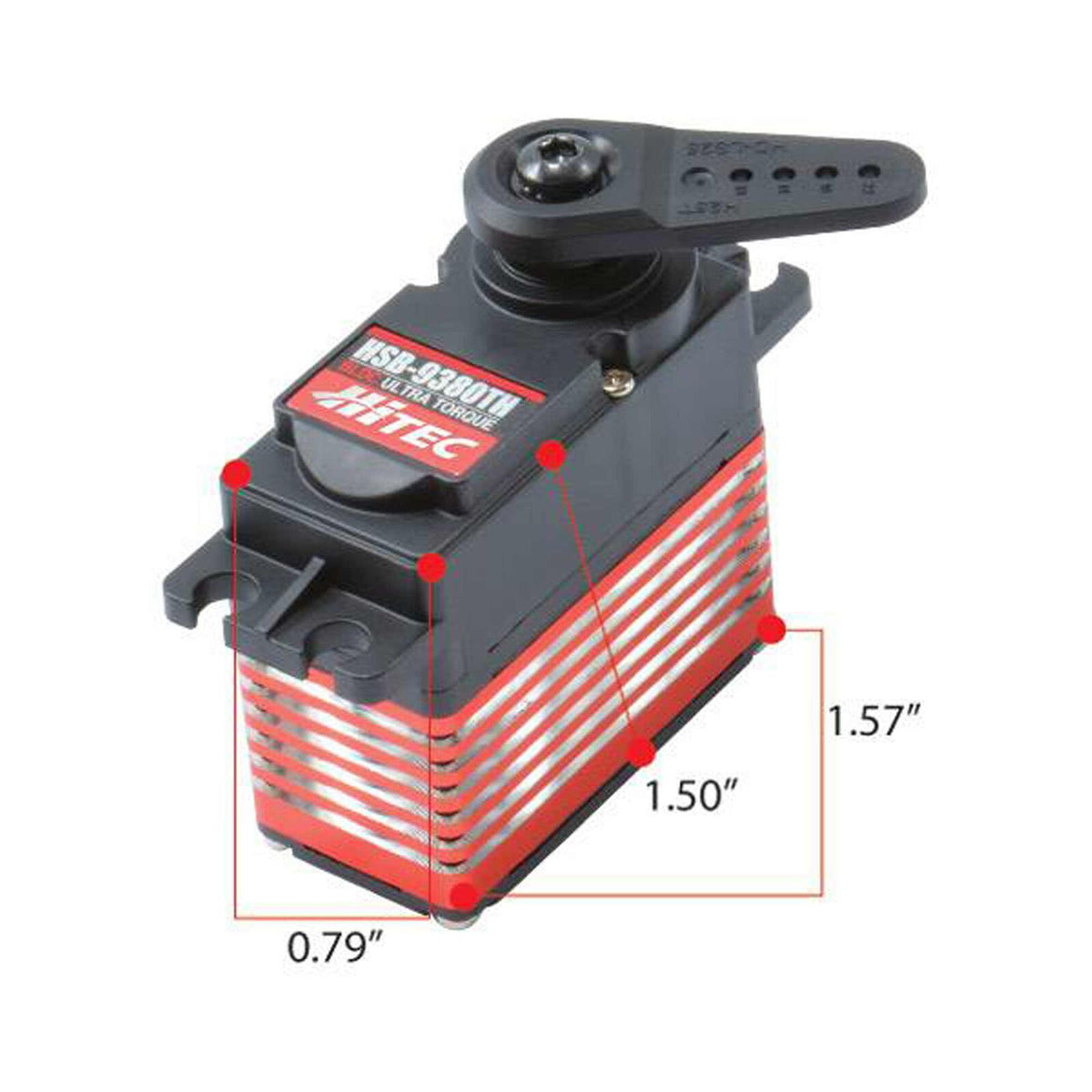

- Product Height1.5" (38 mm)
- Product Length1.57" (40 mm)

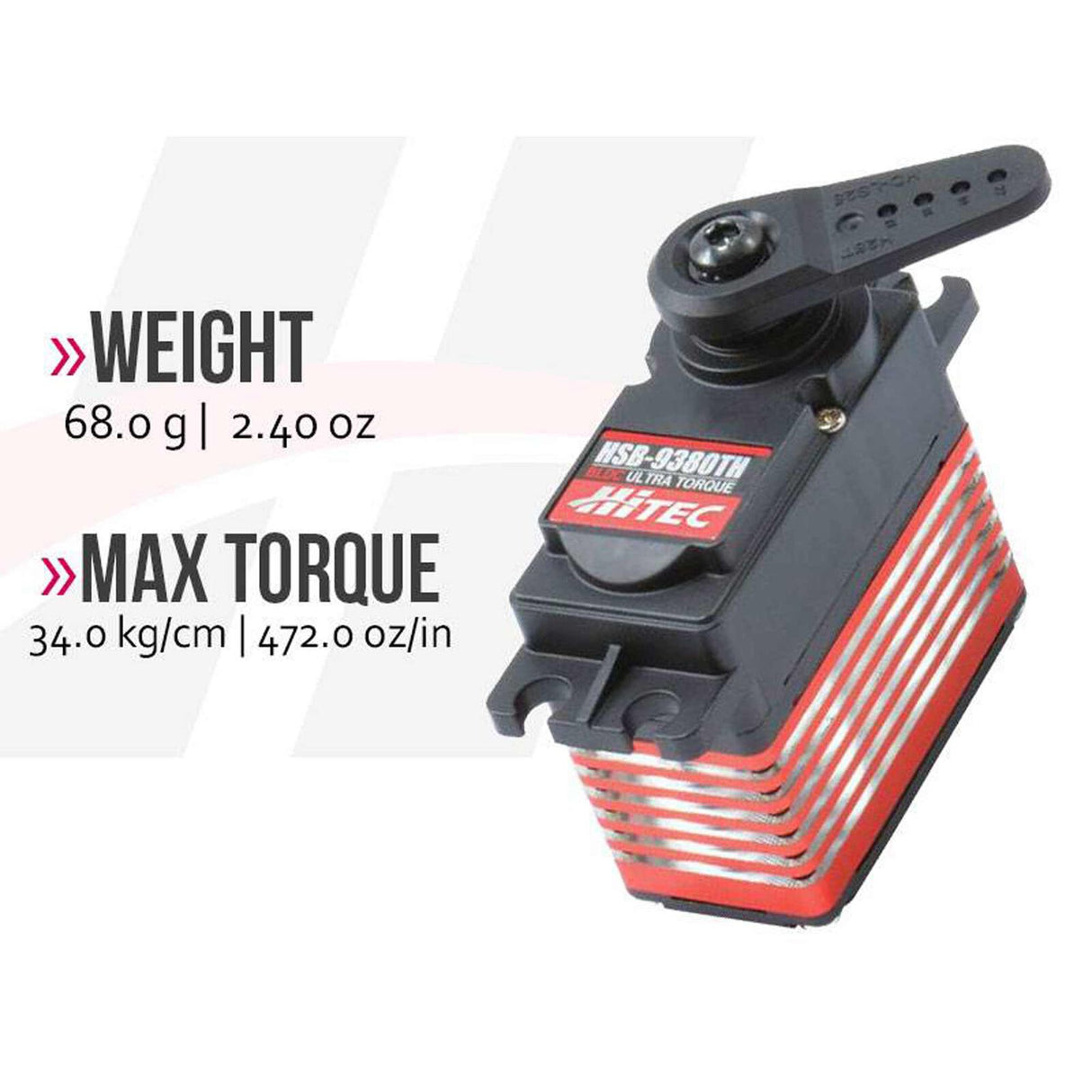

- Product Weight2.4 oz (68.0 g)
- Product Width0.79" (20 mm)
- Servo Operating Voltage6.0 - 7.4V (HV)
- Servo TypeDigital
- Spline Count25 - Tooth
- Torque472 oz/in / 34 kg/cm
- Water-ResistantYes
- Wire Gauge20 AWG
