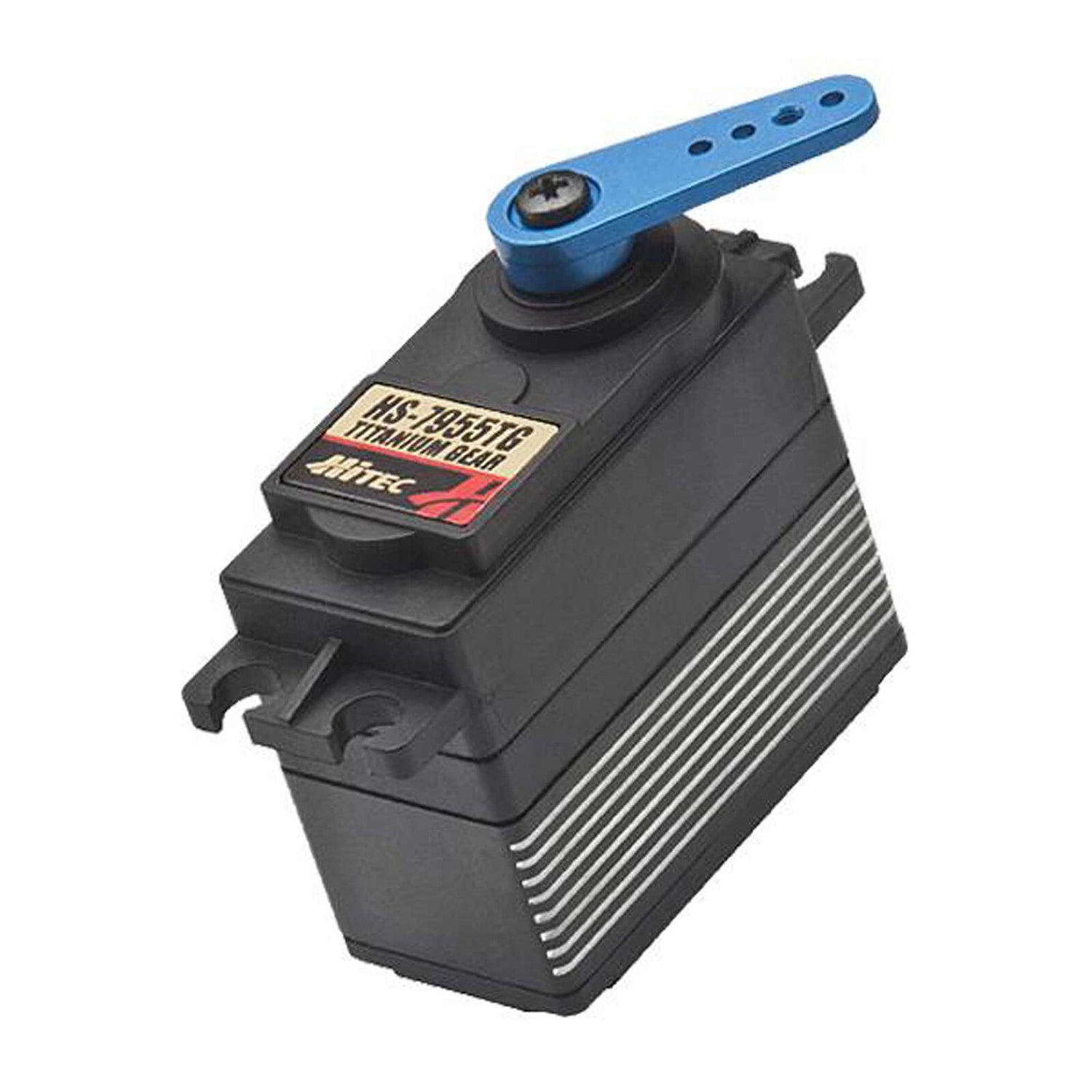

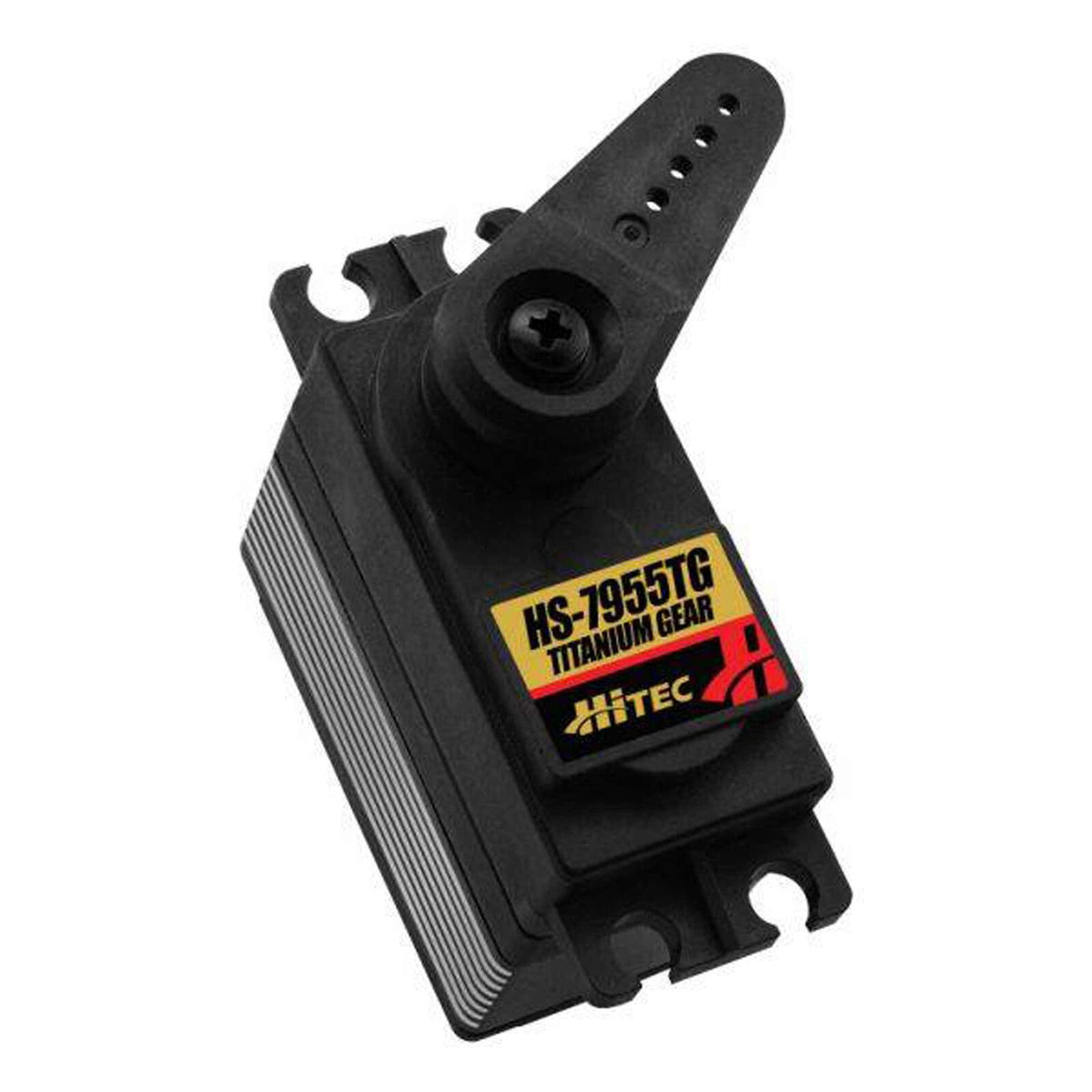

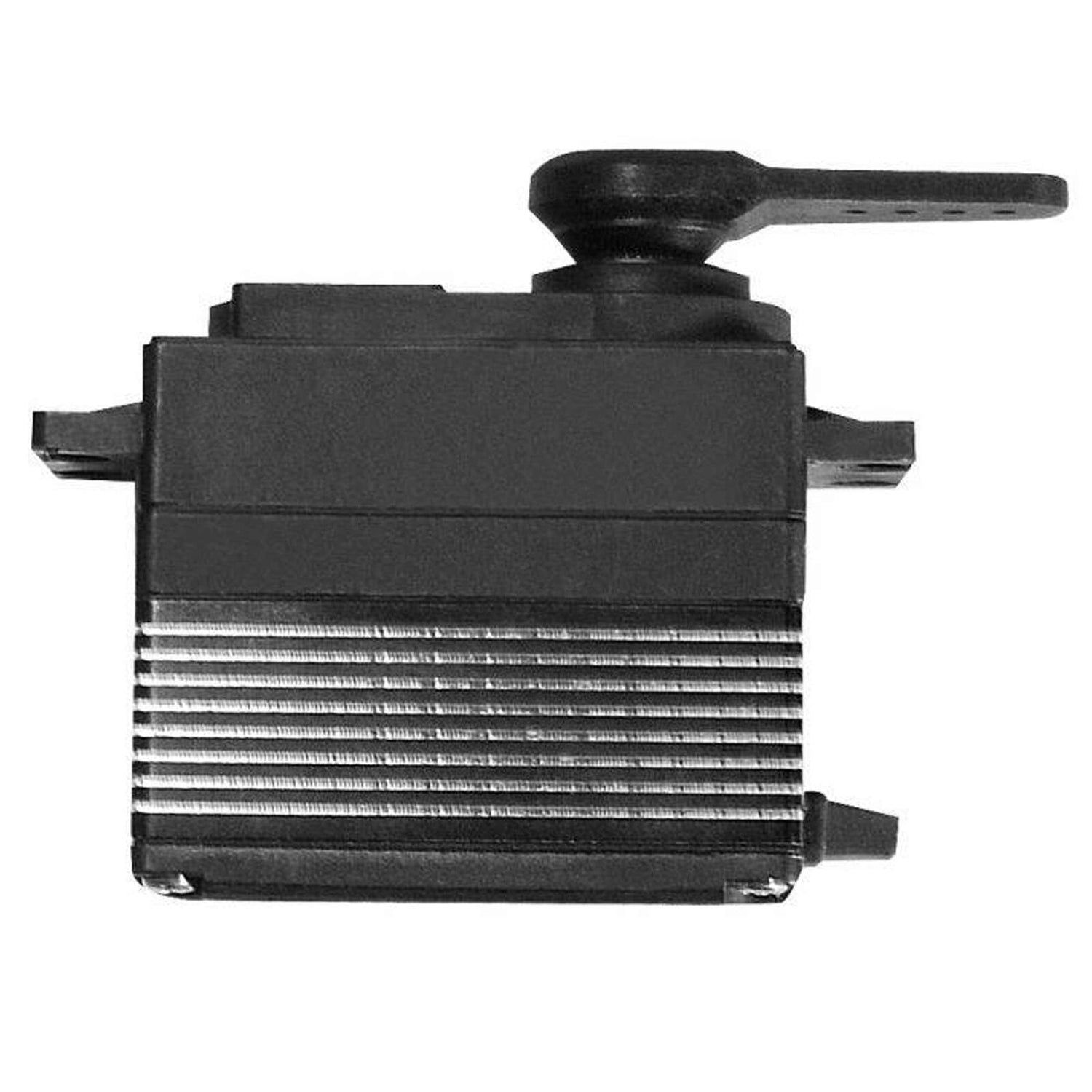

HRC37955S RCD Inc HS-7955TG High Resolution High Torque Servo: Universal
HRC37955S RCD Inc HS-7955TG High Resolution High Torque Servo: Universal is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Hitec's best servo just got better. Based on the powerhouse HS-5955TG servo the HS-7955TG has the added benefit of our G2 second generation programmable digital circuit. This new circuit has twice the resolution of our original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 333 oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case
- Speed: @4.8V .19sec/60' / @6.0V .15sec/60'

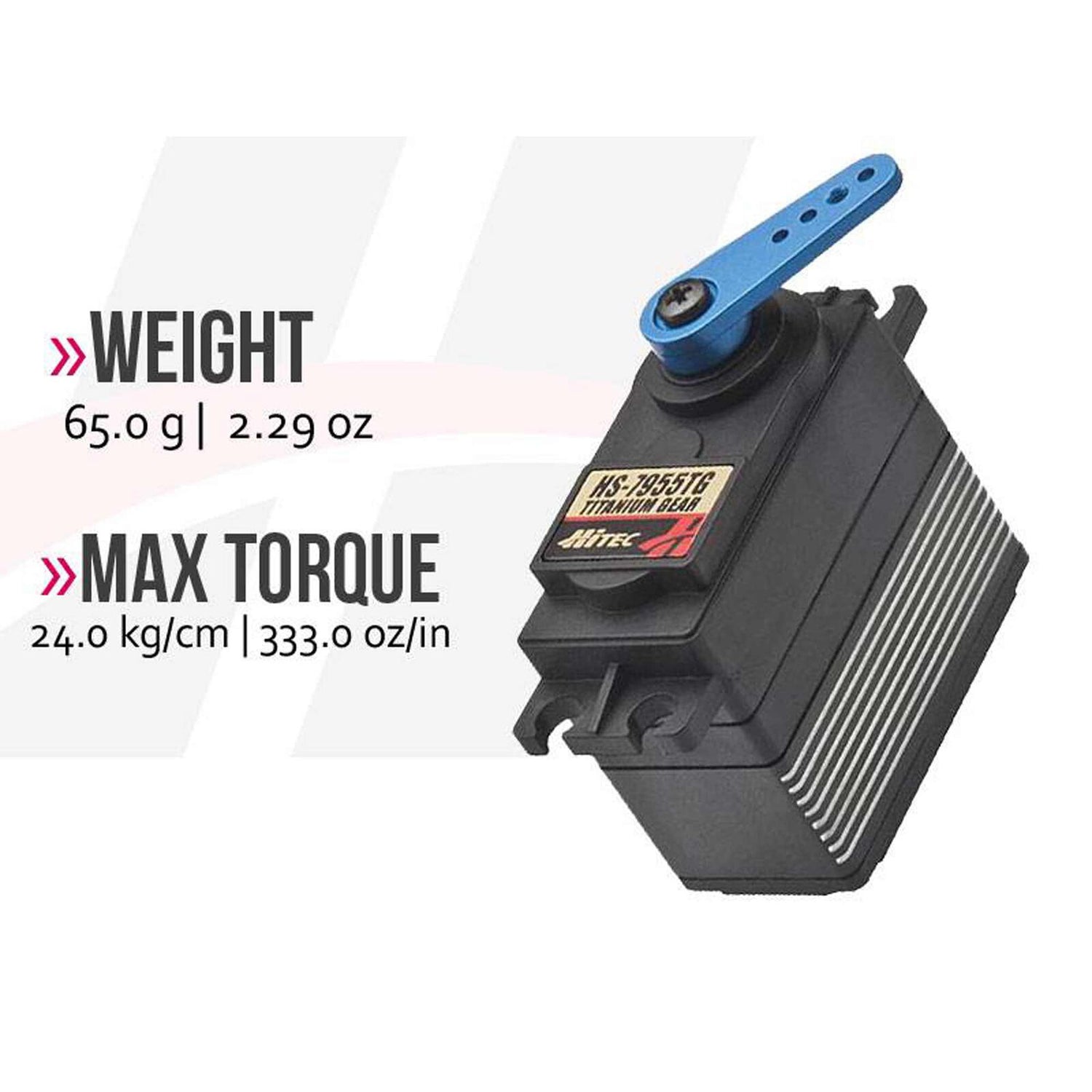

- Torque: @4.8V 250oz/in / @6.0V 333oz/in
- G2 Digital Circuit
- Coreless Motor
- Dual Ball Bearing Supported Output Shaft
- Titanium Gear Train
HRC37955S RCD Inc HS-7955TG High Resolution High Torque Servo: Universal Product Specs
- ApplicationHigh Performance Aircraft, Helicopters, Cars, Boats
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle30 mA
- Current Draw Stall5,200 mA
- Deadband1µs
- Gear TypeMetal
- Input Voltage4.8V ~ 6.0V
- Maximum Servo Speed0.19 sec/60 deg @4.8V, 0.12 sec/60 deg @ 7.4V
- Maximum Servo Torque251oz/in @ 4.8V, 404oz/in @ 7.4V
- Motor TypeBrushed

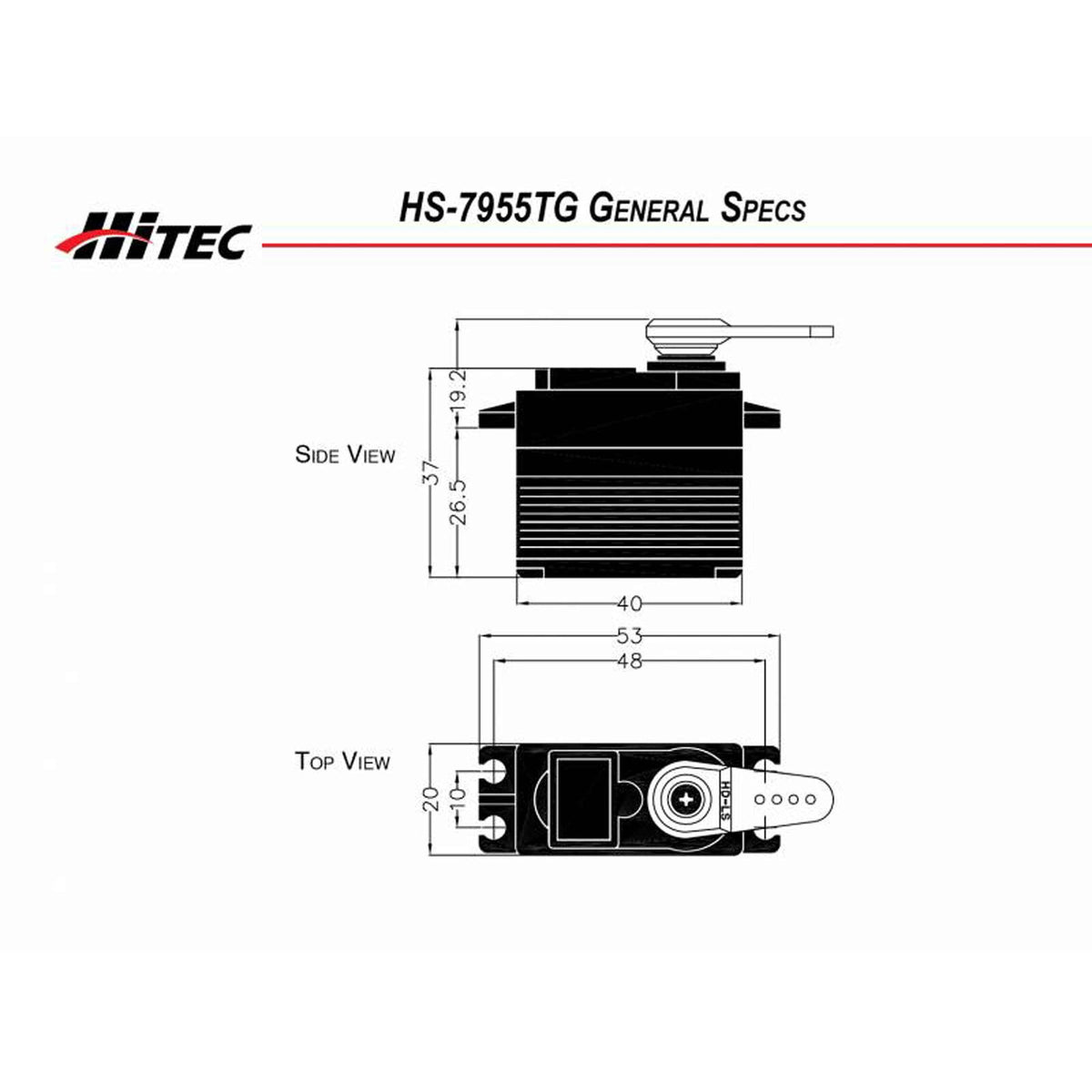

- Product Height1.46" (37 mm)
- Product Length1.57" (40 mm)
- Product Weight2.33oz (66.0g)
- Product Width0.78" (20 mm)
- ProgrammableYes
- Servo Operating Voltage4.8 - 7.4V (HV)
- Servo Size CategoryStandard
- Servo TypeDigital
- Spline Count24 - Tooth
- Water-ResistantNo
- Wire Gauge20 AWG
