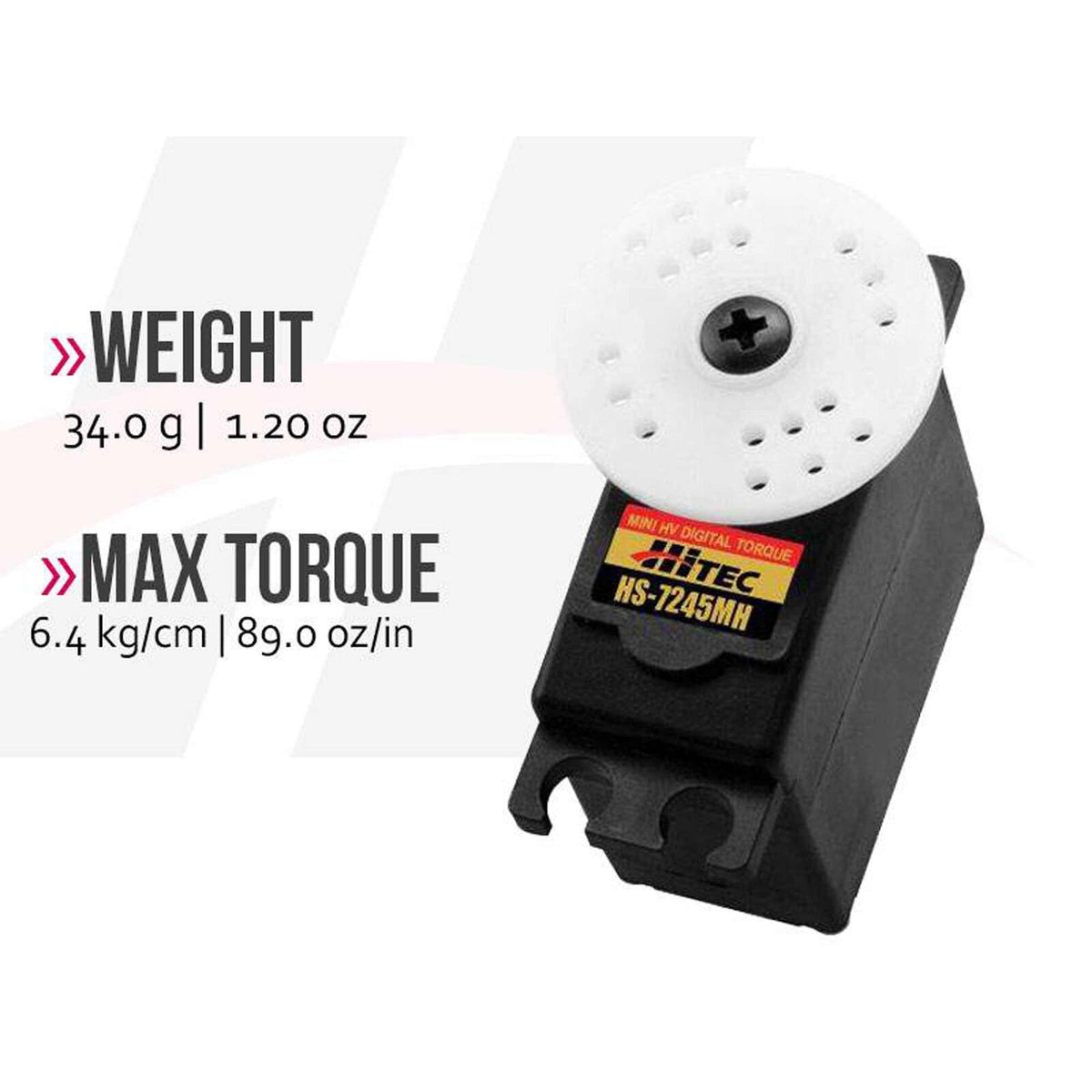

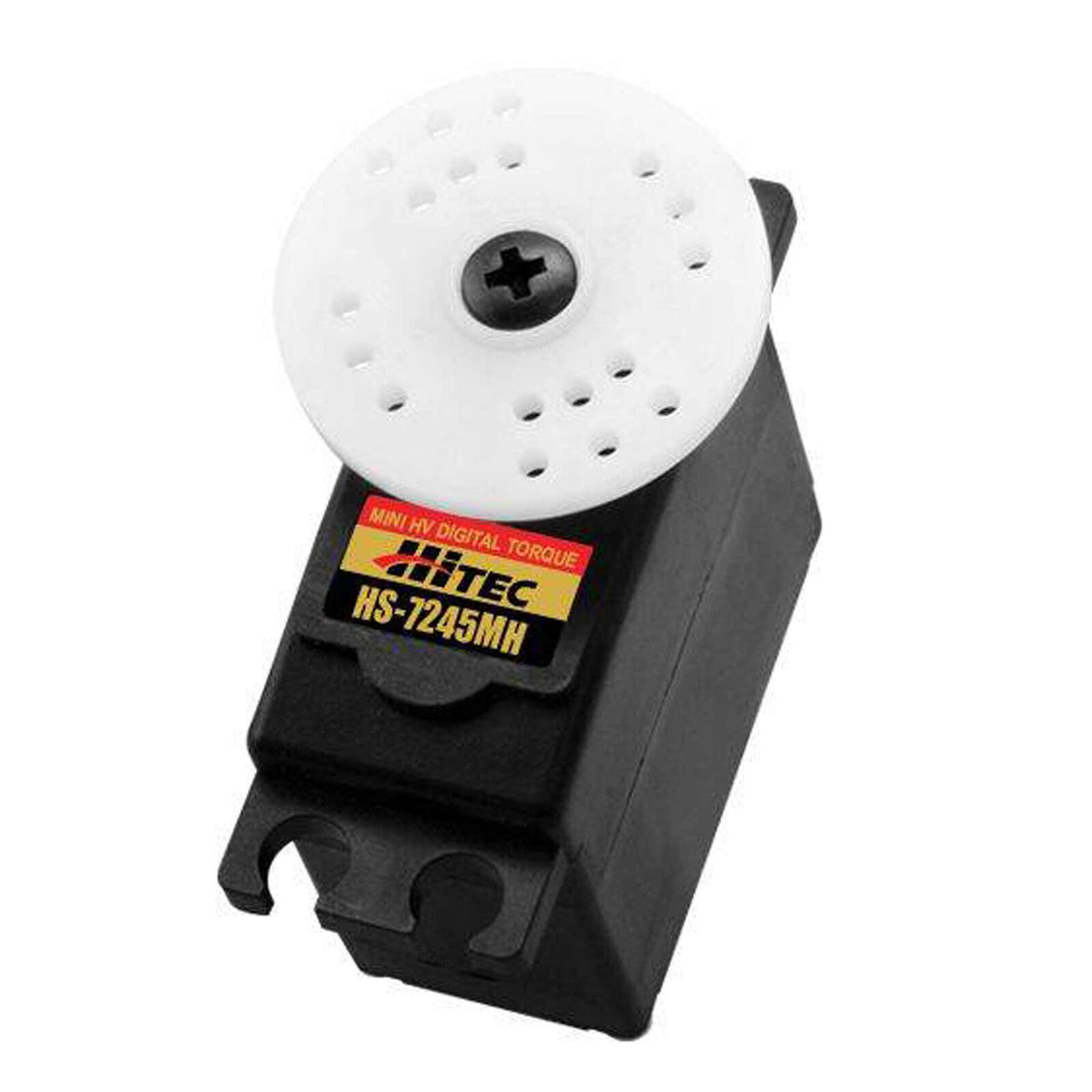

HRC37245S RCD Inc HS-7245MH Mini Digital HV High Torque Metal Gear Servo
HRC37245S RCD Inc HS-7245MH Mini Digital HV High Torque Metal Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Watch out, here it comes! HRC37245S new high voltage, coreless HS-7245MH servo delivers exceptional speed and torque in a compact package. Built with an efficient coreless motor optimized for 7.4V operation and heavy-duty metal gear train with dual ball bearings, this high-end mini servo delivers unbridled performance just like its brother, the HS-7235MH. Whether you are flying mid-size gas and electric airplanes, 500-550 electric helis, or driving 1/12th scale on-road racers and 1/18th scale rock crawlers, the full-size muscle of this servo will make you the master of your RC domain.
- Speed: @4.8V .13sec/60' / @7.4V .11sec/60'
- Torque: @4.8V 72oz/in / @7.4V 89oz/in
- Efficient Coreless Motor
- Heavy Duty Metal Gear Train
- 7.4v 2-Cell LiPo Capability
- G2.5 Fully Programmable Digital Circuitry
Hitec RCD Inc HS-7245MH Mini Digital HV High Torque Metal Gear Servo Product Specs
- ApplicationMid size gas & electric airplanes, 500-550 electric helis, 1:12 scale on-road racers, 1:18 scale rock crawlers
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle12 mA
- Current Draw Stall1,600mA
- Deadband2µs
- Gear TypeMetal
- Input Voltage6.0V ~ 7.4V
- Maximum Servo Speed0.13 sec/60 deg @ 6.0V, 0.11 sec.60 deg @ 7.4V
- Maximum Servo Torque72oz/in @ 6.0V, 89oz/in @ 7.4V
- Motor TypeBrushed
- Product Height1.29" (33 mm)
- Product Length1.28" (33 mm)
- Product Weight1.20oz (34g)
- Product Width0.66" (17 mm)
- ProgrammableYes
- Servo Operating Voltage6.0 - 7.4V (HV)
- Servo Size CategoryMini
- Servo TypeDigital
- Spline Count24 Teeth
- Water-ResistantNo
- Wire Gauge22 AWG
