HRC36955 RCD Inc D955TW Standard Digital Monster Torque Titanium Gear Servo
HRC36955 RCD Inc D955TW Standard Digital Monster Torque Titanium Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The power of HRC36955 D-Series servos continues with the introduction of the next Premium Class trio: the D930SW, D954SW and D955TW. As with our entire “D” line, these technologically-advanced servos are powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. Their unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. The reliably-strong titanium-geared D955TW replaces the well-known HS-7955TH. Advancing servo technology and providing superior engineering has always been Hitec’s mission and that continues today as we expand our outstanding D-Series product line.
- Speed: @4.8V .19sec/60' / @7.4V .12sec/60'
- Torque: @4.8V 251oz/in / @7.4V 404oz/in
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Dust Resistant and Splash Proof Case
Hitec RCD Inc D955TW Standard Digital Monster Torque Titanium Gear Servo Product Specs
- ApplicationHigh Performance Aircraft, Cars, Boats
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle30mA
- Current Draw Stall5200 mA
- Deadband1µs
- Gear TypeMetal
- Input Voltage4.8V ~ 7.4V
- Maximum Servo Speed0.19 sec/60 deg @ 4.8V, 0.12 sec/60 deg @ 7.4V
- Maximum Servo Torque251oz/in @ 4.8V, 404oz/in @ 7.4V
- Motor TypeBrushed

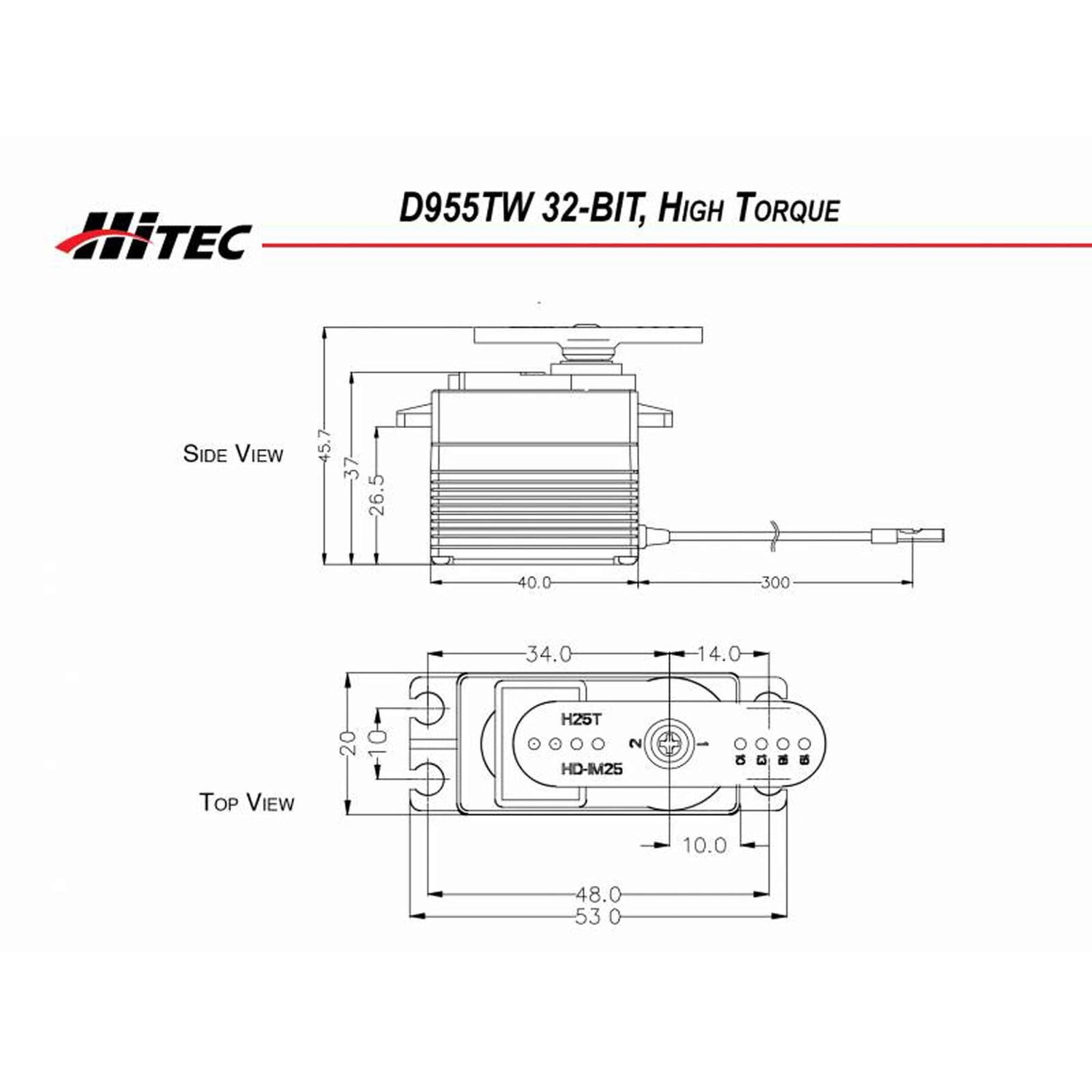

- Product Height1.46" (37 mm)
- Product Length1.57" (40 mm)
- Product Weight2.33 oz (66.0g)
- Product Width0.78" (20 mm)
- ProgrammableYes
- Servo Operating Voltage4.8 - 7.4V (HV)
- Servo Size CategoryStandard
- Servo TypeDigital
- Spline Count25 - Tooth
- Water-ResistantNo
- Wire Gauge20 AWG
