HRC36778 RCD Inc DB777WP Standard Digital Brushless Waterproof Metal Gear Surface Servo
HRC36778 RCD Inc DB777WP Standard Digital Brushless Waterproof Metal Gear Surface Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Hitec is excited to introduce the new addition to the D-Series servo line, the high-performance, low profile DB777WP. Designed with a full metal, IP-67 rated waterproof case, this advanced, programmable servo is our fastest, low profile option for 1/10 buggy and touring car drivers. The DB777WP is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter), bringing high resolution, rapid response, and patented Smart Sense technology to kick your ride into top gear!
- Speed: @4.8V .08sec/60' / @6.0V .06sec/60'
- Torque: @4.8V 111oz/in / @6.0V 153oz/in
- Voltage Range is 4.8V - 8.4V
- Full Programmability
- IP-67 Waterproof Rated
- Ultra Efficient Brushless Motor
- 32-Bit MCU Technology / 4096 Resolution
- Smart Sense Technology for Servo Analytics
- High Response, High Resolution Circuitry
- Full Metal Case
- 1M Cycle, Long-Life Potentionmeter
- H25T -Industry Standard Output Spline
- Compatible with Fully Charged 2S LiPo Batteries
Hitec RCD Inc DB777WP Standard Digital Brushless Waterproof Metal Gear Surface Servo Product Specs
- Application1/8 Cars and Trucks
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle35mA
- Current Draw Stall4500mA
- Deadband1µs
- Gear TypeMetal
- Input Voltage6.0V ~ 7.4V
- Maximum Servo Speed0.08 sec/60 deg @ 6.0V, 0.06 sec/60 deg @ 7.4V

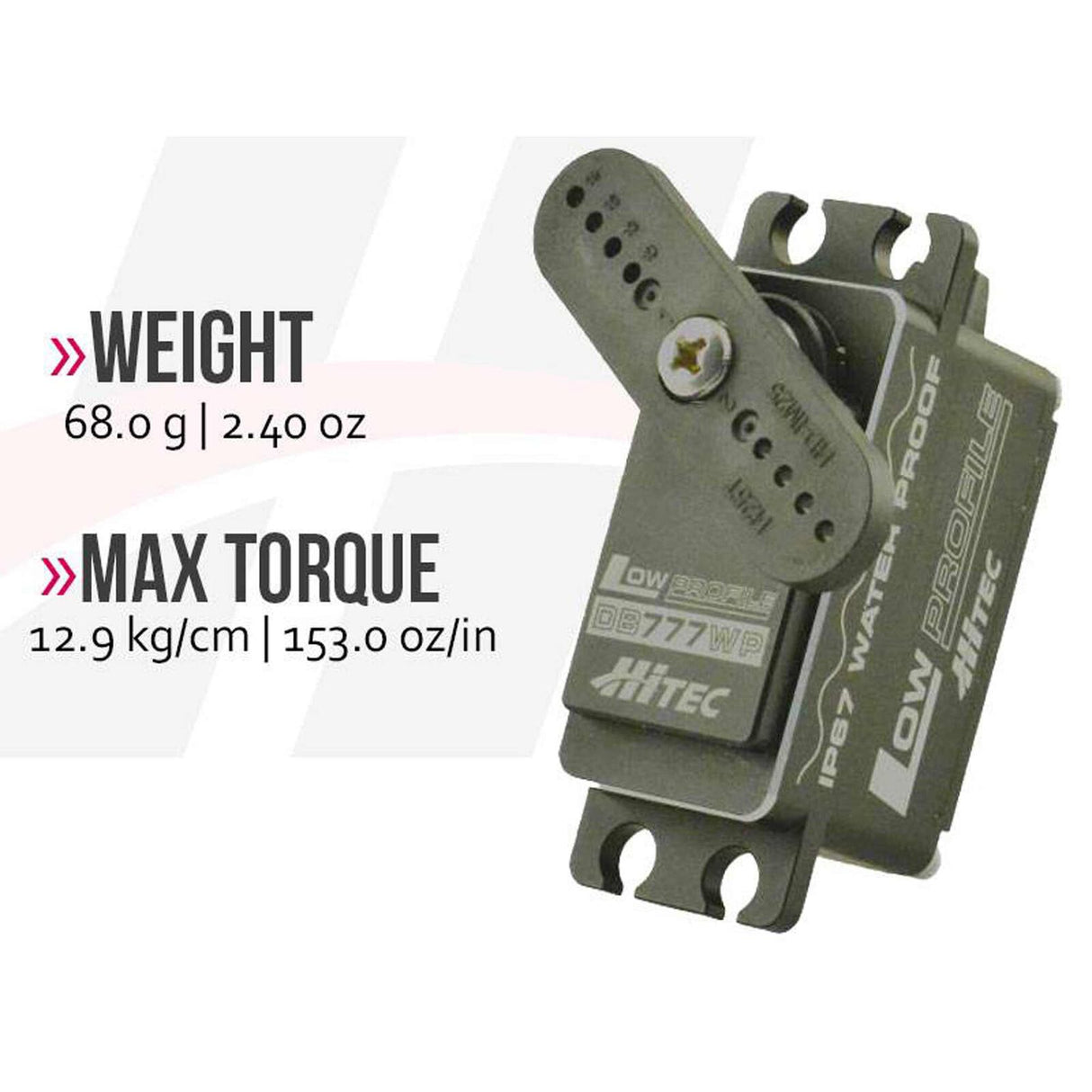

- Maximum Servo Torque111oz/in @ 6.0V, 153oz/in @ 7.4V
- Motor TypeBrushless

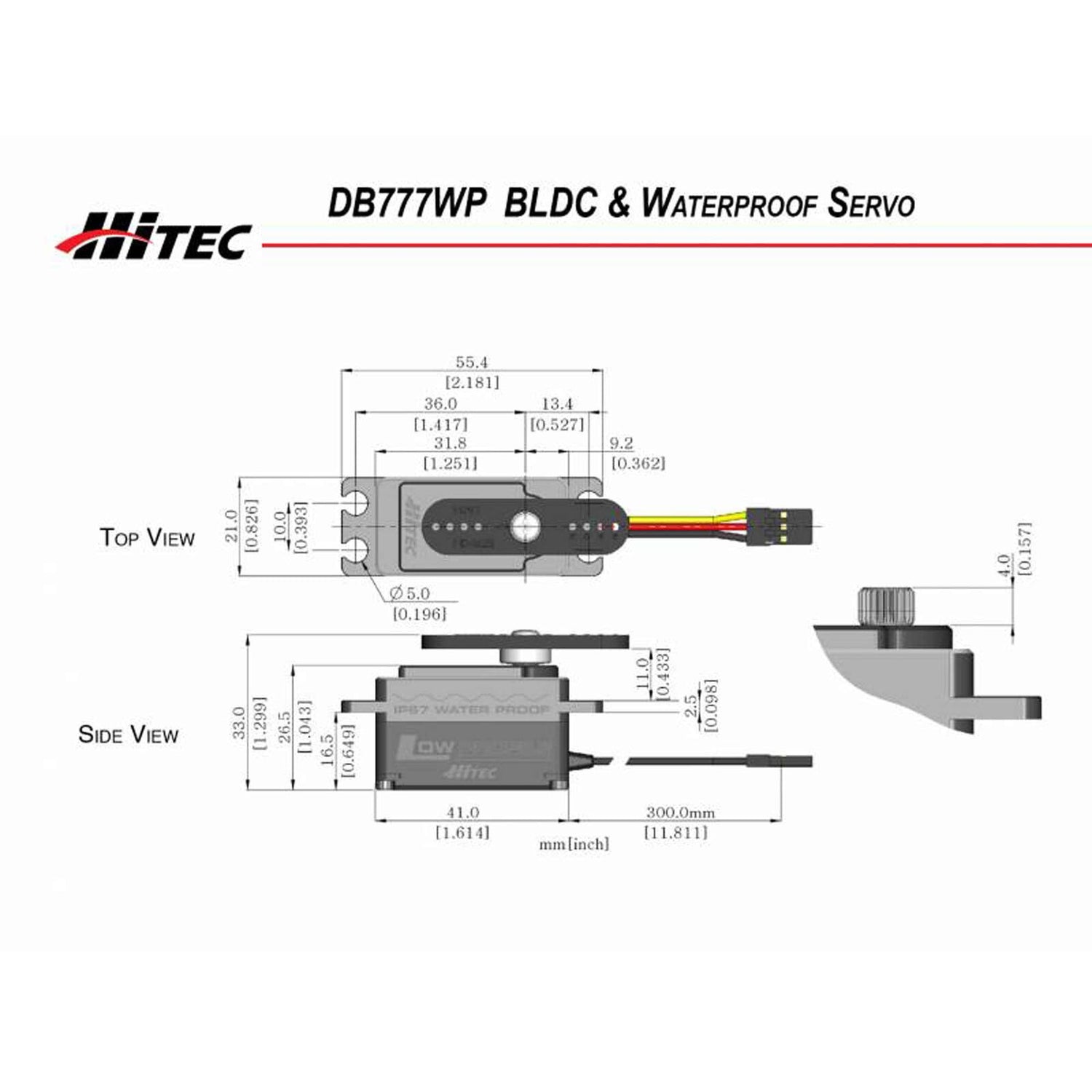

- Product Height1.04" (26 mm)
- Product Length1.61" (41 mm)
- Product Weight2.4oz (68g)
- Product Width0.83" (21 mm)
- ProgrammableYes
- Servo Operating Voltage6.0 - 7.4V (HV)
- Servo Size CategoryStandard
- Servo TypeDigital

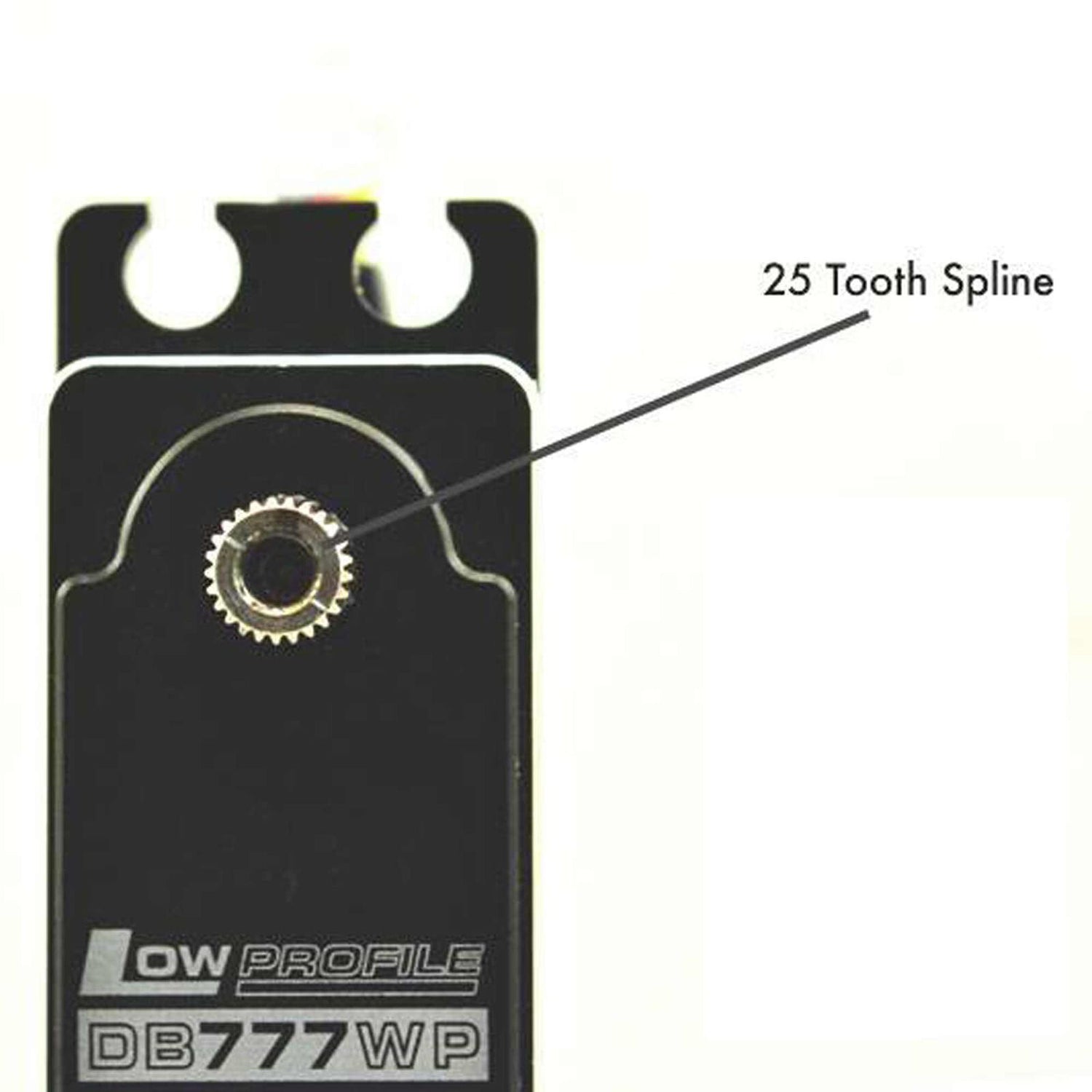

- Spline Count25 - Tooth
- Water-ResistantYes
- Wire Gauge20 AWG
HRC36778 RCD Inc DB777WP Standard Digital Brushless Waterproof Meta...
