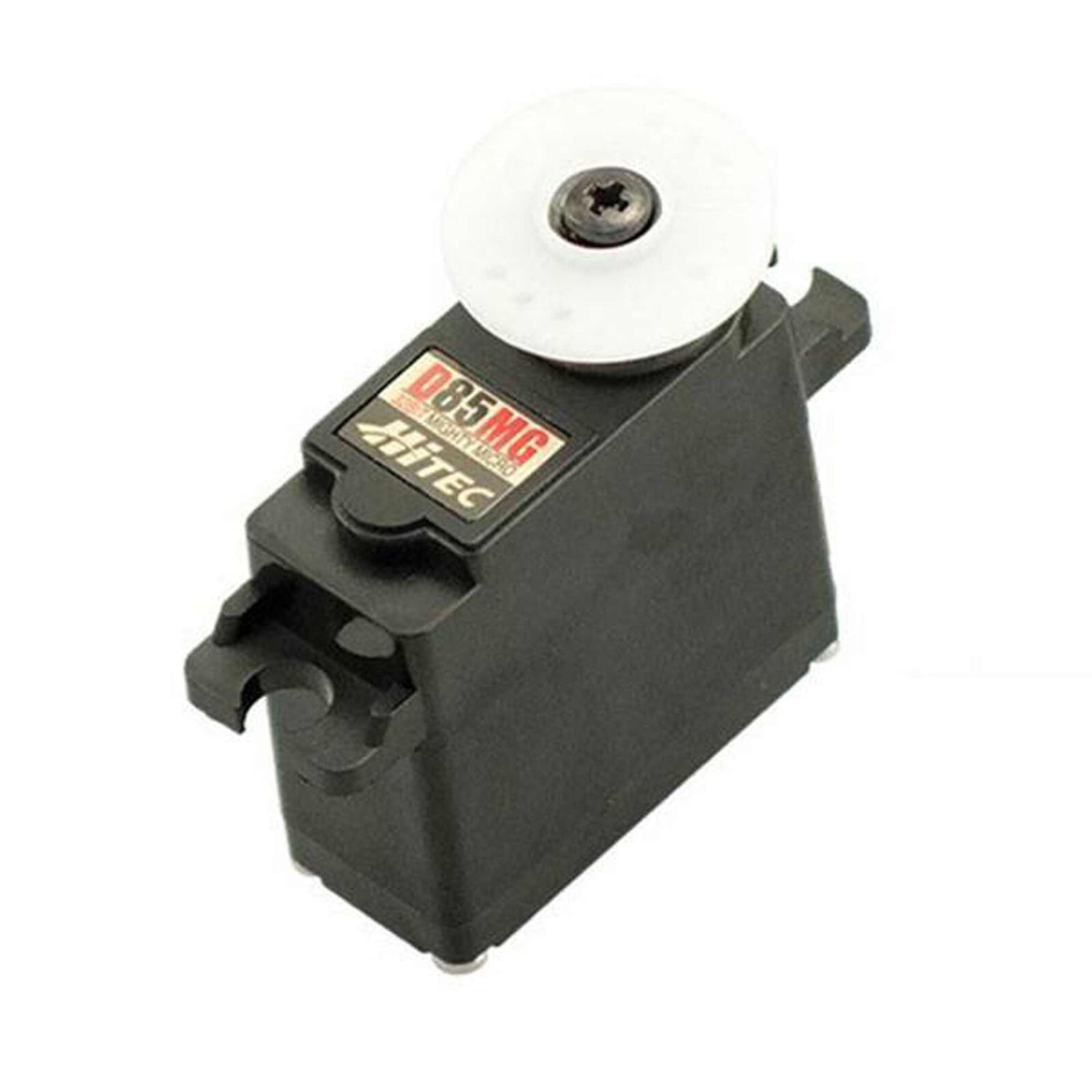

HRC36085S RCD Inc Mighty Micro D-85MG Programmable Servo
HRC36085S RCD Inc Mighty Micro D-85MG Programmable Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Hitec RCD Inc Mighty Micro D-85MG Programmable Servo Overview
Engineered with the state-of-the-art D-Series technology, this “micro but mighty” servo is an upgrade from the popular HS-5085MG. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D85MG allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance.
HRC36085S RCD Inc Mighty Micro D-85MG Programmable Servo Product Specs
- BearingTop Ball Bearing
- Bushing Or BearingBearing
- Current Draw Idle3 mA
- Current Draw Stall2,150 mA
- Deadband2µs
- Gear TypeMetal
- Input Voltage4.8V ~ 6.0V
- Motor TypeBrushed

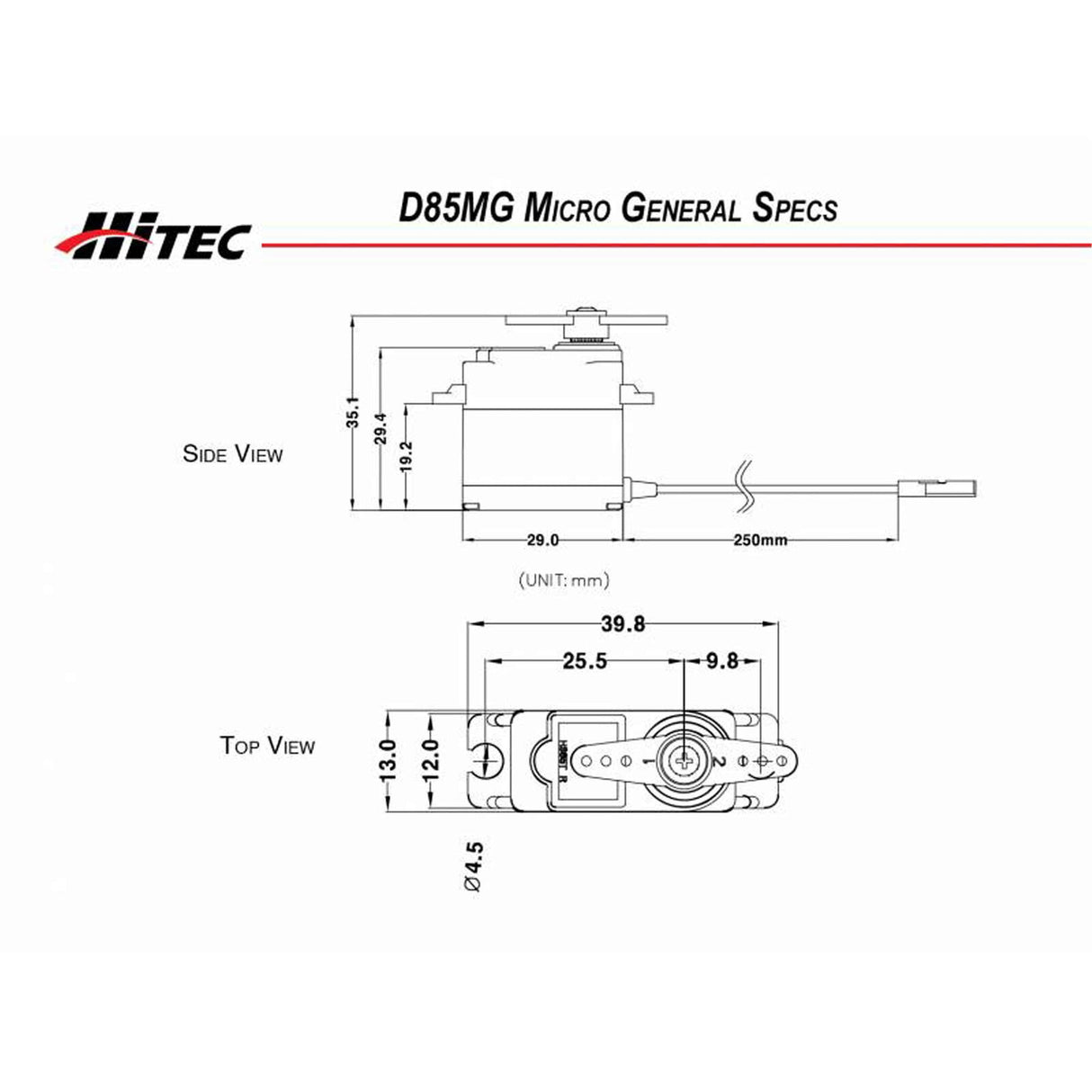

- Product Height1.18" (30 mm)
- Product Length1.14" (29 mm)

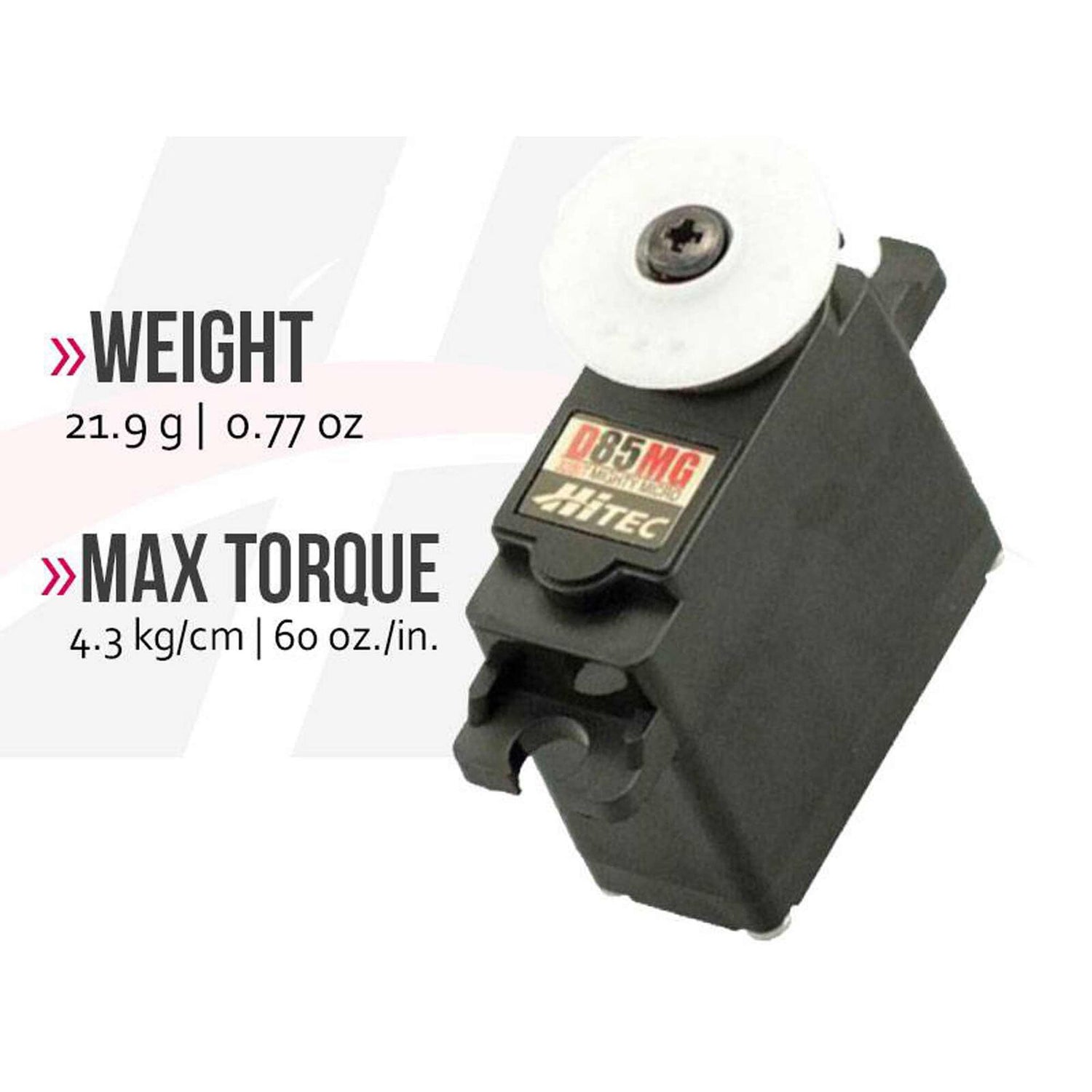

- Product Weight0.77 oz (21.9g)
- Product Width0.51" (13 mm)
- ProgrammableYes
- Servo Operating Voltage4.8 - 6.0V
- Spline Count24 - Tooth
- Torque50 ~ 60 oz/in
- Wire Gauge28 AWG
