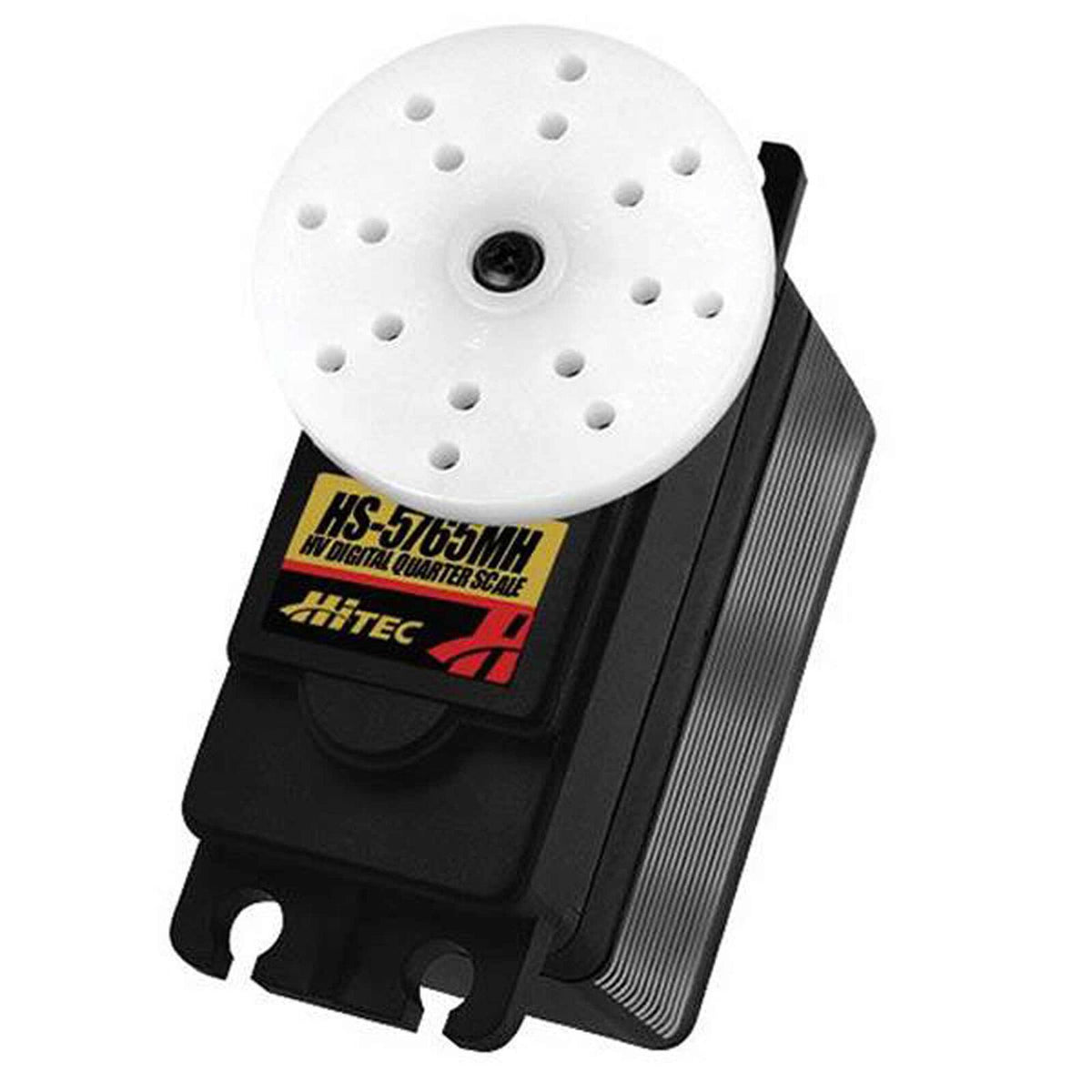

HRC35765S RCD Inc HS-5765MH Giant Scale Digital HV Metal Gear Servo
HRC35765S RCD Inc HS-5765MH Giant Scale Digital HV Metal Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
When it comes to your big RC projects, size does matter - that’s why Hitec engineered the HS-5765MH. This high voltage cousin of our popular HS-5755MG is 2-cell LiPo (7.4V) capable and features heavy duty, metal gears with a 10mm output shaft for the strength you need for the most demanding large scale applications. With 347 oz-in torque, Hitec's giant HS-5765MH is tough enough to tackle your biggest RC projects from 1/5th on and off-road vehicles to large high-powered boats and giant scale aircraft!
- Speed: @4.8V .16sec/60' / @6.0V .13sec/60'
- Torque: @4.8V 278oz/in / @6.0V 347oz/in
- Large 10mm Output shaft
- Triple Ball Bearings
- Heavy Duty Metal Gear Train
- Water and Dust Resistant Case
HRC35765S RCD Inc HS-5765MH Giant Scale Digital HV Metal Gear Servo Product Specs
- ApplicationGiant Scale Aircraft, Cars
- BearingTriple Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle3 mA
- Current Draw Stall5,800 mA
- Deadband5µs
- Gear TypeMetal
- Input Voltage6.0V ~ 7.4V
- Maximum Servo Speed0.16 sec/60 deg @ 6.0V, 0.13 sec/60 deg @ 7.4V

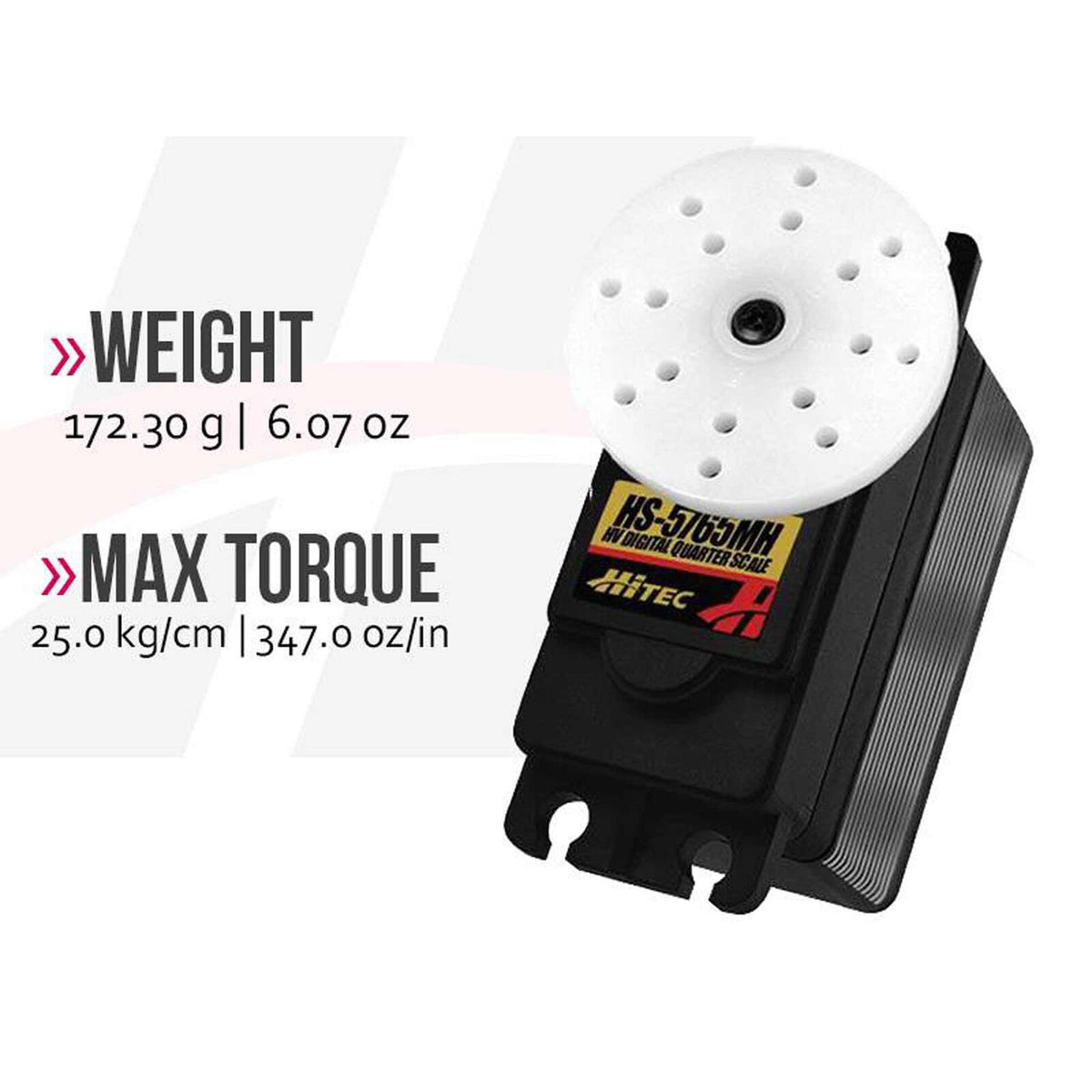

- Maximum Servo Torque278oz/in @ 6.0V, 347oz/in @ 7.4V
- Motor TypeBrushed

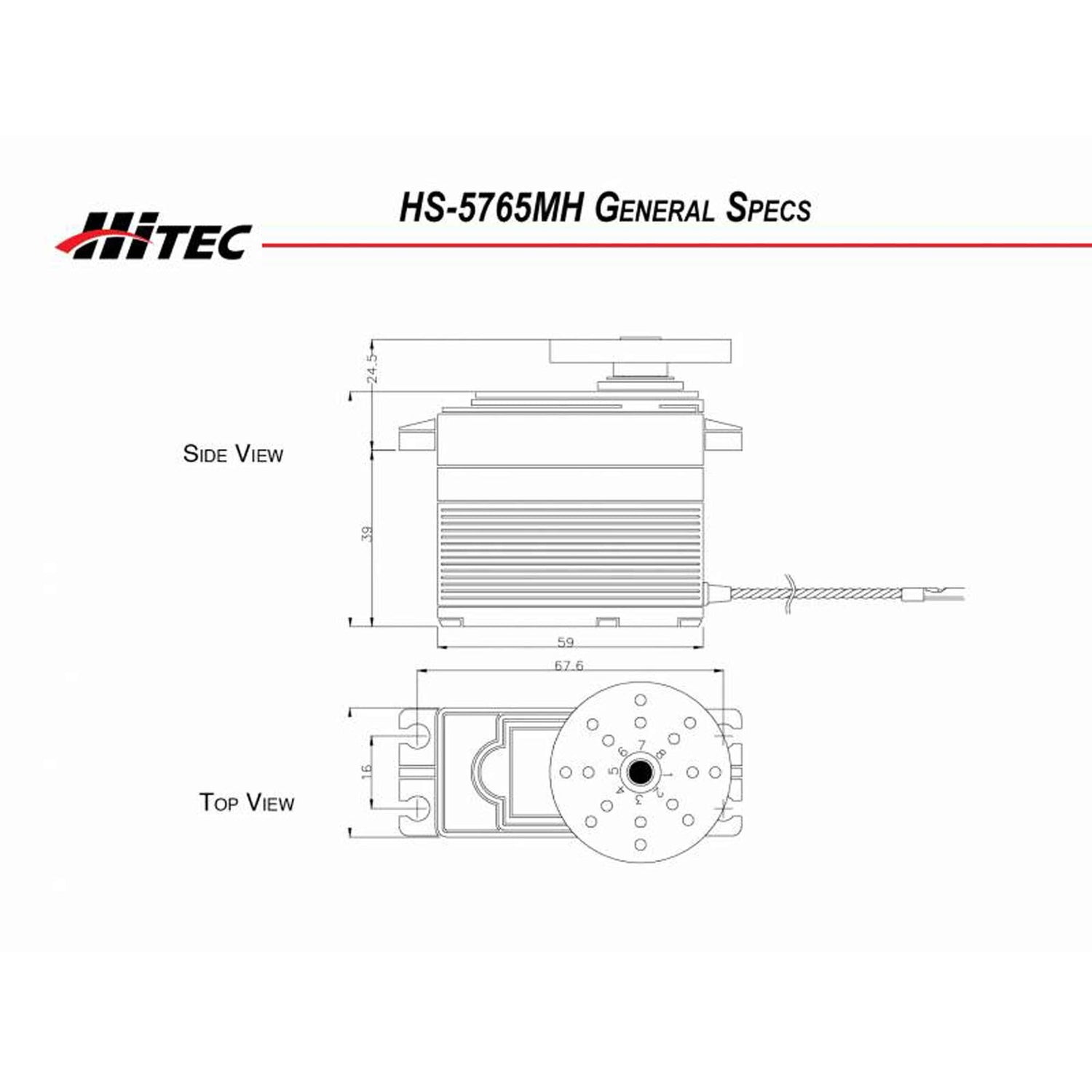

- Product Height2.04" (52 mm)
- Product Length2.32" (59 mm)
- Product Weight6.07oz (172.3g)
- Product Width1.14" (29 mm)
- ProgrammableYes
- Servo Operating Voltage6.0 - 7.4V (HV)
- Servo Size CategoryGiant Scale
- Servo TypeDigital
- Spline Count15 - Tooth
- Water-ResistantNo
- Wire Gauge22 AWG
HRC35765S RCD Inc HS-5765MH Giant Scale Digital HV Metal Gear Servo
