HITEC | SKU:
HRC35625S

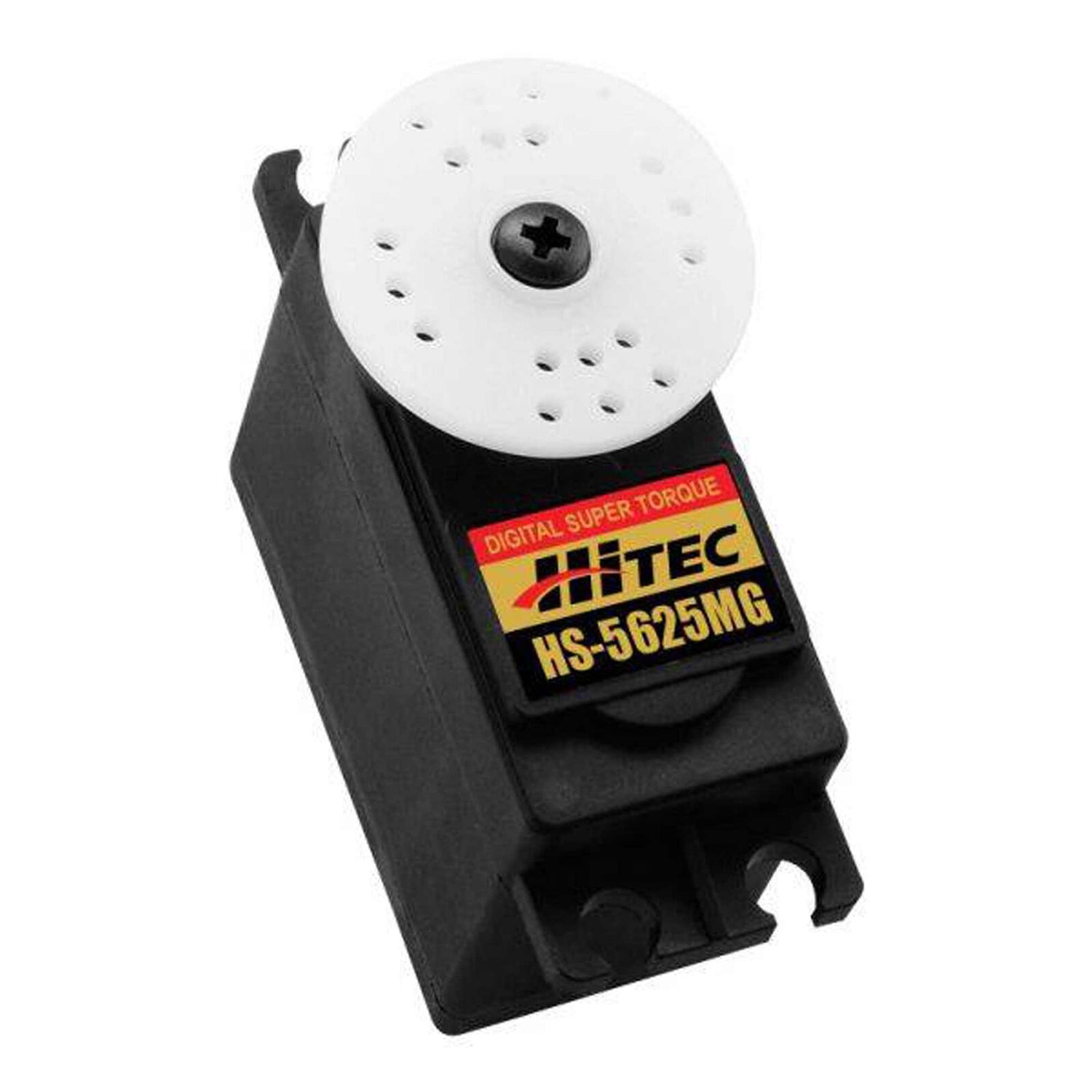

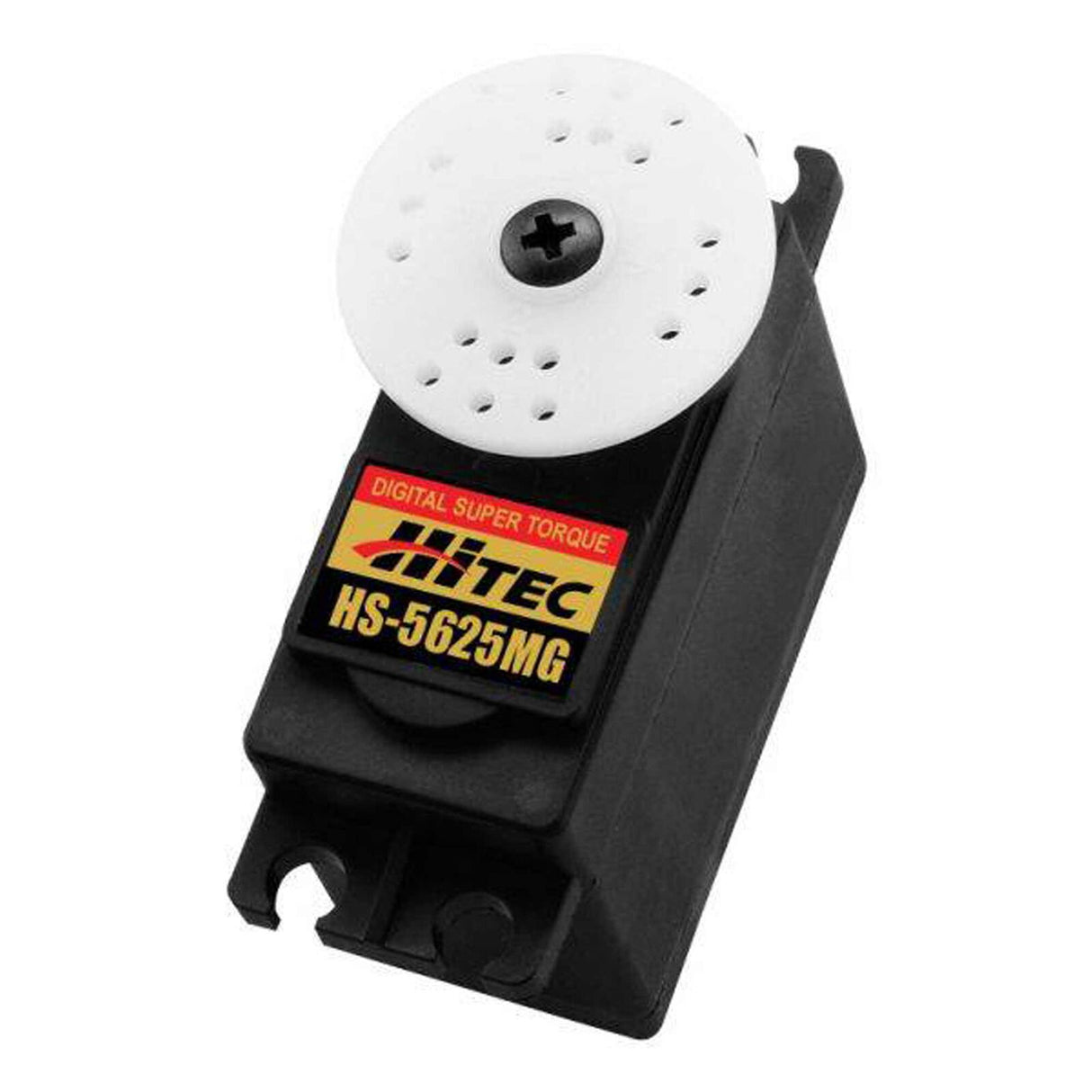

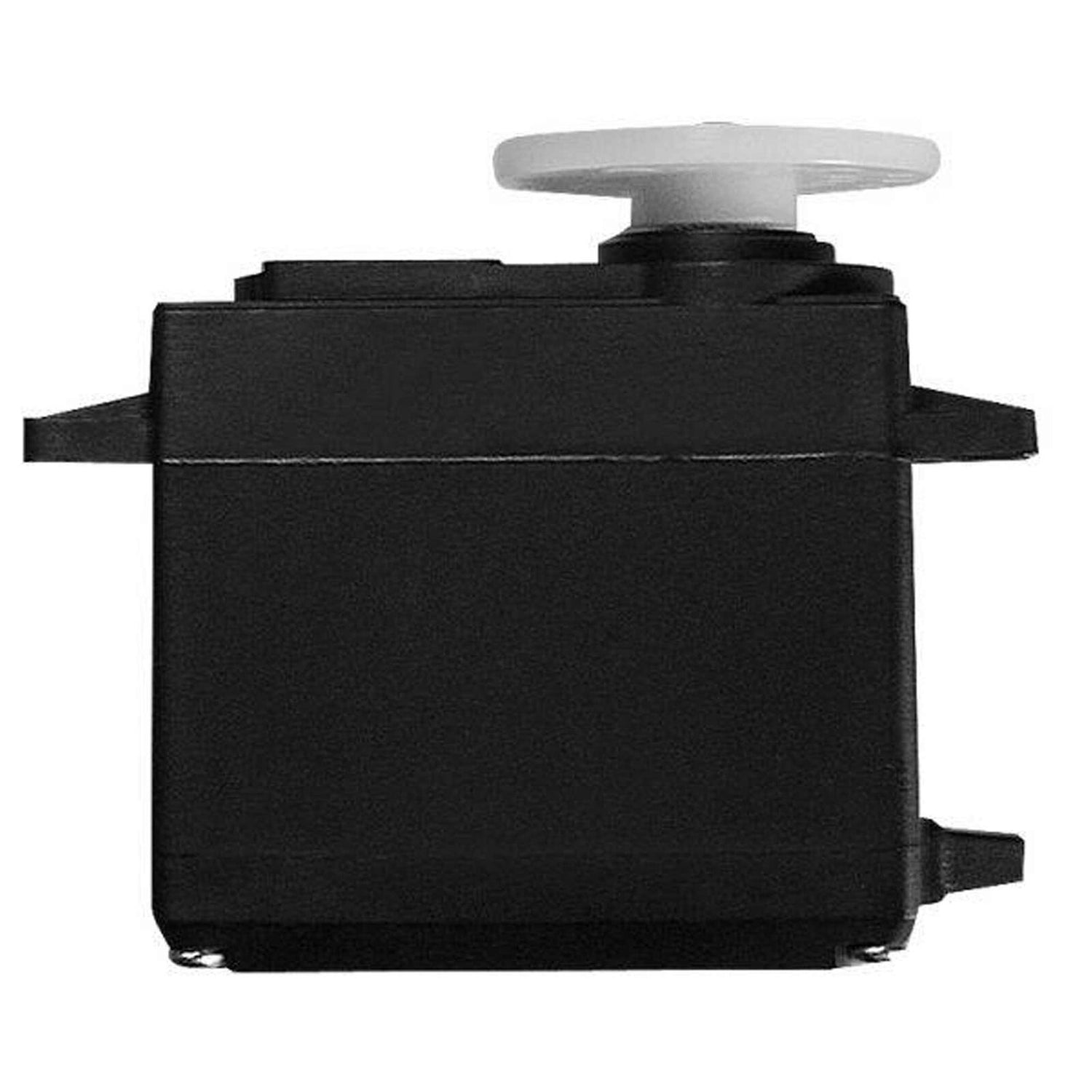

HRC35625S RCD Inc HS-5625MG Standard Digital High Speed Metal Gear Servo
Regular price
$56.99
Unit price
/
Unavailable
HRC35625S RCD Inc HS-5625MG Standard Digital High Speed Metal Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
For those applications that require a fast standard size servo, the HS-5625MG is an excellent choice. With a custom designed programmable digital circuit and our unique M/P and metal gear train technology, the HS-5645MG will deliver powerful high speed results!
- Speed: @4.8V .17sec/60' / @6.0V .14sec/60'
- Torque: @4.8V 110oz/in / @6.0V 131oz/in
- Most Popular High Speed Standard Digital Servo
- Strong Three-Pole Ferrite Motor
- Metal Gear Train with MP Gear Technology
- Dual Ball Bearing-Supported Output Shaft
- Standard Programmable Digital Circuit Provides Fine Resolution and Centering
HRC35625S RCD Inc HS-5625MG Standard Digital High Speed Metal Gear Servo Product Specs
- ApplicationSport Aircraft, Helicopters, Cars, Boats
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle3 mA
- Current Draw Stall2,400 mA
- Deadband4µs
- Gear TypeMetal
- Input Voltage4.8V ~ 6.0V
- Maximum Servo Speed0.17 sec/60 deg @ 4.8V, 0.14 sec/60 deg @ 6.0V
- Maximum Servo Torque110oz/in @ 4.8V, 131oz/in @ 6.0V
- Motor TypeBrushed

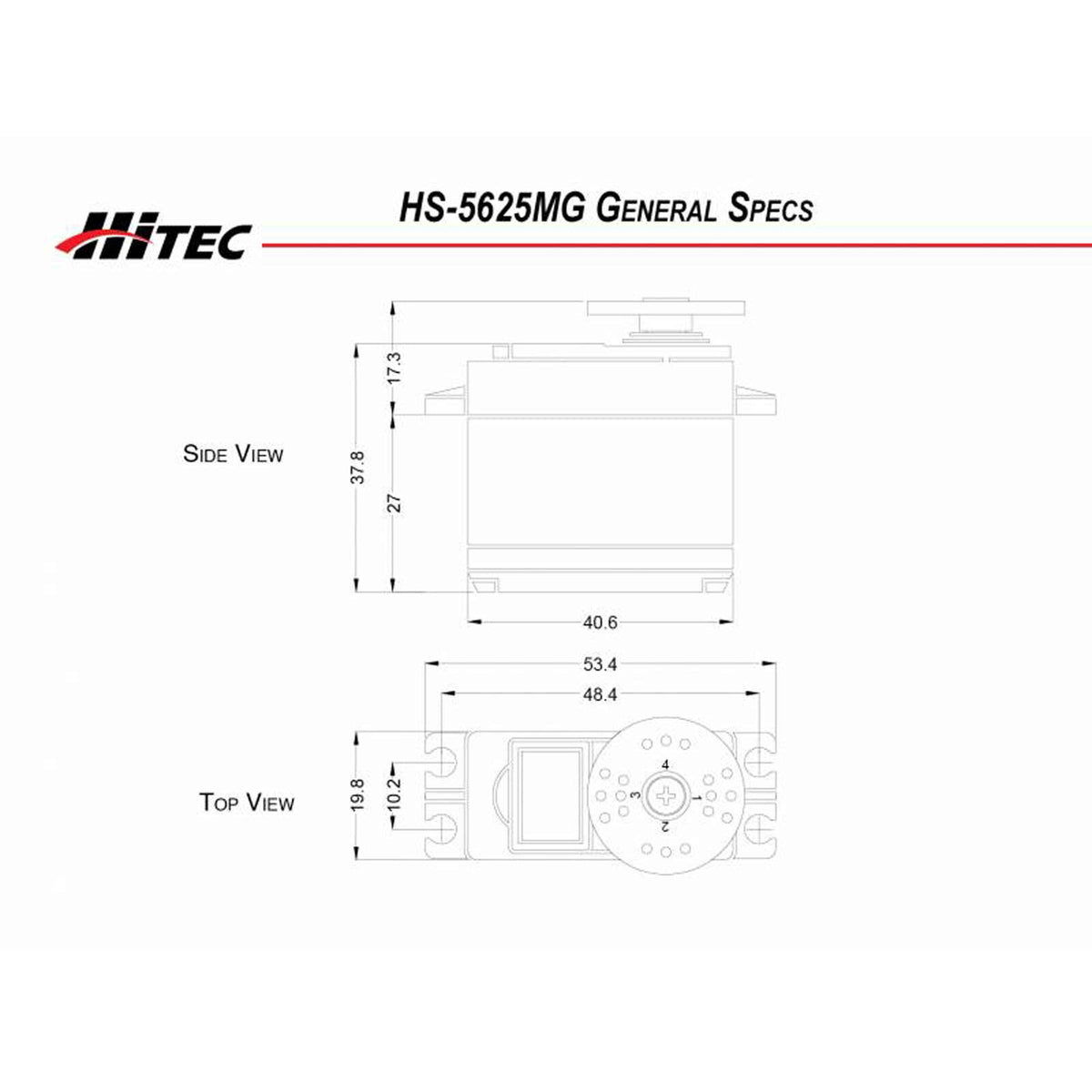

- Product Height1.48" (38 mm)
- Product Length1.59" (40 mm)
- Product Weight2.11oz (60.0g)
- Product Width0.77" (20 mm)
- ProgrammableYes
- Servo Operating Voltage4.8 - 6.0V
- Servo Size CategoryStandard
- Servo TypeDigital
- Spline Count24 - Tooth
- Water-ResistantNo
- Wire Gauge22 AWG
