HRC35585S RCD Inc HS-5585MH Standard Digital HV High Torque Metal Gear Servo
HRC35585S RCD Inc HS-5585MH Standard Digital HV High Torque Metal Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Increase your performance not your budget with the high voltage, high torque, digital HS-5585MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for 7.4 volt, 2S LiPo operation. The HS-5585MH, supplies your 1/10th monster trucks to 1/8th scale buggies and truggies and high performance airplanes up to 35 percent with outstanding strength and precision.
- Speed: @4.8V .17sec/60' / @6.0V .14sec/60'
- Torque: @4.8V 194oz/in / @6.0V 236oz/in
- Quick and Precise Coreless Motor
- Heavy Duty Metal Gears
- 7.4v 2-Cell LiPo Capability
- Standard Programmable Digital Circuit
HRC35585S RCD Inc HS-5585MH Standard Digital HV High Torque Metal Gear Servo Product Specs
- ApplicationSport Aircraft, Helicopters, Cars, Boats
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle4 mA
- Current Draw Stall2,700 mA
- Deadband2µs
- Gear TypeMetal
- Input Voltage6.0V ~ 7.4V
- Maximum Servo Speed0.17 sec/60 deg @ 6.0V, 0.14 sec/60 deg @ 7.4V
- Maximum Servo Torque194oz/in @ 6.0V, 236oz/in @ 7.4V
- Motor TypeBrushed

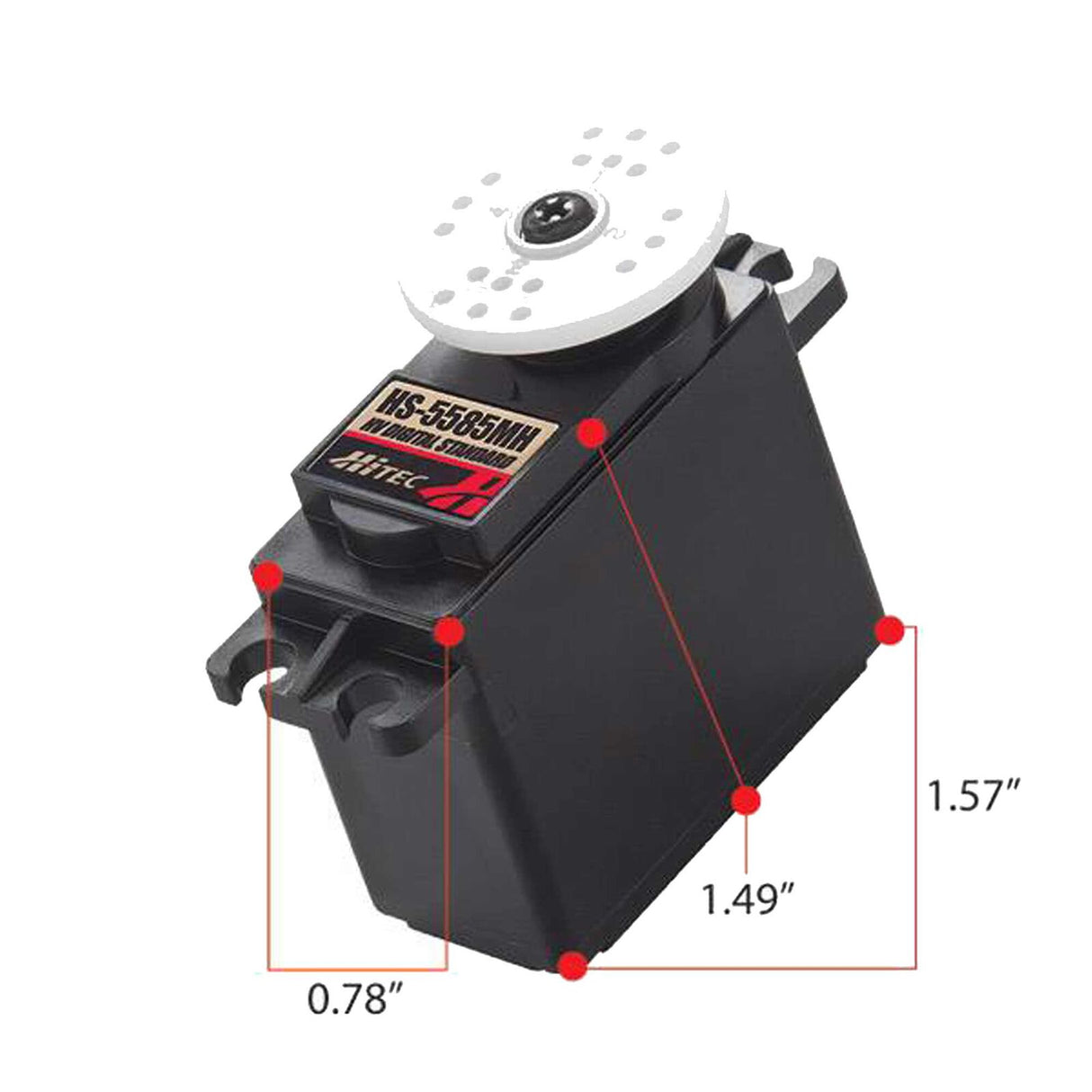

- Product Height1.49" (38 mm)
- Product Length1.57" (40 mm)
- Product Weight2.10oz (60g)
- Product Width0.78" (20 mm)
- ProgrammableYes
- Servo Operating Voltage6.0 - 7.4V (HV)
- Servo Size CategoryStandard
- Servo TypeDigital
- Spline Count24 - Tooth
- Water-ResistantNo
- Wire Gauge25 AWG
