HRC35087S RCD Inc HS-5087MH Micro Digital HV Metal Gear Servo
HRC35087S RCD Inc HS-5087MH Micro Digital HV Metal Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The HRC35087S digital, metal gear micro servo is the high voltage version of our ever popular HS-5085MG. Built with a 3-pole ferrite motor and heavy-duty metal gears, this servo will bring maximum performance to your hobby and deliver extra power with a 2-cell 7.4V LiPo battery. Whether you are a beginner or an expert in the RC field, our HS-5087MH will provide the strength and capability you need and want in a micro servo. Drivers will find it the perfect steering servo for their 1/16th scale vehicles. Pilots with .15 to .40-size glow and electric aircraft will relish in its power and reliability. Its precision and performance also make it perfect for 500-size helicopters.
- Speed: @4.8V .17sec/60' / @6.0V .13sec/60'
- Torque: @4.8V 50oz/in / @6.0V 60oz/in
- Rugged Metal Gears
- Ball Bearing-Supported Output Shaft
- Standard Programmable Digital Circuit for More Holding Power
- Standard Servo Performance in a Micro Package
Hitec RCD Inc HS-5087MH Micro Digital HV Metal Gear Servo Product Specs
- Application50oz park flyers, 42-50oz sport planes, 2M/DLG sailplanes, 1:16 scale on-road, buggies & SC trucks, 1:16 scale power boats
- BearingTop Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle3 mA
- Current Draw Stall1,750 mA
- Deadband2µs
- Gear TypeMetal
- Input Voltage6.0V ~ 7.4V
- Maximum Servo Speed0.17 sec/60 deg @ 6.0V, 0.13 sec/60 deg @ 7.4V
- Maximum Servo Torque50oz/in @ 6.0V, 60oz/in @ 7.4V
- Motor TypeBrushed

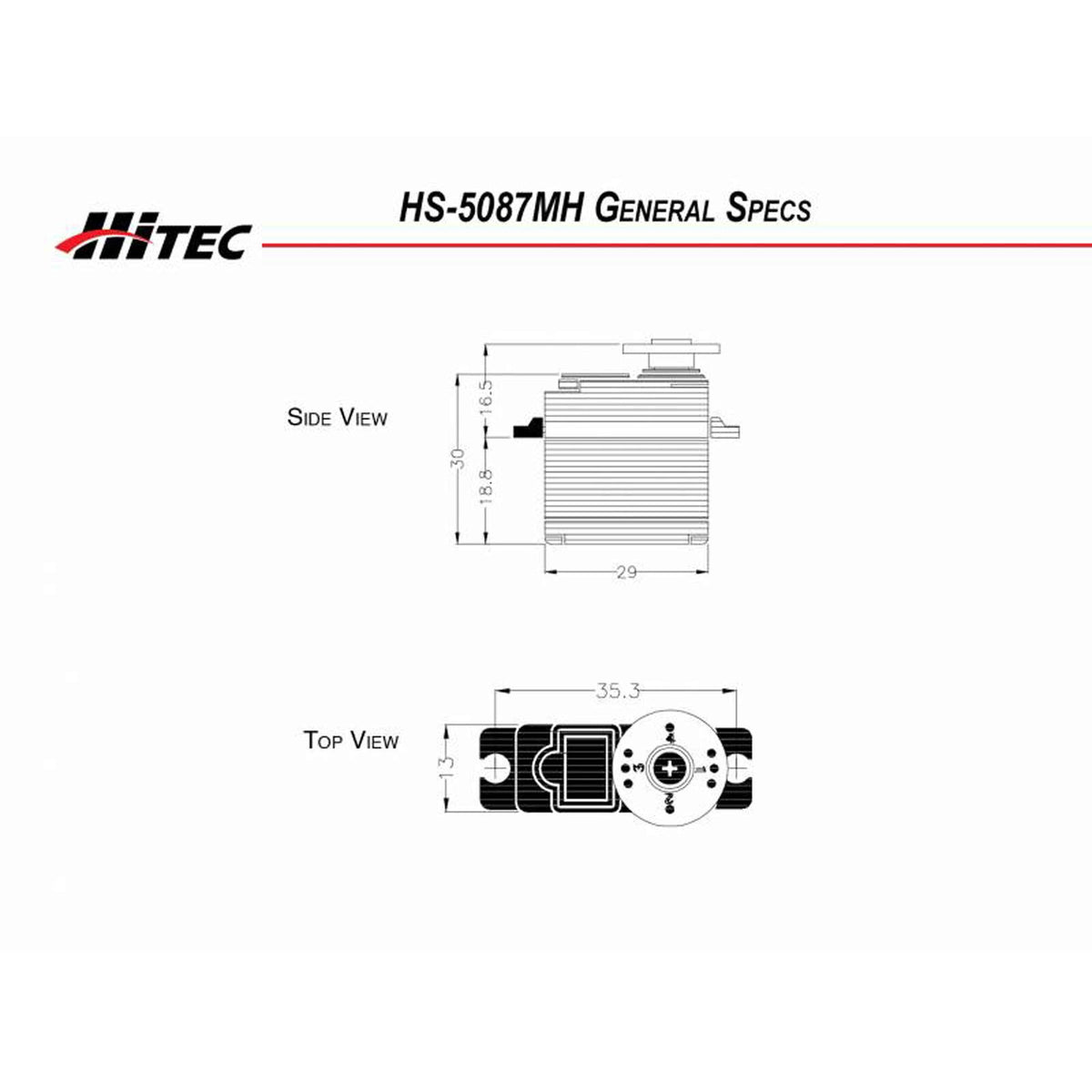

- Product Height1.18" (30 mm)
- Product Length1.14" (29 mm)

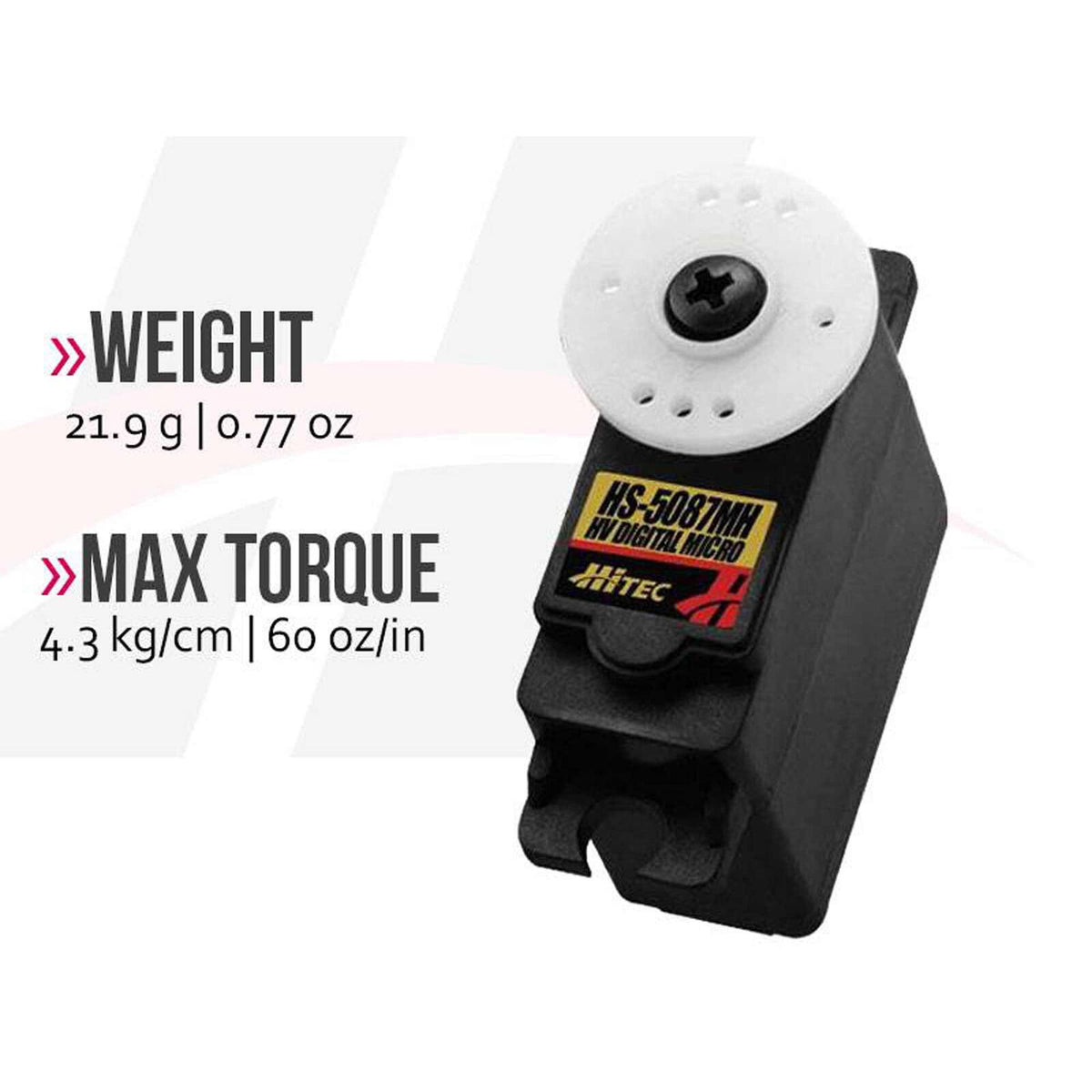

- Product Weight0.77oz (21.9g)
- Product Width0.51" (13 mm)
- ProgrammableYes
- Servo Operating Voltage6.0 - 7.4V (HV)
- Servo Size CategoryMicro
- Servo TypeDigital
- Spline Count24 Teeth
- Water-ResistantNo
- Wire Gauge28 AWG
HRC35087S RCD Inc HS-5087MH Micro Digital HV Metal Gear Servo
