HITEC | SKU:
HRC33788S

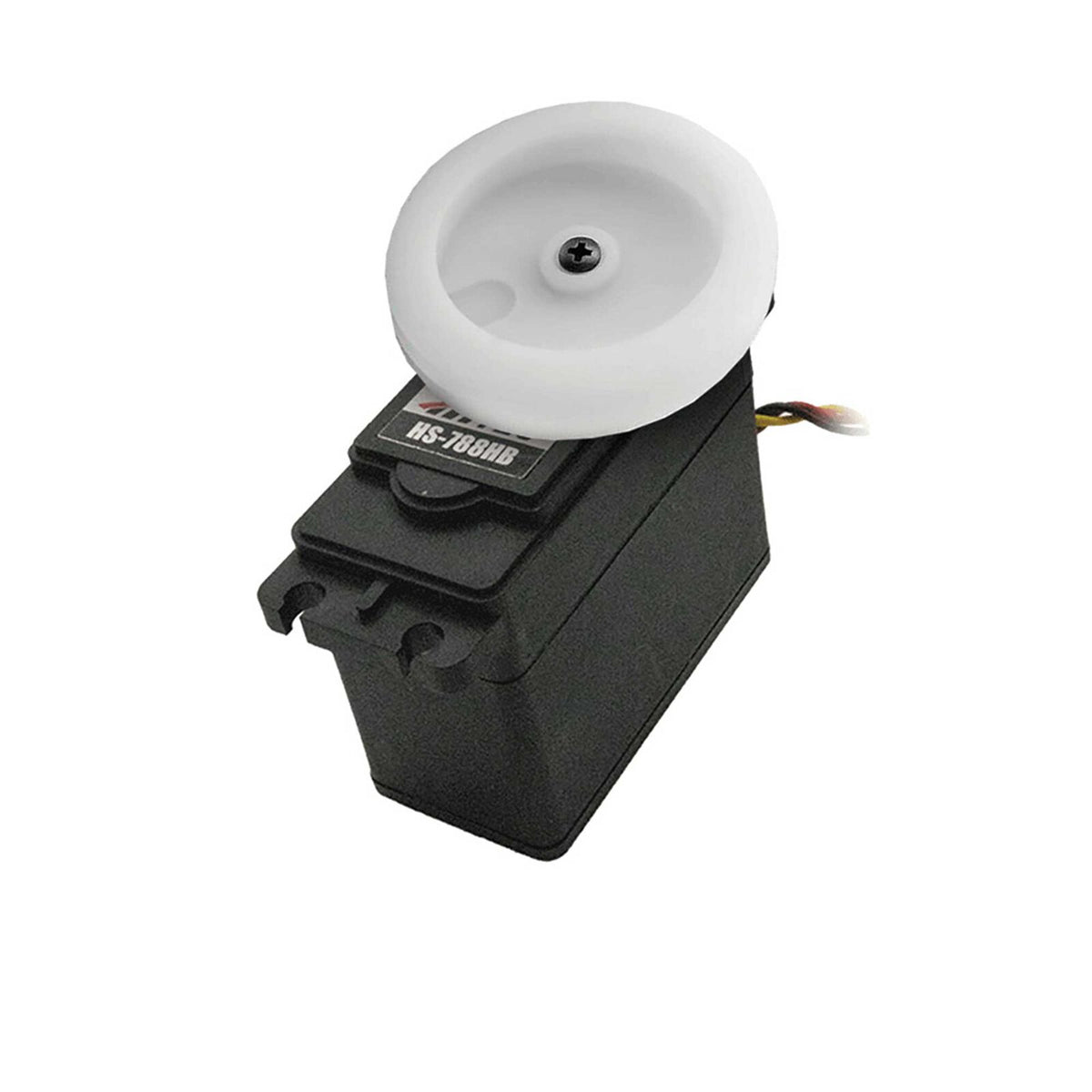

HRC33788S RCD Inc HS-788HB 3.5 TURN WINCH (25 Tooth Spline)
Regular price
$56.99
Unit price
/
Unavailable
HRC33788S RCD Inc HS-788HB 3.5 TURN WINCH (25 Tooth Spline) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The HS-788HB sail winch servo with its large drum wheel has 3 1/2 revolutions of travel for hauling in even the largest of sails. With its dual ball bearing supported output shaft and 25 tooth spline, the HS-788HB will provide years of reliable service.
- Large Drum Wheel with 3.5 Revolutions of Travel
- 25-Tooth Output Spline
- Strong Karbonite Gear Train
- Dual Ball Bearing-Supported Output Shaft
- Water and Dust-Resistant Case
Hitec RCD Inc HS-788HB 3.5 TURN WINCH (25 Tooth Spline) Product Specs
- Bearing2 Ball Bearing
- Bushing Or BearingBearing
- Connector Wire Length11.811" (300 mm)
- Current Draw Idle8mA
- Current Draw Stall1,500mA
- Deadband>5µs
- Gear TypeMetal
- Input Voltage3.5 ~ 6.8V
- Motor TypeBrushed
- Product Height1.96" (50 mm)
- Product Length2.32" (59 mm)
- Product Weight3.88 oz (110g)
- Product Width1.14" (29 mm)
- Servo TypeAnalog
- Spline Count25 - Tooth
- Torque152.76 oz·in/ 183.31 oz·in
- Water-ResistantYes
- Wire Gauge22 AWG
