HITEC | SKU:
HRC33765S
HRC33765S RCD Inc HS-765HB Giant Scale Analog Karbonite Gear Sail Arm Servo
Regular price
$50.99
Unit price
/
Unavailable
HRC33765S RCD Inc HS-765HB Giant Scale Analog Karbonite Gear Sail Arm Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

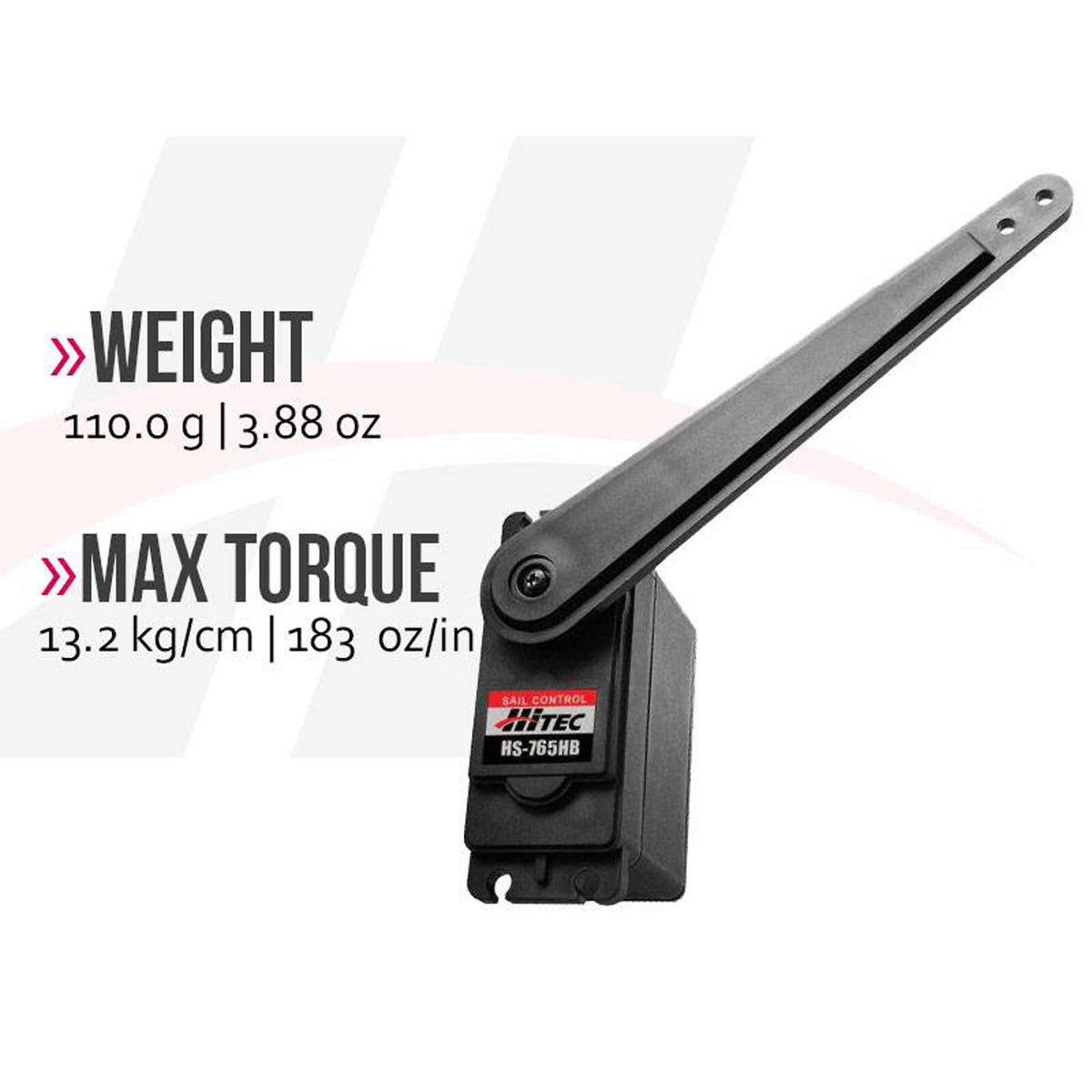

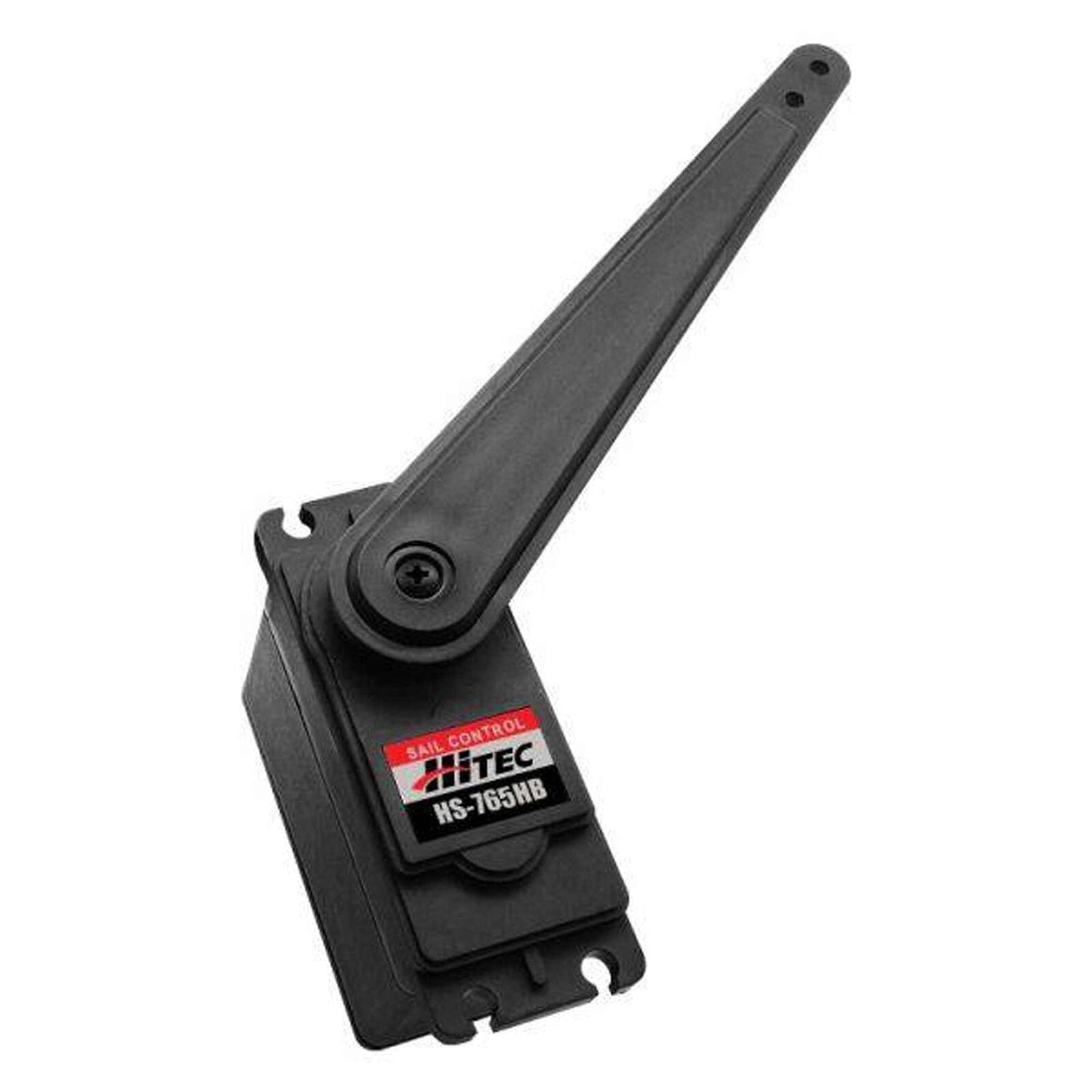

The HS-765HB sail arm servo has up to 140 degrees of travel and comes with a Heavy Duty 4.5 inch arm. With its dual ball bearing supported output shaft the HS-765HB will provide years of reliable service for your R/C sailing applications to 2 meters.
- Speed: @4.8V .28sec/60' / @6.0V .23sec/60'
- Torque: @4.8V 153oz/in / @6.0V 183oz/in
- 4.9 inch Sail Arm with 140* Movement
- Strong Karbonite Gear Train
- Dual Ball Bearing-Supported Output Shaft
- Water and Dust-Resistant Case
HRC33765S RCD Inc HS-765HB Giant Scale Analog Karbonite Gear Sail Arm Servo Product Specs
- ApplicationSailboats
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle8 mA
- Current Draw Stall1,800 mA
- Deadband5µs
- Gear TypeKarbonite
- Input Voltage4.8V ~ 6.0V
- Maximum Servo Speed0.28 sec/60 deg @ 4.8V, 0.23 sec/60 deg @ 6.0V
- Maximum Servo Torque153oz/in @ 4.8V, 183oz/in @ 6.0V
- Motor TypeBrushed

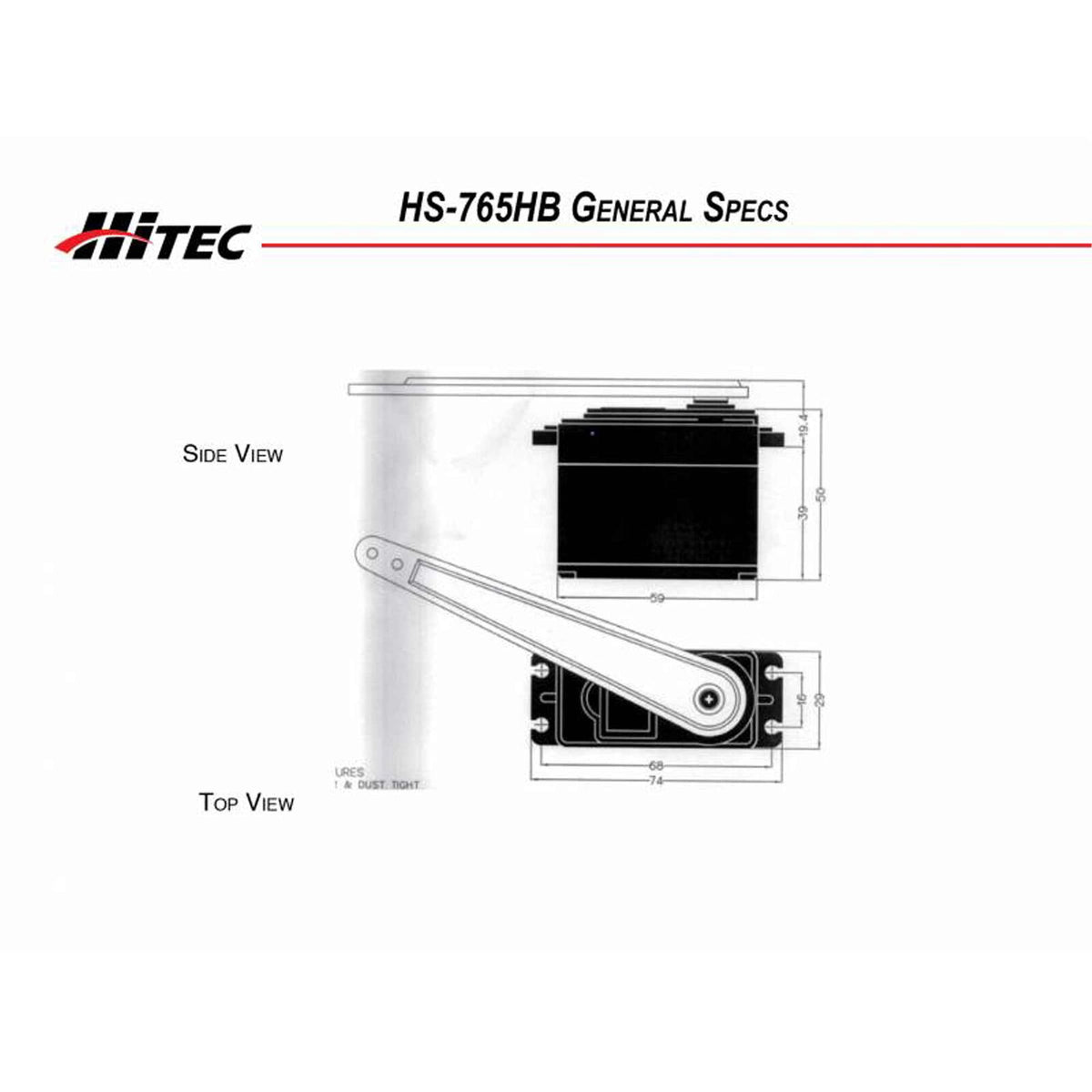

- Product Height1.96" (50 mm)
- Product Length2.32" (59 mm)
- Product Weight3.88oz (110.0g)
- Product Width1.14" (29 mm)
- ProgrammableNo
- Rotation Range140 Degrees
- Servo Operating Voltage4.8 - 6.0V
- Servo Size CategoryGiant Scale
- Servo TypeAnalog
- Spline Count24 - Tooth
- Water-ResistantNo
- Wire Gauge22 AWG
