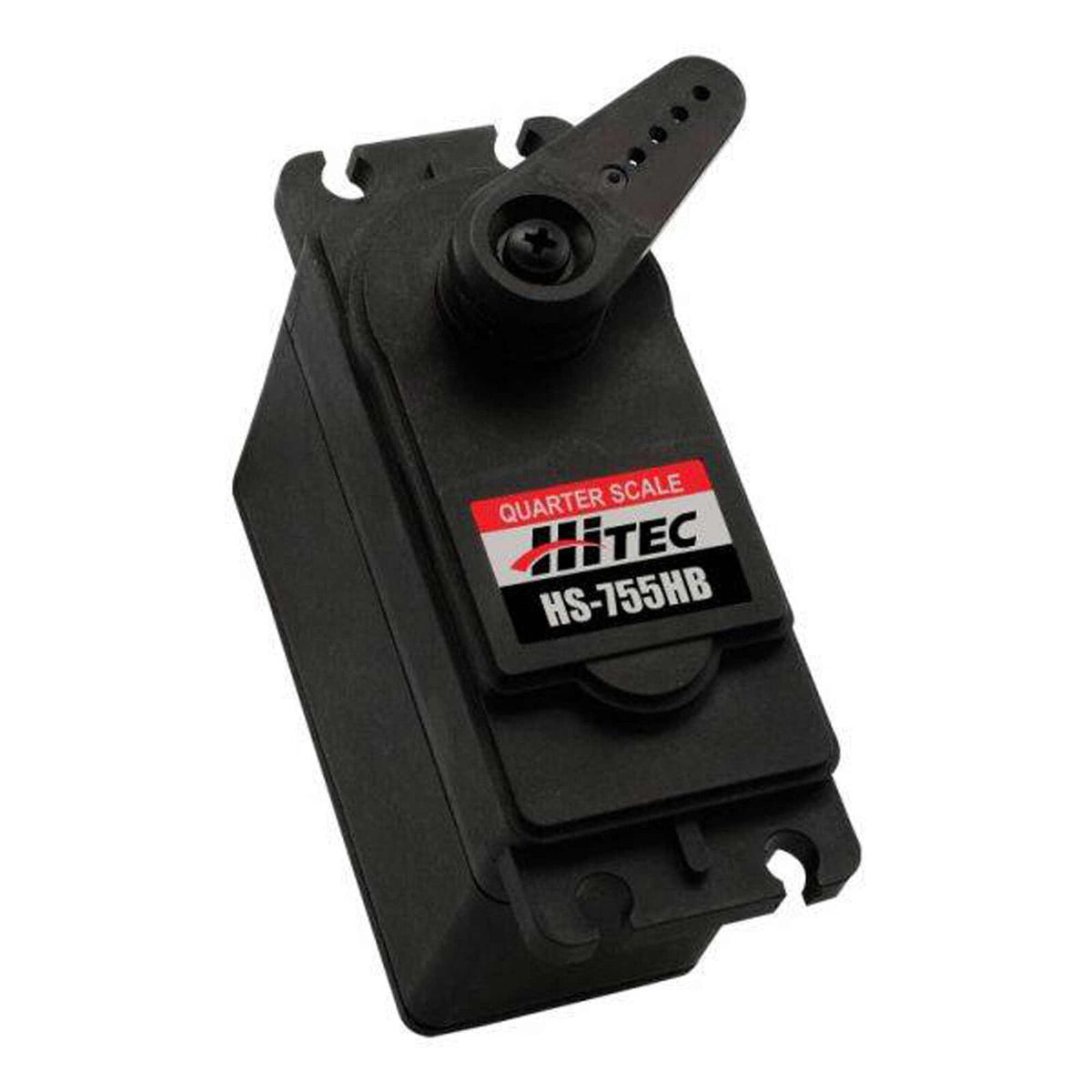

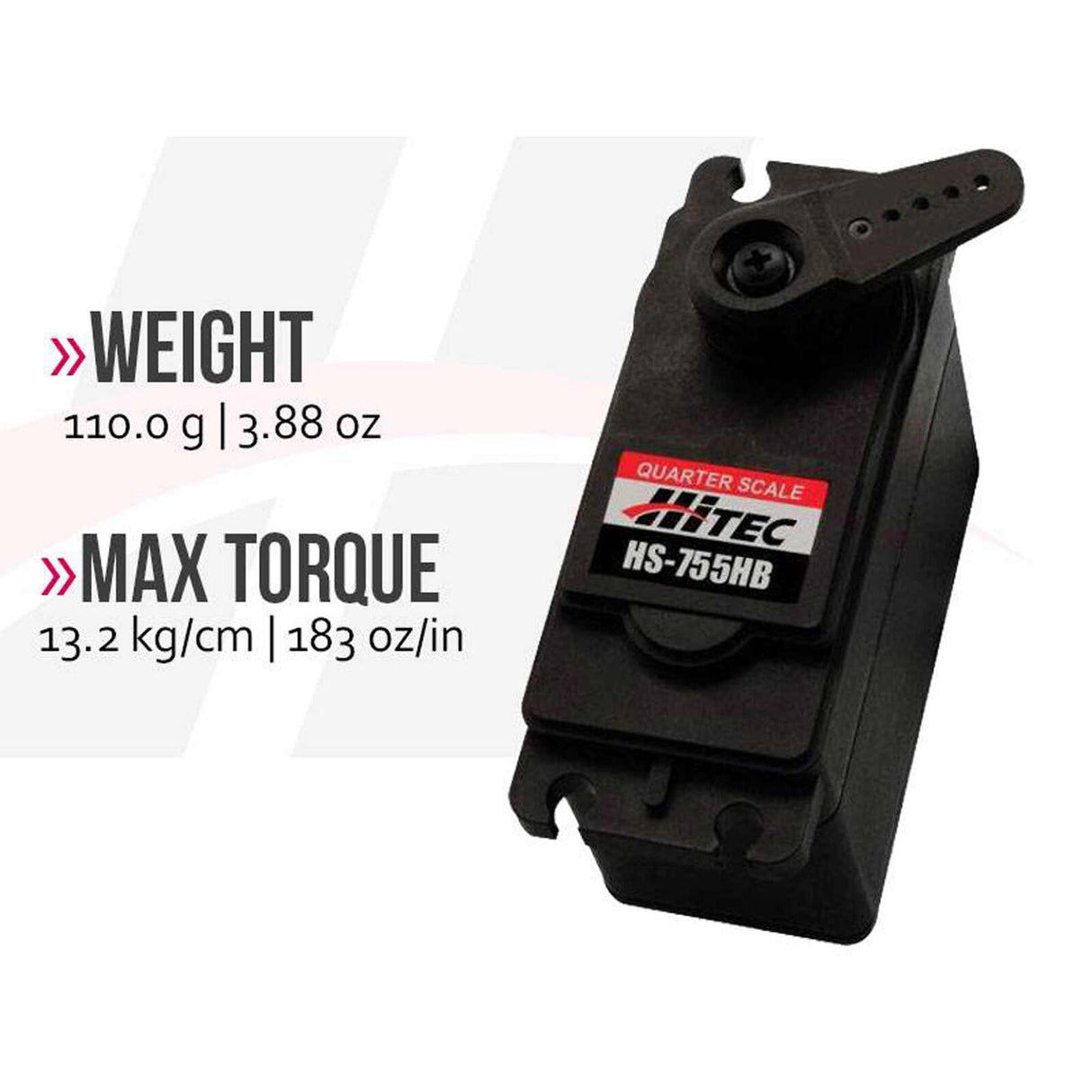

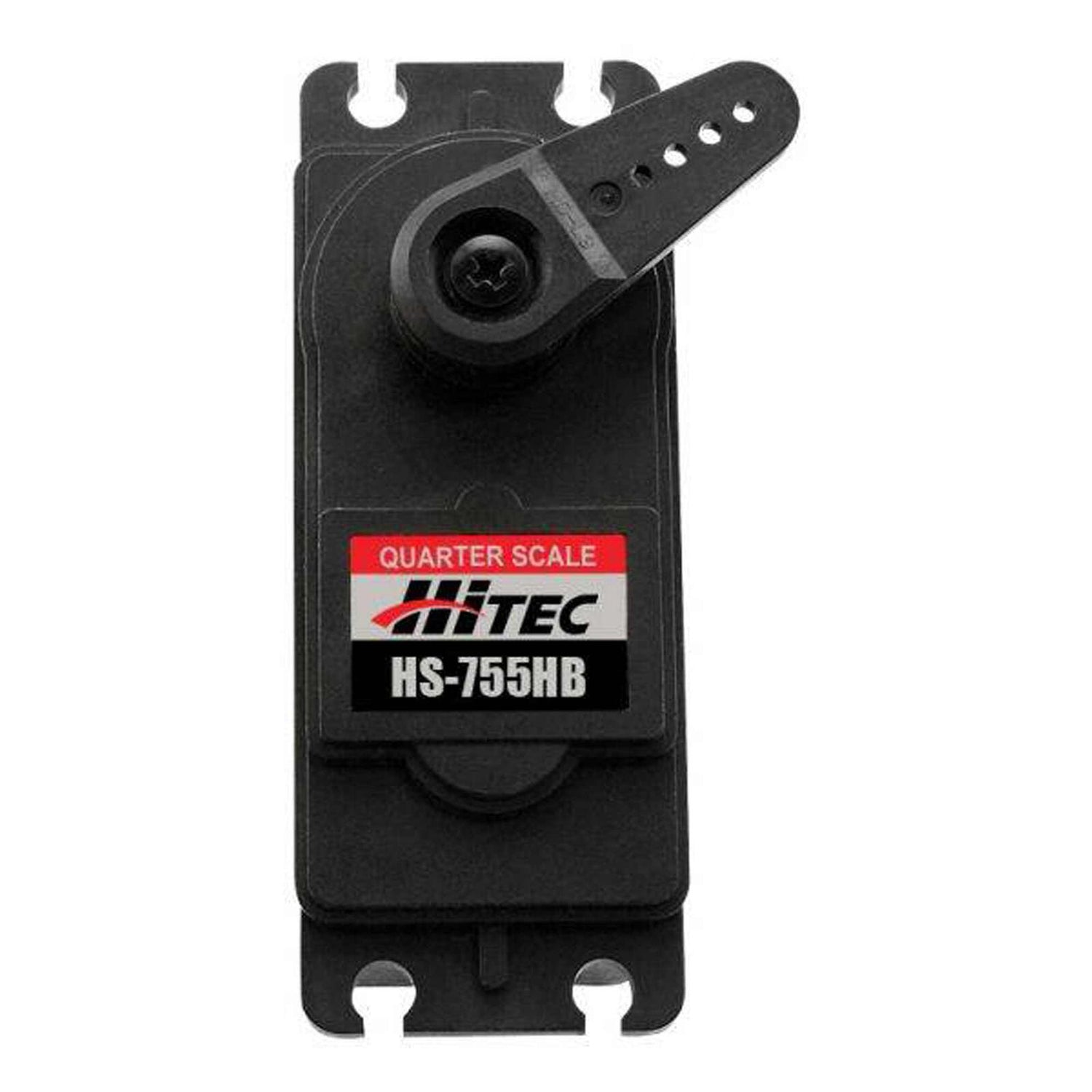

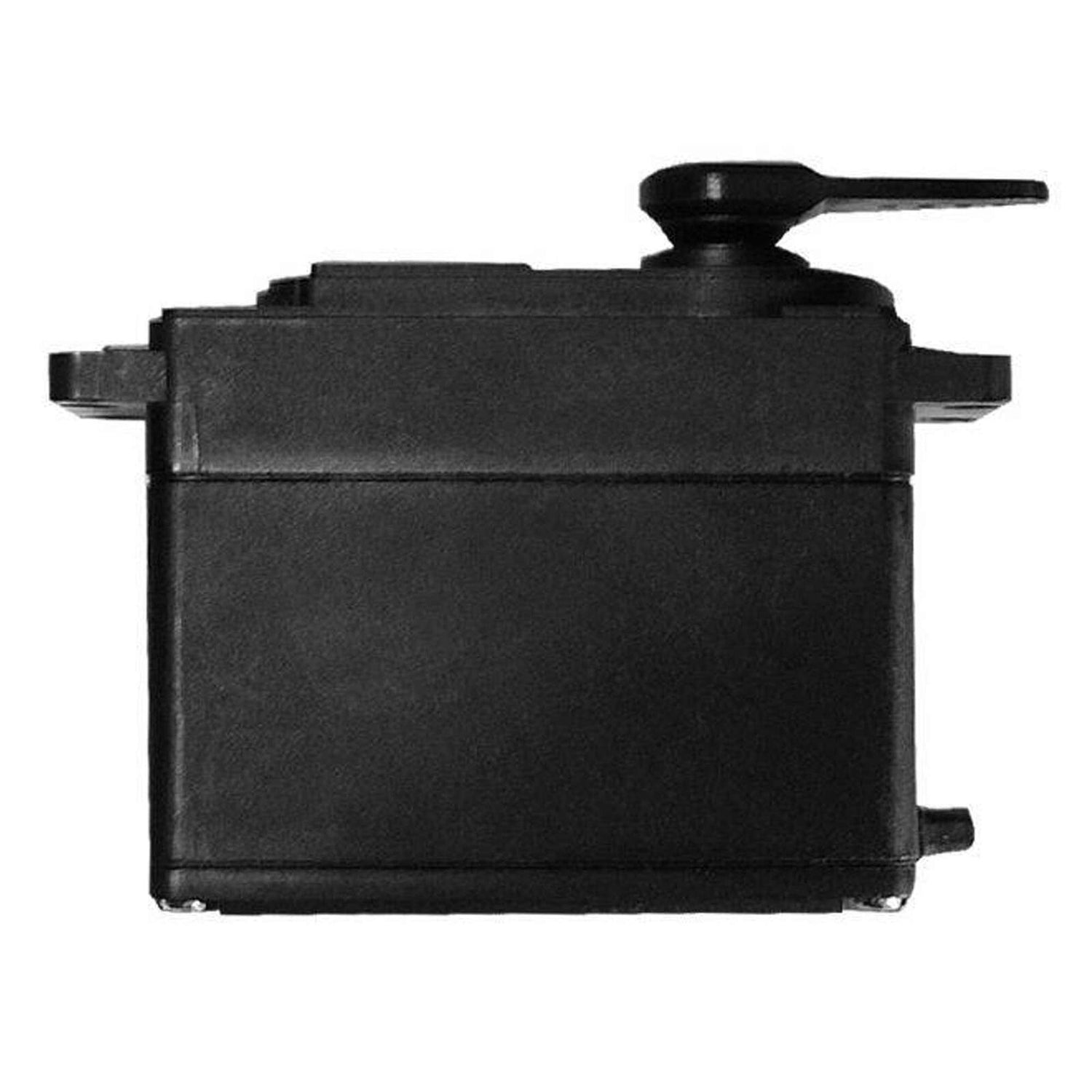

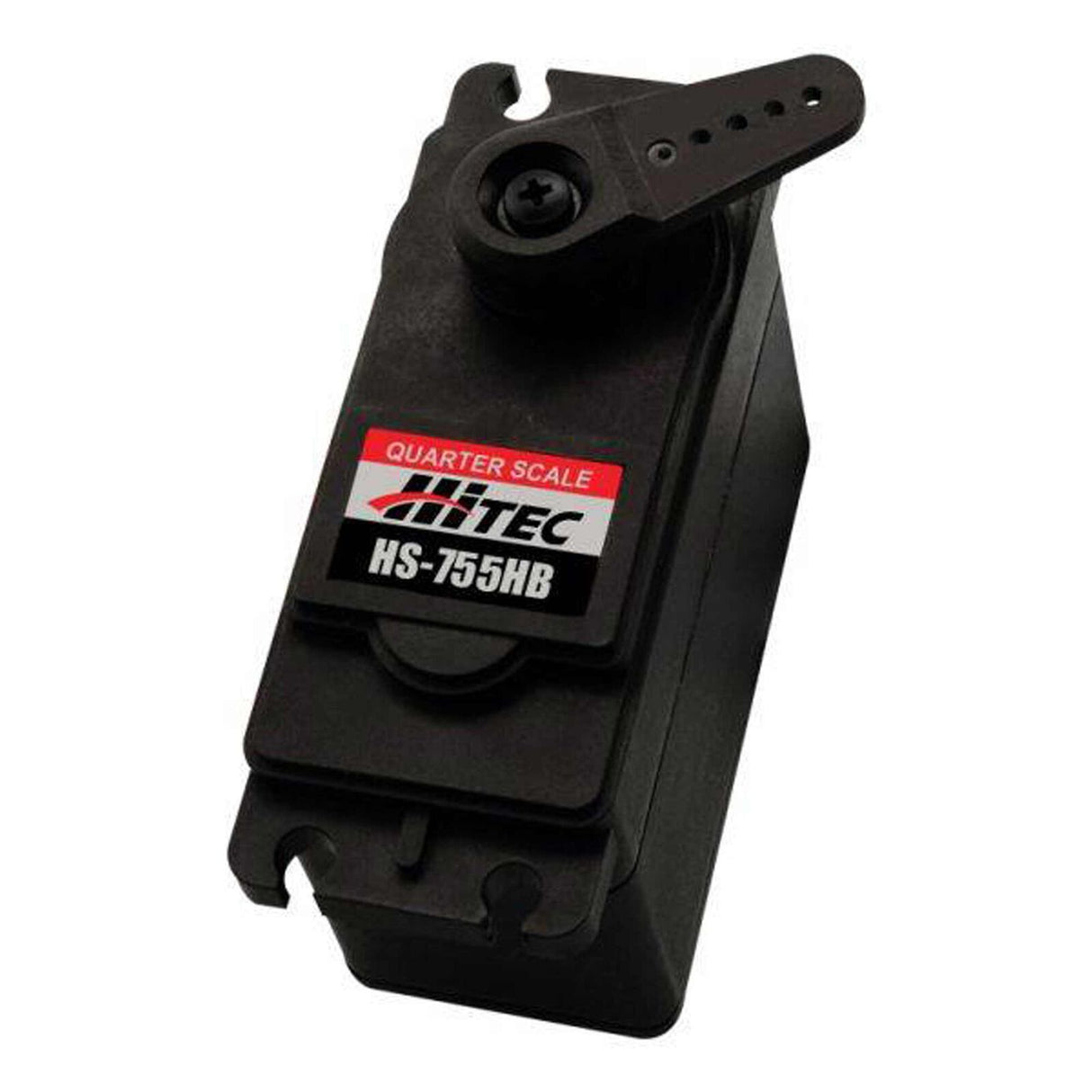

HRC33755S RCD Inc HS-755HB Giant Scale Analog Karbonite Gear Servo
HRC33755S RCD Inc HS-755HB Giant Scale Analog Karbonite Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Hitec’s expansive line-up of servos include the HS-755HB and HS-755MG “giant scale” servos offered with either the revolutionary Karbonite™ gears or metal gears. Both are perfect for larger R/C applications and feature dual ball bearings with a water and dust resistant case. The powerful HS-755MG delivers a whopping 200 oz./in. of torque and the HS-755HB delivers 183 oz./in. of torque at 6 volts.
- Speed: @4.8V .28sec/60' / @6.0V .23sec/60'
- Torque: @4.8V 153oz/in / @6.0V 183oz/in
- Economical Choice in a Giant, Analog Servo
- Tough Karbonite Gears
- Dual Ball Bearing-Supported Output Shaft
- Water and Dust Resistant Case
HRC33755S RCD Inc HS-755HB Giant Scale Analog Karbonite Gear Servo Product Specs
- ApplicationSailboat
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle8 mA
- Current Draw Stall1,800 mA
- Deadband5µs
- Gear TypeKarbonite
- Input Voltage4.8V ~ 6.0V
- Maximum Servo Speed0.28 sec/60 deg @ 4.8V, 0.23 sec/60 deg @ 6.0V
- Maximum Servo Torque153oz/in @ 4.8V, 183oz/in @ 6.0V
- Motor TypeBrushed
- Product Height1.96" (50 mm)
- Product Length2.32" (59 mm)
- Product Weight3.88oz (110.0g)
- Product Width1.14" (29 mm)
- ProgrammableNo
- Servo Operating Voltage4.8 - 6.0V
- Servo Size CategoryGiant Scale
- Servo TypeAnalog
- Spline Count24 - Tooth
- Water-ResistantNo
- Wire Gauge22 AWG
