HITEC | SKU:
HRC32805S
HRC32805S RCD Inc HS-805MG Giant Scale Analog Metal Gear Servo
Regular price
$72.99
Unit price
/
Unavailable
HRC32805S RCD Inc HS-805MG Giant Scale Analog Metal Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The HRC32805S heavy duty supersized servo was designed to handle the punishment dished out by the latest wave of large 1/5th scale vehicles. With big gears in a big case powered by a big motor this servos was designed to take abuse and keep on going.
- Speed: @4.8V .22sec/60' / @6.0V .18sec/60'
- Torque: @4.8V 275oz/in / @6.0V 343oz/in
- Large 8mm Output Shaft
- Dual Ball Bearings
- Heavy Duty Metal Gear Train
- Water and Dust Resistant Case
Hitec RCD Inc HS-805MG Giant Scale Analog Metal Gear Servo Product Specs
- ApplicationGiant Scale Aircraft, Cars, Boats
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle8 mA
- Current Draw Stall6,000 mA
- Deadband5µs
- Gear TypeMetal
- Input Voltage4.8V ~ 6.0V
- Maximum Servo Speed0.22 sec/60 deg @ 4.8V, 0.18 sec/60 deg @ 6.0V
- Maximum Servo Torque275oz/in @ 4.8V, 343oz/in @ 6.0V
- Motor TypeBrushed

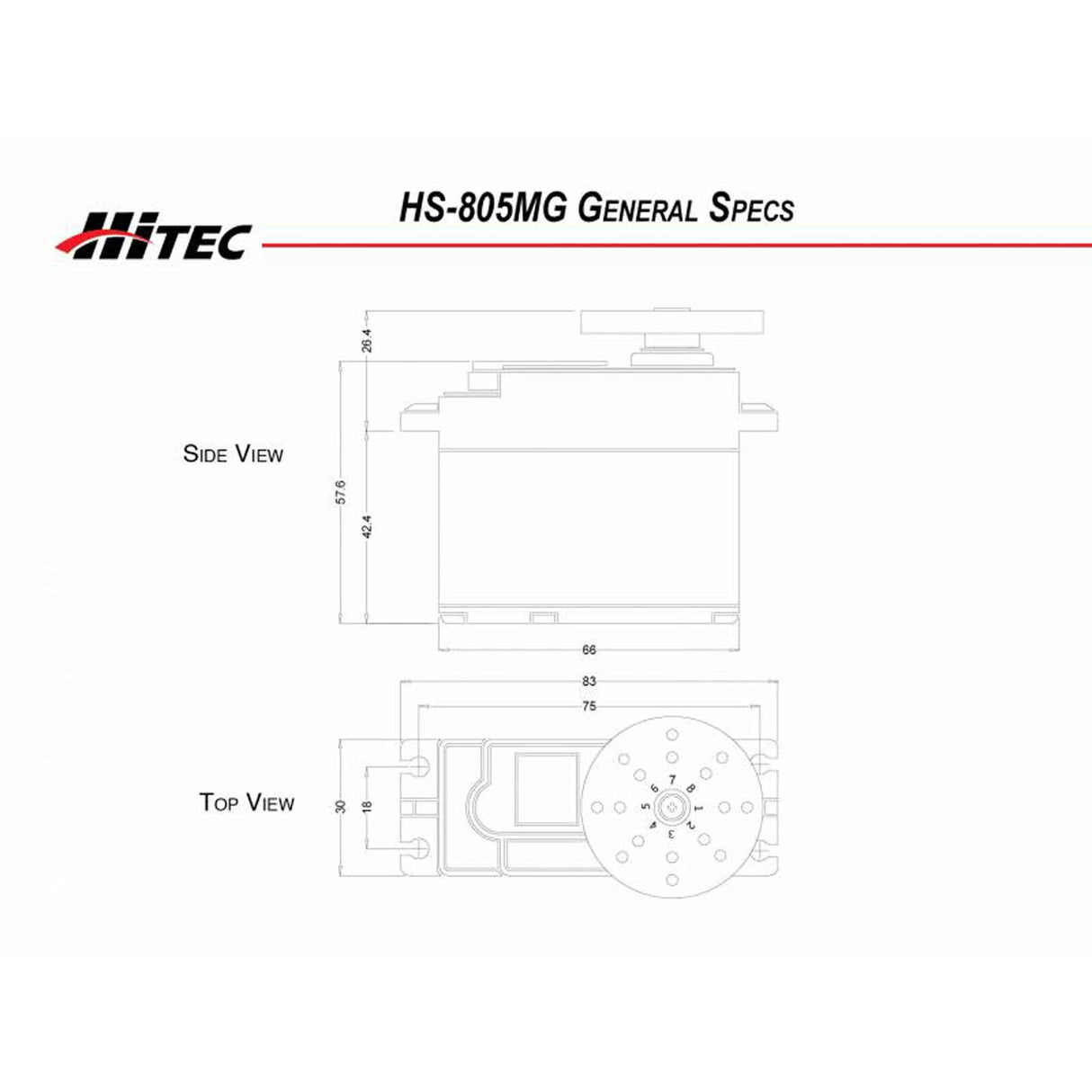

- Product Height2.27" (58 mm)
- Product Length2.6" (66 mm)
- Product Weight6.95oz (197.0g)
- Product Width1.18" (30 mm)
- ProgrammableNo
- Servo Operating Voltage4.8 - 6.0V
- Servo Size CategoryGiant Scale
- Servo TypeAnalog
- Spline Count15 - Tooth
- Water-ResistantNo
- Wire Gauge22 AWG
