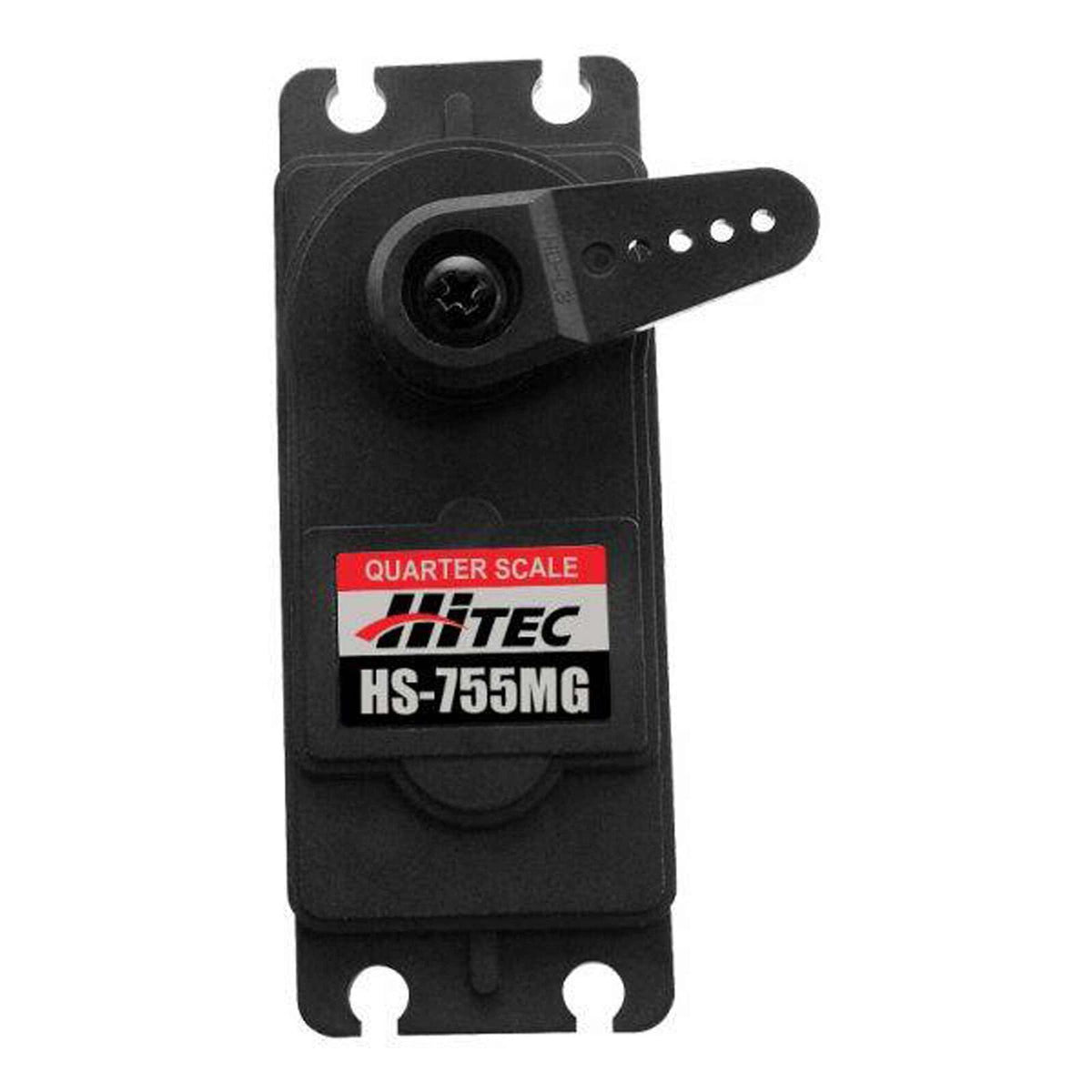

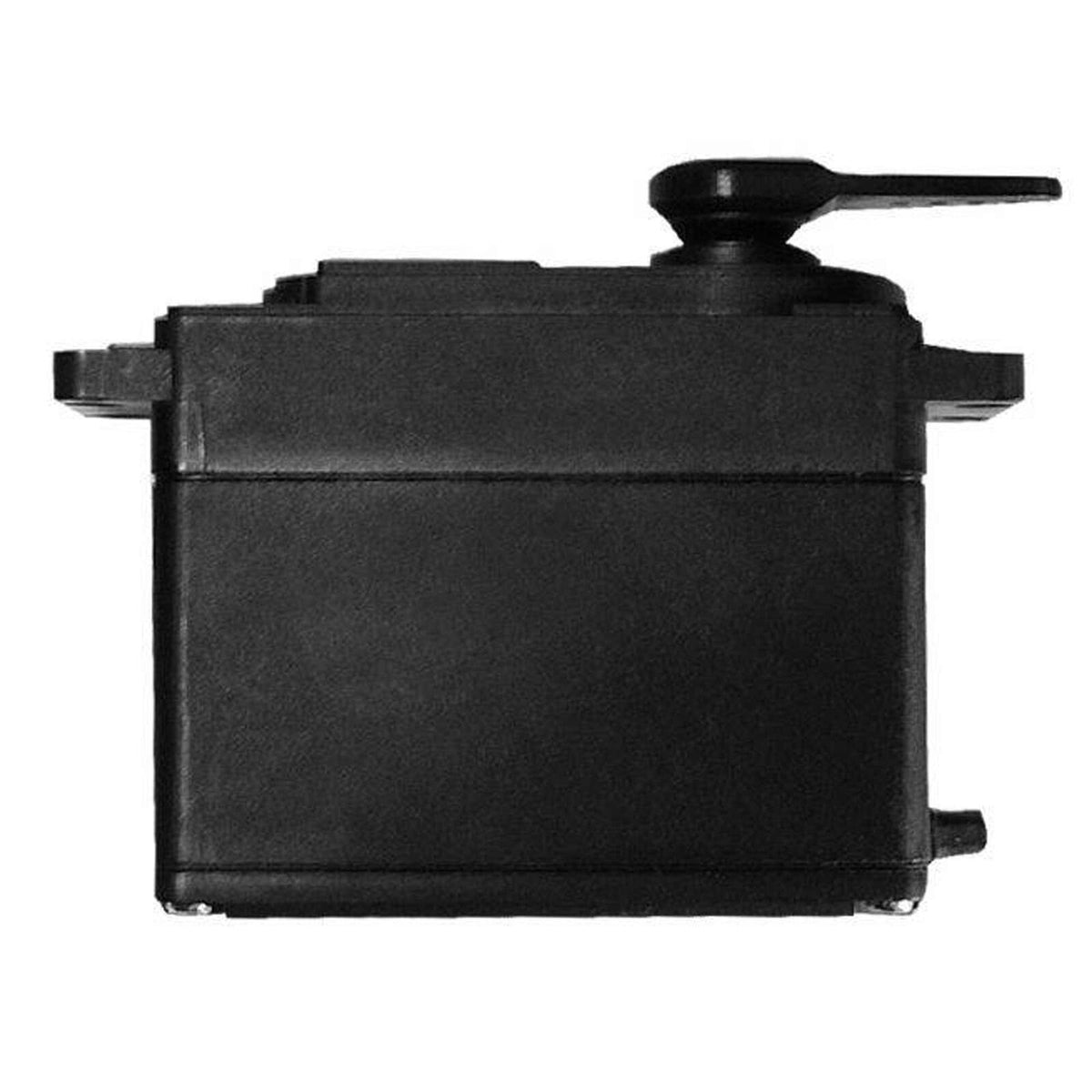

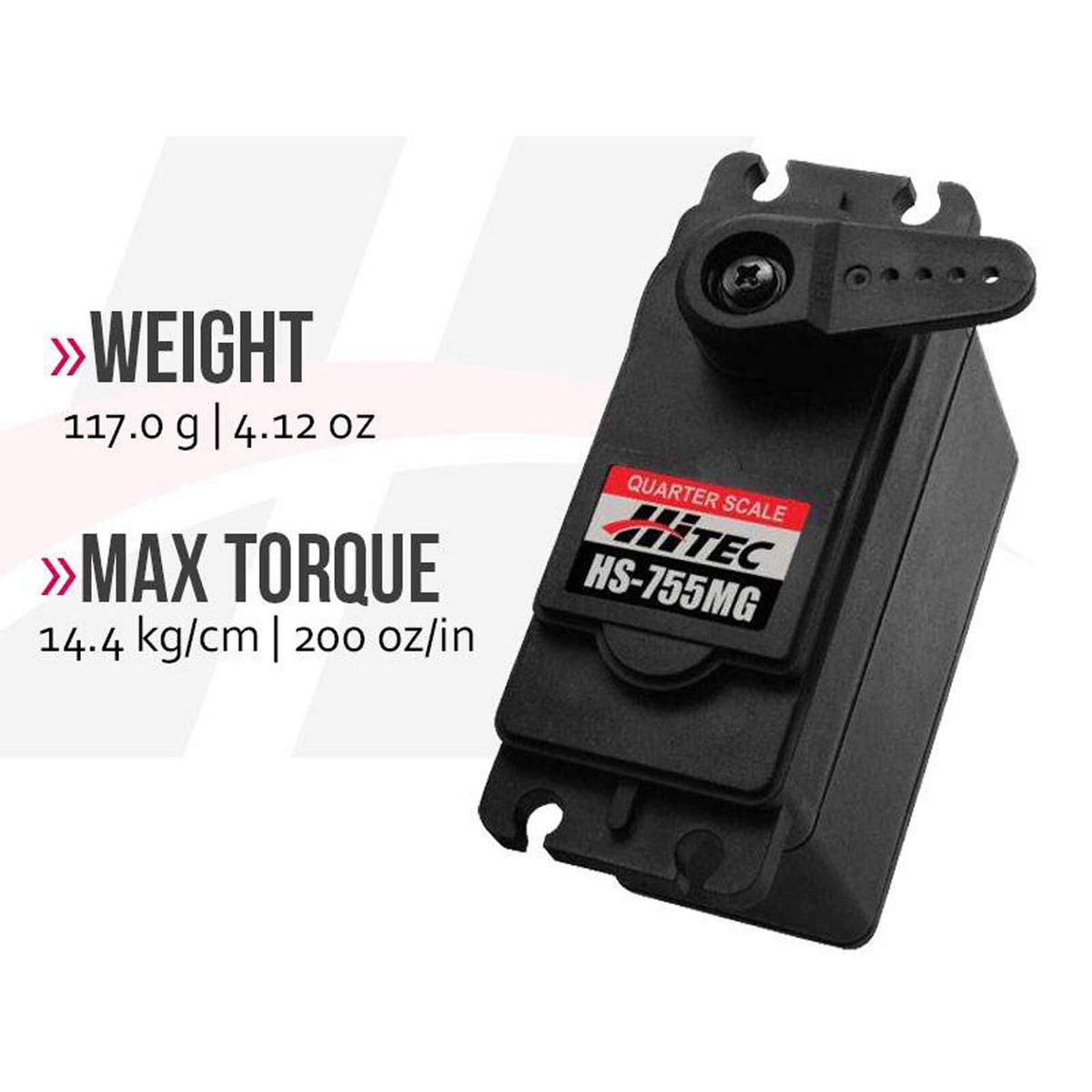

HRC32755S RCD Inc HS-755MG Giant Scale Analog Metal Gear Servo
HRC32755S RCD Inc HS-755MG Giant Scale Analog Metal Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Hitec’s expansive line-up of servos include the HS-755HB and HS-755MG “giant scale” servos offered with either the revolutionary Karbonite™ gears or metal gears. Both are perfect for larger R/C applications and feature dual ball bearings with a water and dust resistant case. The powerful HS-755MG delivers a whopping 200 oz./in. of torque and the HS-755HB delivers 183 oz./in. of torque at 6 volts.
- Speed: @4.8V .28sec/60' / @6.0V .23sec/60'
- Torque: @4.8V 167oz/in / @6.0V 200oz/in
- Economical Choice in a Giant, Metal Gear Analog Servo
- Durable Three-Pole Ferrite Motor
- Durable Metal Gears
- Dual Ball Bearings
- Water and Dust-Resistant Case
Hitec RCD Inc HS-755MG Giant Scale Analog Metal Gear Servo Product Specs
- ApplicationGiant Scale Aircraft, Cars
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle8mA
- Current Draw Stall1,800 mA
- Deadband5µs
- Gear TypeMetal
- Input Voltage4.8V ~ 6.0V
- Maximum Servo Speed0.28 sec/60 deg @ 4.8V, 0.23 sec/60 deg @ 6.0V
- Maximum Servo Torque167oz/in @ 4.8V, 200oz/in @ 6.0V
- Motor TypeBrushed

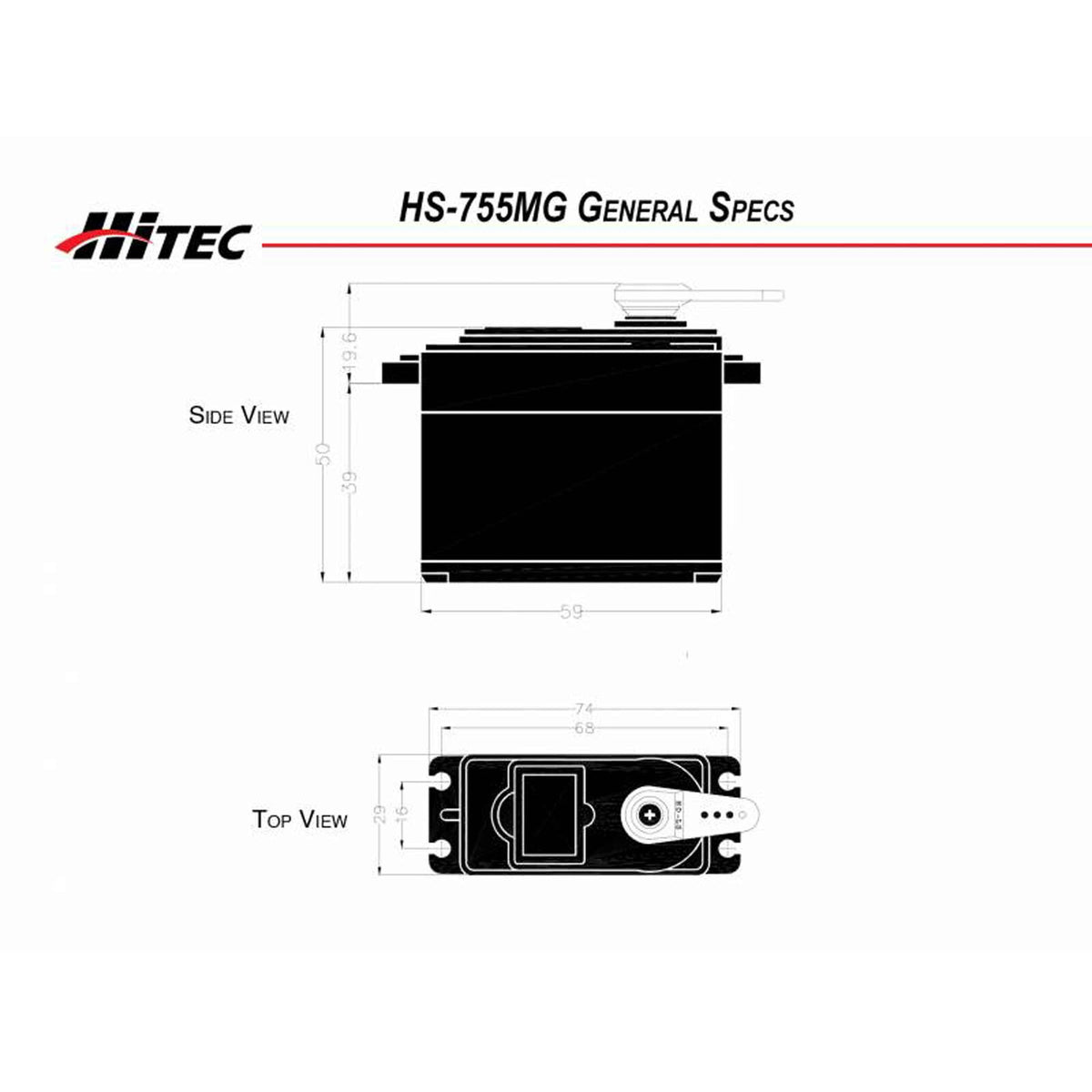

- Product Height1.96" (50 mm)
- Product Length2.32" (59 mm)
- Product Weight4.12oz (117.0g)
- Product Width1.14" (29 mm)
- ProgrammableNo
- Servo Operating Voltage4.8 - 6.0V
- Servo Size CategoryGiant Scale
- Servo TypeAnalog
- Spline Count24 - Tooth
- Water-ResistantNo
- Wire Gauge22 AWG
HRC32755S RCD Inc HS-755MG Giant Scale Analog Metal Gear Servo
