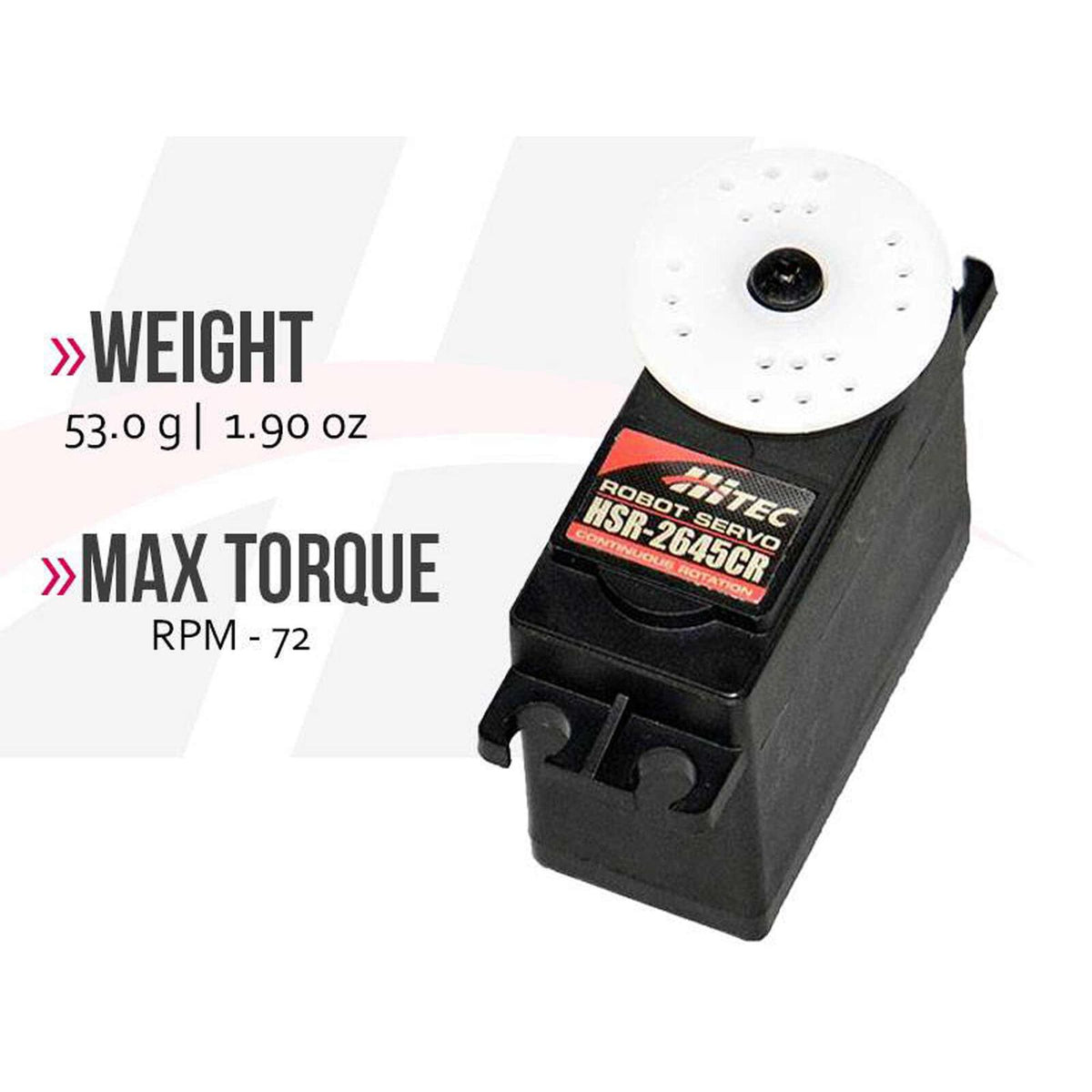

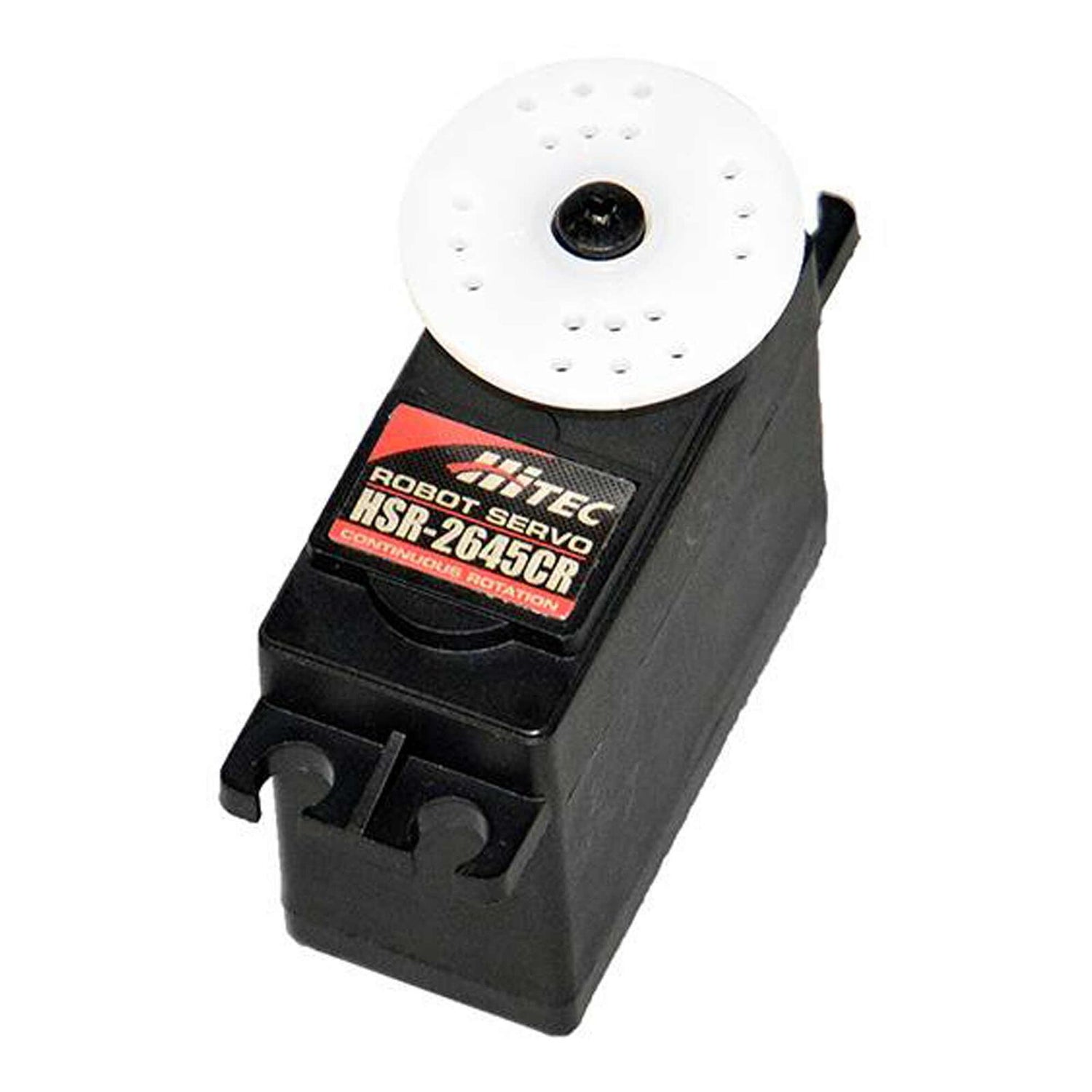

HRC32645H RCD Inc HSR-2645CR Standard Digital Continuous Rotation Robot Servo
HRC32645H RCD Inc HSR-2645CR Standard Digital Continuous Rotation Robot Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Expanding on the durable and responsive power of the HSR-1425CR continuous rotation servo, Hitec has developed the digital HSR-2645CR. This non-proportional, continuous rotation servo delivers the commanding force you require, with intense, powerful torque, wide voltage capability and Hitec’s impressive metal gear train. Responsive high speed motion and quick directional shifts make this the go-to servo for your most complex and specialized applications. Its programmability and "all-in" solid build will have radio control, robotic and engineering enthusiasts cheering. Continuous performance by Hitec!
- Digital Circuit with Directional Programmability
- Linear Speed Control
- Quick Directional Shift
- Low Dead Band for Precise Control
- Wide Input Voltage Range
HRC32645H RCD Inc HSR-2645CR Standard Digital Continuous Rotation Robot Servo Product Specs
- ApplicationRobotic
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Gear TypeMetal
- Input Voltage4.8V ~ 6.0V ~ 7.4V
- Maximum Servo Speed48 rpm @ 4.8V, 58rpm @ 6.0V, 72rpm @ 7.4V
- Maximum Servo Torque111oz/in @ 4.8V, 139oz/in @ 6.0V, 167oz/in @ 7.4V

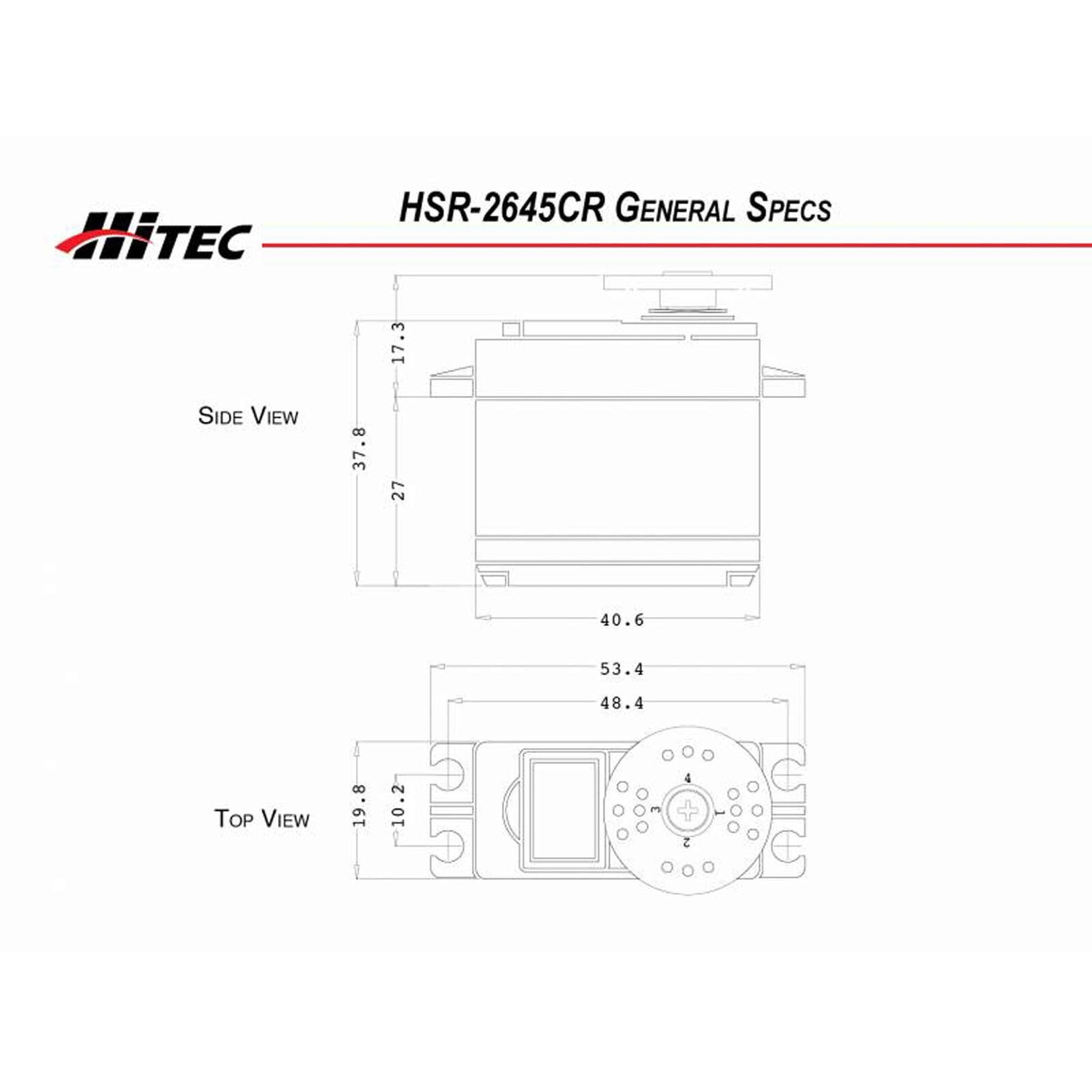

- Product Height1.48" (38 mm)
- Product Length1.59" (40 mm)
- Product Weight1.90 oz (53g)
- Product Width0.77" (20 mm)
- ProgrammableYes
- Rotation RangeContinuous
- Servo Operating Voltage4.8 - 7.4V (HV)
- Servo Size CategoryStandard
- Servo TypeDigital
- Spline Count24 - Tooth
- Water-ResistantNo
- Wire Gauge25 AWG
