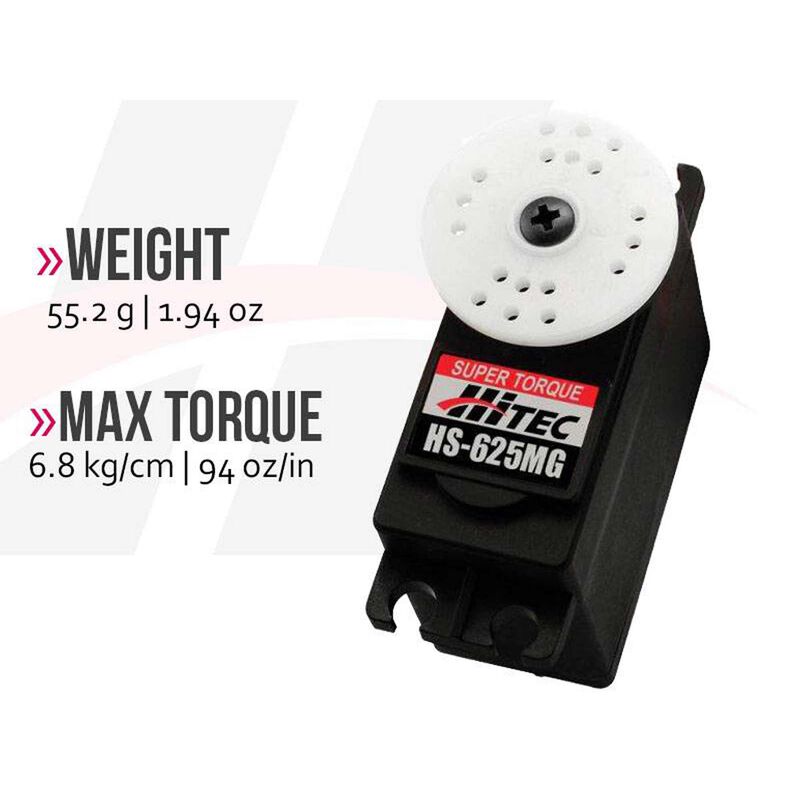

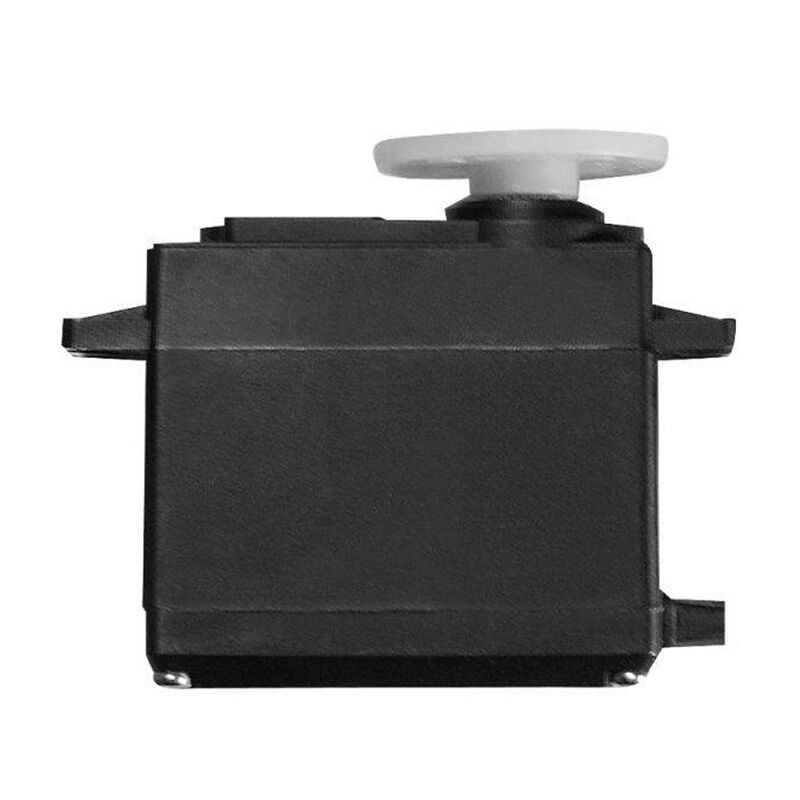

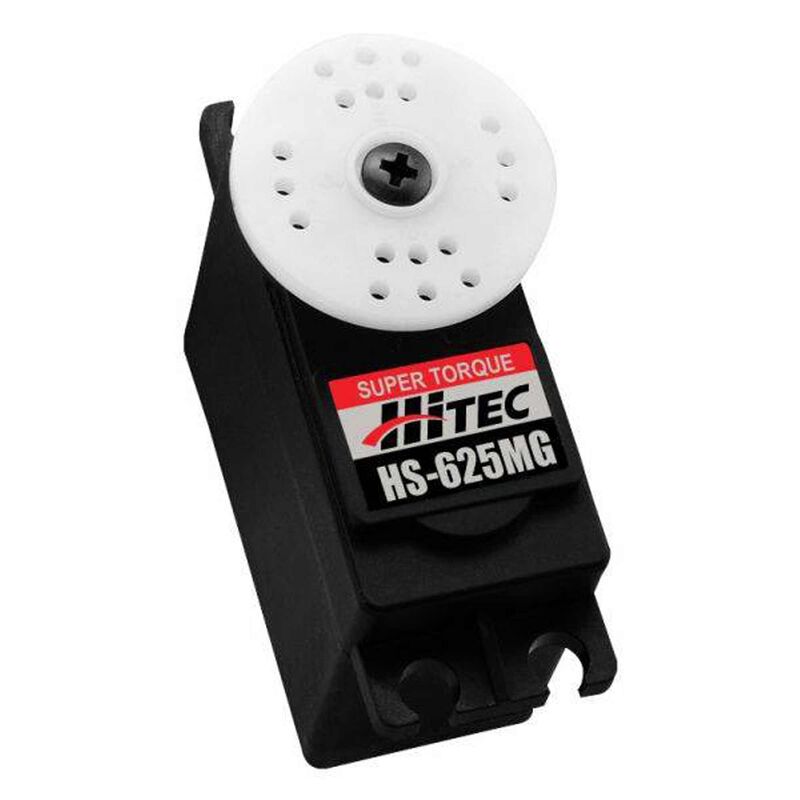

HS-625MG Standard Analog Super Torque Metal Gear Servo - HRC32625S
SKU:
HRC32625S
- $ 34.99
-
- $ 34.99
- Unit price
- per
Please hurry! Only 4 left in stock
Subtotal:
$ 34.99
10 customers are viewing this product
Description
xHS-625MG Standard Analog Super Torque Metal Gear Servo - HRC32625S
The powerful high speed HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing our M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes and 10th scale sport vehicles.
- Speed: @4.8V .18sec/60' / @6.0V .15sec/60'
- Torque: @4.8V 76.37oz/in / @6.0V 94.43oz/in
- Affordable High Speed Metal Gear Servo
- Strong Three-Pole Ferrite Motor
- Heavy Duty Metal Gear Train
- Revolutionary Metal/Plastic First Gear (MP Gear)
- Dual Ball Bearing-Supported Output Shaft
In The Box
- (1) HS-625MG Standard Analog Super Torque Metal Gear Servo
Product Specifications
| Maximum Servo Torque | 76oz/in @ 4.8V, 94oz/in @ 6.0V |
| Deadband | >5µs |
| Input Voltage | 4.8 - 6.0V |

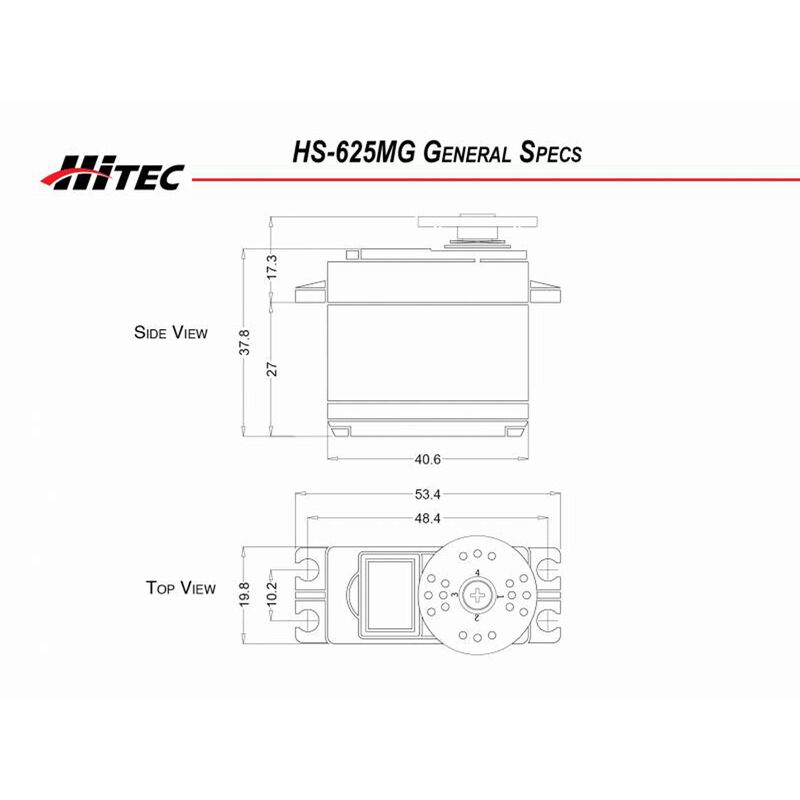

| Product Height | 1.48" (38 mm) |
| Servo Type | Analog |
| Current Draw Idle | 9.1 mA |
| Product Width | 0.77" (20 mm) |
| Application | Sport Aircraft, Cars |
| Product Weight | 1.94oz (55.2g) |
| Spline Count | 24 - Tooth |
| Water-Resistant | No |
| Current Draw Stall | 2,500 mA |
| Motor Type | Brushed |
| Servo Operating Voltage | 4.8 - 6.0V |
| Connector Type | Universal |
| Maximum Servo Speed | 0.18 sec/60 deg @ 4.8V, 0.15 sec/60 deg @ 6.0V |
| Product Length | 1.59" (40 mm) |
| Bearing | Dual Ball Bearing |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Wire Gauge | 22 AWG |
| Programmable | No |
| Servo Size Category | Standard |
