HITEC | SKU:
HRC31805S
HRC31805S RCD Inc HS-805BB Giant 1/4 Scale Analog Aircraft Servo
Regular price
$49.99
Unit price
/
Unavailable
HRC31805S RCD Inc HS-805BB Giant 1/4 Scale Analog Aircraft Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

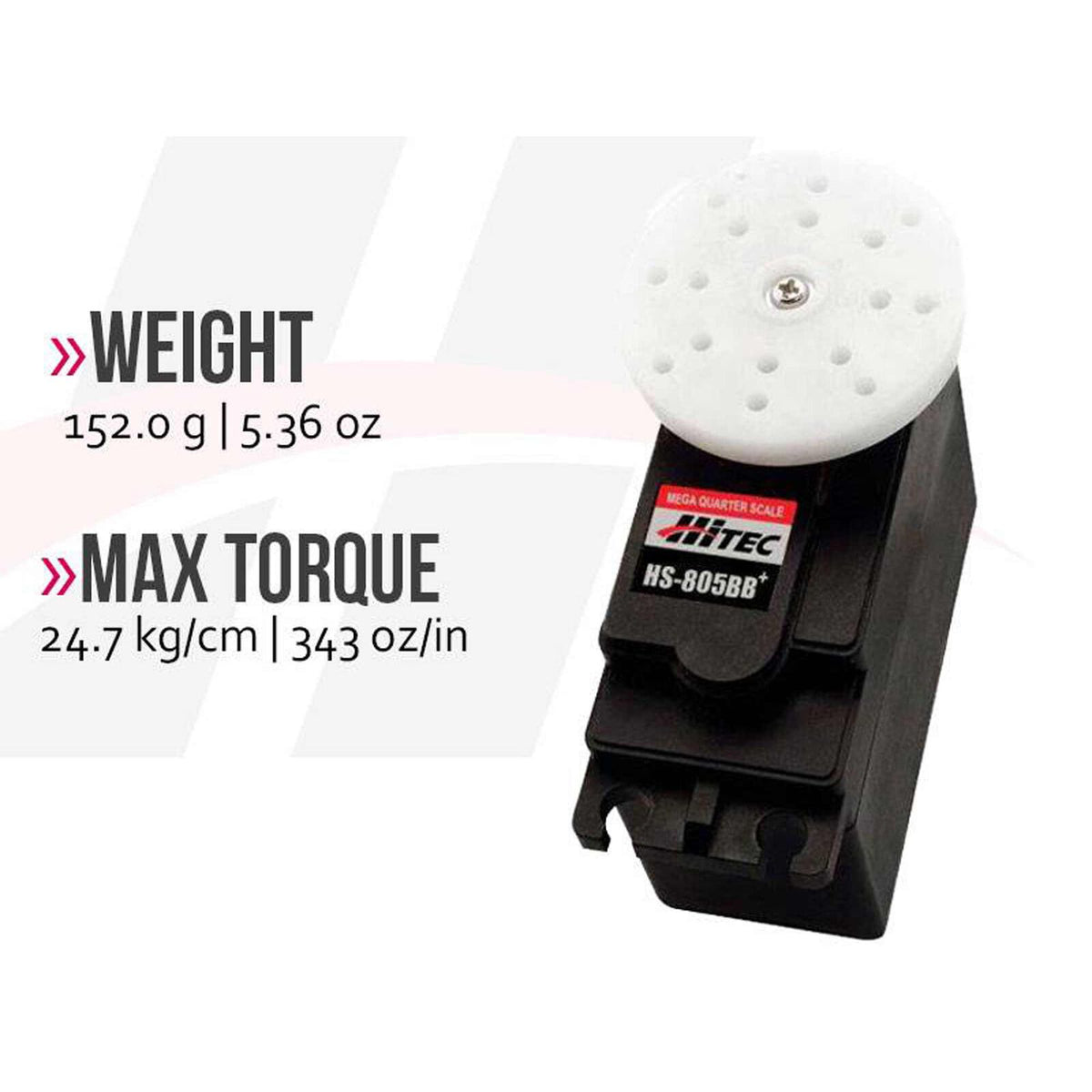

Known as the “monster” servo, the HS-805BB uses a heavy duty nylon gear train and a strong 10mm, 15 tooth output shaft to generate 343 oz./in. of torque that will easily move just about any large plane, car, truck or boat!
- Speed: @4.8V .19sec/60' / @6.0V .14sec/60'
- Torque: @4.8V 274.96oz/in / @6.0V 343.01oz/in
- Economical Choice in a "Monster" Analog Servo
- Strong Three-Pole Ferrite Motor
- Heavy Duty, Nylon Gear Train
- Large 8mm Output Shaft with Dual Ball Bearings
- Solid Performance and Strong Gear Train
- Water and Dust-Resistant Case
HRC31805S RCD Inc HS-805BB Giant 1/4 Scale Analog Aircraft Servo Product Specs
- ApplicationGian Scale Aircraft, Cars, Boats
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle8mA
- Current Draw Stall6,000 mA
- Deadband>5µs
- Gear TypeNylon
- Input Voltage4.8V ~ 6.0V
- Maximum Servo Speed0.19 sec/ 60 deg @ 4.8V, 0.14 sec/60 deg @ 6.0V
- Maximum Servo Torque275oz/in @ 4.8V, 343oz/in @ 6.0V
- Motor TypeBrushed

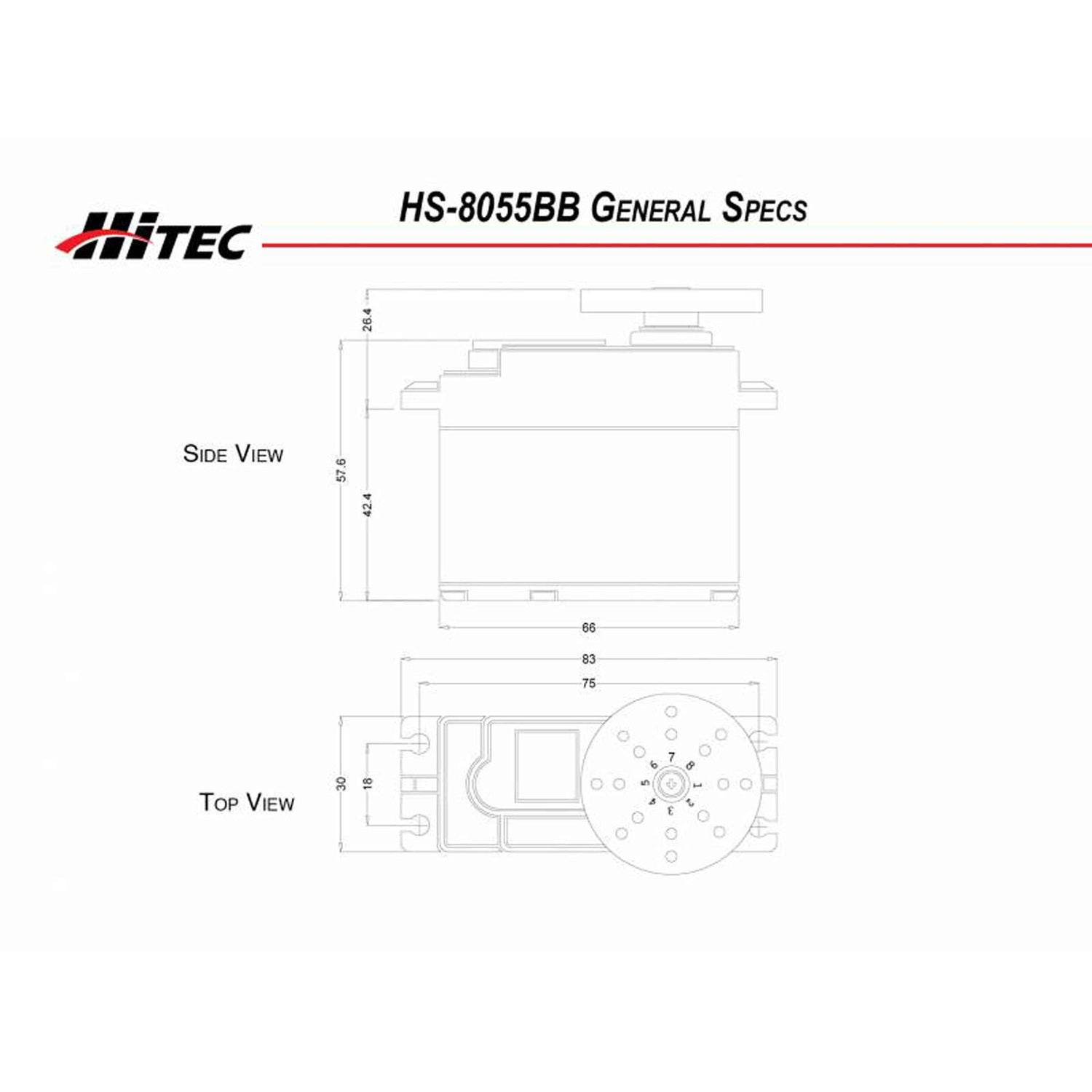

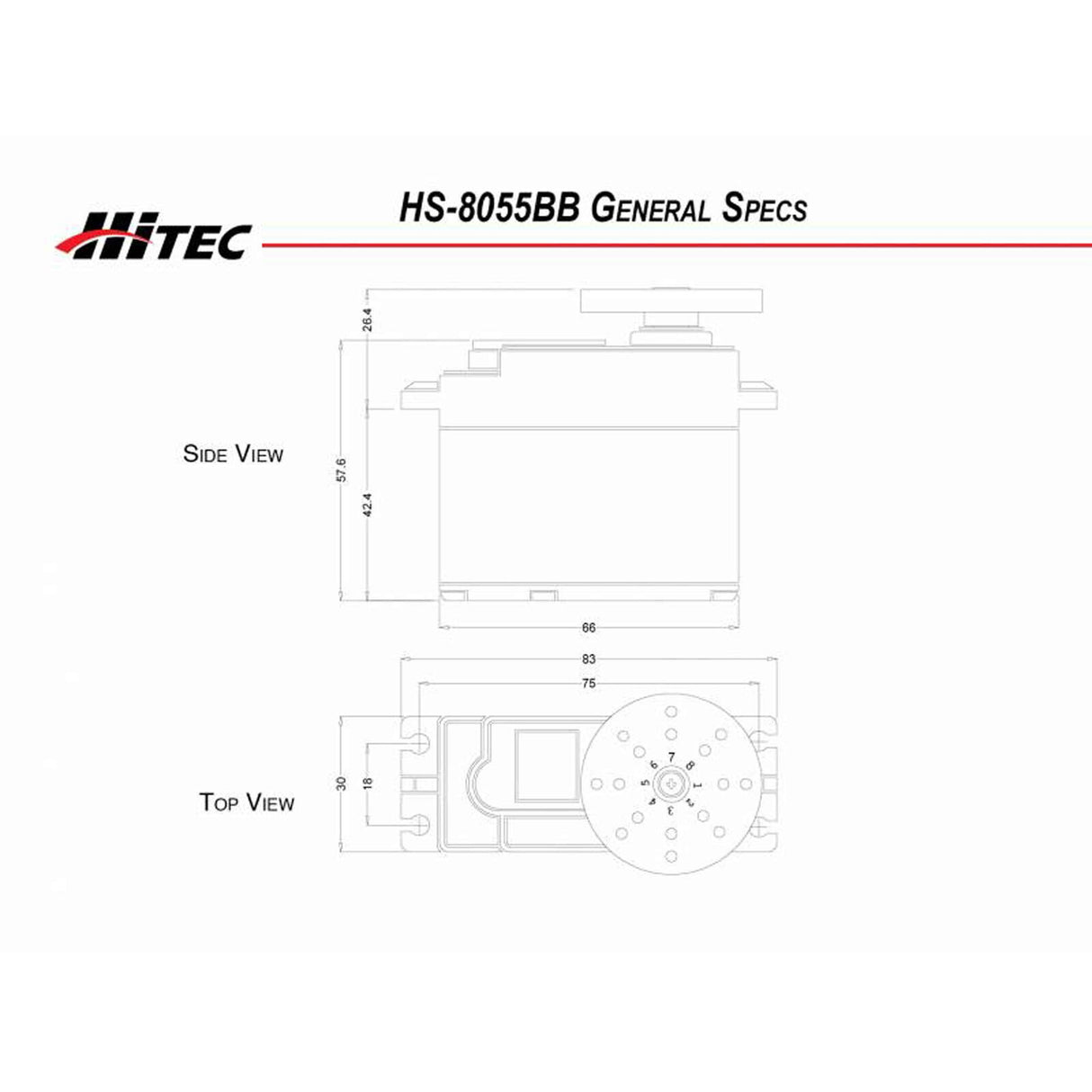

- Product Height2.26" (57 mm)
- Product Length2.59" (66 mm)
- Product Weight5.36oz (152g)
- Product Width1.18" (30 mm)
- ProgrammableNo
- Servo Operating Voltage4.8 - 6.0V
- Servo Size CategoryGiant Scale
- Servo TypeAnalog
- Spline Count15 - Tooth
- Water-ResistantNo
- Wire Gauge22 AWG
