HITEC  |  SKU: HRC31425CR

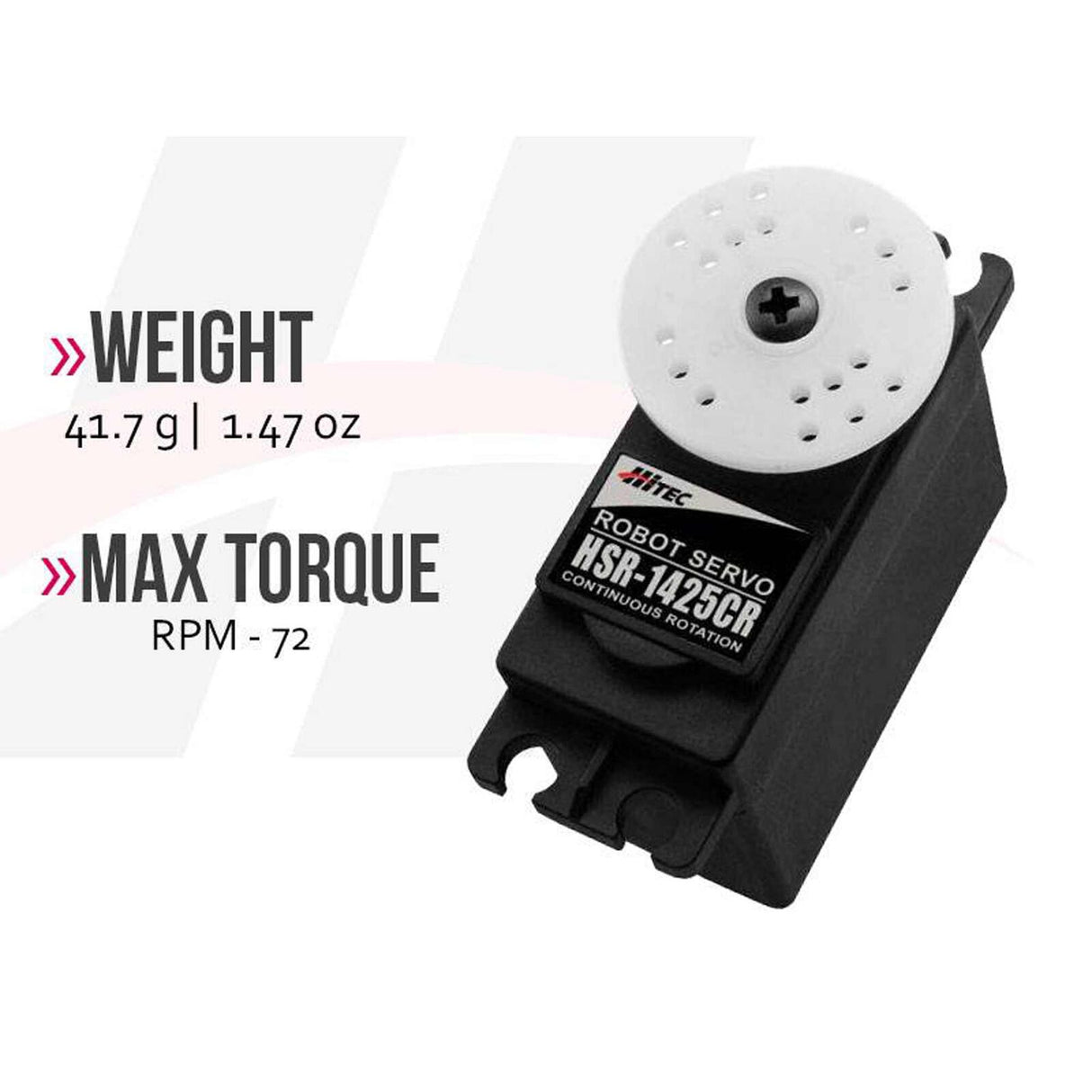

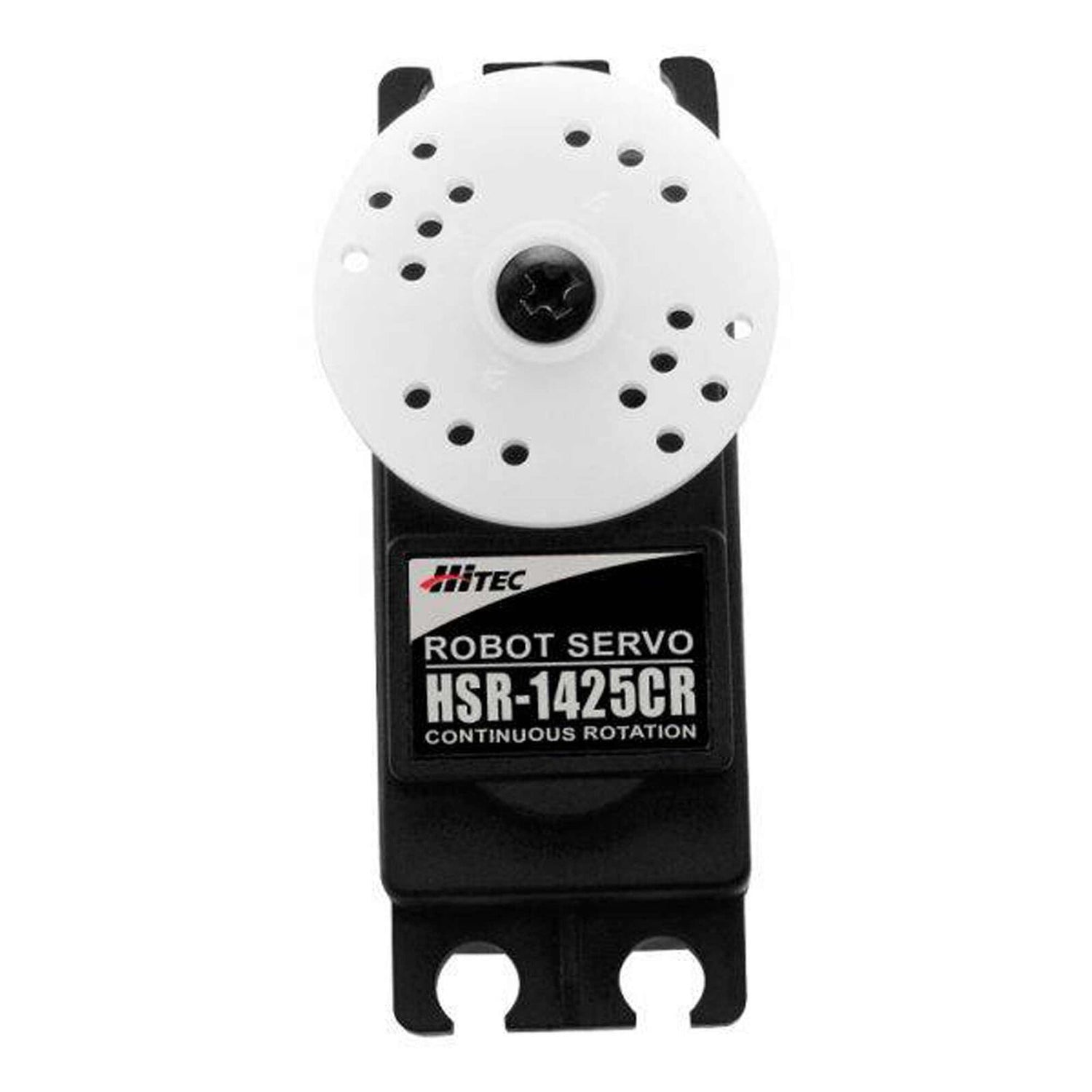

HRC31425CR RCD Inc HS-1425 Standard Analog Continuous Rotation Robot Servo

$20.99

The HSR-1425CR is the continuous rotation (non-proprtional) version of the HS-425HB ideal for robotic applications.

HRC31425CR RCD Inc HS-1425 Standard Analog Continuous Rotation Robot Servo Product Specs

  • ApplicationRobotics
  • BearingDual Ball Bearing
  • Bushing Or BearingBearing
  • Connector TypeUniversal
  • Current Draw Idle8 mA
  • Current Draw Stall640 mA
  • Deadband>5µs
  • Gear TypeNylon
  • Input Voltage4.8V ~ 6.0V
  • Maximum Servo Speed43 rpm @ 4.8V, 52 rpm @ 6.0V
  • Maximum Servo Torque39o/in @ 4.8V, 57oz/in @ 6.0V
  • Motor TypeBrushed

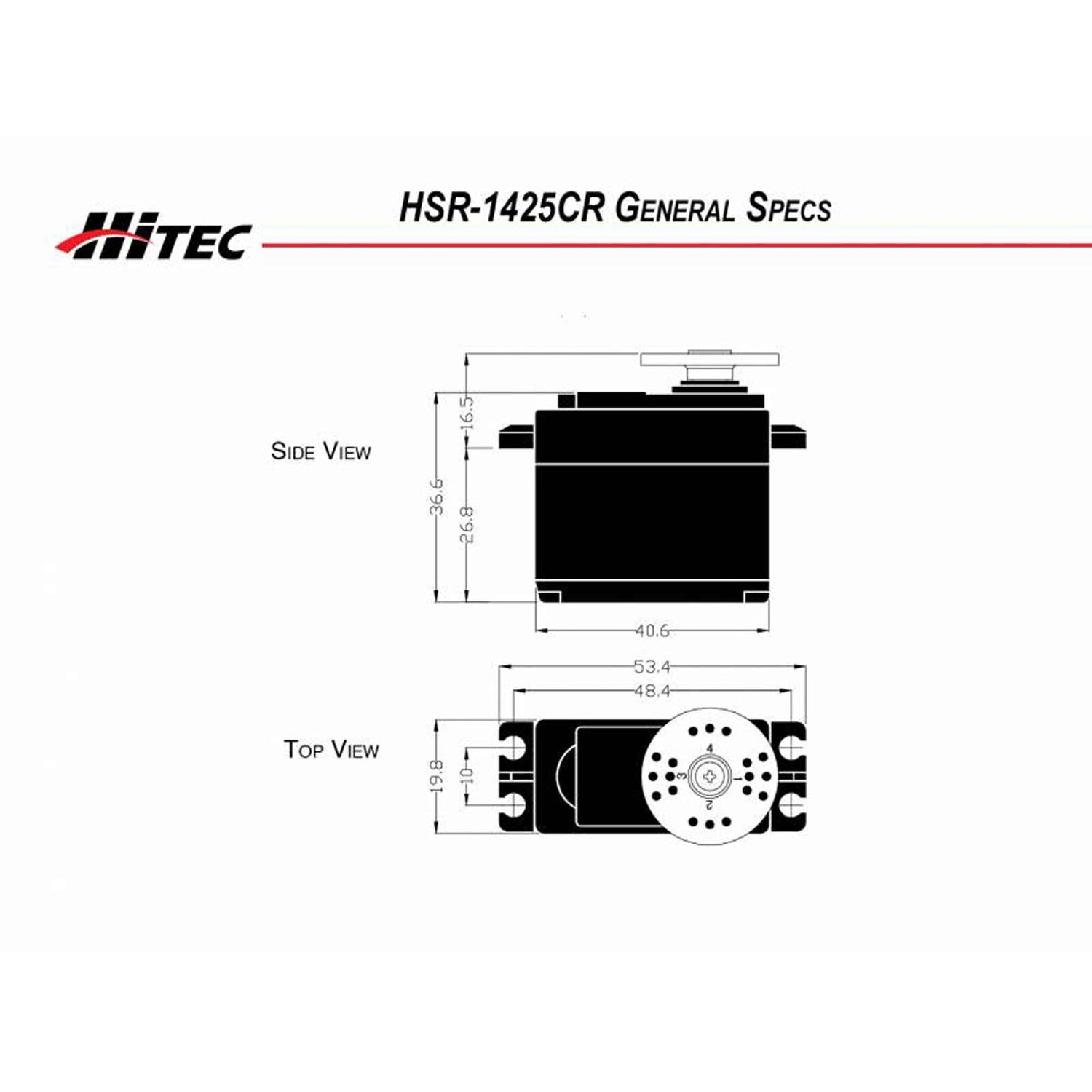

  • Product Height1.44" (37 mm)
  • Product Length1.59" (40 mm)
  • Product Weight1.47oz (41.7g)
  • Product Width0.77" (20 mm)
  • ProgrammableNo
  • Servo Operating Voltage4.8 - 6.0V
  • Servo Size CategoryStandard
  • Servo TypeAnalog
  • Spline Count24 - Tooth
  • Water-ResistantNo
  • Wire Gauge25 AWG
