HITEC | SKU:
HRC31085S

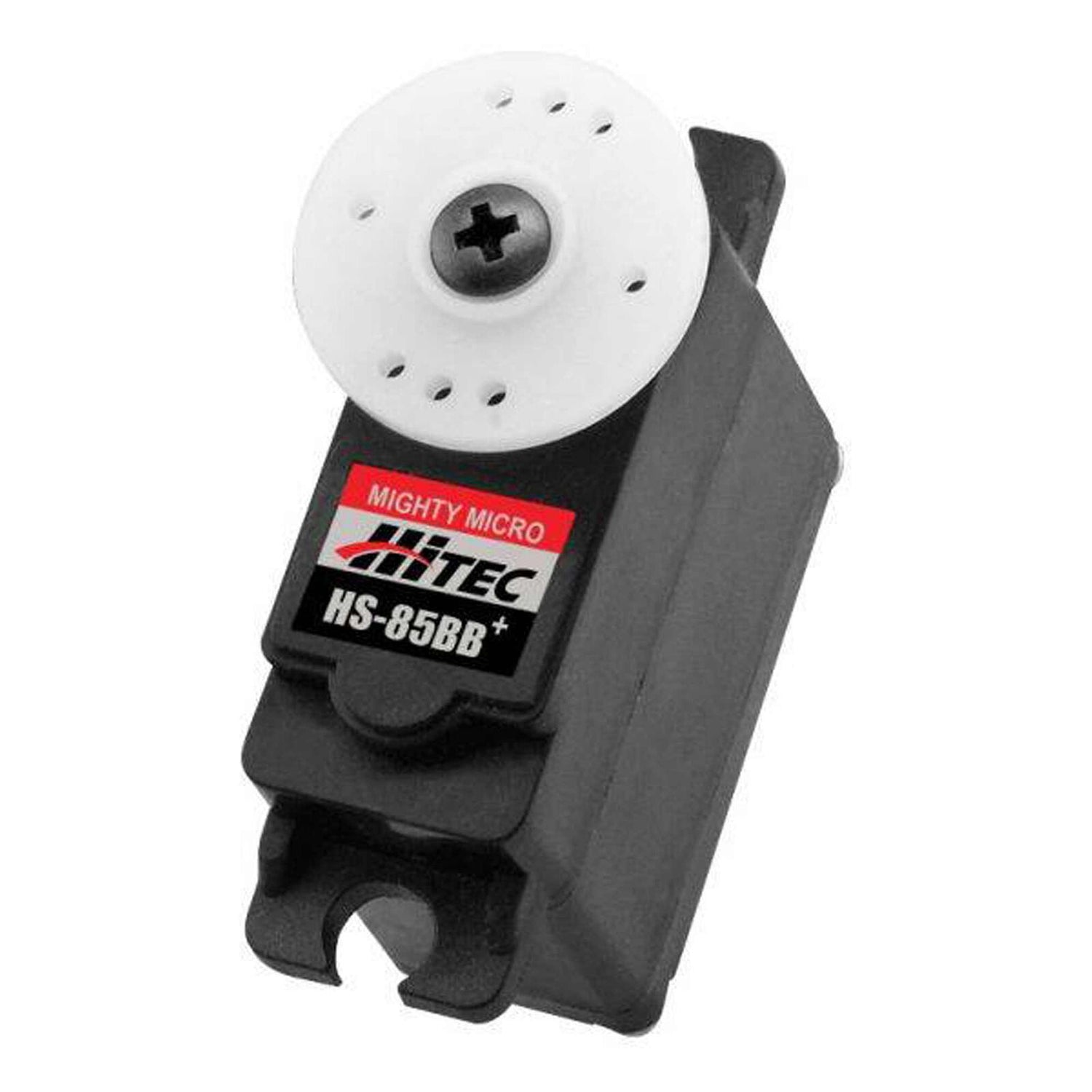

HRC31085S RCD Inc HS-85BB Micro Analog Servo
Regular price
$28.99
Unit price
/
Unavailable
HRC31085S RCD Inc HS-85BB Micro Analog Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The HS-85BB features a high power motor for greater speed and torque. The HS-85BB is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, heli’s and sail planes.
- Speed: @4.8V .16sec/60' / @6.0V .14sec/60'
- Torque: @4.8V 41.66oz/in / @6.0V 48.60oz/in
- High Torque and Precision Centering
- Strong Resin Gear Train
- Ball Bearing-Supported Output Shaft
- Perfect for Applications where a Standard Servo is too Heavy or Large but Standard Torque is Required
HRC31085S RCD Inc HS-85BB Micro Analog Servo Product Specs
- ApplicationGlow and Electric Aircraft, Helicopters, Sailplanes
- BearingTop Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle8mA
- Current Draw Stall1,200 mA
- Deadband>5µs
- Gear TypeNylon
- Input Voltage4.8V ~ 6.0V
- Maximum Servo Speed0.16 sec/60 deg @ 4.8V, 0.14 sec/60 deg @ 6.0V
- Maximum Servo Torque42oz/in @ 4.8V, 49oz/in @ 6.0V
- Motor TypeBrushed

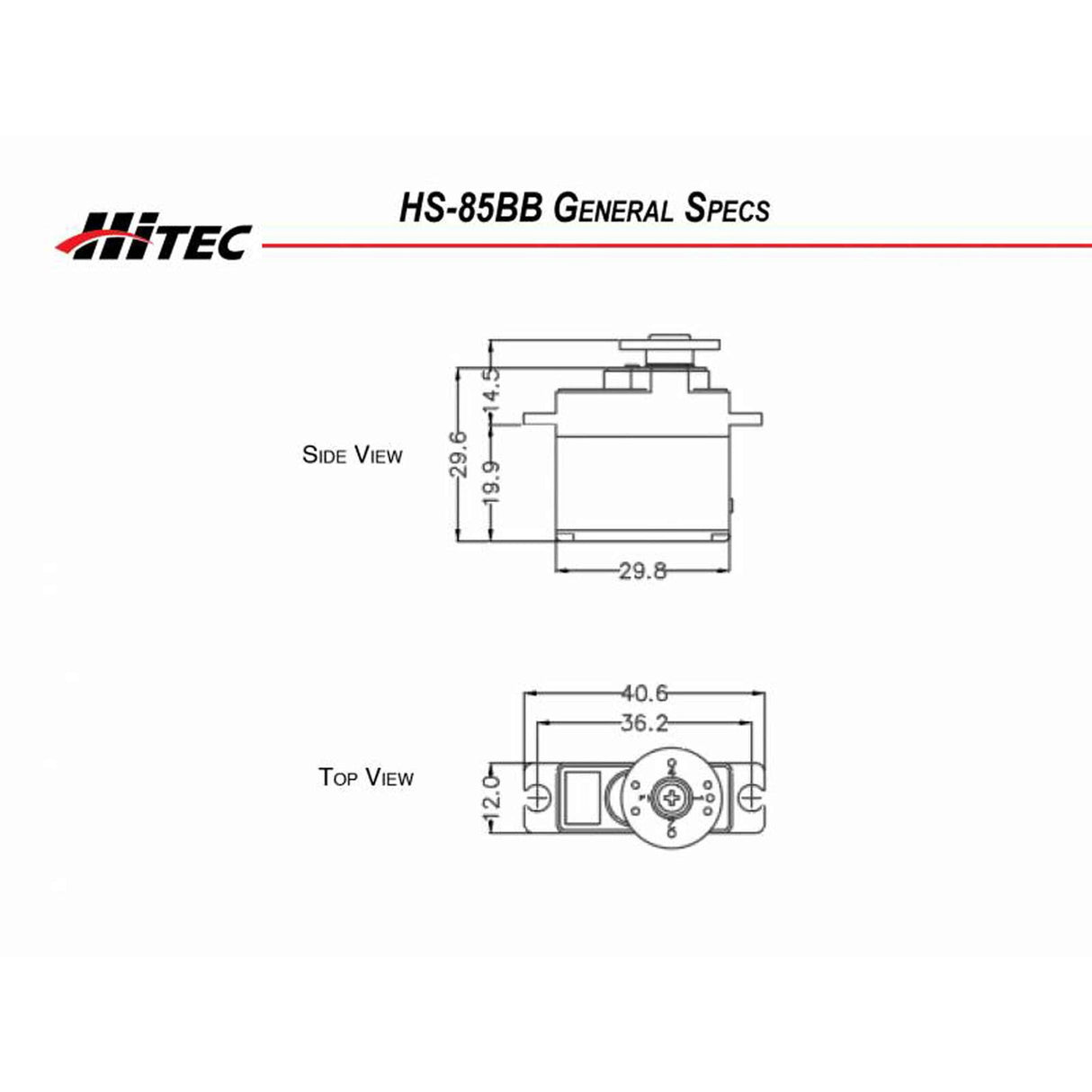

- Product Height1.18" (30 mm)
- Product Length1.14" (29 mm)

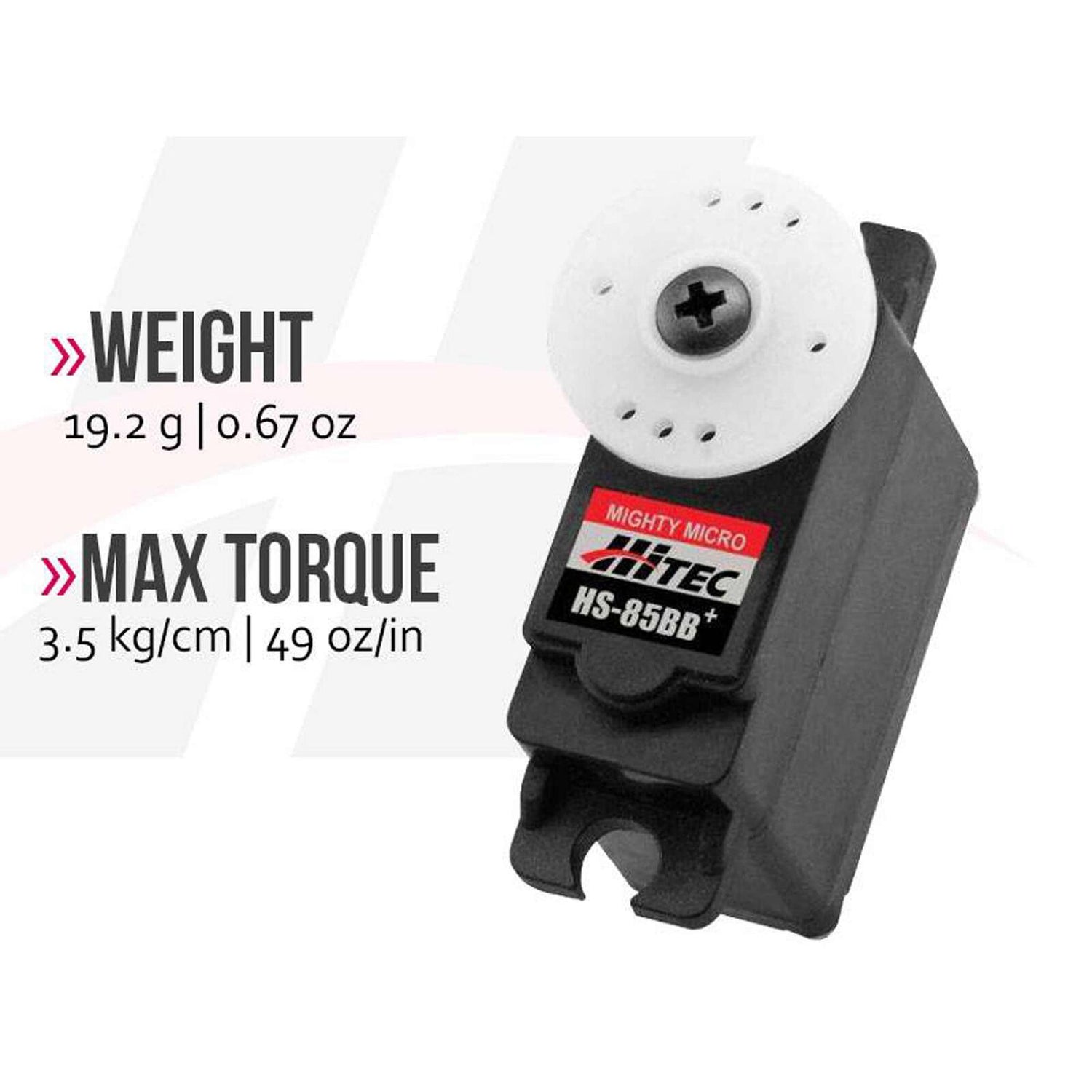

- Product Weight0.67oz (19.2g)
- Product Width0.51" (13 mm)
- ProgrammableNo
- Servo Operating Voltage4.8 - 6.0V
- Servo Size CategoryMicro
- Servo TypeAnalog
- Spline Count24 - Tooth
- Water-ResistantNo
- Wire Gauge28 AWG
