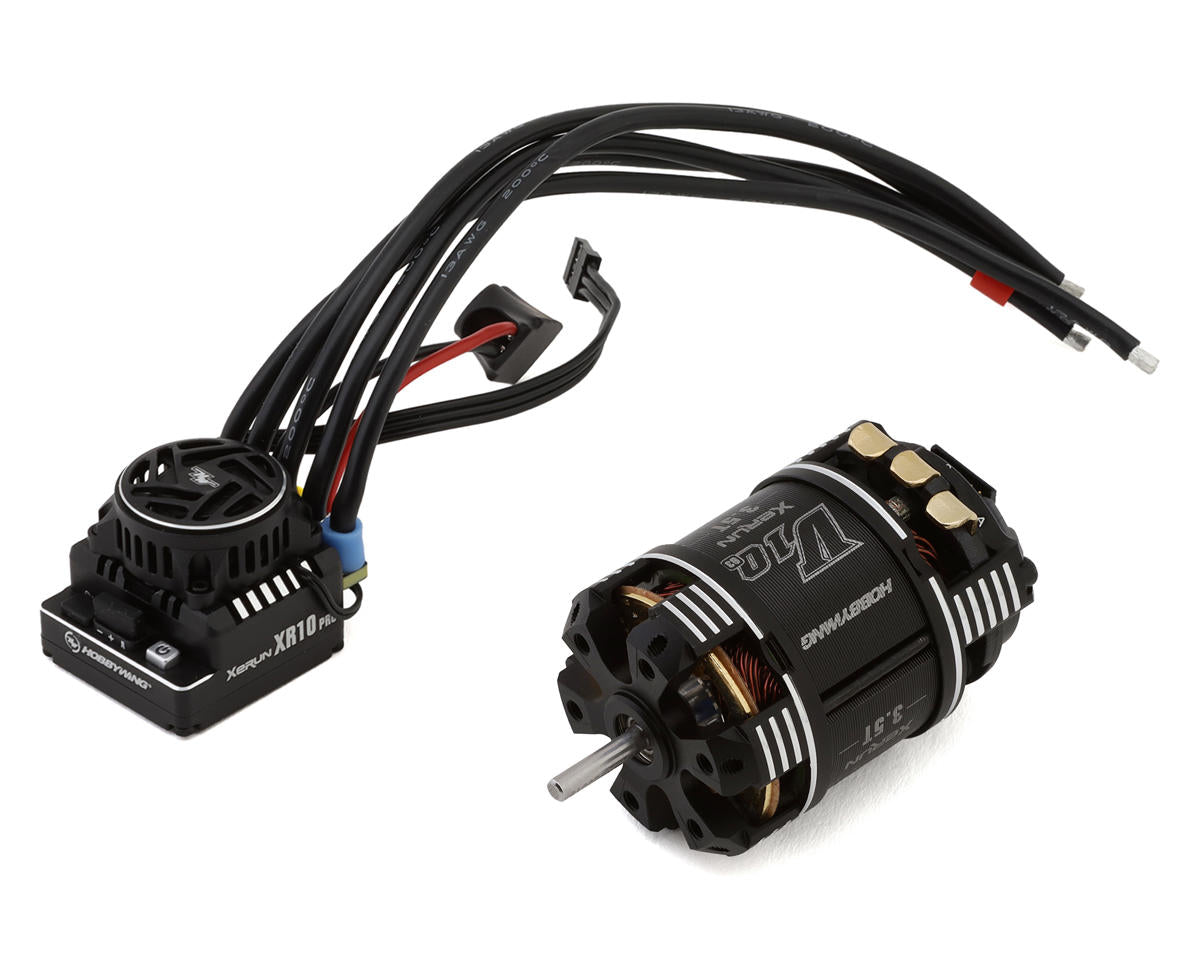

The Hobbywing XR10 Pro G3 Sensored Brushless ESC and V10 G3 Motor Combo is tailored for competitive 1/10 modified class racing. This ESC combo provides optimal performance, offering racers precise control, improved power delivery, and advanced customization options to adapt to various track conditions. With features like Reverse Polarity Protection*, customizable profiles, and built-in data logging, this bundle gives racers a competitive edge while ensuring long-term reliability and efficiency.
Features:
- 160A continuous current
- Patented Reverse Polarity Protection
- Three customizable racing profiles
- Variable frequency PWM and brake control
- Built-in data logging
- Internal and external switch options
- Motor equipped with built-in Hall sensor
- Balanced rotor for smooth and linear performance
- Easy-to-dismantle motor case for maintenance and part replacement
- High-performance stator core for improved power output
Specifications:
ESC:
-
Suggested Application: 1/10 Touring Cars & Buggies
-
Motor Type: Brushless – Sensored/Sensorless
-
Input Voltage: 2S LiPo (Only)
-
Continuous Current: 160A
-
Peak Current: 1200A
-
Dimensions (L×W×H): 1.38 × 1.32 × 1.19 in (35 × 33.6 × 30.3 mm)
-
Weight: 3.28 oz (93 g)
-
Motor Limits:
-
Touring Car: > 4.5T
-
Buggy: > 5.5T

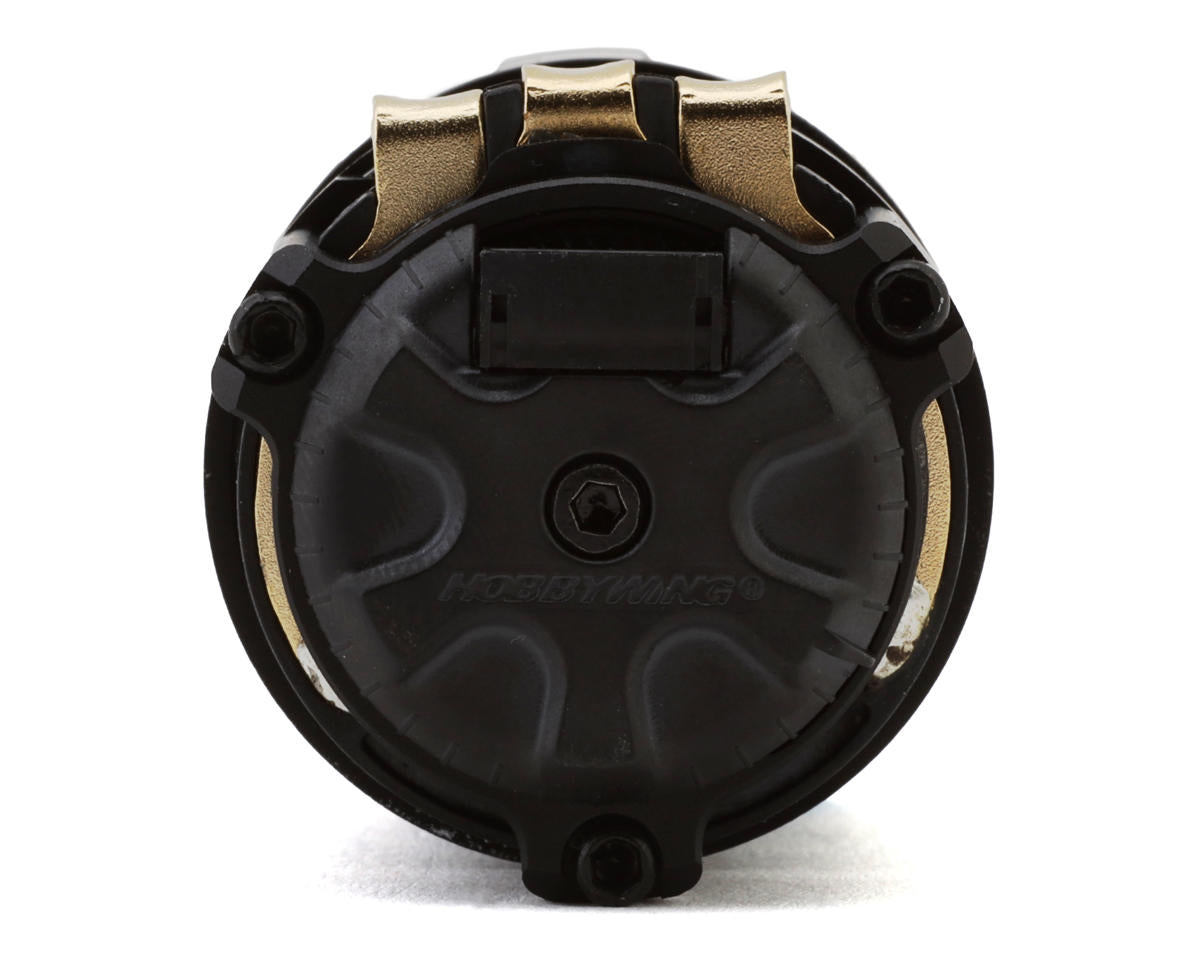

Motor:
-
Suggested Application: 1/10 4WD Modified Racing
-
Size: 5500kV
-
Type: Brushless – Sensored
-
Input Voltage: 2S LiPo
-
No Load Current: 4.5A
-
Maximum Output Current: 113A
-
Poles: 2
-
Watts: 415W
-
Connector: Solder
-
Length: 2.01 in (51.2 mm)
-
Diameter: 1.41 in (35.9 mm)
