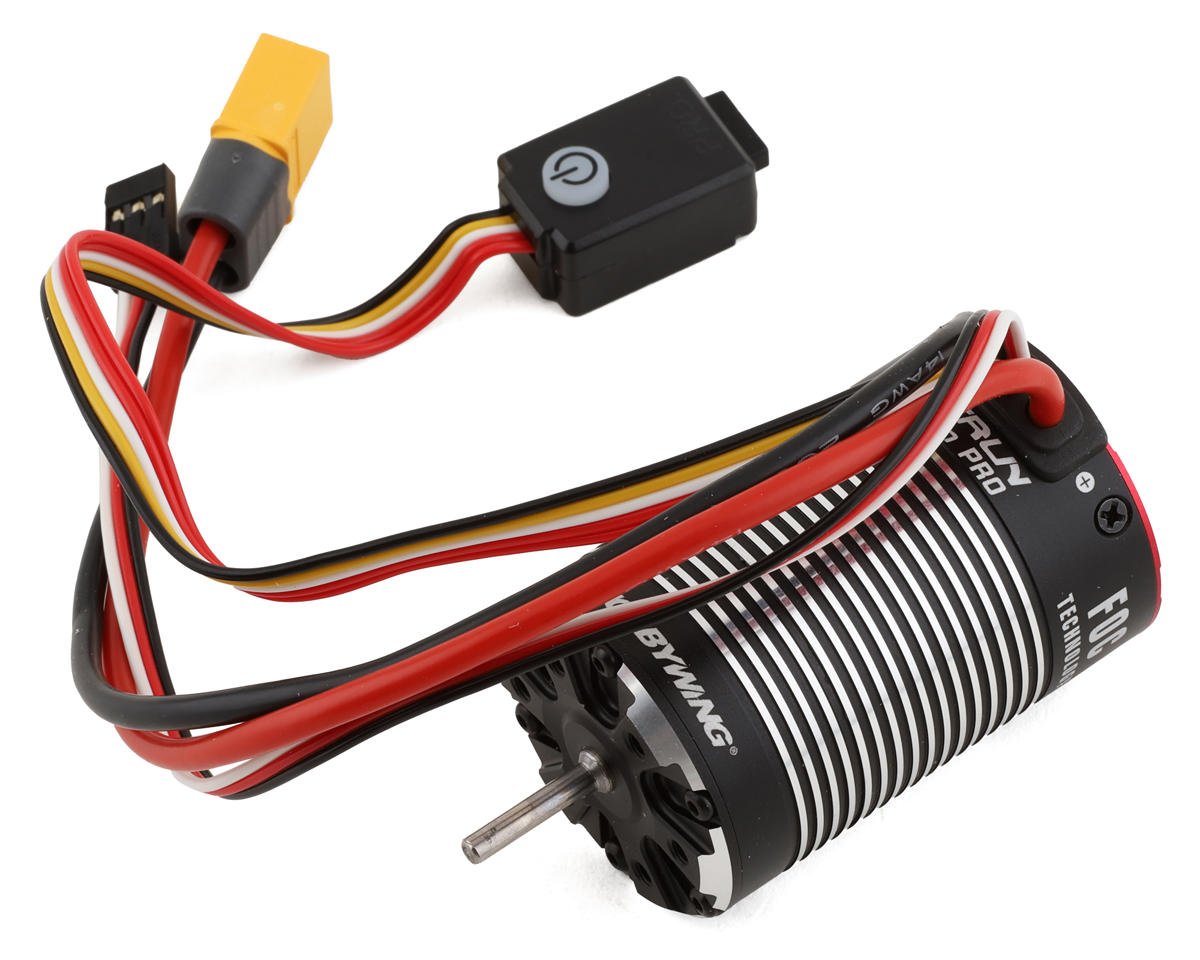

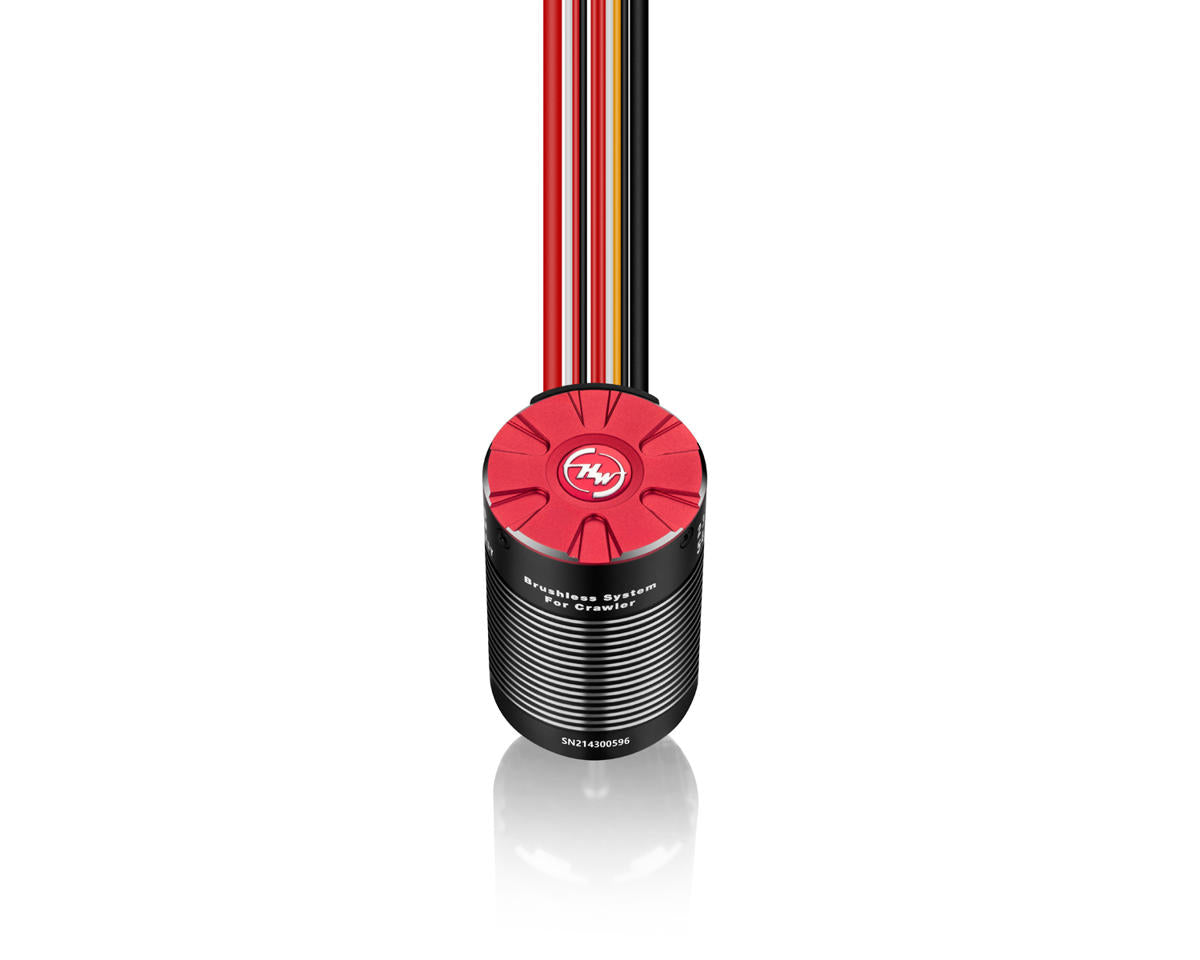

Hobbywing - QuicRun Fusion Pro FOC 2-in-1 ESC & Motor System (2300Kv)

The Hobbywing QuicRun Fusion FOC 2300Kv 2-in-1 ESC & Motor System is a unique ground-up design, packed with technology specific for scale trucks and rock crawlers.

Features:

• Compact & Lightweight: Integrated design with size similar to a 540 motor and overall weight of just 209g for simplified layout and cleaner chassis.
• Intelligent Torque & Speed Control: Maintains motor torque and RPM under changing conditions (uphill, downhill, or under load) for smooth and predictable operation.
• FOC (Field-Oriented Control): Ensures super linearity, high torque at low speeds, smooth operation, and extremely quiet performance. Perfect for scale rock crawling.
• Waterproof & Dustproof: IP67 rating allows operation in mud, sand, snow, ice, and water.
• High Efficiency: Sine wave driving mode and FOC technology reduce heat and extend battery life, while providing quiet, soft, and smooth motor operation.


Specifications:

• Motor Kv: 2300Kv
• Continuous Current: 60A
• Shaft Diameter: 3.175 mm
• Peak Current: 200A
• Input Voltage: 2–3S LiPo / 6–9 Cell NiMH
• BEC Output: 6V / 7.4V adjustable, 6A continuous (switch mode)
• Input Wires: 14AWG, 330 mm long
• Input Connectors: XT60 (factory installed)
• Port Programming: Independent programming interface (switch position)
• Size: 37 × 58 mm
• Weight: 209 g w/wires
