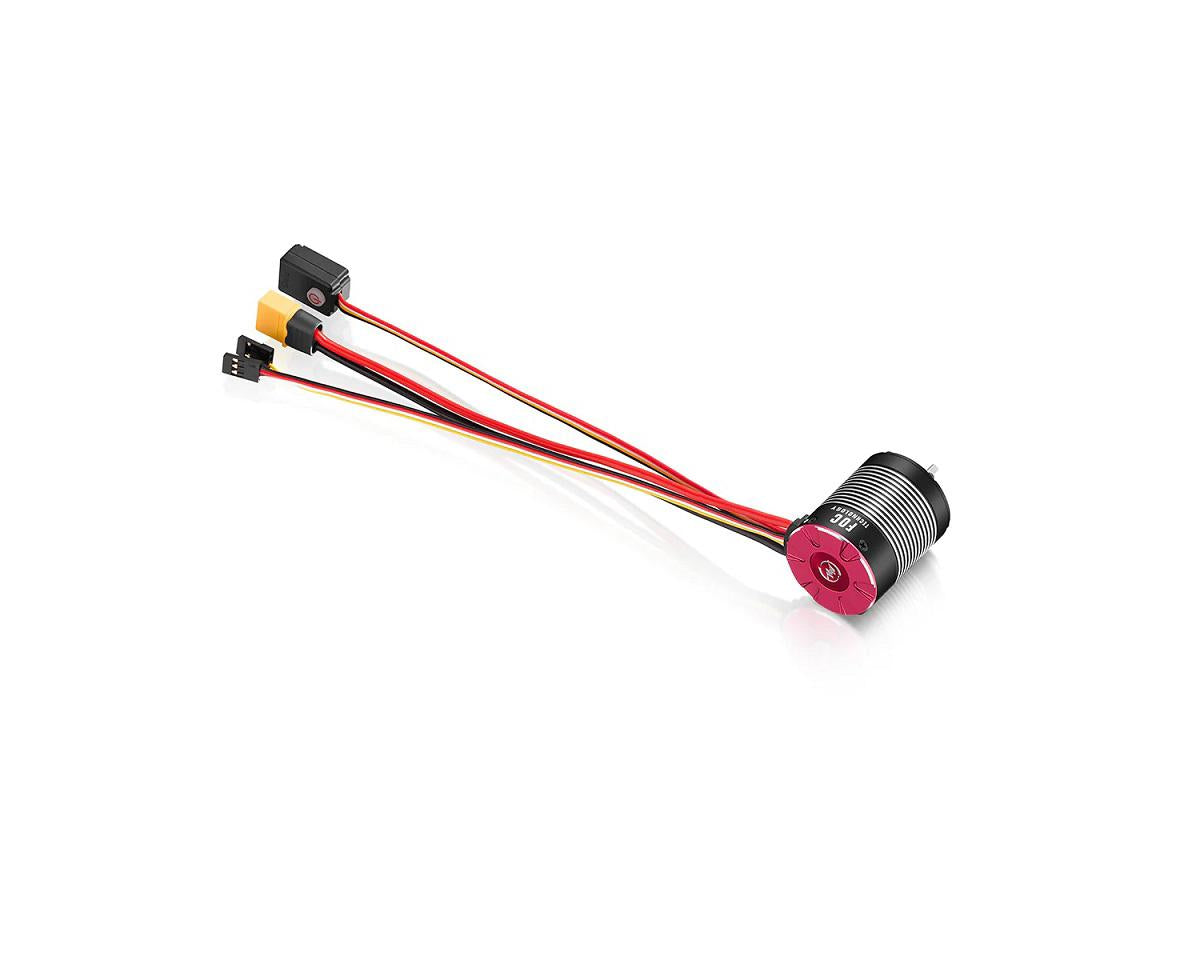

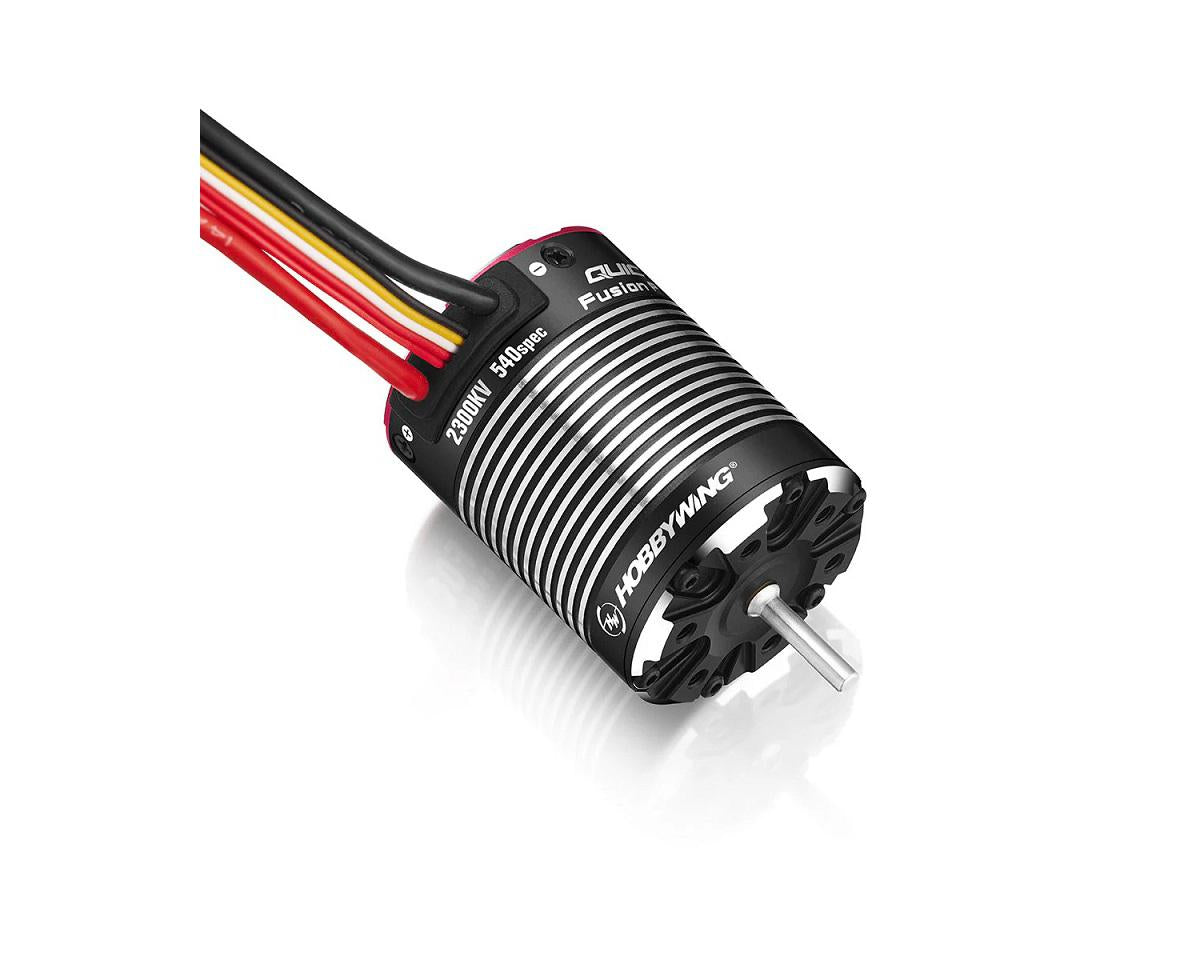

The Hobbywing QuicRun Fusion Pro Elite FOC 2-in-1 ESC & Motor System combines powerful performance, compact design, and advanced control into one streamlined package for 1/10-scale crawlers. Measuring just 48.5mm in length, it’s smaller than previous Fusion Pro models and fits easily into most crawler chassis, allowing for clean and organized wiring. Built with IP67-rated protection, this system performs reliably in all-weather conditions—whether you’re tackling rocky trails, muddy streams, or sandy climbs.
Features:
- Ultra-compact 2-in-1 ESC and motor design
- 48.5mm length for easy installation in most 1/10-scale crawlers
- FOC driving mode for strong low-speed torque and precise control
- High efficiency with reduced heat and extended runtime
- IP67-rated waterproof and dustproof construction
- Active drag brake adjustment for reliable incline holding
- Built-in switch-mode BEC with adjustable 6V/7.4V/8.4V output
- Real-time parameter adjustment via transmitter AUX channel
- Multiple protection functions for safety and reliability
- Compatible with LED and LCD Program Box Pro/G2 for easy tuning
Specifications:
ESC:
-
Suggested Application: 1/10 Crawler
-
Motor Type: Brushless (FOC)
-
Input Voltage: 2–4S LiPo (Only)
-
Continuous Current: 50A
-
Peak Current: 150A
-
Dimensions (L×D): 1.91 × 1.46 in (48.5 × 37 mm)
-
Weight: 6.28 oz (178 g)
-
Motor Limits: –
-
BEC Voltage: 6.0 / 7.4 / 8.4V
-
BEC Continuous Current: 5A
Motor:
-
Suggested Application: 1/10 Crawler
-
Size: 2300kV
-
Type: Brushless (FOC)
-
Input Voltage: 2–4S LiPo
-
No Load Current: –
-
Poles: –
-
Watts: –
-
Connector: XT60
-
Length: 1.91 in (48.5 mm)
-
Diameter: 1.46 in (37 mm)
