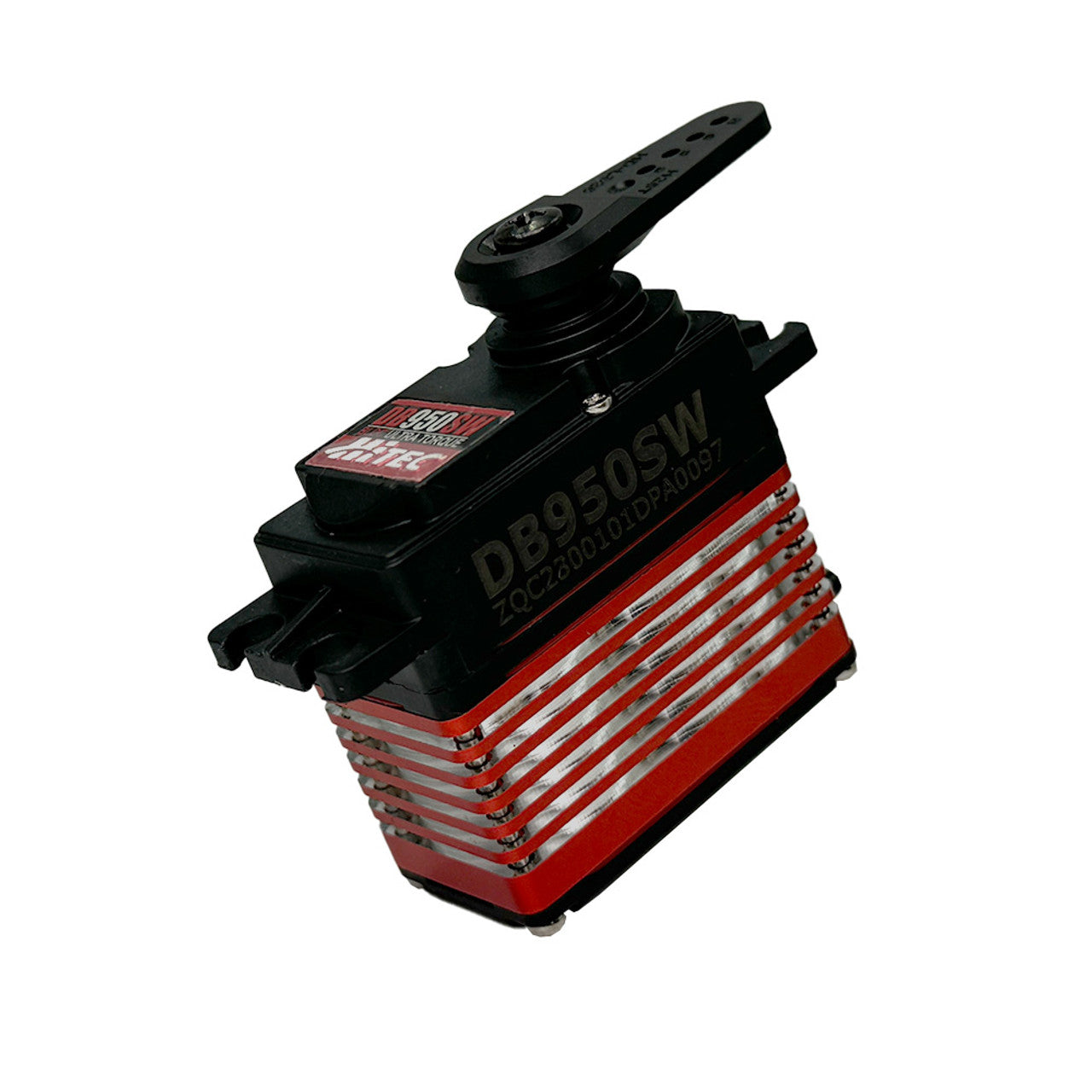

The new Brushless DB950SW is the latest addition to our DB-Series servo line. All Hitec DB-Series servos have been designed using our cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, along with an ultra efficient and powerful Brushless motor, these servos deliver significantly smoother movement. This powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring an industry standard 25-tooth output spline with 3mm hex screw, and steel gears for maximum durability.
Features
- Programmable PWM Digital Amplifier
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Dual Ball Bearing Supported Output Shaft
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Dust Resistant and Splash Proof Case

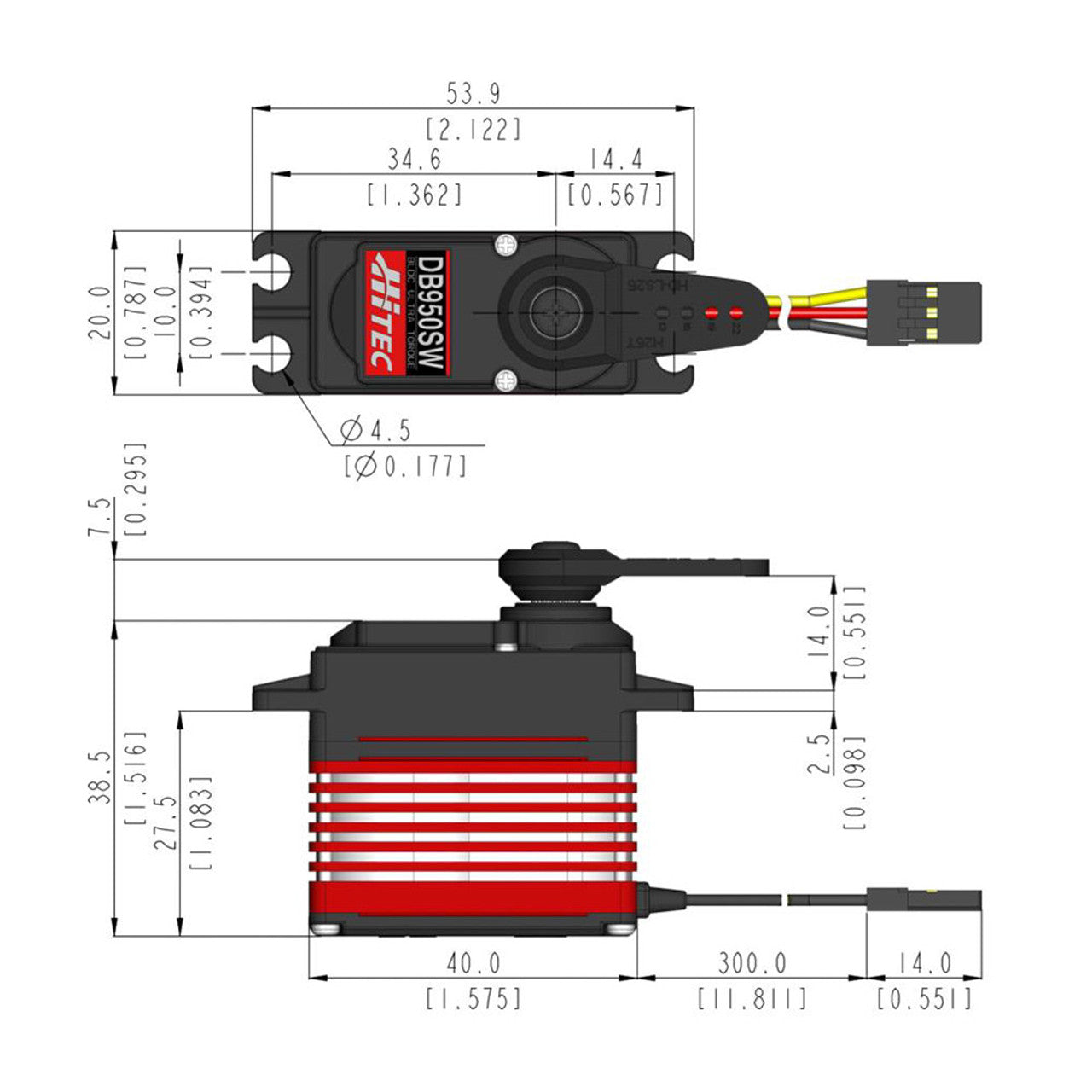

Specifications
-
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V
-
Speed (Second @ 60°): 0.23 ~ 0.17 ~ 0.14
-
Maximum Torque Range (oz/in): 486 ~ 555 ~ 555
-
Maximum Torque Range (kg/cm): 35.0 ~ 40.0 ~ 40.0
-
Current Draw at Idle: 35 mA
-
No Load Operating Current Draw: 350 mA
-
Stall Current Draw: 4,200 mA
-
Dead Band Width: 1 µs
