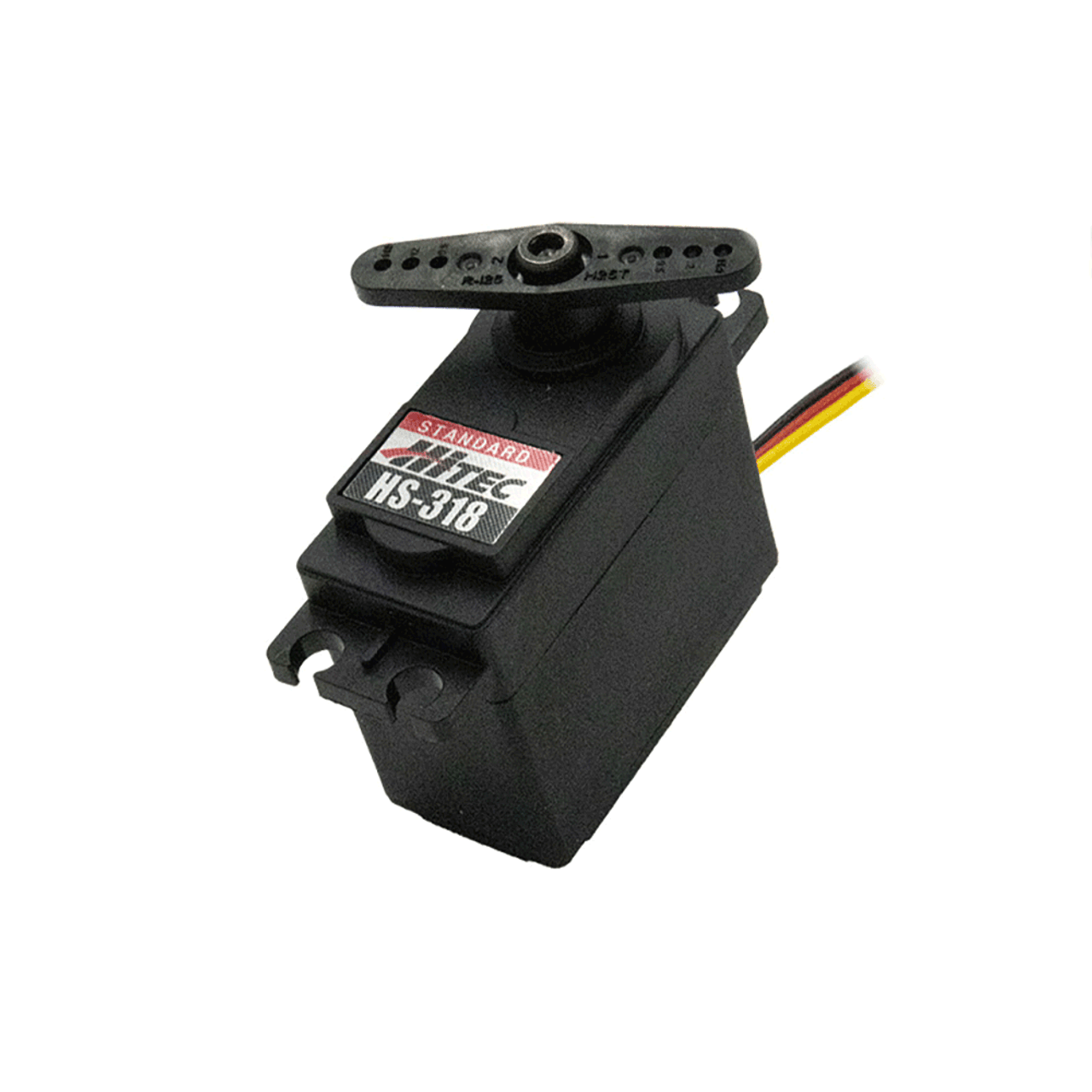

The HS-318 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more expensive servo. Combined with precise resin gears and SMT circuitry, the HS-318 is the 25T version of our HS-311 and represents a remarkable value in today's R/C market.
Features
- Our Low Cost Standard Size Servo
- 25-Tooth Output Spline
- Cored Metal Brush Motor
- Durable Resin Gears
- Popular Selling Servo
Specifications
-
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
-
Speed (Second @ 60°): 0.19 ~ 0.15
-
Maximum Torque Range (oz/in): 42 ~ 51
-
Maximum Torque Range (kg/cm): 3.0 ~ 3.7
-
Current Draw at Idle: 8 mA
-
No Load Operating Current Draw: 180 mA
-
Stall Current Draw: 800 mA
-
Dead Band Width: 5 µs
