HITEC  |  SKU: DB778WP

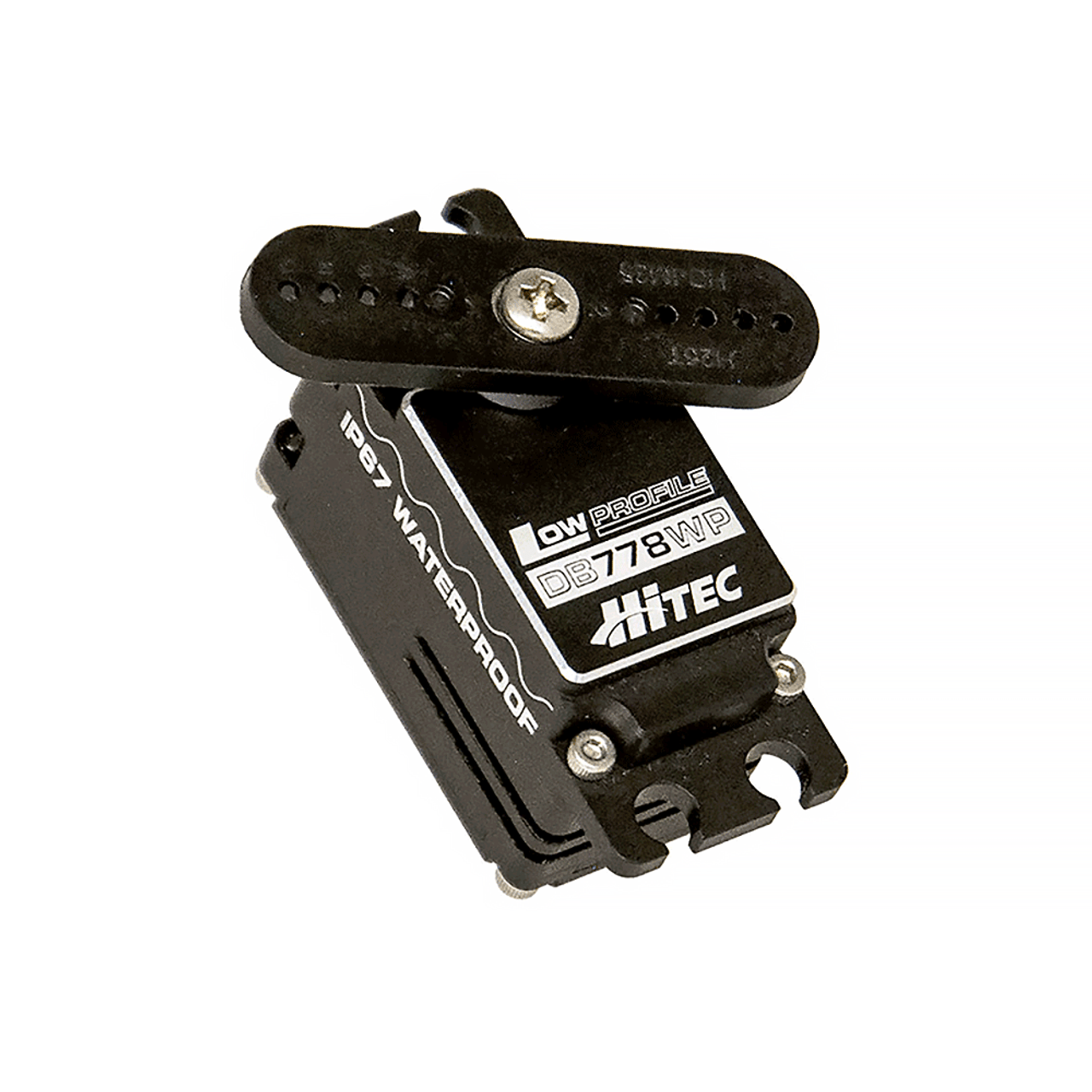

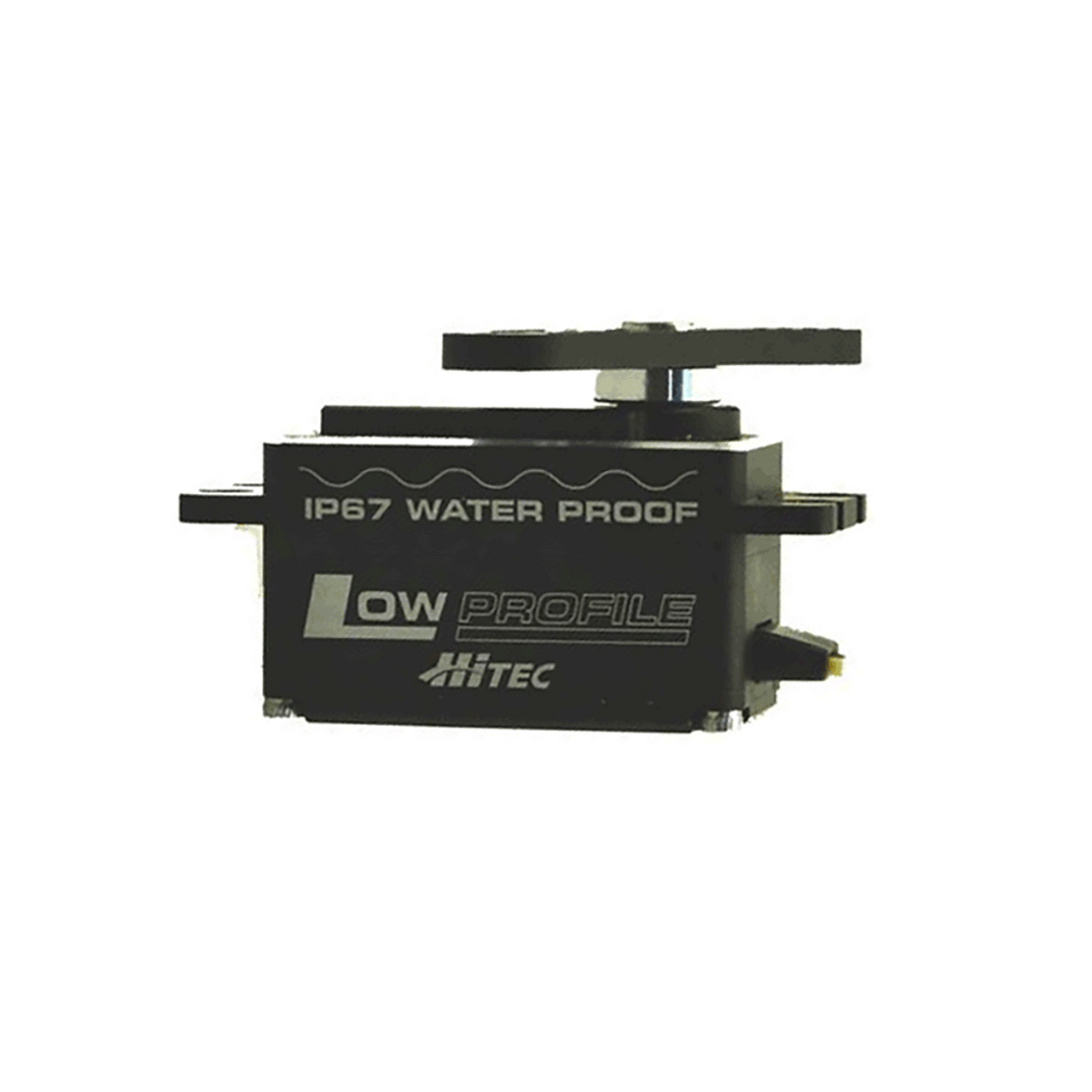

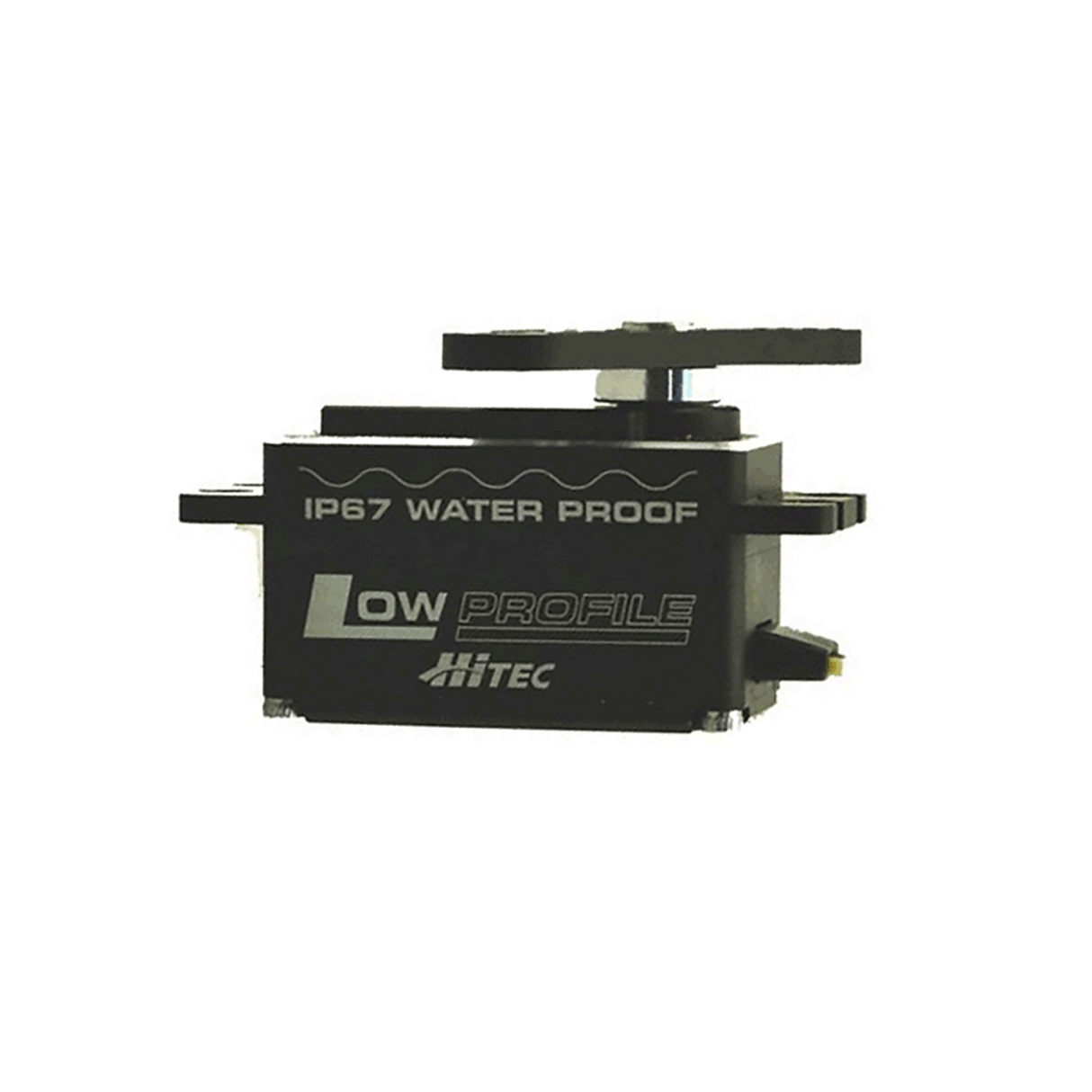

HITEC - Low Profile Waterproof Steel Gear 25T Brushless Servo

Regular price $169.99


The DB778WP’s design and premium-quality construction was built for demanding commercial applications, yet its superior torque also makes it the perfect hobby servo for 1/10th 2WD & 4WD off-road buggies and touring cars. Engineered with an ultra-efficient brushless motor, high-resolution digital circuit, hardened steel gears and an all-aluminum, IP-67 rated waterproof case, the DB778WP excels when pushed to the limits on ultra-high bite carpet or clay tracks. Take on the competition and drive hard, knowing you are backed by Hitec’s 2-year warranty which affords you the added protection you deserve! Invest in the best with Hitec!

Features

  • Voltage Range is 3.7V - 8.4V
  • Full Programmability
  • IP-67 Waterproof Rated
  • Ultra Efficient Brushless Motor
  • 32-Bit MCU Technology / 4096 Resolution
  • Smart Sense Technology for Servo Analytics
  • High Response, High Resolution Circuitry
  • Full Metal Case
  • Hardened Steel Gears
  • 1M Cycle, Long-Life Potentionmeter
  •  H25T -Industry Standard Output Spline
  • Compatible with Fully Charged 2S LiPo Batteries

Specifications:

  • Continuous Rotation: n / a
  • Connector Wire Length: 300mm (11.811 in.)
  • Connector Wire Gauge: 20AWG
  • Dimensions: 66.0 x 32.0 x 62.1 mm (2.598 x 1.260 x 2.445 in.)
  • Weight: 227.0 g (8.007 oz.)
  • Motor Type: Cored Carbon Brush
  • Bearing Type: 2 Ball Bearing
  • Case Material: Engineering Plastic & Aluminum Heat Sink
  • Gear Material: 1 Metal + Plastic & 4 Steel Gears
  • Horn Gear Spline: 15T (Ø8)
