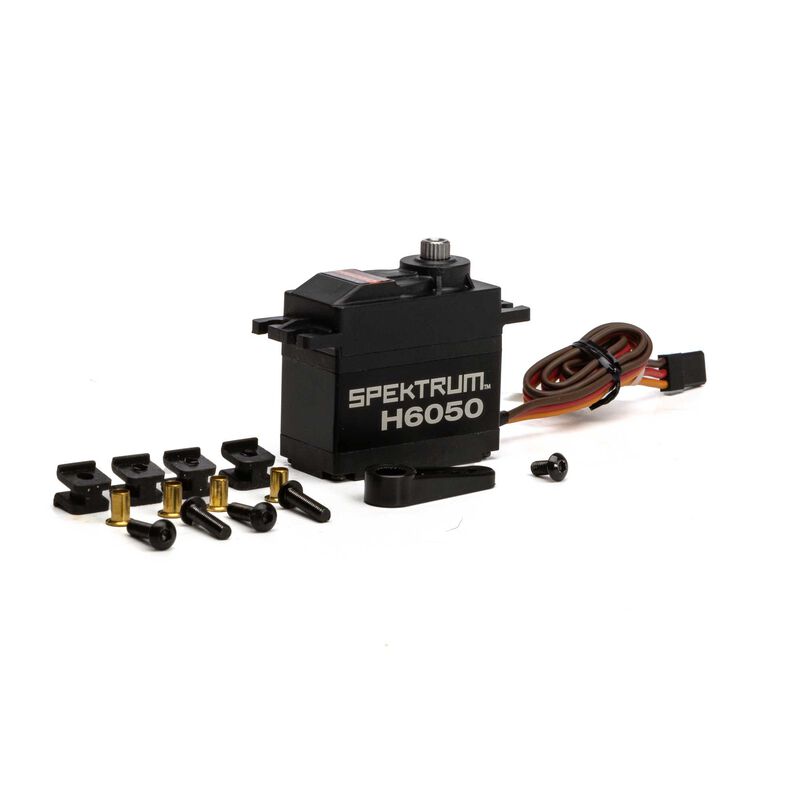

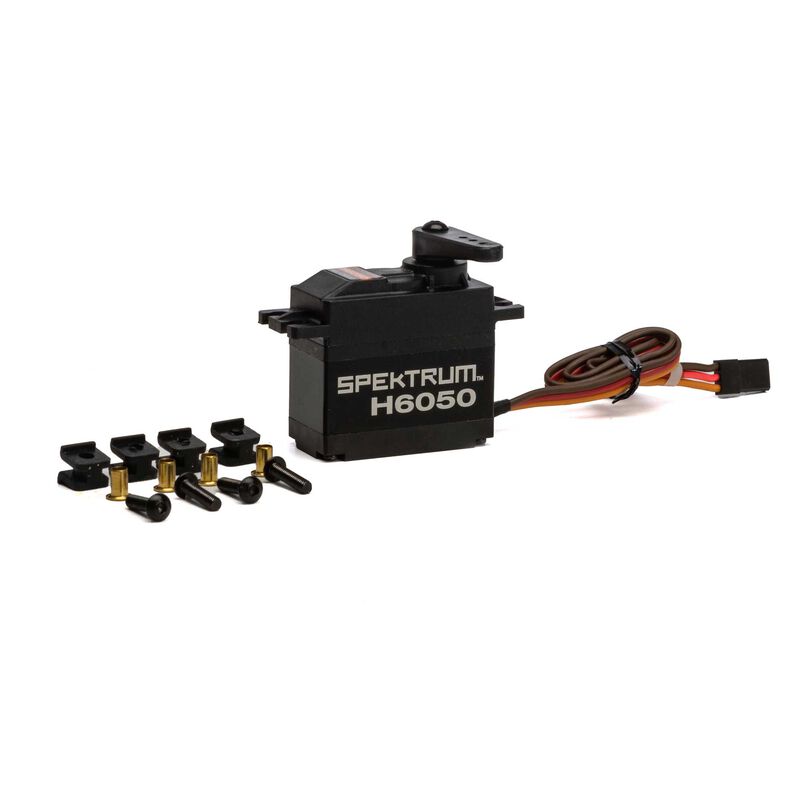

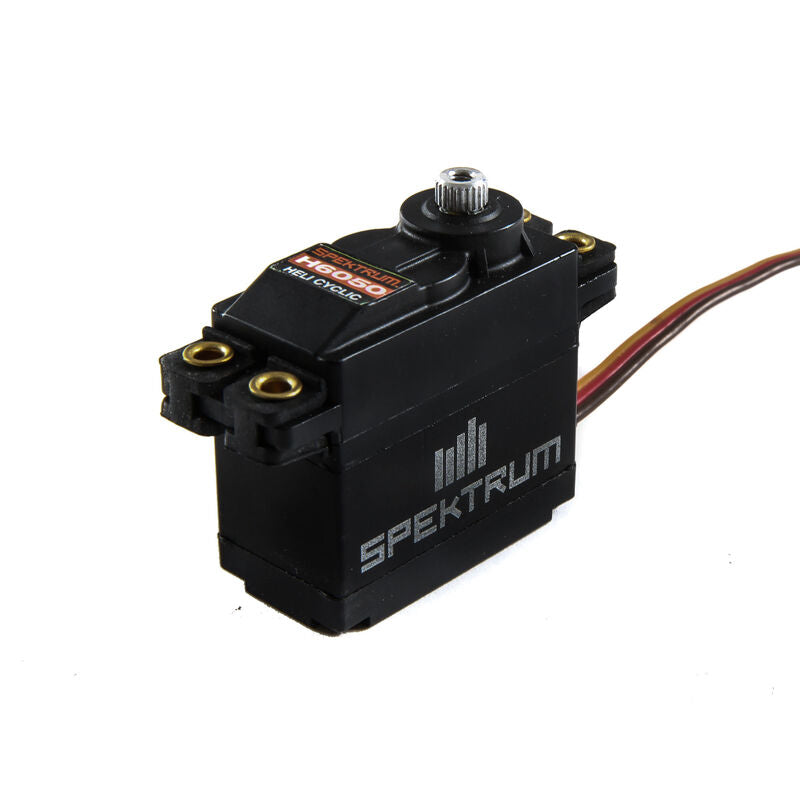

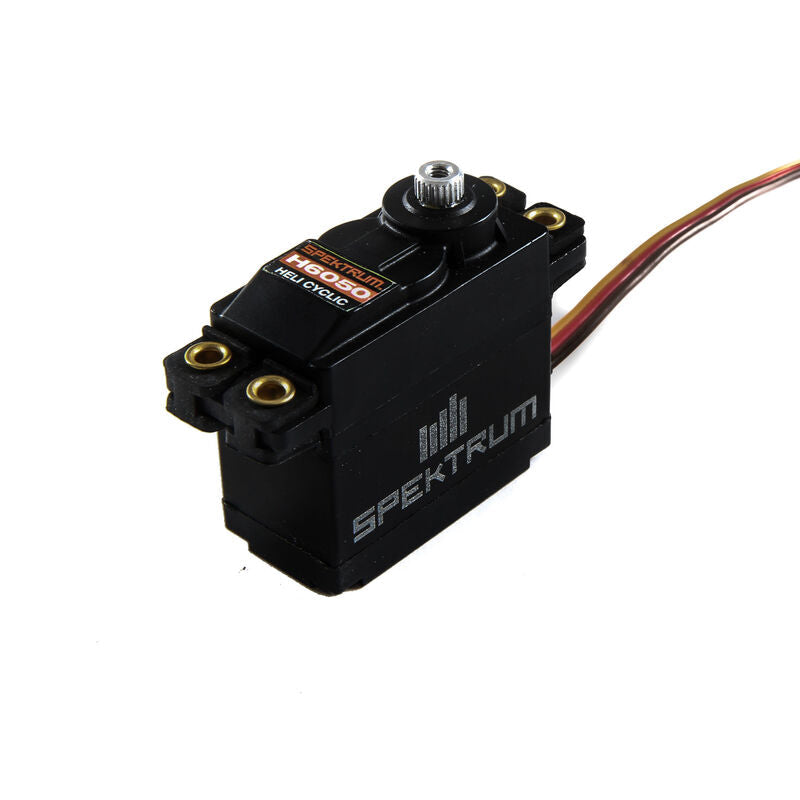

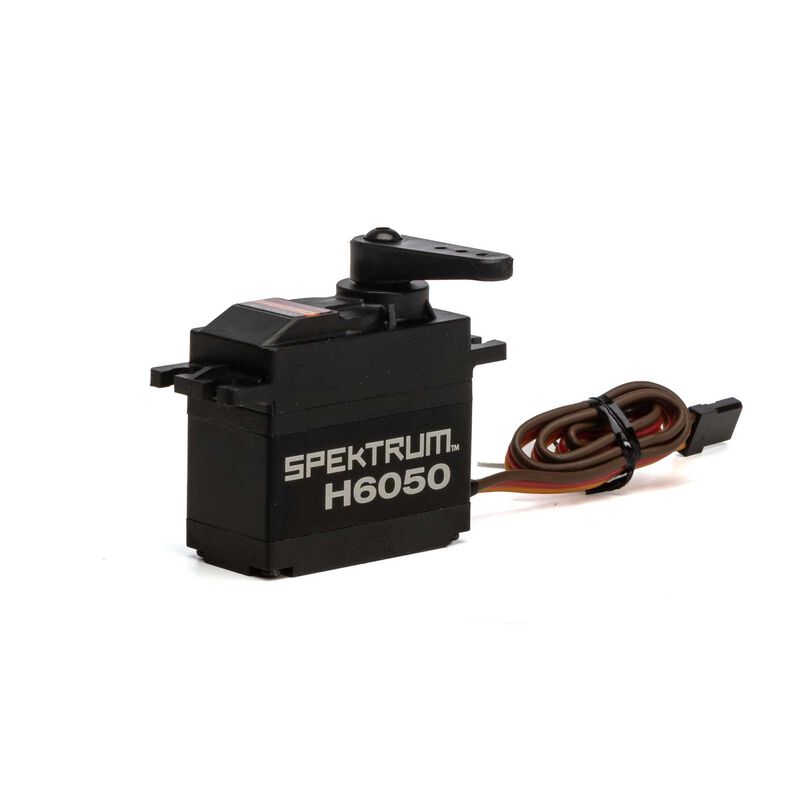

The H6050 is a budget friendly digital cyclic servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 160oz of torque and a quick .103 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.
Material | Plastic |
Deadband | Less than 1?s |
Programmable | No |
Servo Size Category | Standard |
Product Application | Helis Cyclic |
Product Height | 1.51 in (38.3 mm) |
Servo Type | Digital |
Motor Type | Brushed |
Servo Operating Voltage | 4.8 - 6.0V |
Product Width | 0.79 in (20.0 mm) |
Connector Wire Length | 10 in (255mm) |
Bearing | Dual |
Bushing Or Bearing | Bearing |
Gear Type | Metal |
Wire Gauge | 22 AWG |
Maximum Servo Torque | 160 oz-in (11.5 kg-cm) @ 6.0V |
Connector Type | Universal |
Product Length | 1.57 in (40.0 mm) |
Rotation Range | 120 deg |
Application | Helis Cyclic |
Product Weight | 2.2 oz (62g) |
