SKU:
HRC36956
D956WP Standard Digital High Torque Waterproof Steel Gear Servo - HRC36956
Regular price
$109.99
Unit price
D956WP Standard Digital High Torque Waterproof Steel Gear Servo - HRC36956 is backordered and will ship as soon as it is back in stock.
D956WP Standard Digital High Torque Waterproof Steel Gear Servo - HRC36956

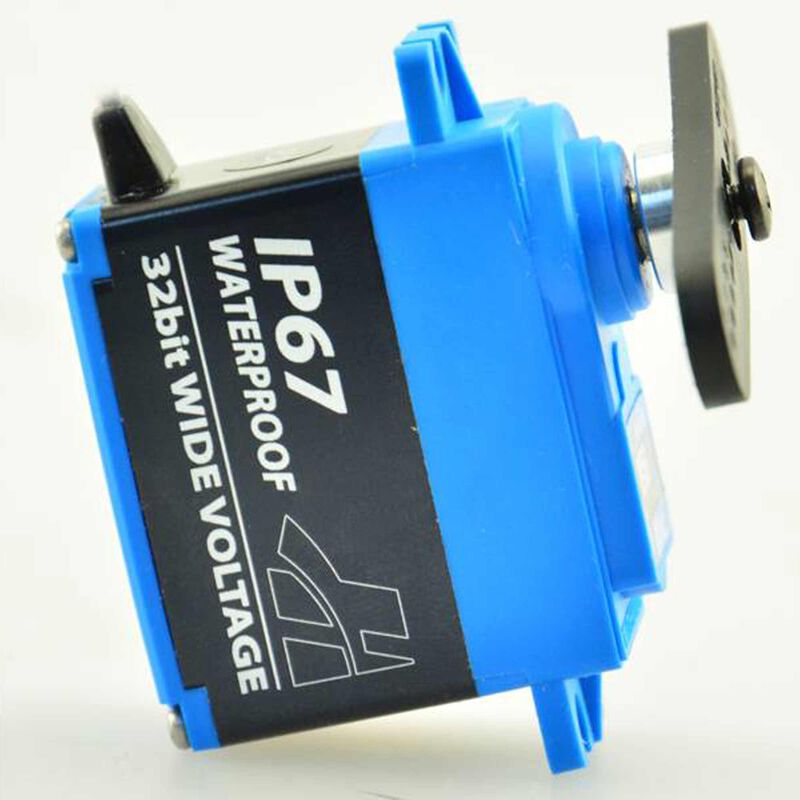

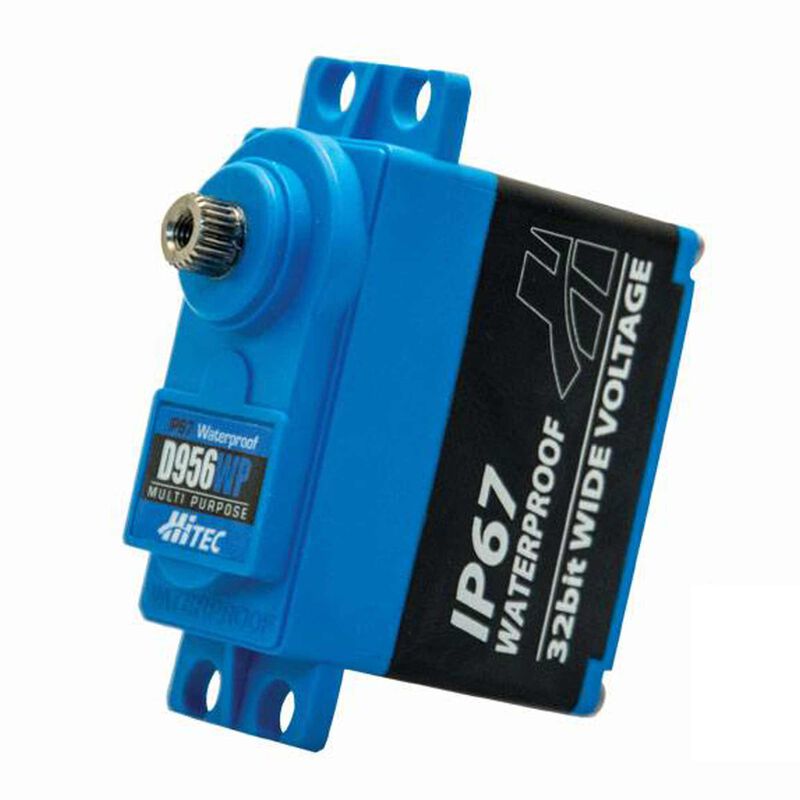

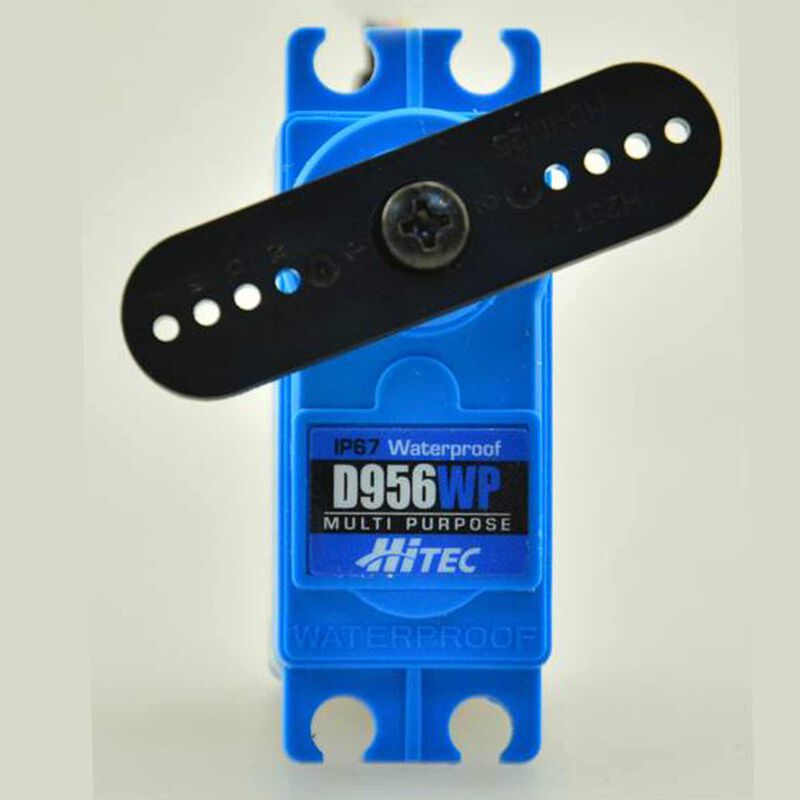

The D956WP has arrived! Based off the D954SW servo, this IP-67 rated version is the true waterproof, dust resistant upgrade for 1/10th-scale Rock Crawlers and Off-Road Trucks. As with Hitec's entire “D” line, this technologically-advanced servo is powered by a 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing D956WP produces the mighty torque and reliability required to take bashers to the next level.
- Speed: @4.8V .19sec/60' / @7.4V .12sec/60'
- Torque: @4.8V 251oz/in / @7.4V 405oz/in
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Water Resistant and Waterproof Proof Case
In The Box
- (1) D956WP 32-Bit, High Torque, Waterproof, Steel Gear Servo

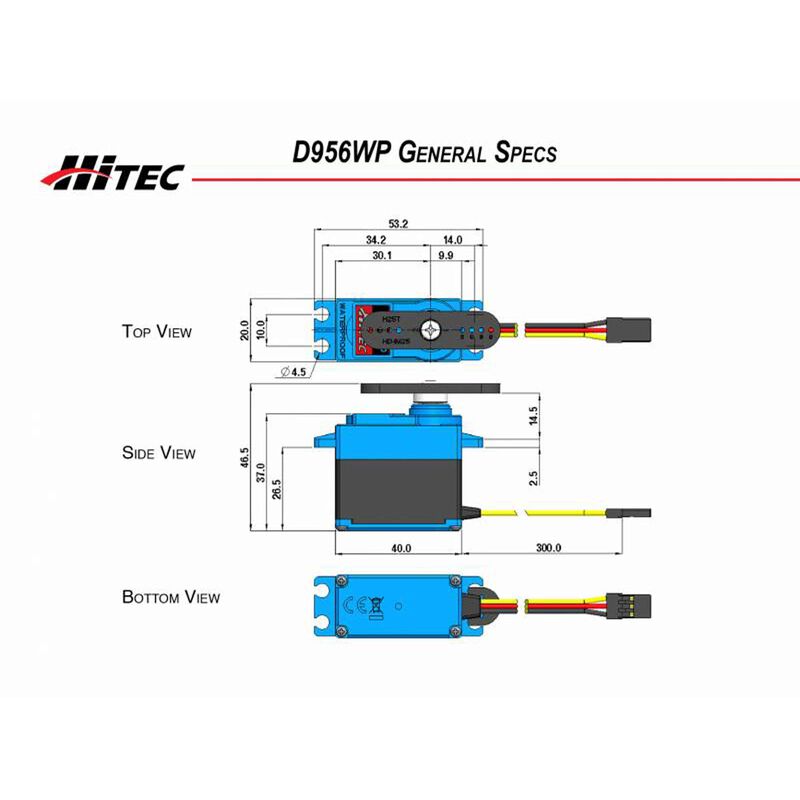

Product Specifications
| Maximum Servo Torque | 251oz/in @ 4.8V, 405oz/in @ 7.4V |
| Connector Type | Universal |
| Product Length | 1.57" (40 mm) |
| Maximum Servo Speed | 0.19 sec/60 deg @ 4.8V, 0.12 sec/60 deg @ 7.4V |
| Current Draw Stall | 5,200mA |
| Motor Type | Brushed |
| Servo Operating Voltage | 4.8 - 7.4V (HV) |
| Bearing | Dual Ball Bearing |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Wire Gauge | 20 AWG |
| Current Draw Idle | 30mA |
| Product Width | 0.78" (20 mm) |
| Programmable | Yes |
| Servo Size Category | Standard |
| Application | High Performance Aircraft, Cars, Boats |

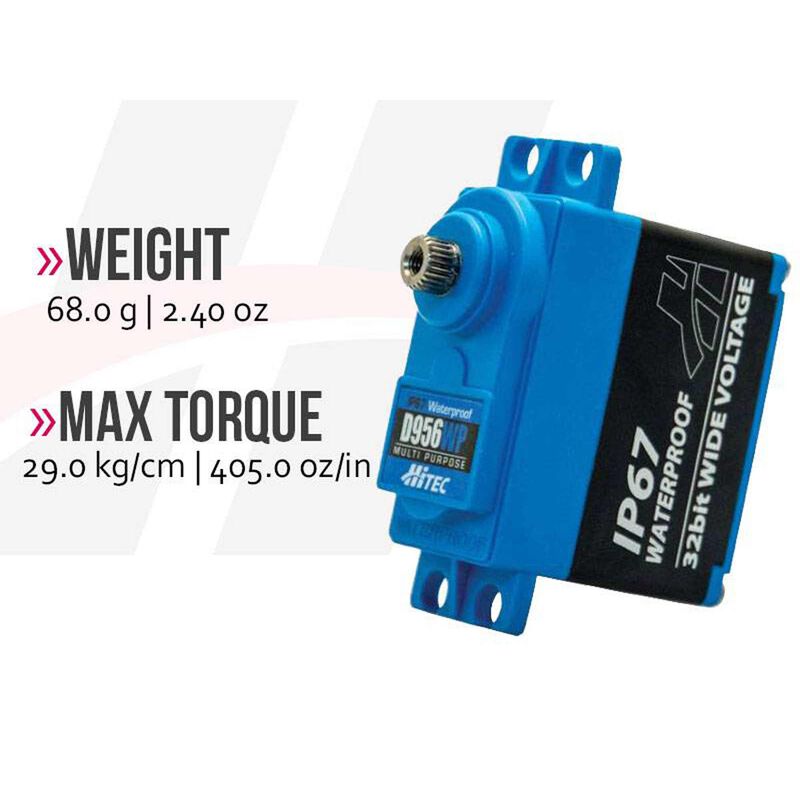

| Product Weight | 2.40 oz (68.0g) |
| Spline Count | 25 - Tooth |
| Water-Resistant | Yes |
| Deadband | 1µs |
| Input Voltage | 4.8V ~ 7.4V |
| Product Height | 1.46" (37 mm) |
| Servo Type | Digital |
