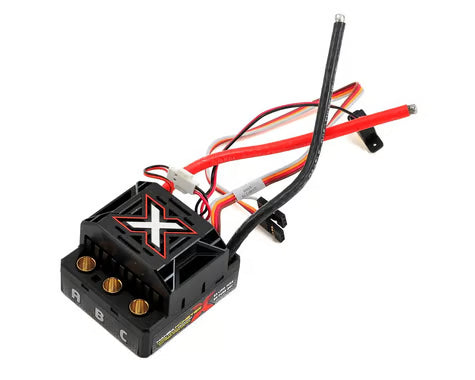

Castle Creations - Mamba Monster X Waterproof 1/8 Scale Brushless ESC

Castle Creations Monster X Waterproof 1/8th Scale Brushless ESC takes Castle’s legendary “monster” performance to the next level. The waterproof Monster X can run between 2S and 6S LiPo and is a great “power up” upgrade system for 1/8th scale off-road and on-road vehicles. It is also a perfect option for 1/10th scale monster trucks and custom RC monstrosities weighing up to 15 lbs!

Features

• Waterproof design for all-weather RC use
• Wide voltage range: 2S–6S LiPo compatible
• Programmable Auxiliary Wire for on-the-go tuning of torque control, max throttle, and more
• Audible alerts to notify calibration or error conditions
• Sensored motor capable with optional Sensor Harness for smooth power delivery
• Heavy-duty adjustable BEC: 5.5V, 6V, 7.5V, 8V with 8A peak
• 30mm cooling fan for efficient heat management
• Data logging: capture and analyze performance data to optimize ESC settings (Castle Quick Connect Duo required)
• Telemetry ready for real-time monitoring of ESC temperature, voltage, and RPM (Futaba T4PX compatibility coming soon)

Specifications

• Input Voltage Range: MIN: 2S LiPo, MAX: 6S LiPo (25.2V)
• BEC Specifications: Adjustable to 5.5V, 6.0V, 7.5V, or 8.0V (8A Peak), default 5.5V
• Operating Environment: Waterproof* design allows use in nearly any environment (*See Product Use Statements)
• Brake: Proportional
• Reversible: Yes, with lockout
• On/Off Switch: Yes
• ESC Cooling Fan: 30mm, factory-equipped, fully removable and replaceable (**See Product Use Statements)
• Size (L × W): 5.3 × 4.9 cm
• Weight (with wires): 111.1 g
• Application Guidelines: Up to 6S (25.2V) operation in vehicles weighing less than 15 lbs, with batteries, ready-to-run
• Items Needed for Operation: Battery connector required; Castle 6.5mm connectors recommended
