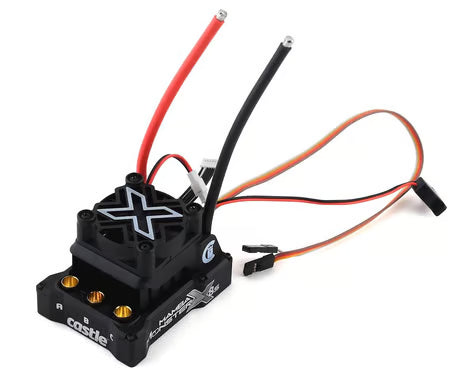

Castle Creations - Mamba Monster X 8S 1/6 Brushless ESC

The Castle Creations Mamba Monster X 8S 1/6 Brushless ESC features CRYO-DRIVE™ - Castle’s latest break-through technology. CRYO-DRIVE minimizes the amount of time the ESC’s electrical components spend generating heat. This proprietary software advancement works in parallel with a unique open housing design and a forged elliptical fin heatsink to allow increased directional airflow to cool critical components. Combine this with a high speed 40mm fan  and you have a design that maximizes airflow through the system, taking thermal performance to the next level. The results are cooler ESC temperatures, increased runtime and more power handling.

Features

• Input voltage range 2S-8S LiPo
• Sensored, Sensorless and SmartSense™ running modes
• Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
• Premium forged heatsink with elliptical fins for superior airflow and increased heat dissipation
• Oversized factory equipped thermally controlled 40mm fan
• Waterproof design for all weather conditions


Specifications

• Application Guidelines: 1:6 scale RC hobby vehicles weighing up to 25 lbs
• Running Modes: Sensored, Sensorless, and SmartSense™ (when paired with a Castle 4-Pole 12-Slot sensored motor)
• Input Voltage Range: MIN: 2S LiPo, MAX: 8S LiPo (33.6V)
• BEC Specifications: Adjustable to 5.5V, 6.0V, 7.5V, or 8.0V (8A Peak), default 5.5V
• Operating Environment: Waterproof design for use in nearly any conditions
• Brake: Proportional
• Reversible: Yes, but may be disabled for racing
• On/Off Switch: Yes, waterproof
• Cooling Fan: 40mm factory-equipped, fully removable
• Size (L × W × H): 69.5 × 54.1 × 47 mm
• Weight (with wires): 5.75 oz (163 g)
