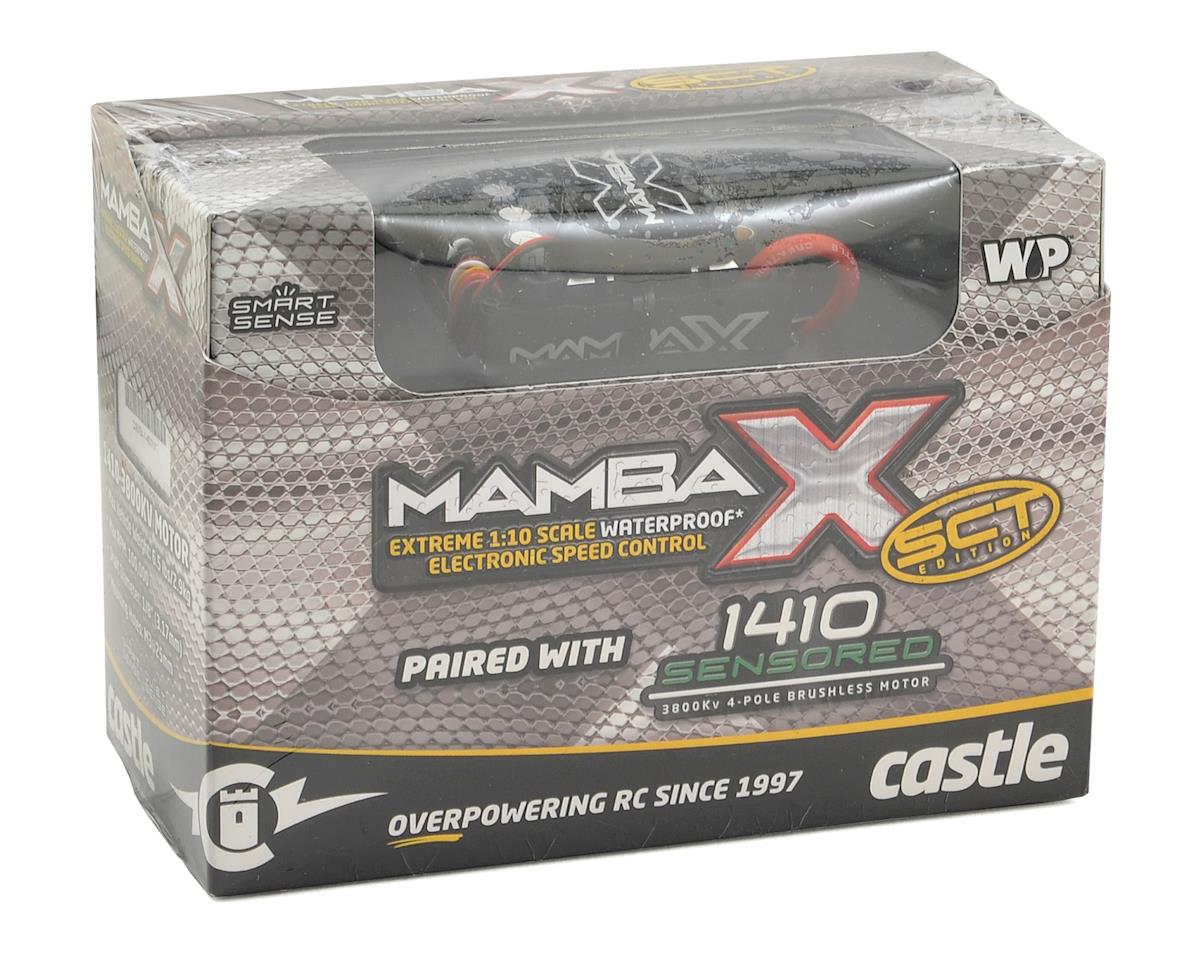

Castle Creations - Mamba X SCT 1/10 Brushless Combo w/1410 Sensored Motor (3800kV)
Castle Creations - Mamba X SCT 1/10 Brushless Combo w/1410 Sensored Motor (3800kV) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

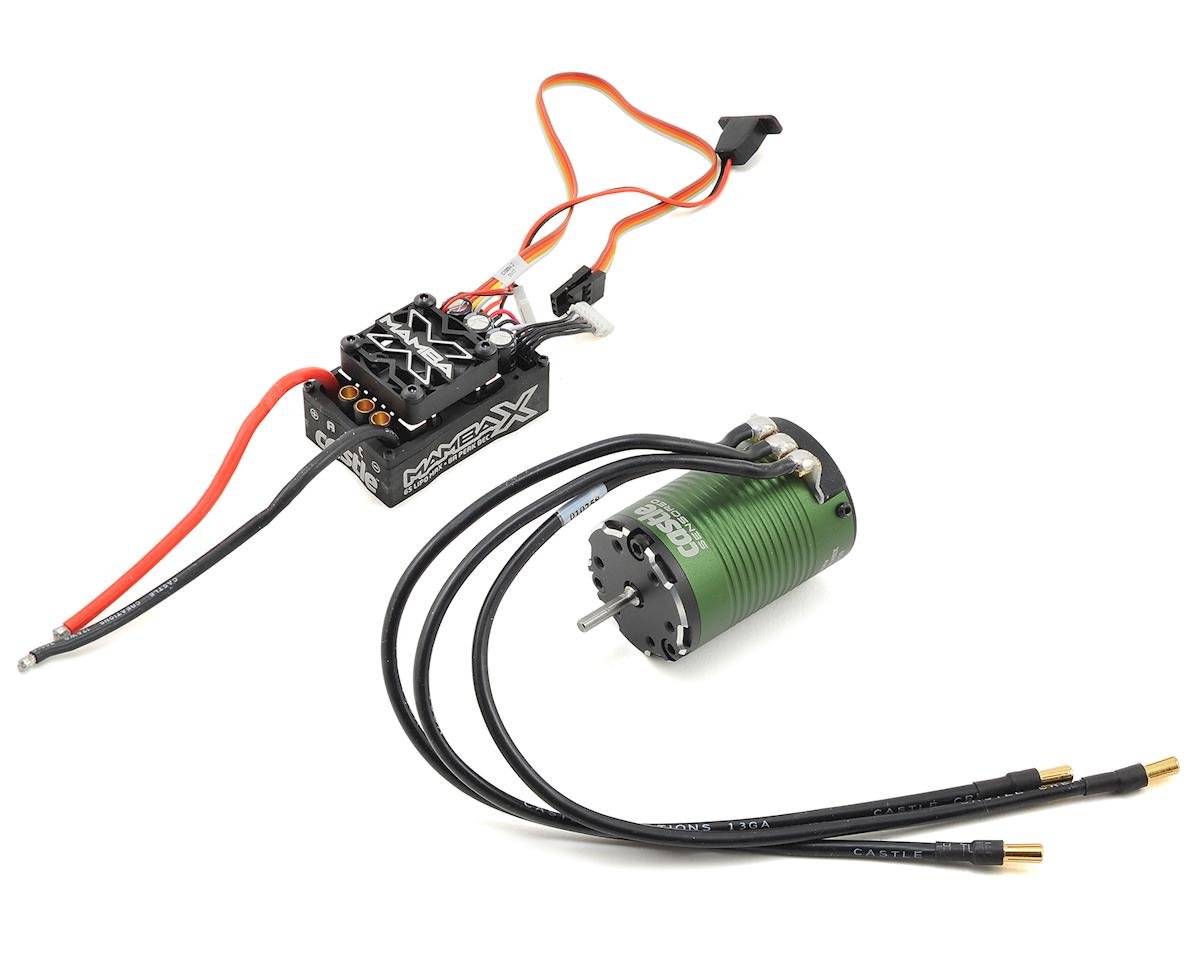

The Castle Creations Mamba X SCT 1/10 Brushless Combo includes the Mamba X, with the awesome 1410 Sensored motor to create a all in one system perfect for 1/10 scale 2WD and 4WD SCT up to 6.5lb (2S) as well as 1:10 scale buggies and stadium trucks up to 4lbs (2S-3S).
The Mamba X is going to shake things up. Extremely versatile, and capable of powering a wide variety of applications and vehicles the Mamba X is ideal for racing at the track with your 2wd buggy, bashing through mud puddles in your monster truck, or navigating a hardcore trail with your crawler. The high performance Mamba X includes an integrated and powerful 8A adjustable BEC and can push the most extreme 1/10th scale setups and 1/8th scale race buggies.
Features
ESC:
- Wide 2S to 6S input voltage range

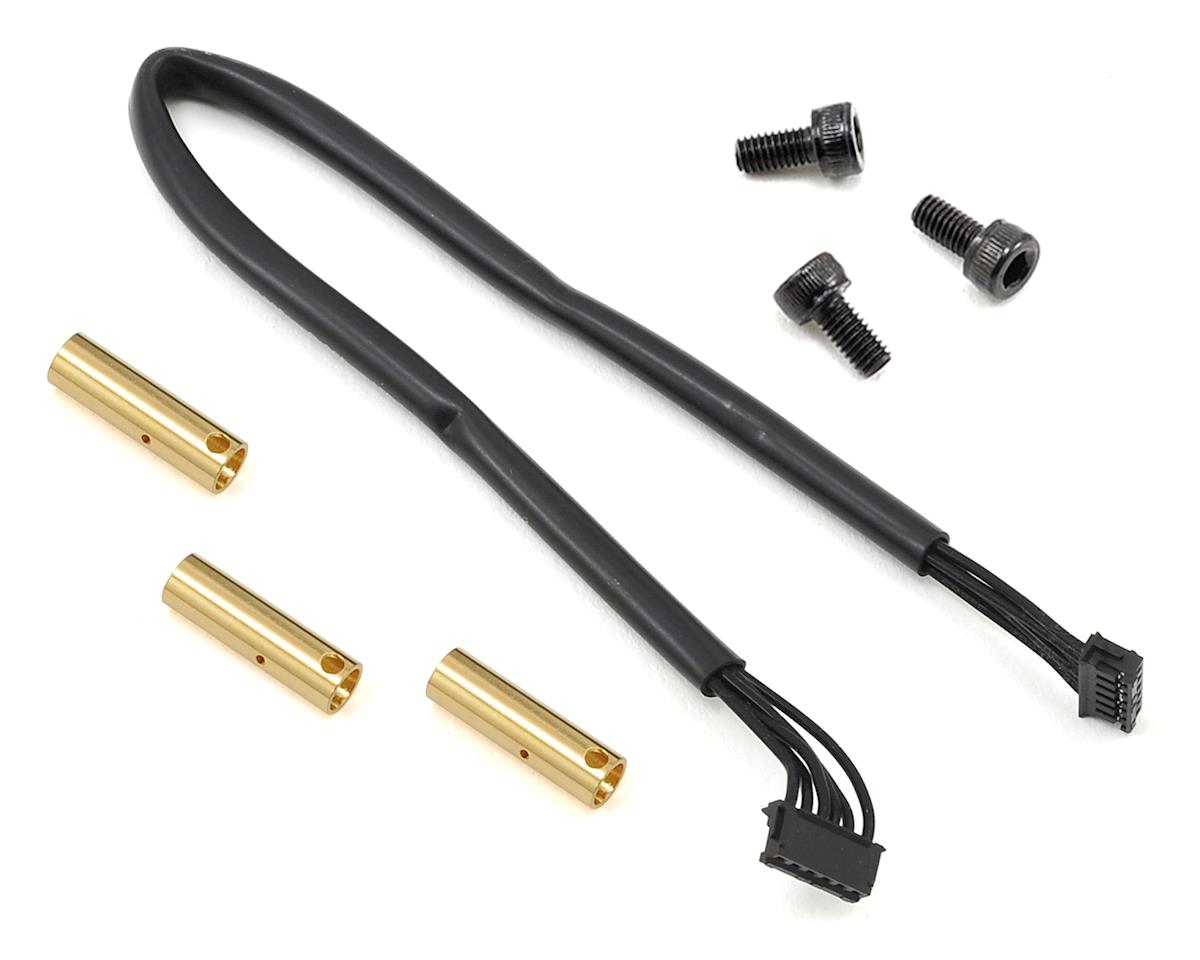

- Sensored Motor Support (Castle X-Series Sensor Harness Included)
- Waterproof
- 8A Adjustable BEC (5.25V-8.0V)
- Data-logging
- Rugged CNC Aluminum Case
- Castle Link Programming Support
- SmartSense™
- Integrated Capacitors
Motor:
- 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT
- Oversized gold plated solder tabs for LESS RESISTANCE and easy soldering
- QUIETSENSE™ Technology shields magnetic field noise generated from the motor coils and keeps motor and ESC in sync at all times
- HIGHER PRECISION and MORE EFFICIENT startups
- OPTIMIZED design eliminates the need for mechanical timing adjustments
- Sensor alignment method delivers uniform timing and torque in both directions, automatically
- REBUILDABLE design allows users to replace front end bell with bearings or rotors with shaft
Specifications
ESC:
- Input Voltage Range: 2S LiPo (7.4V) to 6S LiPo (25.2V)
- BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
- Operating Environment: Waterproof* design allows for use in nearly any environment.
- Brake: Proportional
- Reversible: Yes, but may be disabled for racing.
- On/Off Switch: Yes
- Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
- Size (LxWxH): 2.14x1.39x1.18" (54.4x35.2x30.0mm)
- Weight (with wires): 3.56 oz. (101g)
- Connectors: 4.0mm female bullets for motor connection.
-
Items Needed for Operation: Battery Connector

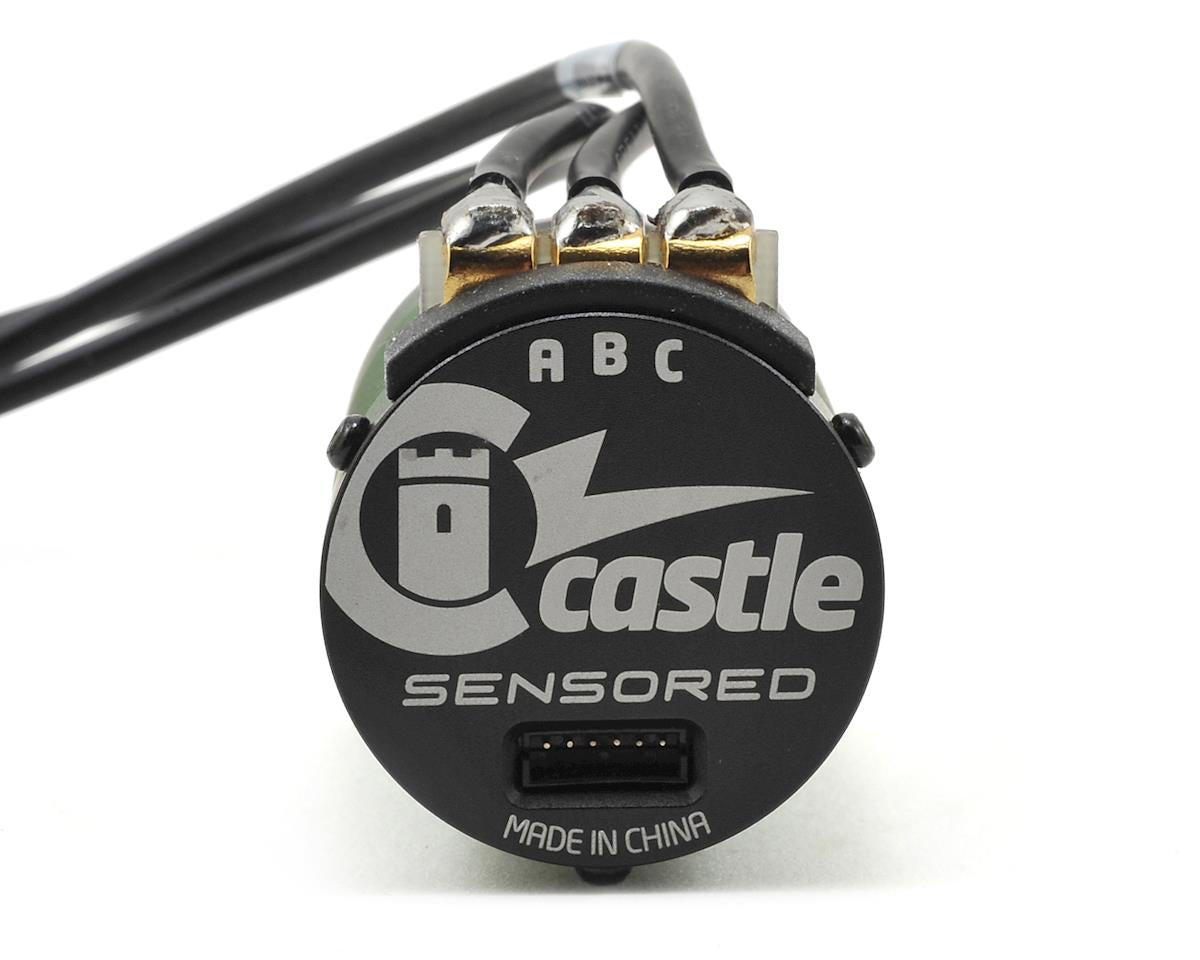

Motor:
- Input Voltage Range: 2-3S LiPo
- Kv: 3800
- Max. RPM: 100,000
- Length: 52.7mm
- Diameter: 36mm
- Weight (w/wires): 237g / 8.4oz
- Shaft Length: 15mm
- Shaft Diameter: 1/8" (3.17mm)
-
Mounting Hole Specifications: M3 @ 25mm
Castle Creations - Mamba X SCT 1/10 Brushless Combo w/1410 Sensored...
